Model: M1004

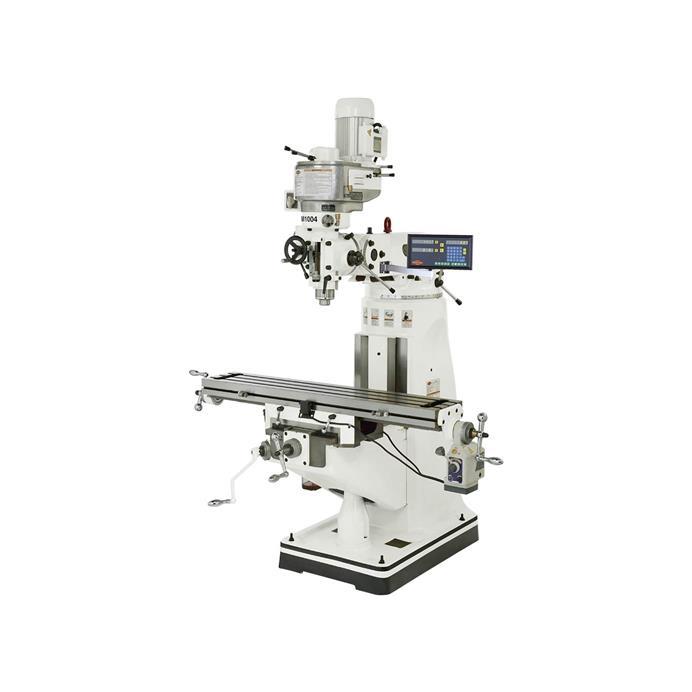

The Shop Fox M1004 weighs in at over 2400 lbs of cast iron and hardened precision ground steel. Model M1004 has the size and stability to handle the toughest jobs. With a 2 HP motor driving 8 speeds from 78 to 2400 RPM, 3 speed quill feed with a micrometer depth stop and auto reverse, and a variable speed longitudinal power feed, this machine has the ability to do the most complex and precise jobs. This brute has both power and finesse! For added performance, the M1004 includes a 2 axis digital readout with up to 5µm resolution, machine error compensation, absolute/incremental coordinate display, arc/line of holes/angled cut functions, and 199 user defined datum points. Order yours today!
KEY BENEFITS • Auto down feed • Longitudinal power feed • One-shot pump lubrication • Hardened and ground table surface • Auto stop with micro adjustable stop • Chrome plated, precision-ground quill • Adjustable micrometer quill depth stop
Show more
• 18" Swing • Speeds: 8 • R-8 spindle • Knee travel: 16" • Spindle travel: 5" • Table size: 9" x 49" • Table travel (cross): 12" • Head tilt: 45° both ways • Head swivel: 90° both ways • Table travel (longitudinal): 27" • Max. dist. spindle to table: 18-3/4" • Max. dist. spindle to column: 18-1/2" • T-slots: 3 on 2-1/2" centers, 1/2" studs • Quill feeds/spindle rev.: .0019", .0035", .0058" • Motor: 2 HP, 110V/220V, single-phase, TEFC, pre-wired to 220V • Range of speeds: 78, 98, 197, 278, 670, 850, 1700 and 2400 RPM
• Download the spec sheet HERE • Download the manual sheet HERE • Download the parts list sheet HERE
• Approximate shipping weight: 2465 lbs • CA, CT, LA, MD, MA, RI, TN • Additional shipping fees apply when sent to above states • Shop Fox prohibits drop shipping to these states. Orders to these states will be shipped to Redline and then to you • Shipments to all other 41 continental states will incur no extra fee • Free shipping is to a commercially zoned business with a forklift or to nearest LTL truck terminal for local pick up
