SWAG Automotive Gauges Knock Out Punches

Model: SWAG-KOAG

Brand

Shipping upgrades offered in cart page

$199.95

Description

Have you tried to install a set of automotive gauges in your custom hand made dash only to find out that they don't make the hole saw the size you need? Problem solved! These knock out punches are compatible with off the shelf aftermarket automotive gauges.

Are you looking to increase the speed and accuracy when cutting holes in plate steel, clean up the quality of the cut, or have you tried using a hole saw only to have it catch and "walk" across your work piece, effectively destroying your dash?

The SWAG knock out punches can effectively eliminate all the problems commonly associated with inexpensive hole saws. The SWAG knock out punches are capable of cutting up to .1875" aluminum and or .125" mild steel, .083" chromoly, & .083" stainless.

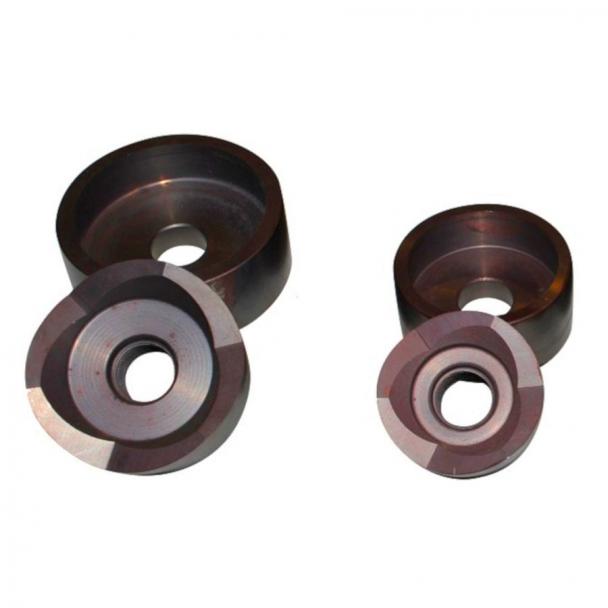

Made in the USA out of domestic steel. These knock out punch dies are CNC machined out of 4130 quenched and tempered chromoly steel then heat treated, hence their brownish/orange tint. Simply put, these punches are the highest quality dies that we can produce.

These knock out punches are pressed together using a 10 Ton Hydraulic Knockout Punch Driver as shown in the 2nd picture above. Not sure what one is? Check out Ebay or Harbor Freight, they sell for ~$100.00 shipped to your door step and they are a real time saver if you are dimpling a large number of items or hard to reach dimple die locations. It includes a manual hand pump to apply hydraulic pressure to the punch set. The knock out punch set is a quality product and we have dimpled thousands of holes for years using this set up.

NOTE: ONLY PUNCHES ARE INCLUDED IN THIS, NOTHING ELSE IN VIDEO IS INCLUDED

KEY BENEFITS

• Made in the USA
• CNC machined out of 4140 quenched and tempered chromoly steel
• Available in either 2-1/16" or 2-5/8" to accommodate most aftermarket gauges

Show more

Specs

• 2-1/16" or 2-5/8"





















Shipping

• Ships via USPS
