SWAG TIG Turret Rotary Weld Positioner

Model: MWP65###

Please Choose:

Optional Accessories

A generic image

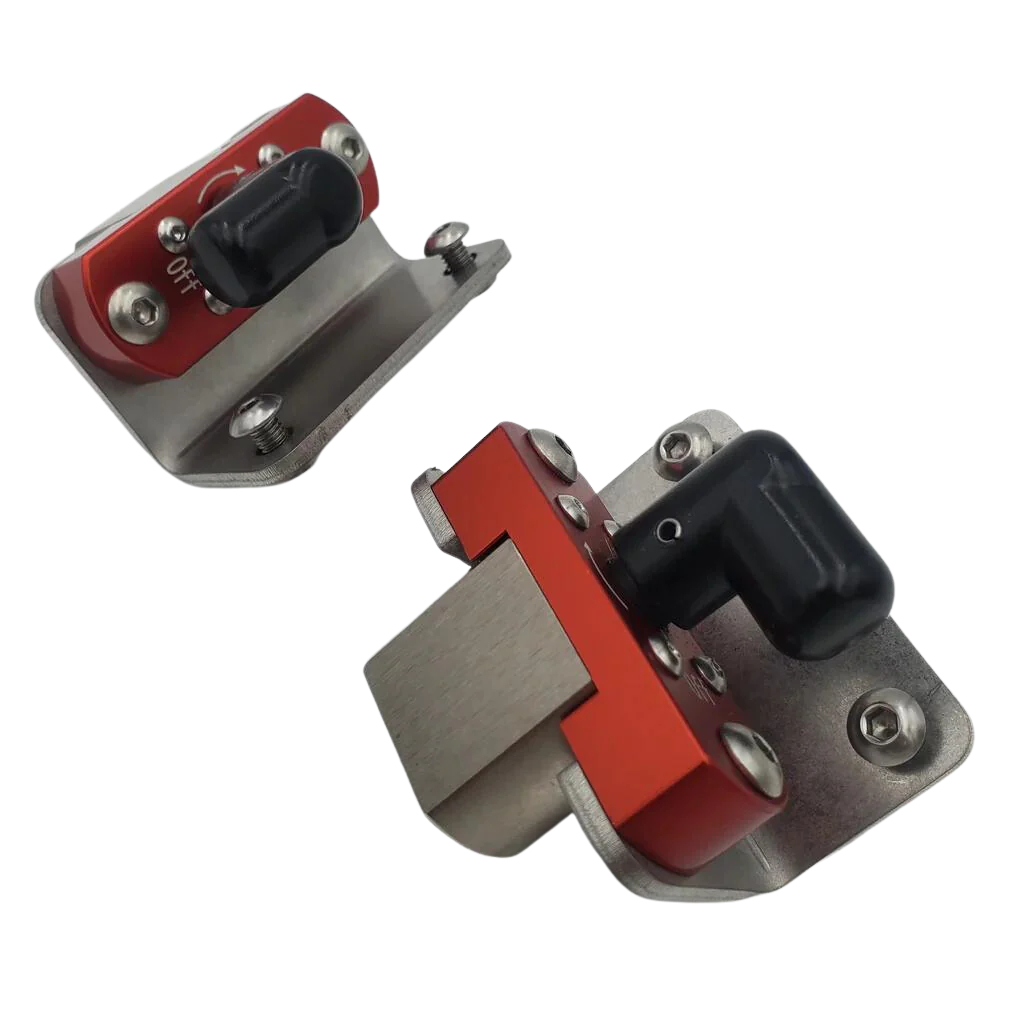

Switchable Magnet Upgrade Kit
Brand

$1,229.50
delivery icon

Usually Ships Within

24-48 Hrs

Description

The TIG Turret is a compact, variable-speed, precision rotary welding positioner and turntable made in the USA by Artifact Fabrication We fine-tuned a speed range specific to precision TIG-welding of parts up to 4" in diameter. Our design operates smooth and stepless for a consistent weld. One-of-a-kind compact design minimizes bench and storage space without sacrificing the torque and speed control needed for precision projects. This machine is truly a portable device, equipped with a convenient carrying handle and operating from a 12VDC input. When used with the correct power adapter, this machine can be operated anywhere in the world; in the field, powered by vehicle, or by battery. We include a standard 2-prong 120V power adapter, designed to work with standard U.S. house plugs. The TIG Turret was designed, developed, and rigorously tested within our very own high volume production shop. You will not find a better machine for the money - we designed the TIG Turret to meet a highly competitive price point, meeting the needs of fabricators who demand consistency, quality, and reliability without breaking the bank. The PRO model upgrades almost every mechanical component on this machine to give serious fabricators the do-it-all support they need for heavy-duty tasks. Order yours today!

KEY BENEFITS
• Precision 3 jaw chuck
• Optional magnetic base
• Variable-speed control knob
• Optional purge kit for PRO model only
• Large steel lug for your welders ground clamp
• Handle for convenient carrying and transportation
• Momentary on/off foot switch (not variable speed foot pedal)
• Simple control interface makes adjustments easy while wearing gloves
• Directional control switches from clockwise to counter-clockwise rotation
• Includes heavy-duty, momentary, on/off foot pedal switch with 8′ long cord
• Anti-slip rubber feet on base for vibration resistance and machine protection
• Heavy-duty formed-steel construction, powder coated "Texture Black" for durability and a brilliant look!
• “Jog” Button for quick re-positioning; useful for setting rotation speeds or re-positioning parts without foot pedal
• Entire machine rotates from horizontal to vertical for various welding positions and is locked in place with a pin in 22.5 degree increments

Show more

Specs

• 47kg-cm / 41lb-in rated torque
• Variable shaft speed from .3 to 3.3 RPM
• Internal clamping range of 1.18″ to 3.15″
• External clamping range of .078″ to 3.54″
• 30lb. rated capacity (in the vertical position)
• Standard rated 80A continuous / 130A peak welding current
• PRO model rated 300A continuous / 400A peak welding current
• 12VDC 2A input – 120VAC with supplied adapter (international adapters available)
