Redline RE48 Abrasive Media Blasting Cabinet - FREE Wheel Stand

Model: RE48 (SBC420)

(2 reviews)

Please Choose:

Optional Accessories

A generic image

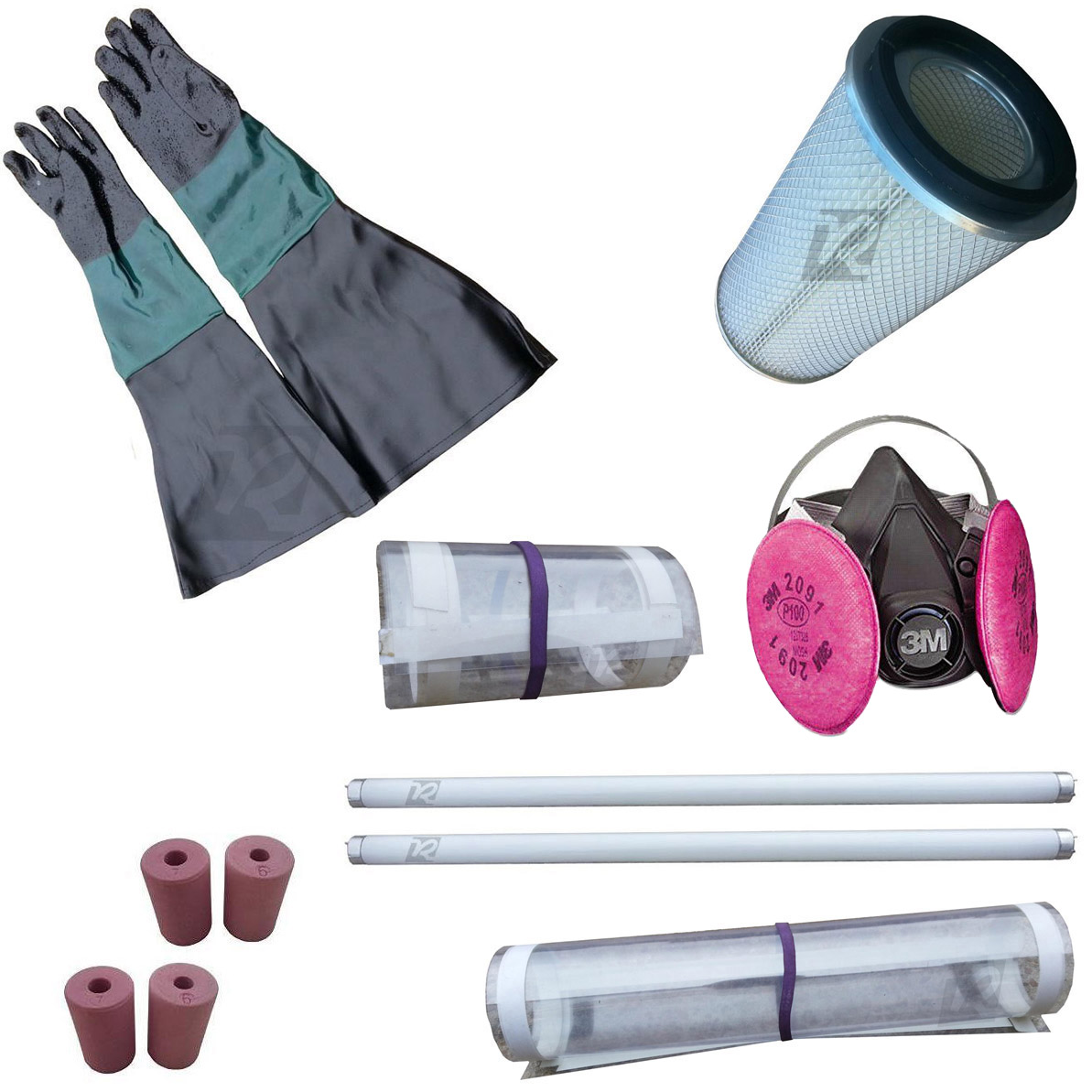

RE48 Accessory Package Deal

A generic image
Extra Nozzles (4)

A generic image
Protective Respirator

A generic image
Replacement Pair of Large Fluorescent Bulbs

A generic image
Extra Repl View Screens (5)

A generic image
3/8" Air Hose Reel (RE-AR)

A generic image
Extra Repl Lamp Screens (5)

A generic image
Extra Pair of Gloves

A generic image
Extra Repl Vac Filter

A generic image
SMC 1/4" Hi-Flo Water Separator (SBC-WS-HF)

A generic image
Air Blow Gun Kit

A generic image
3 x 50 lb. Bag 70/100 Grit Glass + 1 Bag Free (TRU-GM)

A generic image
50 lb. Bag of 70/100 Grit Glass Media (TRU-GM)

A generic image
50 lb. 40-70 Grit Premium 10X Media

A generic image
Blast Media Strainer Filter

A generic image
Upgrade to long-reach fleece-lined gloves (6532/12RC)
Brand

Shipping upgrades offered in cart page

Reg. $1,899.50 Sale price $1,699.50
11% off
box icon

In Stock in

Pensacola
delivery icon

Usually Ships Within

24-48 Hrs

Description

The Redline Engineering sand blast cabinet is brute force sand blasting meets creature comforts. This massive 65.5" tall sand blasting cabinet features a vacuum dust filtration system, triple access doors, double fluorescent bulbs, and a foot operated feed control. It's got all the size you'll ever need to restore even the biggest of jobs. Order yours today!

KEY BENEFITS

• Covered by Redline's 1-Year parts warranty (Excludes consumables)
• Powder coat finish
• 2 fluorescent lights
• Built-in air regulator
• Built-in air/bead mixing valve
• Vacuum dust filtration system
• 2 side doors with 3rd front door

WARRANTY
• 1 year warranty on cabinet
• Items considered to be consumable not covered under warranty: nozzles, filters, hoses, etc.

RECOMMENDED MEDIA
• Cannot use walnut shells
• 10X media, glass bead, crushed glass, emery, plastic sand - size 40-120 mesh
• Use of silicone carbide, aluminum oxide and other non-recommended medias will substantially decrease life of all media-flowing components

PROTECT YOURSELF
• Beach/play sand should NOT be used
• Prevent silicosis via respirator
• Learn more about Silicosis HERE

MAINTENANCE
• Redline recommends cleaning your sand blast vacuum filter every 3 hours of use and replacing every 30 hours of use in order to avoid premature failure of the electric vacuum motor



Show more

Specs

• 125 psi max
• 120V vacuum
• 14g steel legs
• 24" long gloves
• 16g steel panels
• Requires 18 - 24CFM
• 65.5" x 53" x 35" erected
• Viewing window 22" x 10"
• Inside working area is 47.5" W x 24" D x 22" H
• Vacuum housing protrudes away from cabinet 12"

Downloads

• Download the manual pdf HERE
• Download our media tips sheet HERE

Shipping

• Residential deliveries cost extra
• Ships 319 lbs at 49" x 49" x 30" class 110
• Free shipping to a business with forklift on site*
• Local dock pickup saves residential delivery fees
• Units available in Pensacola, FL with $150 shipping refund
• Free shipping applies to $200 maximum.  If shipping exceeds this amount a surcharge may be needed



Videos

Reviews

4.5 / 5 (2 reviews)
Based on 2 Reviews Write review
  • Aug 19, 2026

    works great

    Aug 19, 2026
    Ordered mine with the accessory kit. Unit showed up much faster than I had anticipated and was crated up really well. So far everything works amazing I just need more stuff to clean!
  • Jul 24, 2026

    RE48 Blast Cabinet Review

    Jul 24, 2026
    Hello, I have not yet put this cabinet into operation but have unpacked it and assembled the unit. Everything was well packed and undamaged when received and the only missing component was one of the side door hinge pins, which was a minor thing, and I just replaced the missing pin with a 1/4" bolt I had laying around. The rest of the parts were there, packed well and assembly was pretty much as you would expect from a Chinese made product. The instructions were a bit vague but with a little knowledge of how one of these cabinets looks was no problem to work around. Everything looks good and I should be putting the cabinet into use in the next week or so.

Ask & Answer

  • Sweet Ronnie Oct 23, 2023
    Q. Can a 15.2 to 15.6 cfm comp run this cabinet?
    A. Continuously? No sir. You'll find yourself having to stop and let the compressor catch up, recharge the tank, and then return to blasting. You'll need at least a 5 Hp air compressor in order to have a fighting chance. Please notice in the specs tab, it says, "Requires 18 - 24CFM" Thanks for shopping with us!
  • James Mar 09, 2023
    Q. Will the RE48 run Alum/Oxide 220 grit material / or will I need a differant nozzel design? Who do I contact for get a formal email quote
    A. You can run A.O. in the RE48, but you'll replace the gun periodically because that media will wear it out faster than most other medias. 220 is quite fine. We’d recommend trying the 6mm that comes with the cabinet, and if that’s too big, which is likely to be the case, try something smaller like maybe a 4mm BORON NOZZLE and see how that works. Thanks for shopping with us!
  • Artimus Oct 03, 2021
    Q. no question at the moment, just wanted to say i have enjoyed your videos.... very informative. Thanks
    A. Thanks Artimus! You wouldn't believe the amount of time it takes to make our product videos. Glad to hear they're useful.
