Redline RE48CS Clam Shell Abrasive Sand Blaster Cabinet

Model: RE48CS (SBC420II)

(1 review)

Optional Accessories

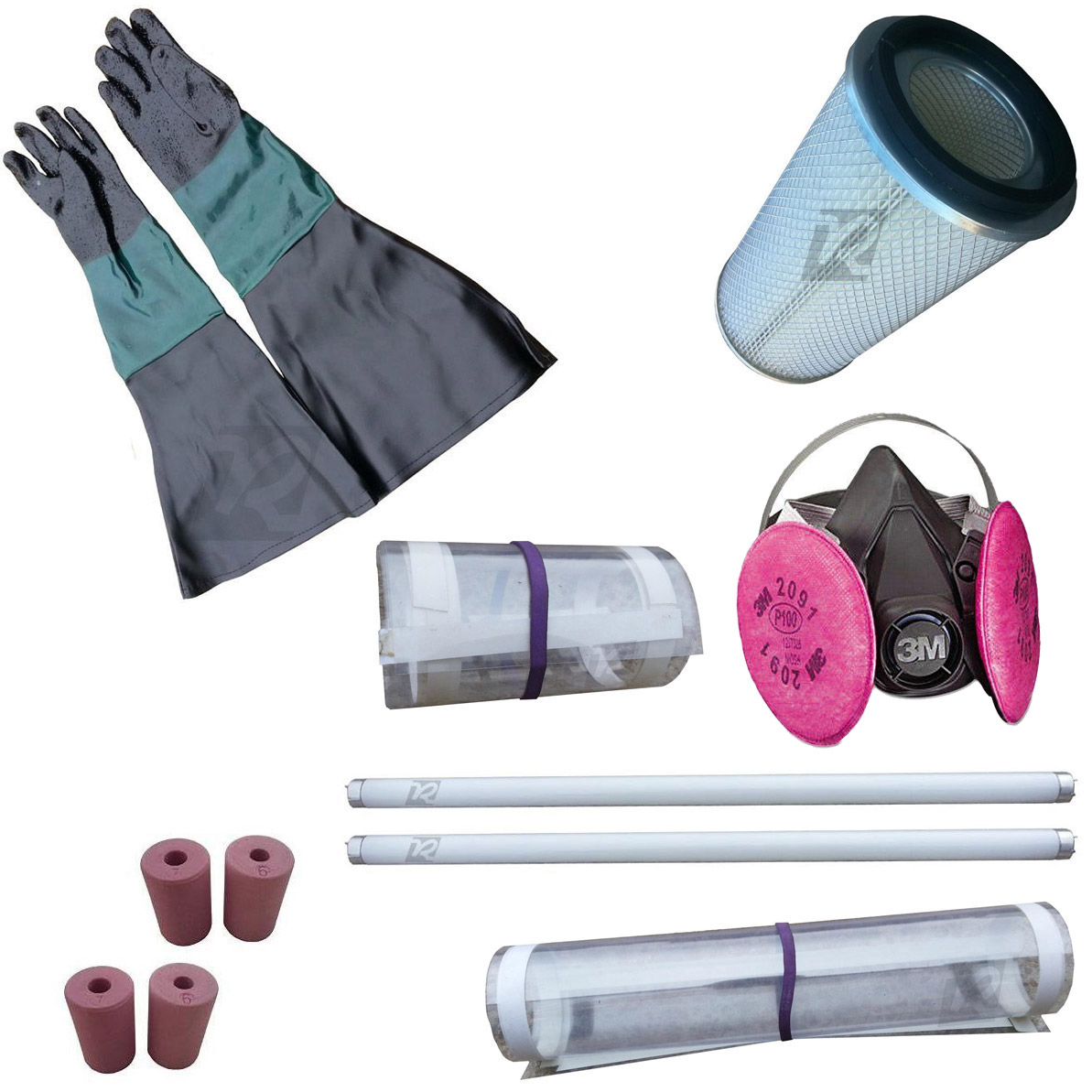

RE48CS Accessory Package Deal

Extra Nozzles (4)

Protective Respirator

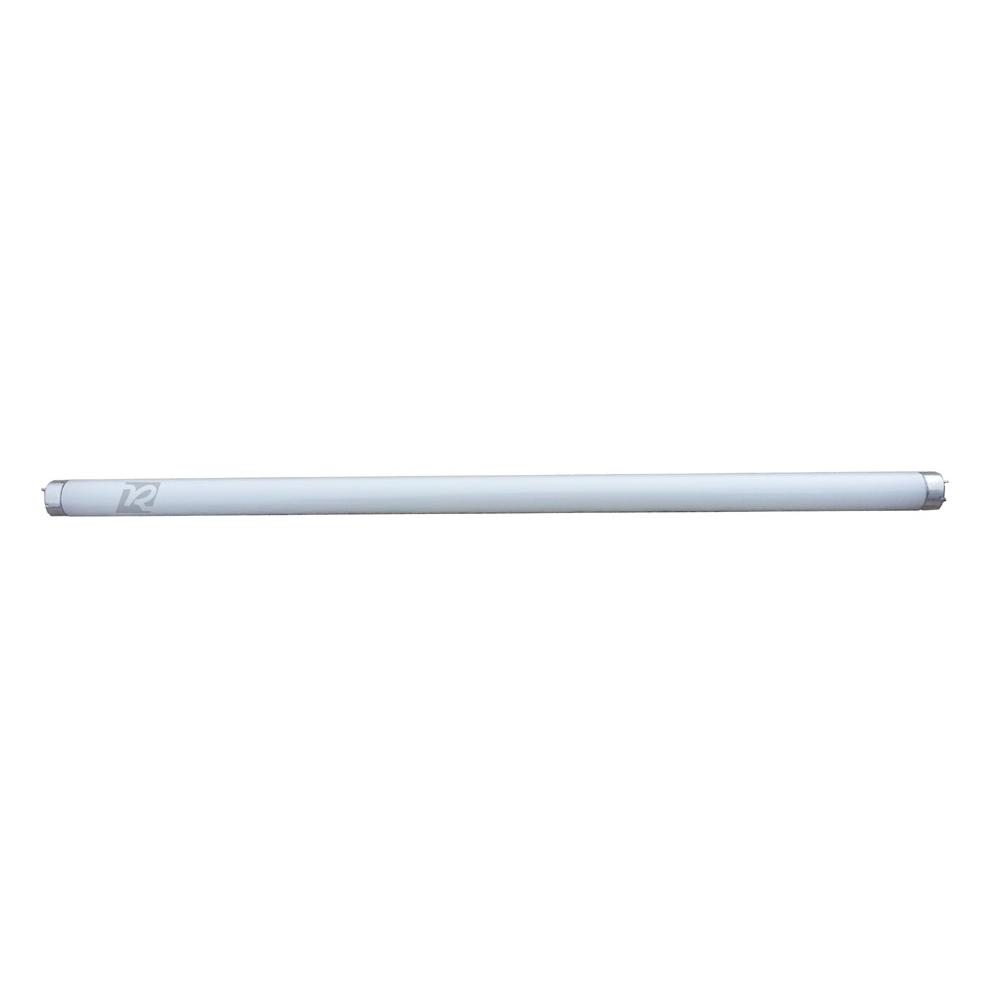

Replacement Pair of Large Fluorescent Bulbs

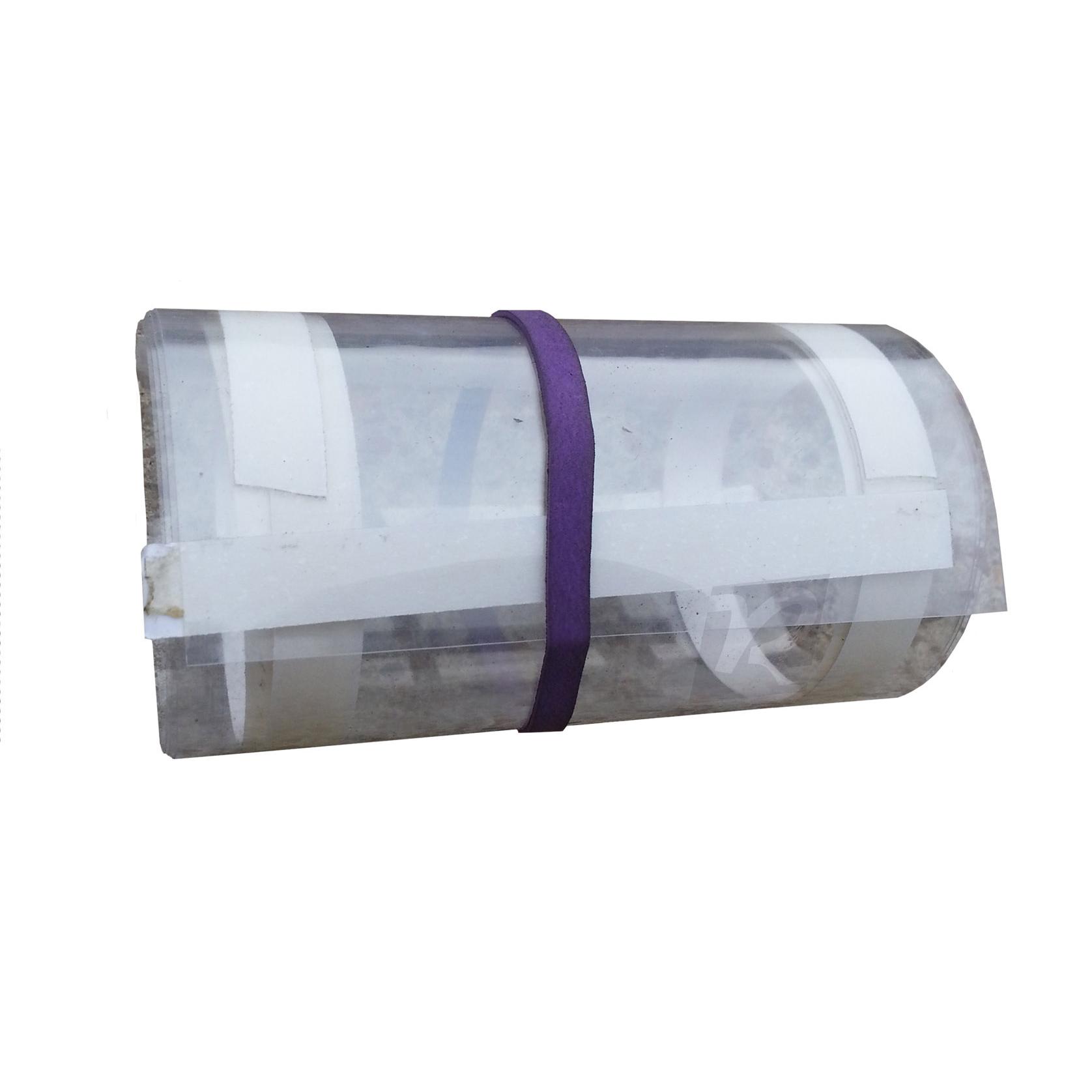

Extra Repl View Screens (5)

Extra Repl Lamp Screens (5)

Redline RE-AR 3/8" Air Hose Reel

Extra Pair of Gloves

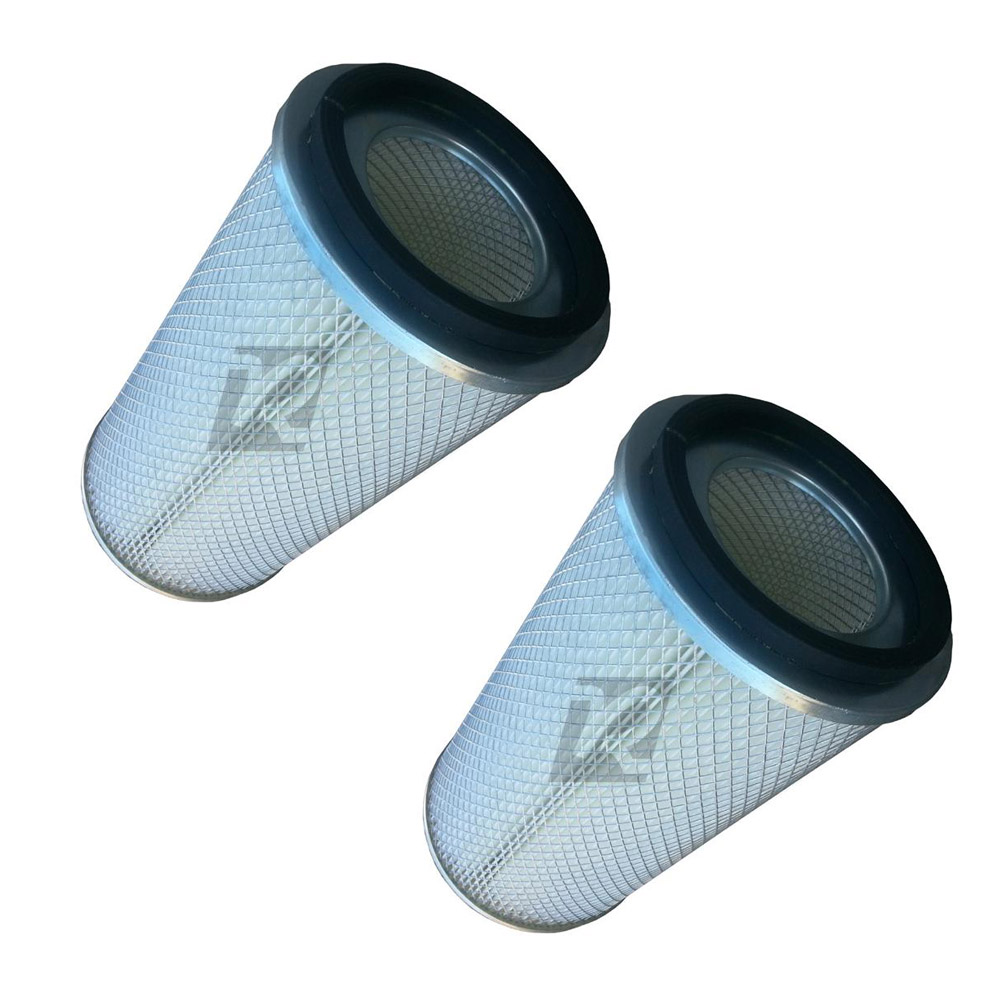

Extra Repl Vac Filter

SMC 1/4" Hi-Flo Water Separator

Three 50 lb. bags of glass media + 1 bag free

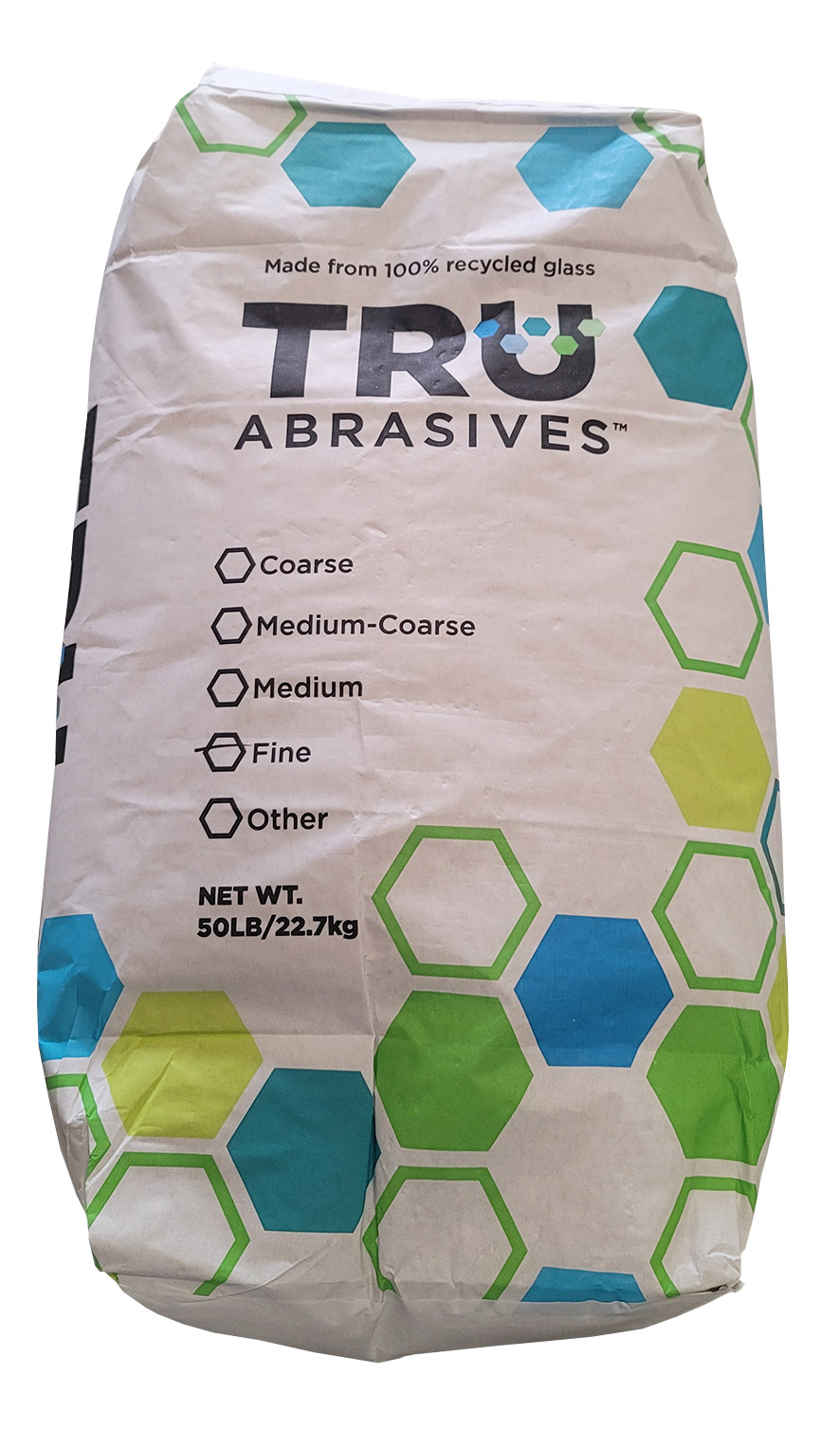

50 lb. Bag of Glass Media

50 lb. 40-70 Grit Premium 10X Media

Blast Media Strainer Filter

Upgrade to long-reach fleece-lined gloves (6532/12RC)

Shipping upgrades offered in cart page

Reg. $1,799.50 Sale price $1,599.50
11% off


The Redline Engineering RE48 clam shell sand blast cabinet is brute force sand blasting meets creature comforts. This massive 65" tall sand blasting cabinet features a vacuum dust filtration system, clam shell opening, double fluorescent bulbs, and a foot operated feed control. It's got all the size you'll ever need to restore even the biggest of jobs. Order yours today!

• Powder coat finish
• 2 fluorescent lights
• Built-in air regulator
• Vacuum dust filtration system
• Gas shock system for clam shell

• 1 year warranty on cabinet
• Items considered to be consumable not covered under warranty: nozzles, filters, hoses, etc.

• Glass bead
• Cannot use walnut shells
• Use of silicone carbide and aluminum oxide will substantially decrease life of all media-flowing components

• Beach/play sand should NOT be used
• Prevent silicosis via respirator
• Learn more about Silicosis HERE

• Redline recommends cleaning your sand blast vacuum filter every 3 hours of use and replacing every 30 hours of use in order to avoid premature failure of the electric vacuum motor


Show more


• Hose 42"
• 125 psi max
• 120V vacuum
• 14g steel legs
• 24" long gloves
• 16g steel panels
• Requires 18 - 24CFM
• Window dims 22" x 10"
• 40-1/4” wide door opening
• Overall dims 46" W x 65" H x 36" D
• Working dims 46" W x 22" H x 23" D
• Outside strut to strut distance: 48-3/8"
• Vacuum housing protrudes away from cabinet 12"


• Residential deliveries cost extra
• Ships 363 lbs at  49" x 26" x 50" class 110
• Free shipping to a business with forklift on site*
• Local dock pickup saves residential delivery fees
• Pensacola, FL pickups – read our policies HERE
• Units available in Pensacola, FL with $150 shipping refund
• Free shipping applies to $200 maximum.  If shipping exceeds this amount a surcharge may be needed



4.0 / 5 (1 review)
Based on 1 review Write review
  • Larry May 24, 2023

    Decent bang for the buck

    May 24, 2023
    Started a smithing company 3 years ago with a desk top HF sand blaster. It worked pretty good and got me built up in business so I needed a biigger cabinet. Went to RL an found this one. It was kind of frustrating to get start at first but the guy at Redline was Johnny on the spot and got be up in no time. Great customer service after the sale.

Ask & Answer

  • Jacko Nov 06, 2023
    Q. Looking into purchasing the re48cs blasting cabinet and was wondering how much weight it could hold.
    A. We recommend staying shy of 100 lbs. As you start getting up around 75 lbs, it'll hold the weight, but it'll start to bow the grate that the workpiece sits. Thanks Jack.
  • Zack Jul 06, 2023
    Q. If I order this machine, when would I get it?
    A. Hi Zack. That depends sir, as you did not say where you were. If you're close to FL, then probably 2-3 days. If you're out West and the carrier is delayed, maybe 10-12 days. Just keep something in mind. Once we put your freight on the truck, it's out of our hands and we have no ability to make the carrier speed up. LTL freight carriers, all of them, do not guarantee their transit times, so however long it takes is however long it takes. Thanks for shopping with us!
  • Dustyah Jun 13, 2023
    Q. How much media/sand min max plz
    A. 40 pounds of media is what we have found to work best. You can likely go a little less than that, but if you exceed 40 pounds or go too low, you may experience flow problems. Thanks for reaching out Dustyah!
  • Rodney Aug 25, 2021
    Q. Do you have replacement glass for the RE48 Blast cabinet
    A. We don't actually sell the glass just because we have learned that it never makes it to the customer in one piece. You can actually buy it locally at most glass shops. Thanks Rodney
