RE48/70 & 48CS/49/270 Sand Blast Cabinet Replacement Gun

Model: RE48/70-Gun

(1 review)

Optional Accessories

Shipping upgrades offered in cart page

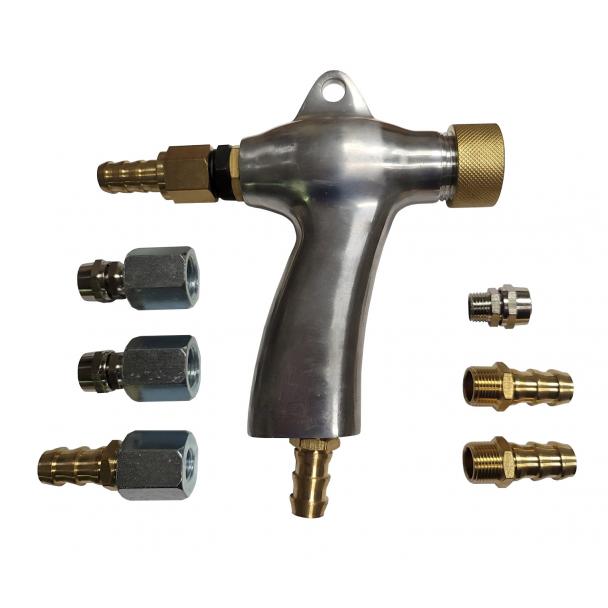

This is the factory Redline OEM RE48/70, RE48CS/49/270 replacement sand blasting gun. This high quality gun features cast aluminum construction, easily replaceable ceramic nozzle, and is universal enough to be used in most any sand blast cabinet. Order yours today!

• Cast aluminum construction
• Single 6mm ceramic nozzle included
• Factory replacement for RE48, RE70, RE48CS, RE49, RE270 cabinets

• Eastwood B100
• Grizzly G0708
• AllSource 41500, 41800, and 41200
• Atlas SBC990, SBC420, and SBC1200XL


Show more


• 18-24 cfm
• Inside diameter of hose: 1/2"
• Single 6mm ceramic nozzle included





5.0 / 5 (1 review)
Based on 1 review Write review
  • Bill w Eoff Dec 5, 2019


    Dec 5, 2019
    very good i like you telling like it is i have blasted with everything you can thank of play sand cheep garnet media seems best to me i use a fish cooker with pot to get moisture out of my cheap sand

Ask & Answer

  • Rob Aug 08, 2023
    Q. What is included with the gun, it appears you need a foot pedal, is that correct, if so is it included or extra

    Thank You
    A. It does not come with a pedal. Most people use THIS FOOT PEDAL. That’s not to say you couldn’t use a different method of controlling the incoming air. Thanks for shopping with us!
  • Alelu Jun 30, 2023
    Q. Do you ship internationally?
    A. We don't ship direct to International locations, but we can ship to a shipping forwarder of your choosing that is located in the lower 48 states of the USA and you can handle the export shipping from there. Thanks for reaching out Alelu!
  • Crotalus Apr 05, 2023
    Q. Can I use this gun with an Eastwood cabinet and do you sell a matching foot pedal for it?
    A. This replacement gun is fairly universal so we don’t see why you couldn’t make it work with your existing cabinet. You can find the pedal HERE. Thanks for shopping with us Crotalus!
  • Frank Mar 16, 2023
    Q. How would Air supply be hooked up to this gun
    A. The barb fitting on the back of the gun is the air inlet. You will use a 1/2" ID air hose to run from the foot pedal to that barb fitting. The barb fitting on the bottom of the gun is where your media hose will connect. Thanks for reaching out Frank!
  • Rick Nov 18, 2022
    Q. What is the CFM requirement for this gun?
    A. You're looking at 18-24 CFM. I can tell you from personal experience that my 5hp 17 CFM cabinet at home does a pretty decent job of running it with a 7mm nozzle. Thanks for your question!
