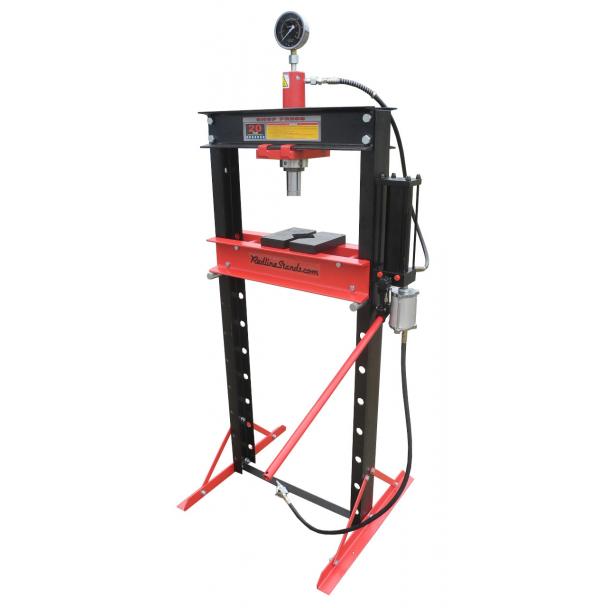

Redline 20 Ton Air Hydraulic Shop Press

Model: RE20T-A

(3 reviews)

Optional Accessories


Redline RE-AR 3/8" Air Hose Reel


Pin Press Kit


SMC 1/4" Lo-Flow Water Separator


Extra Pair Of Press Plates


Shop Press Foot Pedal
Brand
Type

Shipping upgrades offered in cart page

$799.50

Description

This industrial Redline 20 ton hydraulic shop press is an air over hydraulic pressing machine perfect for manufacturing, auto repair, or general mechanical work.  It features a pump capable of manual operation, as well as it can be powered via compressed air. Standard features include a tonnage gauge, capability to move the ram cylinder from left to right, and 9 different height adjustments for both small and large projects. Order your new 40,000 pound capacity hydraulic shop press today from Redline Engineering!

KEY BENEFITS
• CE Certified
• 20 ton capacity
• Powder coated finish
• 42-3/4" movement of carriage up and down
• 9 height adjustments of 4-3/4" increments
• Ram cylinder capable of shifting both left and right
• Pressure gauge accurate +/- 2.5% of press capacity
• Air powered hydraulic cylinder for heavy duty pressing

This hydraulic shop press, commonly misspelled as a “hydrolic” press, is great for pressing wheel bearings where tons of force is needed.

PRESS PLATE RATING
• Each press plate is rated to ½ the tonnage of the press; thus, if applying the press’ maximum force, the load must be distributed over both press plates to avoid damaging the press

Show more

Specs

• Hose length 50"
• Leg length 27-1/2"
• Cylinder stroke 7.2"
• Handle length 27-1/8"
• Carriage pin diameter: 1"
• Inside frame width: 21-3/8"
• Cylinder ram diameter 1-7/8"
• Main frame is 1-13/16" x 3-7/8"
• Interior carriage width: 4-3/16"
• Internal cylinder diameter: 2.36"
• Pump fluid volume: 32.1 fl oz.
• Operates at a 75dB sound rating
• Piston retraction time: 35 seconds
• Pressure gauge accurate to +/- 2.5%
• Maximum pump pressure: 10056 PSI
• Air motor requires 7 CFM of air supply
• Cylinder piston/bore diameter: 2.3622"
• Overall dims 31-3/4" L x 27-1/2" W x 70" H
• Air pump full range without load: 52 seconds
• Middle carriage 24-3/4" L x 8-1/4" W x 4-3/4" H
• Approximate number of pumps to full range without load: 173
• Two heavy duty press plates 7-7/16" L x 3-7/8" W x 1-3/16" thickness
• Work dims between cylinder and press plates:
-Min height from cylinder: 3/8"
-Max height from cylinder: 38-1/4"

Downloads

• Download the manual pdf HERE

Shipping

• Residential deliveries cost extra
• Ships to commercial location w/ forklift
• Units available in Pensacola, FL with rebate
• Pensacola, FL pickups – read our policies HERE
• Ships 211 lbs. plus pallet at 39" W x 63" L x 16" H as 2 boxes Class 85
• Free shipping applies to $200 maximum. If shipping exceeds this amount a surcharge may be needed





Videos

Reviews

5.0 / 5 (3 reviews)
Based on 3 Reviews Write review
  • Mike Jun 18, 2024

    20 ton press

    Jun 18, 2024
    The press works better than expected. I would recommend the press to anyone looking for a great quality press
  • Ron Aug 9, 2023

    20 ton press

    Aug 9, 2023
    I was looking for a 20 ton press and came across redline stands presses. I looked at presses on ebay and amazon which looked about the same build quality but had no customer service. So I purchased a 20 ton from redline stands. The shipping and packaging was on point. When it arrived I had one question about assembly so I called customer service and got a quick and polite answer to my question. After finishing the assembly the sleeve on the bottom of the ram was threaded crooked and was not flush when I tightened it up. I call again and a video, two day after a package arrived with a new ram and the collar piece. I switched out the collar piece and it was perfect. I called and told customer service everything was fine and I would send back the ram and collar. The same day I was emailed a return label. The customer service and technical assistance was outstanding!! If your looking for a press look no further redline stands it the place. A very good press but the customer and technical support was priceless. Thank you redline stands
  • Steve Jan 31, 2021

    Love this press. It's what I expected and more.

    Jan 31, 2021
    I can't find anything bad to say about this press other than some poor grammar in the instruction documentation (not that I write any better). I paid a bit more for this model so that I'd get the sliding head, 1" cartridge pin holder, pressure gauge, and air motor actuator. I've modified the base by replacing the floor rails with a rectangular tubing frame with wheels so I that can move this around in my shop. I've also adapted a heavy duty 20 ton finger brake to this press. Customer support was responsive, friendly, and helpful with an assembly question I had.

Ask & Answer

  • Simple May 28, 2024
    Q. Regarding the free shipping. My house is 447 miles from Pensacola (I live in middle Tennessee). If within 500 miles is free why would it show a shipping charge when I try to place the order?
    A. It doesn't cost extra sir. Shipping is free to a business with forklift on site or to your local truck terminal in TN as of 5/28/24. If you're looking to have it brought to your home, the truck carrier charges extra for that.
  • Simple May 28, 2024
    Q. How do you get the free shipping that the blue truck icon shows?
    A. Sir, please notice the icon says "FREE to ~500 miles" Thus, if you're a long way away from Redline in Pensacola, FL, you'll like have a shipping surcharge to travel the extra distance. My apologies, but the only way to offer free shipping to places far out West like CA and WA is to increase the price of the product by a lot to cover the additional shipping cost, but that only punishes people close-by in states like LA and GA and so on. I hope this helps; thanks for shopping with us!
  • Landon Sep 22, 2023
    Q. What is the material of the press pins.
    A. We asked the factory and were told it's not heat treated and should be considered normal carbon steel.
  • Landon Sep 22, 2023
    Q. Can you apply different press dies to the cylinder?
    Example of a press die: https://coaliron.com/collections/dies/products/combo-dies

    and

    https://coaliron.com/collections/dies/products/squaring--
    dies

    and

    https://coaliron.com/collections/dies/products/drawing-d-
    ies
    A. I'm afraid we have no experience with die making or die pressing. We do not know sir. My apologies.
  • Landon Sep 21, 2023
    Q. Can you apply different press dies to the cylinder?
    A. I'm sorry but we do not fully understand your question. If you're talking about the different pins that can be changed out, that is done via a set screw in the ram. Thanks Landon.
