Kernel WB-CB66 Wheel Balancer

Model: WB-CB66-VE

Optional Accessories

Pit Posse 1 Quart Tire Mounting Lube

Include CB66 Motorcycle Adapter Kit

Include Universal Adapter Plate

Include Light Truck Cone Set
Truck carriers charge extra to deliver to locations that have no forklift on site, and also for any location not on commercially zoned property. This includes businesses run from your home property, and next door to it. These are not Redline’s fees and sadly they are unavoidable. All truck carriers charge them.



The Kernel WB-CB66 Wheel Balancer is a highly accurate and reliable balancing system capable of working on 28" rims. Some of its features include a user friendly LED touch panel with keypad data entry, a power saving mode for when it's left alone, as well as a laser light feature that illuminates the inside of the wheel at unbalanced weight positions. It comes with several standard accessories such as a 50g weight, wheel caliper, speed nut assembly, and more! Order yours today!

• Keypad data entry
• Power saving mode
• Multi-mode balancing options
• User friendly LED touch panel
• Convenient speed-nut mounting
• Integrated measurement acquisition wand
• 5 standard & 2 ALU smart balancing configurations
• 40mm balancing shaft provides incredible durability
• Foot pedal braking system for accurate weight applications
• Laser & Light feature illuminates inside of the wheel at unbalanced weight position
• Optional motorcycle adapter kit, universal adapter plate, & light truck cone set available
• Standard accessories include:
-50g weight
-Wheel caliper
-Speed nut assembly
-Clamp bowl / bowl edge
-Weight hammer / application tool
-Cone sets (small, medium, and large)

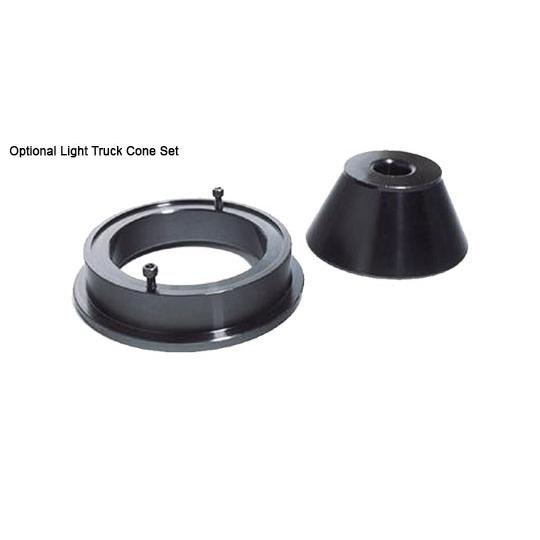

• Light truck cone set

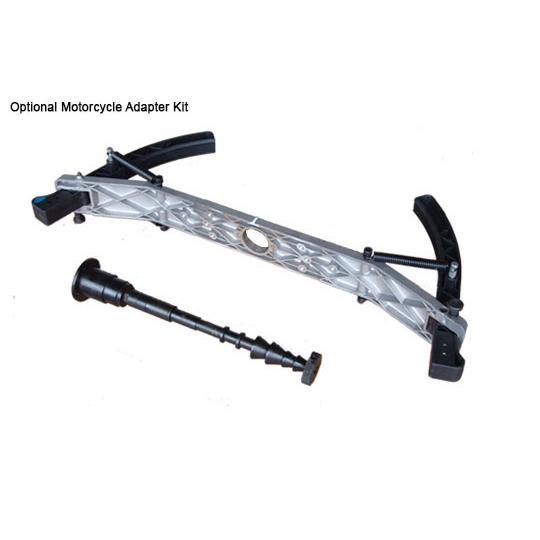

• Motorcycle adapter kit

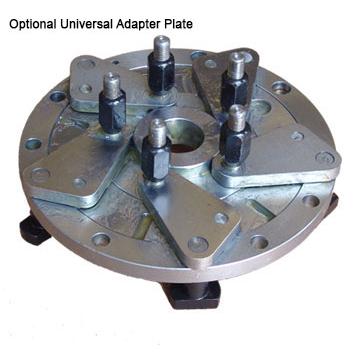

• Universal adapter plate

• Optional basic wheel weight kit includes one complete set of clip on weights for steel application on one box of adhesive weights, while the deluxe also includes one set for aluminum application

• Our supplier does not accept returns on this item
• In event of warranty claim, replacement part(s) will be sent

Show more


• RPM: 140
• Accuracy: 1 gram
• Power: 110VAC/60Hz
• Rim width: 1.5" - 20"
• Rim diameter: 8" - 28"
• Max wheel diameter: 44"
• Balancing time (seconds): 5-7
• Wheel weight capacity: 150 lbs.


• Browse the full manufacturer catalog HERE
• Download the manual pdf HERE


• Shipping weight: 352 lbs.
• Residential deliveries cost extra
• Ships free to business w/ forklift
• Can be picked up at local truck dock terminal
• Free shipping applies to $300 maximum. If shipping exceeds this amount a surcharge may be needed
• Save $150 & pickup at Cleburne, TX 76033



Ask & Answer

  • danny Sep 02, 2021
    Q. i just got one of your tire balancer do u guys have some that can come out to my shop to teach me how to us it
    A. Sorry, but no sir. You can call (877) 558-9337 and the folks in the tech department will be glad to walk you through using your "iDeal" or "Kernel" balancer, but only those two brands. You'd call a different number for any other brand balancer. Thanks Danny!
