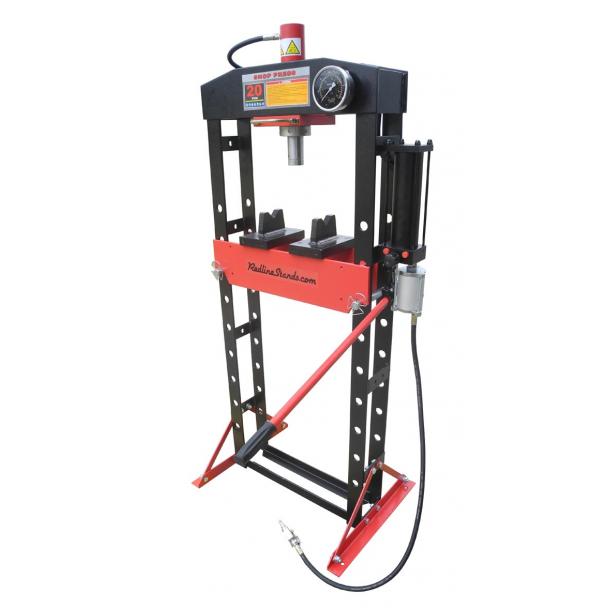

Redline 20 Ton Air Hydraulic Heavy Duty Shop Press

Model: RE20T-A-HD

(1 review)

Please Choose:

Optional Accessories

A generic image
3/8" Air Hose Reel (RE-AR)

A generic image
Include Forward Facing Guard (RE-PGG)

A generic image
Include Rear Facing Guard (RE-PGG)

A generic image
Pin Press Kit (RE-SPPH)

A generic image
SMC 1/4" Lo-Flow Water Separator (SBC-WS-LF)

A generic image
Extra Pair Of Press Plates (RE-PLTS)

A generic image
Shop Press Foot Pedal (SP-PDL)
Brand
Type

Shipping upgrades offered in cart page

$1,399.50
box icon

In Stock in

Pensacola
delivery icon

Usually Ships Within

24-48 Hrs

Description

This industrial strength heavy duty Redline 20 ton hydraulic shop press is an air over hydraulic pressing machine perfect for manufacturing, auto repair, or general mechanical work. It features a pump capable of manual operation, as well as it can be powered via compressed air. Standard features include a tonnage gauge, capability to move the ram cylinder from left to right, and 9 different height adjustments for both small and large projects. Order your new 40,000 pound capacity hydraulic shop press today from Redline Engineering!

KEY BENEFITS

• Covered by Redline's 1-Year parts warranty
• CE Certified
• 20 ton capacity
• Powder coated finish
• 39-3/8" movement of carriage up and down
• 9 height adjustments of 4-3/8" increments
• Ram cylinder capable of shifting both left and right
• Pressure gauge accurate +/- 2.5% of press capacity
• Air powered hydraulic cylinder for heavy duty pressing
• Optional pin kit may arrive with pin kit rack featuring yellow zinc chromate finish or powder coated black

HEAVY DUTY BENEFITS
• HD upgrades over regular RE20T-A
• Upgraded cylinder slide system
• Handle shifts cylinder left/right
• Welded frame does not bolt together
• Optional adjustable safety grid guard
• Utilizes carriage pins with anti-sliding flower clips
• Press plates include locking pins & round stock mounts

One of our best hydraulic shop presses—which is often misspelled as a “hydrolic” press—is great for pressing wheel bearings where tons of force is needed.

PRESS PLATE RATING
• Each press plate is rated to ½ the tonnage of the press; thus, if applying the press’ maximum force, the load must be distributed over both press plates to avoid damaging the press

Show more

Specs

• Leg length 22"
• Hose length 52"
• Handle length 27-3/8"
• Cylinder stroke 7-1/4"
• Carriage pin diameter: 1"
• Inside frame width: 20-1/8"
• Cylinder ram diameter 1-7/8"
• Main frame is 2-3/8" x 5/16"
• Interior carriage width: 6"
• Interior carriage length: 10-1/2"
• Internal cylinder diameter: 2.36"
• Operates at a 75dB sound rating
• Piston retraction time: 32 seconds
• Pressure gauge accurate to +/- 2.5%
• Air motor requires 7 CFM of air supply
• Cylinder piston/bore diameter: 2.3622"
• Overall dims 31-3/4" L x 22" W x 63-1/2" H
• Middle carriage 24-3/4" L x 6-7/8" W x 6" H
• Air pump full range without load: 65 seconds
• Approximate number of pumps to full range without load: 189
• Two heavy duty press plates 7-3/4" L x 4-3/4" W x 1-1/8" thickness
• Work dims between cylinder and press plates:
-Min height from cylinder: 1/4"
-Max height from cylinder: 35"

Downloads

• Download the manual pdf HERE

Shipping

• Residential deliveries cost extra
• Ships to commercial location w/ forklift
• Ships 367 lbs. at 67" W x 28" L x 11" H
• Units available in Pensacola, FL with rebate
• Pensacola, FL pickups – read our policies HERE
• Free shipping applies to $200 maximum. If shipping exceeds this amount a surcharge may be needed



Videos

Reviews

5.0 / 5 (1 review)
Based on 1 review Write review
  • Jul 22, 2026

    Blown away

    Jul 22, 2026
    You get what you pay-for, and this press is exactly that. It's awesome. Lots of features. I love the push-pins that hold the press plates in position so they cannot accidentally slide off the carriage. The air operation feature works great, the grid guard is easy to operate, and it's cool how the ram shifts left to right. It's not cheap, but you buy once cry once!

Ask & Answer

  • John Jun 14, 2022
    Q. What is the total weight of the RE20T-A-HD press without accessories?
    A. Hmm. We don't have that exact number, but we can probably get close. The RE20T-A-HD is 367 lbs crated. Subtract 30 lbs for the press plates and another 30 lbs for the crating, and we figure it's probably very close to 300 lbs or so. I hope this helps. Thanks John!
  • Robert Sep 10, 2021
    Q. We recently purchased the model RE20T-A-HD shop press. What size air compressor is a good fit for this unit?
    A. As long as the air compressor you're looking to buy makes at least 7 CFM you'll be fine for continuous operation. Realistically, the average 30 gallon air compressor should be fine. Thanks Robert!
