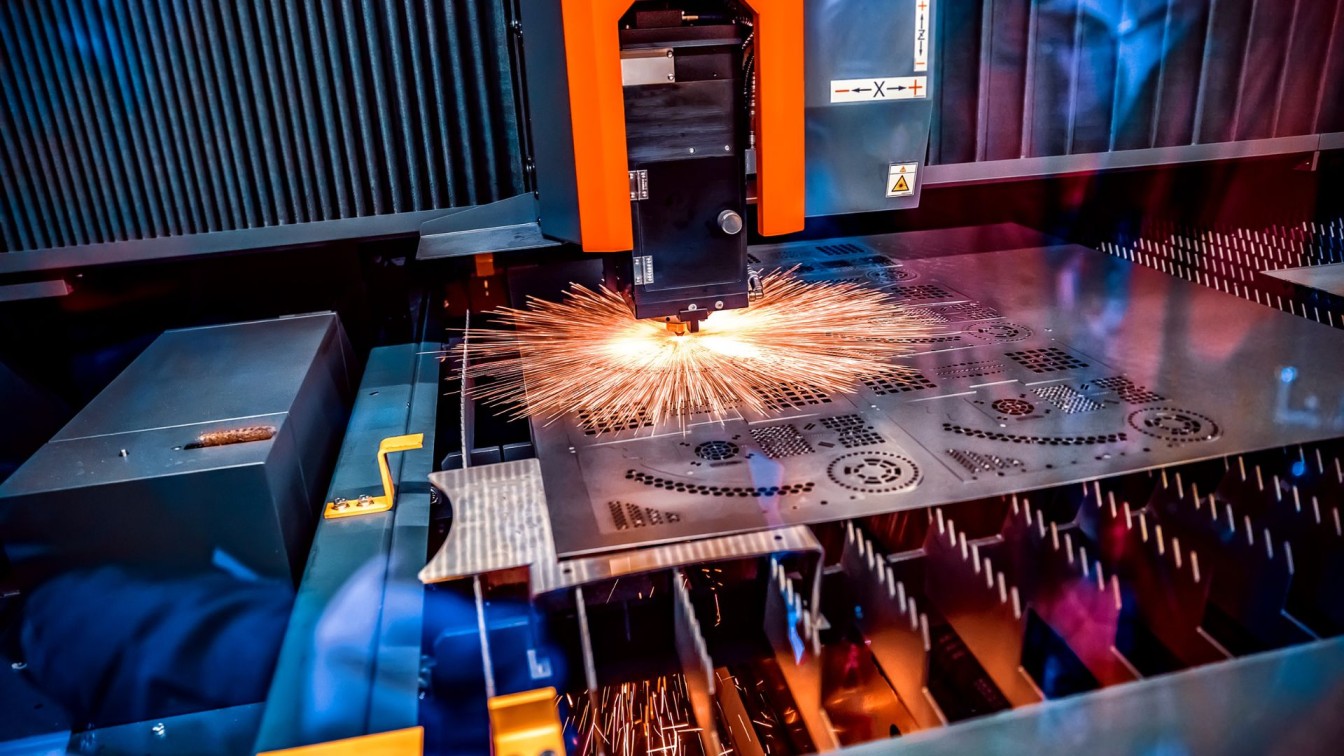

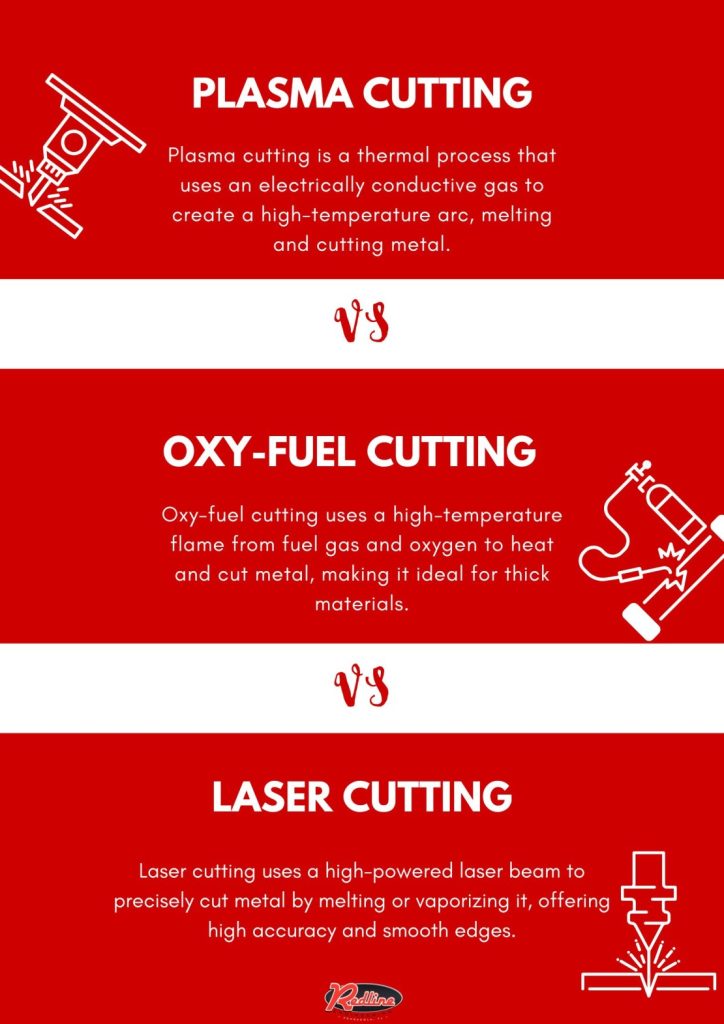

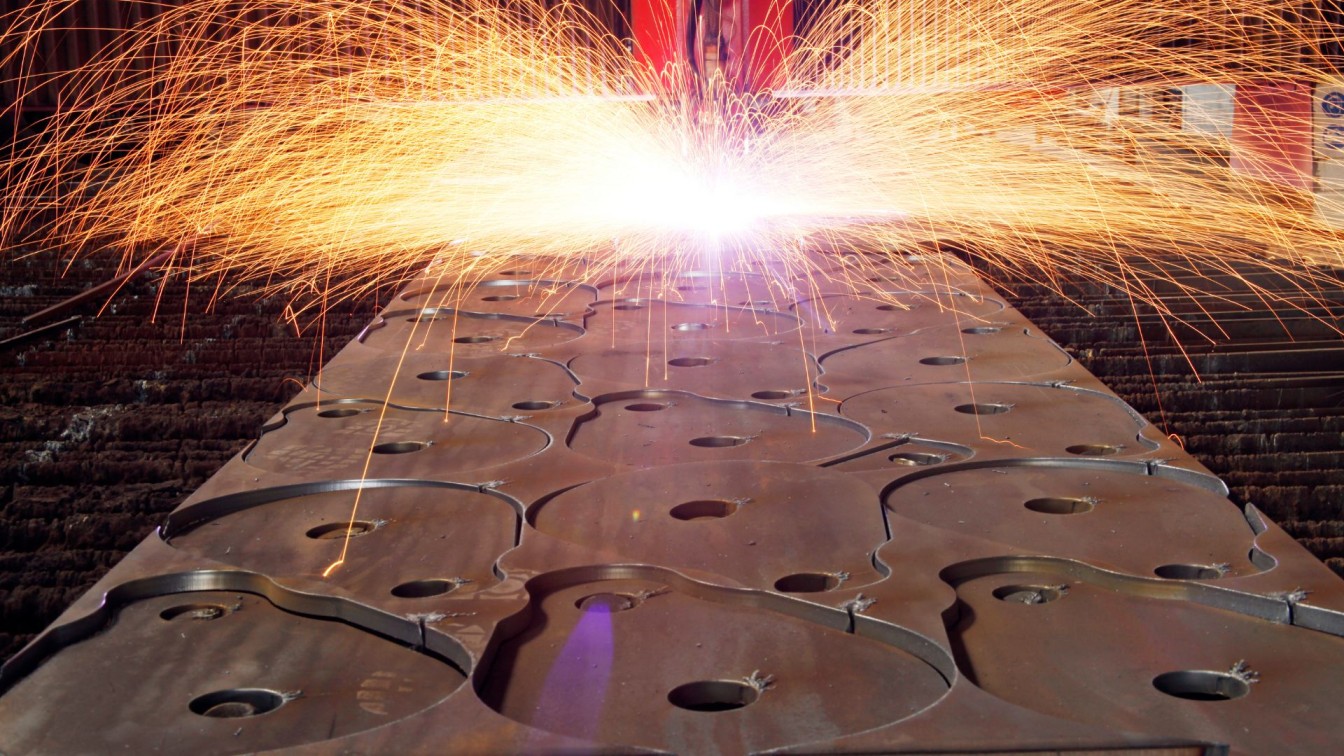

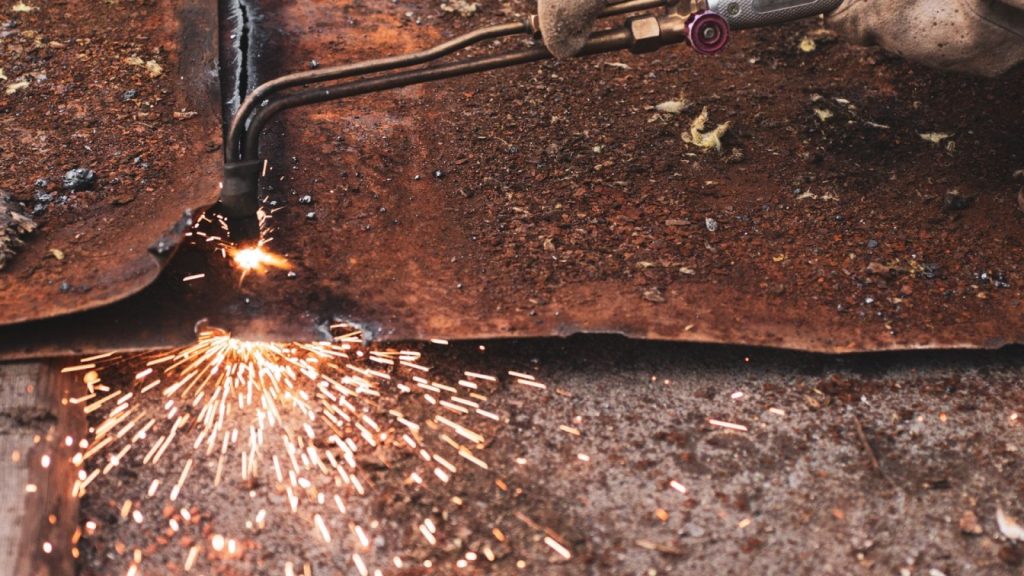

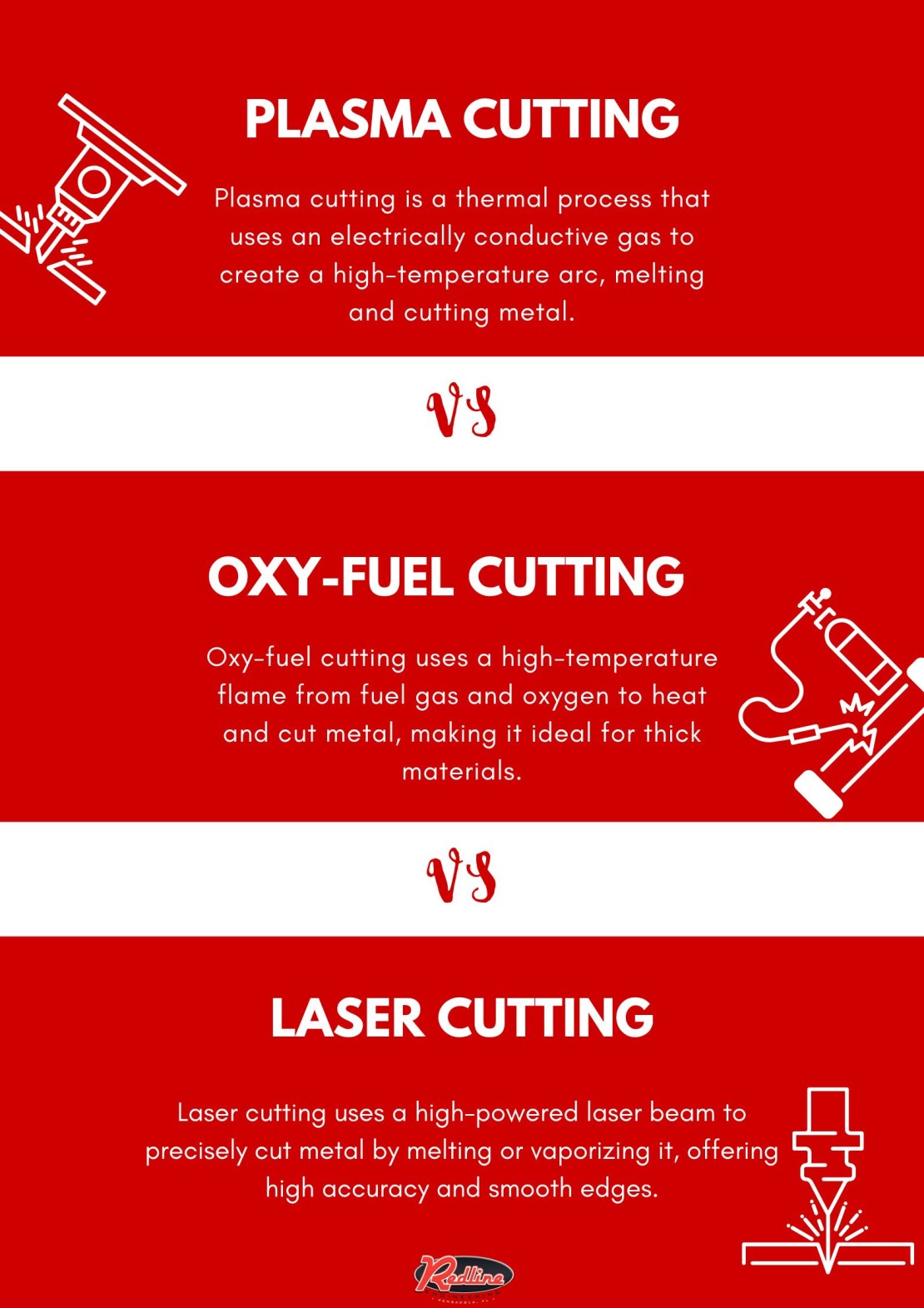

Comparing Plasma Cutting to Oxy-fuel and Laser Cutting: Pros and Cons Posted on May 9, 2023 by Nurul Afsar Last Updated on May 9, 2023 In the metal fabrication industry, cutting is a crucial process that helps shape and customize materials for various applications. There are several cutting methods available, each with its unique set of advantages and drawbacks. Three of the most widely used techniques include plasma cutting, oxy-fuel cutting, and laser cutting. Plasma cutting utilizes electrically conductive gas to generate high-temperature plasma for cutting metal. Oxy-fuel cutting, on the other hand, involves the combustion of a fuel gas and oxygen to produce a high-temperature flame that melts and cuts the material. Lastly, laser cutting employs a focused, high-powered laser beam to cut through metal by melting, burning, or vaporizing the material along the cutting path. Choosing the right cutting method is essential for achieving optimal results in metal fabrication. The right technique depends on various factors such as material type, thickness, desired cutting speed, precision, cost, and overall project requirements. Selecting the appropriate method not only ensures efficient and accurate cuts but also helps minimize waste, reduce production time, and lower operational costs. Understanding the pros and cons of each cutting method is crucial for making an informed decision and ultimately maximizing the efficiency and effectiveness of your metal cutting operations. Plasma Cutting Plasma cutting is a thermal cutting process that utilizes electrically conductive gas to generate a high-temperature plasma arc, which is capable of cutting through metal. The plasma arc forms when an electric current passes through the gas, ionizing it and creating a conductive channel of plasma. The focused, high-temperature plasma arc then melts the metal along the cutting path, and the molten material is blown away by the gas jet, resulting in a clean cut. Pros Fast cutting speed: Plasma cutting offers faster cutting speeds compared to oxy-fuel cutting, making it suitable for projects requiring a high level of productivity. Versatile material compatibility: Plasma cutting can be used on a wide range of electrically conductive materials, including mild steel, stainless steel, aluminum, copper, and brass. Cost-effective: Plasma cutting systems are generally more affordable than laser cutting systems, providing a cost-effective solution for many metal cutting applications. Minimal heat-affected zone (HAZ): The high cutting speed and localized heating of plasma cutting result in a smaller heat-affected zone, reducing the risk of material distortion and damage. Cons Limited precision: Plasma cutting is less precise compared to laser cutting, making it less suitable for applications requiring intricate and detailed cuts. Requires electricity and consumable gases: Plasma cutting relies on both electricity and consumable gases (such as compressed air, nitrogen, or argon), which can contribute to increased operating costs. Noise and fumes: Plasma cutting can produce significant noise and fumes, requiring proper ventilation and hearing protection in the workplace. Not suitable for all material thicknesses: While plasma cutting is effective for a wide range of material thicknesses, it may struggle with extremely thin materials or very thick materials, where other cutting methods might be more suitable. Oxy-fuel Cutting Oxy-fuel cutting is a thermal cutting process that involves the combustion of a fuel gas (typically acetylene, propane, or propylene) and oxygen to produce a high-temperature flame, which is used to cut through metal. The flame heats the metal to its ignition temperature, and a high-pressure stream of oxygen is then directed at the heated area, causing the metal to burn and creating a kerf or cut. The molten metal is then blown away by the oxygen jet, resulting in a clean cut. Pros Suitable for thick materials: Oxy-fuel cutting is particularly effective for cutting thick materials, especially mild steel, making it a preferred choice for heavy-duty applications. Low equipment cost: Oxy-fuel cutting equipment is relatively inexpensive compared to plasma and laser cutting systems, making it a cost-effective option for many workshops and job sites. No electricity required: Oxy-fuel cutting does not require electricity, making it suitable for use in remote locations or where electrical power is not available. Portable equipment: Oxy-fuel cutting systems are generally portable, allowing for easy transport and flexibility in various work environments. Cons Slower cutting speed: Oxy-fuel cutting has a slower cutting speed compared to plasma and laser cutting, making it less suitable for projects requiring high productivity levels. Limited material compatibility: Oxy-fuel cutting is primarily used for cutting carbon steel and is not effective for cutting non-ferrous materials such as aluminum and stainless steel. Large heat-affected zone (HAZ): Oxy-fuel cutting generates a larger heat-affected zone compared to plasma and laser cutting, which may result in increased material distortion and warping. Safety concerns: The use of flammable gases and high temperatures in oxy-fuel cutting presents potential safety hazards, requiring strict adherence to safety protocols and proper handling of equipment. Laser Cutting Laser cutting is a non-contact thermal cutting process that uses a focused, high-powered laser beam to cut through metal by melting, burning, or vaporizing the material along the cutting path. The laser beam is typically generated using either a CO2 laser or a fiber laser, with the latter becoming increasingly popular due to its higher efficiency and lower maintenance requirements. The laser beam is guided by mirrors and focused onto the material using a lens, which concentrates the energy into a small spot, creating enough heat to cut through the metal. Pros High precision: Laser cutting offers exceptional precision and accuracy, making it ideal for intricate and detailed cutting applications, such as creating complex shapes, small holes, and fine features. Fast cutting speed: Laser cutting provides fast cutting speeds, particularly for thin materials, resulting in shorter production times and increased efficiency. Clean, smooth edges: The non-contact nature of laser cutting results in clean, smooth edges with minimal burr, reducing the need for post-processing and finishing. Minimal heat-affected zone (HAZ): Laser cutting generates a small heat-affected zone, limiting the risk of material distortion and warping, which is especially advantageous for heat-sensitive materials. Cons High equipment cost: Laser cutting systems have higher upfront costs compared to plasma and oxy-fuel cutting equipment, which may be a barrier for small businesses or those with limited budgets. Limited material and thickness compatibility: While laser cutting works well for a variety of materials, it is less effective for cutting reflective metals, such as aluminum and copper, and may struggle with very thick materials. Requires specialized operators: Operating a laser cutting system requires specialized knowledge and training, which can increase labor costs and limit accessibility for some users. Energy consumption: Laser cutting, particularly CO2 laser systems, can consume significant amounts of energy, contributing to higher operating costs and environmental impact. In summary, each cutting method offers its unique set of advantages and drawbacks. Plasma cutting provides fast cutting speeds, versatile material compatibility, and cost-effectiveness, but it is limited in precision and requires electricity and consumable gases. Oxy-fuel cutting is suitable for thick materials, has low equipment costs, and is portable, but it has a slower cutting speed and is limited in material compatibility. Laser cutting offers high precision, fast cutting speeds, and clean, smooth edges but comes with high equipment costs and has limitations in material and thickness compatibility. Recommendations for selecting the best cutting method based on project requirements To choose the best cutting method, it is crucial to consider factors such as the material type, thickness, desired precision, cutting speed, budget, and overall project requirements. Plasma cutting is an excellent option for projects that demand fast cutting speeds, cost-effectiveness, and versatility in material compatibility. Oxy-fuel cutting is best suited for heavy-duty applications involving thick materials, particularly when portability and low equipment cost are essential. Laser cutting is the ideal choice for intricate and detailed cutting applications where high precision and clean edges are critical. The importance of continued advancements in cutting technology As technology continues to advance, the capabilities of cutting methods will undoubtedly improve, allowing for increased efficiency, precision, and versatility in metal fabrication. By staying informed about the latest developments in cutting technology and understanding the pros and cons of each method, businesses and operators can make informed decisions that maximize productivity, reduce costs, and improve the quality of their work. Embracing these advancements and adapting to new technologies will be vital in maintaining a competitive edge in the ever-evolving metal fabrication industry.
