How Thick Should Concrete Be for a 2-Post & 4-Post Lift?

Last Updated on May 29, 2026

Installing a car lift is one of the best upgrades you can make to a home garage or professional shop. But before you roll in your new lift, there’s one crucial element that determines how safe and long-lasting your setup will be: the concrete beneath it. The right concrete thickness, strength, and reinforcement are essential for keeping your 2-post or 4-post lift stable under heavy loads.

If the slab is too thin or weak, it can crack, shift, or fail — risking not just the lift, but your safety and the vehicles you’re working on. Understanding concrete requirements ensures your lift performs the way it was designed to.

Why Concrete Strength and Thickness Matter

A car lift concentrates thousands of pounds of pressure on a small area of concrete. Each post or column transfers the entire vehicle load down through anchor bolts into the slab. That’s why the right combination of thickness and PSI rating is critical.

Concrete that’s too thin or under-strength can lead to anchor bolt pull-out, cracking, or uneven settling. On the other hand, a properly poured, reinforced slab provides the rigidity and stability needed for years of safe operation.

Two Post Car Lifts

Concrete Requirements for 2-Post Lifts

For most 2-post car lifts, the general rule is that you’ll need a minimum of 4 inches of concrete rated at 3,000 PSI or higher. That’s the absolute minimum for light-duty models or smaller home garages.

However, to ensure long-term durability and safety, professionals recommend a 6-inch-thick slab rated between 3,500 and 4,000 PSI. This standard supports most 9,000–10,000 lb. 2-post lifts, including several popular models available at Redline Stands.

If you’re planning to install a 12,000–15,000 lb. heavy-duty 2-post lift, the concrete should be 8 inches thick or more. These heavier lifts apply greater downward force at each post and need extra reinforcement. Always verify the manufacturer’s installation manual for precise figures before drilling anchor holes.

Reinforcement and Curing Guidelines

Thickness alone doesn’t make concrete strong. Proper reinforcement and curing play an equal role. Use steel rebar or wire mesh when pouring the slab to reduce cracking and improve tensile strength. Reinforcement should be positioned at least 2 inches below the surface to distribute load evenly.

Concrete should also be cured for a minimum of 28 days before any installation takes place. During curing, keep it moist to prevent surface cracks. Never install a car lift on newly poured or partially cured concrete — doing so may compromise strength and lead to future failures.

2-Post Lift Concrete Requirements

Lift Capacity Minimum Thickness Recommended PSI Notes
Up to 9,000 lbs 4″ 3,000 PSI Suitable for light-duty lifts
9,000–12,000 lbs 6″ 3,500 PSI Standard shop setup
12,000–15,000 lbs 8″ 4,000 PSI Commercial or truck lifts

4 Post Car Lifts: The Ultimate Garage Investment

Concrete Requirements for 4-Post Lifts

A 4-post car lift distributes weight more evenly across four columns, which means it typically requires less slab thickness than a comparable 2-post lift. Still, the base must be solid enough to prevent cracking under stress.

For most home-garage 4-post lifts, a 4-inch slab at 3,000 PSI is sufficient. If you plan on using it for heavier vehicles such as trucks or commercial vans, upgrade to a 6-inch slab at 3,500 PSI for added stability.

Redline Stands offers several 4-post lifts designed for these specifications, including heavy-duty models for long-term shop use. Their wide stance and strong base plates spread the load evenly, but that only works when installed on properly rated concrete.

4-Post Lift Concrete Requirements

Lift Capacity Minimum Thickness Recommended PSI Notes
Up to 9,000 lbs 4″ 3,000 PSI Common residential use
9,000–12,000 lbs 5–6″ 3,500 PSI Heavier vehicles
Over 12,000 lbs 6–8″ 4,000 PSI Professional garages and truck lifts

Concrete Quality: More Than Just Thickness

When assessing your garage or shop floor, remember that not all concrete is created equal. A thin or weak slab, even if it appears solid, may not meet lift requirements. Consider these additional factors:

  1. Age of the slab: Older, well-cured slabs may have lost some surface strength.

  2. Composition: Concrete mixed with too much sand or water weakens the PSI rating.

  3. Joints and cracks: Avoid placing lift posts over expansion joints, control joints, or visible cracks.

  4. Anchor placement: Follow exact torque and spacing recommendations for the lift’s anchor bolts.

If you’re unsure of your slab’s strength, a contractor can test the PSI and thickness by drilling a small core sample.

What If the Concrete Is Too Thin?

Many garages — especially older residential ones — have floors just 3.5 inches thick, which may not meet even the minimum lift requirement. If that’s your situation, you have a few reliable options:

  1. Cut and re-pour thicker pads: The most secure approach is to cut out two rectangular areas where the lift columns will sit, then pour 6–8 inches of new 3,500-PSI concrete reinforced with rebar.

  2. Use steel base plates: In some cases, installers use thick steel plates to distribute the load. This can help with light-duty lifts, but it’s not a substitute for proper thickness in commercial setups.

  3. Relocate or rebuild: If the concrete cannot be reinforced or replaced, consider repositioning the lift to an area with a stronger slab.

Curing, Leveling, and Surface Preparation

Before installing your lift, make sure the floor is clean, dry, and level. Any slope greater than 1/8 inch over the installation area can create imbalance once the lift is under load. Clean oil or sealant from the surface to ensure anchors hold securely.

Avoid drilling near cracks or expansion joints, and always keep the post base plates at least 6 inches away from them. These precautions reduce the risk of shifting or cracking once the lift is bolted down.

Real-World Examples with Redline Stands

At Redline Stands, most 2-post lifts are designed to work on concrete rated at a minimum of 4–6 inches thick and 3,000–3,500 PSI. Heavy-duty models, such as high-capacity truck lifts, may require 8 inches or more.

For 4-post lifts, Redline offers several parking and service models compatible with 4–6-inch slabs. Their professional-grade designs ensure that when paired with the proper concrete base, you get safe, stable performance for everything from small cars to full-size trucks.

If you’re upgrading a shop or installing multiple lifts, following these specifications ensures each unit performs safely and efficiently without floor cracking or anchor movement.

Common Installation Mistakes to Avoid

  • Installing lifts on uncured concrete (less than 28 days old)

  • Ignoring manufacturer-recommended anchor torque settings

  • Placing posts over expansion joints or slab seams

  • Failing to test slab thickness before drilling

  • Using low-grade bolts or hardware not rated for lift loads

These mistakes may seem minor but can seriously reduce lift stability. Always confirm the requirements before installation.

Whether you’re working with a 2-post lift or a 4-post lift, the strength of your concrete is the foundation of the entire system. Proper slab thickness, PSI rating, and reinforcement keep the lift secure and protect against costly structural damage.

By following these concrete requirements and verifying them before installation, you’ll ensure your Redline Stands car lift delivers years of dependable performance. It’s not just about meeting minimum specs — it’s about creating a safe, professional-grade workspace built to handle every lift with confidence.

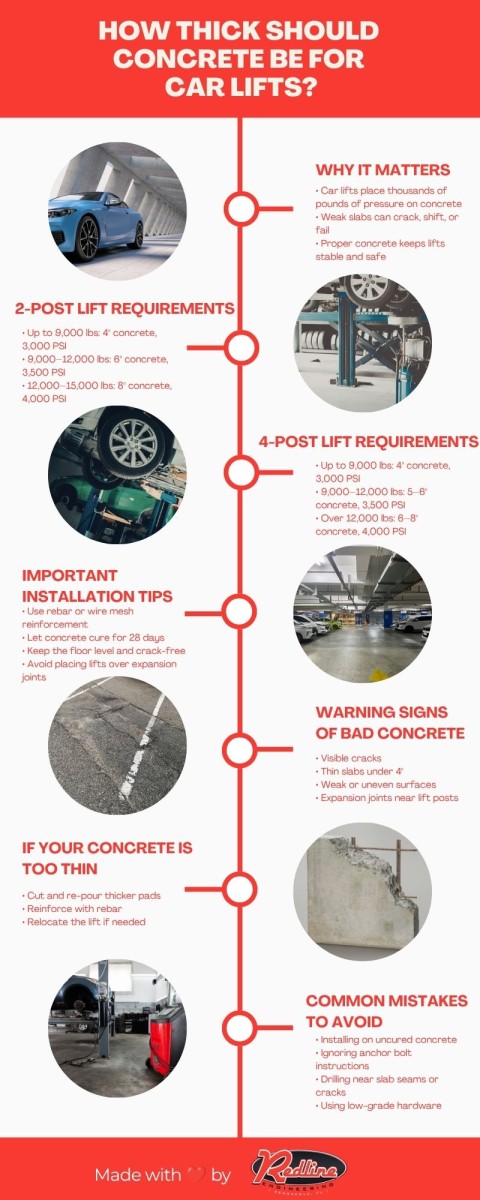

How Thick Should Concrete Be
