Stop Getting Shocked: How to Safely Ground Your Powered Sandblasting Cabinet

Sandblasting Cabinet

Last Updated on July 25, 2025

If you’ve been zapped while using a powered sandblasting cabinet, you’re not alone. Static electricity buildup is a common problem for operators using these machines — especially in dry environments or when working for extended periods.

Fortunately, there are several effective ways to eliminate or significantly reduce these static shocks. Here’s how to stay grounded — literally and figuratively — while using your sandblasting cabinet.



Why You’re Getting Shocked

When compressed air moves abrasive media through your cabinet, it generates friction. This creates static electricity, which builds up in the cabinet — especially if it’s not properly grounded. When you, the operator, make contact, you become the discharge path.

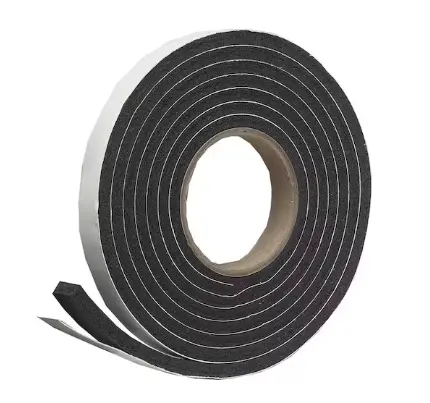

Line the Arm Holes With Foam

Fix #1: Line the Arm Holes With Foam

What it does: Prevents your skin from touching the metal cabinet directly, which breaks the conductive path for static discharge.

How to do it:

  • Purchase adhesive-backed foam weather stripping or closed-cell foam tubing.
  • Line the inside edge of each armhole with foam, making sure it fully insulates contact.
  • Make sure it doesn’t interfere with glove function or restrict movement.

Bonus: It also makes long sessions more comfortable.

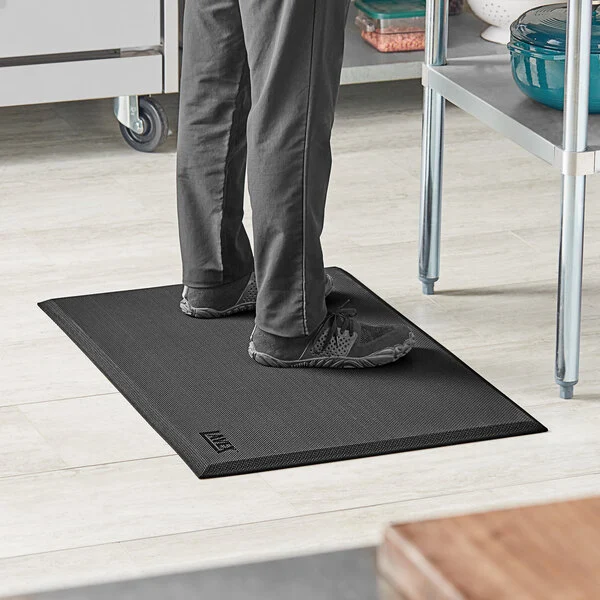

Stand on a Thick Rubber Mat

Fix #2: Stand on a Thick Rubber Mat

What it does: Acts as an insulator between you and the floor, which can help reduce static shock transfer through your body.

How to do it:

  • Use a ½ inch or thicker rubber mat, preferably one rated for electrical insulation.
  • Place it directly where you stand during operation.
  • Ensure the mat is dry and clean to prevent slipping.

Pro Tip: Anti-fatigue grounding mats offer added comfort and safety.

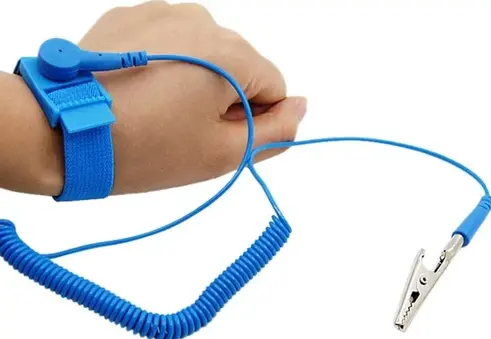

Use a Grounding Wrist or Elbow Band

Fix #3: Use a Grounding Wrist or Elbow Band

What it does: Provides a direct, safe path for static electricity to discharge from your body to the cabinet — before it builds up.

How to do it:

  • Purchase an anti-static grounding wrist strap (they’re common online).
  • Connect the strap wire securely to a metal point on the cabinet.
  • If you’re using your arms in the cabinet, move the band up to your elbow for uninterrupted contact.

Reminder: Make sure the grounding wire stays firmly attached at both ends.

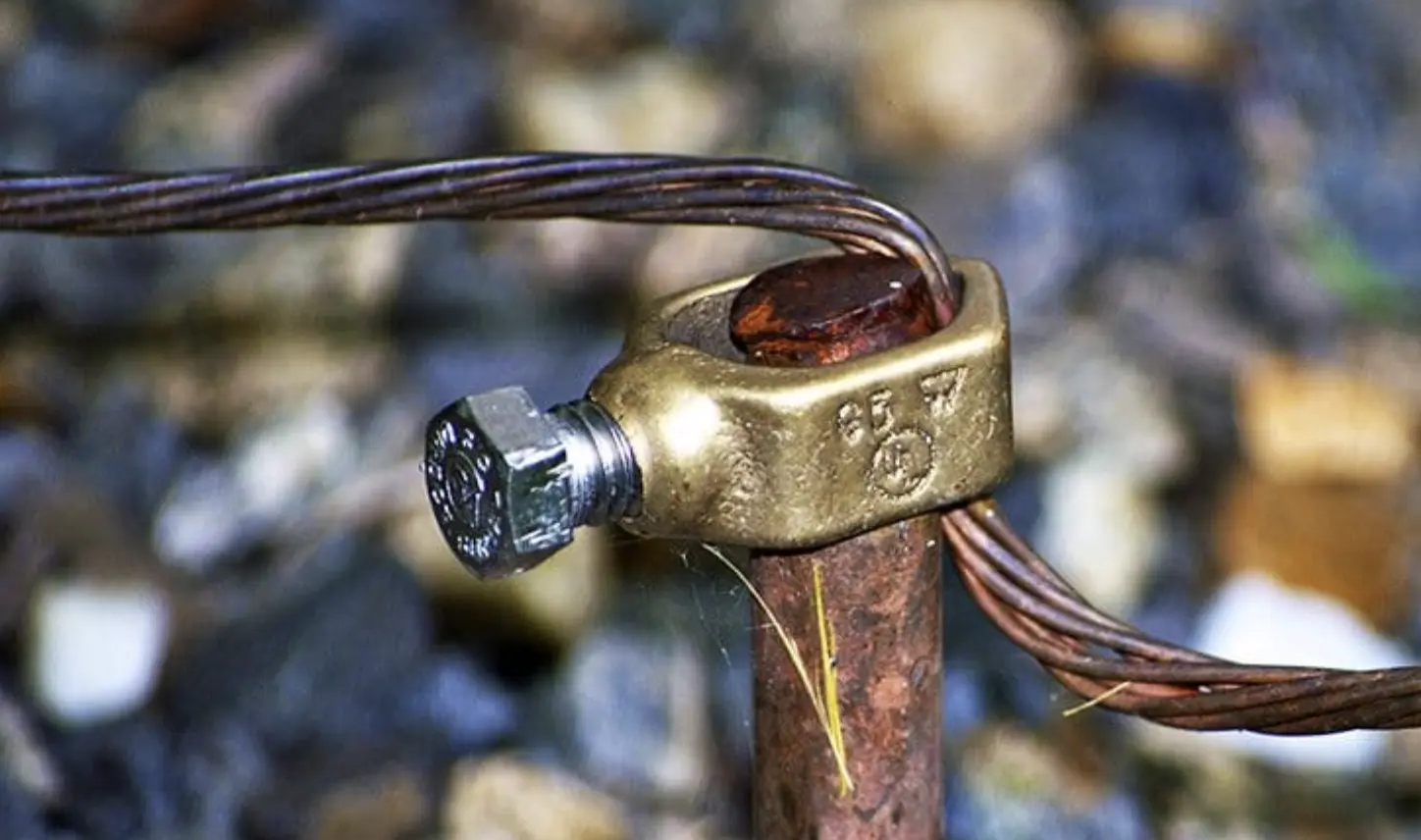

Ground the Cabinet With a Rod

Fix #4: Ground the Cabinet With a Rod

What it does: Gives static electricity an escape path into the earth — a permanent solution.

How to do it:

  • Drive a copper grounding rod (typically 6–8 feet) into the soil near your cabinet.
  • Use a grounding clamp and 8–10 gauge wire to connect the rod to the metal frame of the cabinet.
  • Check all connections are clean, corrosion-free and connected to a bare metal surface.

Important: This is the most effective solution, especially for commercial or high-use environments.



A properly grounded sandblasting cabinet is safer, more comfortable, and just better to use. Depending on your setup, you may only need one of the fixes listed — or a combination of them for maximum effect. For a specific example, check out all shop presses and explore more sand blast accessories.

No one wants to dread getting shocked every time they put their hands in the cabinet. These fixes are simple, affordable, and most importantly — they work. Don’t forget to check out Redline RE26 Benchtop Abrasive Sand Blasting Cabinet for your other workshop needs!

For more information on sandblast cabinets and even more equipment, please check out our YouTube channel at the link below!

https://www.youtube.com/@RedlineStands
