What is Plasma Cutting and How Does It Work?

Plasma cutting is a widely utilized process in various industries for cutting electrically conductive materials. Known for its precision cuts and versatility, plasma cutting is an essential technique in manufacturing and fabrication tasks. This blog post will delve into the intricacies of plasma cutting, explaining what it is, how it operates, the different types of plasma cutting systems available, and much more.

What is Plasma Cutting?

Plasma cutting is a thermal process that employs a high-velocity jet of ionized gas, known as plasma, to cut through materials. Plasma is created by heating a gas to extremely high temperatures, causing it to become ionized and electrically conductive. This ionized gas, or plasma, is often referred to as the fourth state of matter, distinct from solids, liquids, and gases.

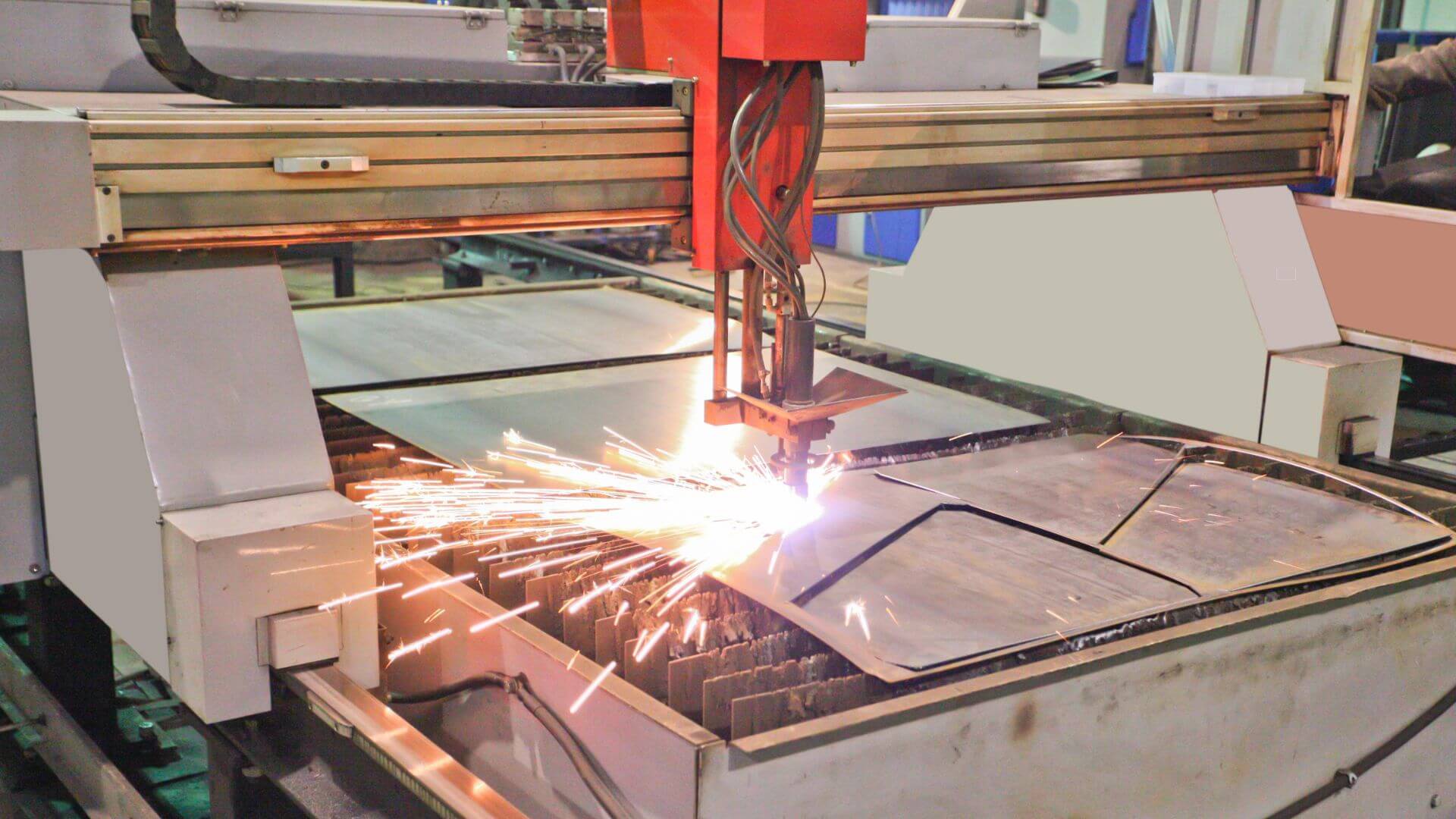

Plasma Cutting machine in Work

How Does Plasma Cutting Work?

Plasma cutting operates through a combination of high-temperature plasma and an electric arc to slice through electrically conductive materials. The process begins with the plasma torch, a key component containing an electrode. When the torch is activated, it generates an electric arc between the electrode and the material being cut. This arc is crucial as it ionizes the gas flowing through the torch, transforming it into plasma.

The gas used in this process can be compressed air or other gases like nitrogen, oxygen, or argon. As the gas flows through the torch and gets ionized by the electric arc, it turns into plasma, which can reach astonishing temperatures of up to 30,000 degrees Fahrenheit. This high-speed flow of plasma is directed precisely at the material, effectively melting it upon contact.

As the plasma jet melts the material, the high-velocity gas flow simultaneously blows away the molten metal, creating a clean and precise cut. This carefully controlled process ensures accurate cuts with minimal material waste. The quality of the cut is influenced by several factors, including the type of gas used, the cutting speed, and the thickness of the material being cut. Proper management of these variables ensures the production of high-quality, precise cuts essential for various industrial applications.

Types of Plasma Cutting Systems

Conventional Plasma Cutting Systems

Conventional plasma cutting systems utilize a single gas, such as compressed air, to create the plasma. These systems are suitable for cutting thinner materials and are commonly used in small-scale operations and workshops. They are cost-effective and relatively easy to operate, making them a popular choice for general-purpose cutting.

High-Definition Plasma Cutting Systems

High-definition (HD) plasma cutting systems use a combination of gases to produce a more precise and focused plasma arc. These systems are ideal for cutting thicker materials and achieving higher precision cuts with smoother edges. HD plasma systems are often used in industries where accuracy and edge quality are paramount, such as aerospace and automotive manufacturing.

CNC Plasma Cutting Systems

Computer Numerical Control (CNC) plasma cutting systems are automated and controlled by CNC software. These systems offer high precision and repeatability, making them suitable for complex and large-scale cutting tasks. CNC plasma cutters can execute intricate designs and patterns with minimal human intervention, increasing efficiency and reducing errors.

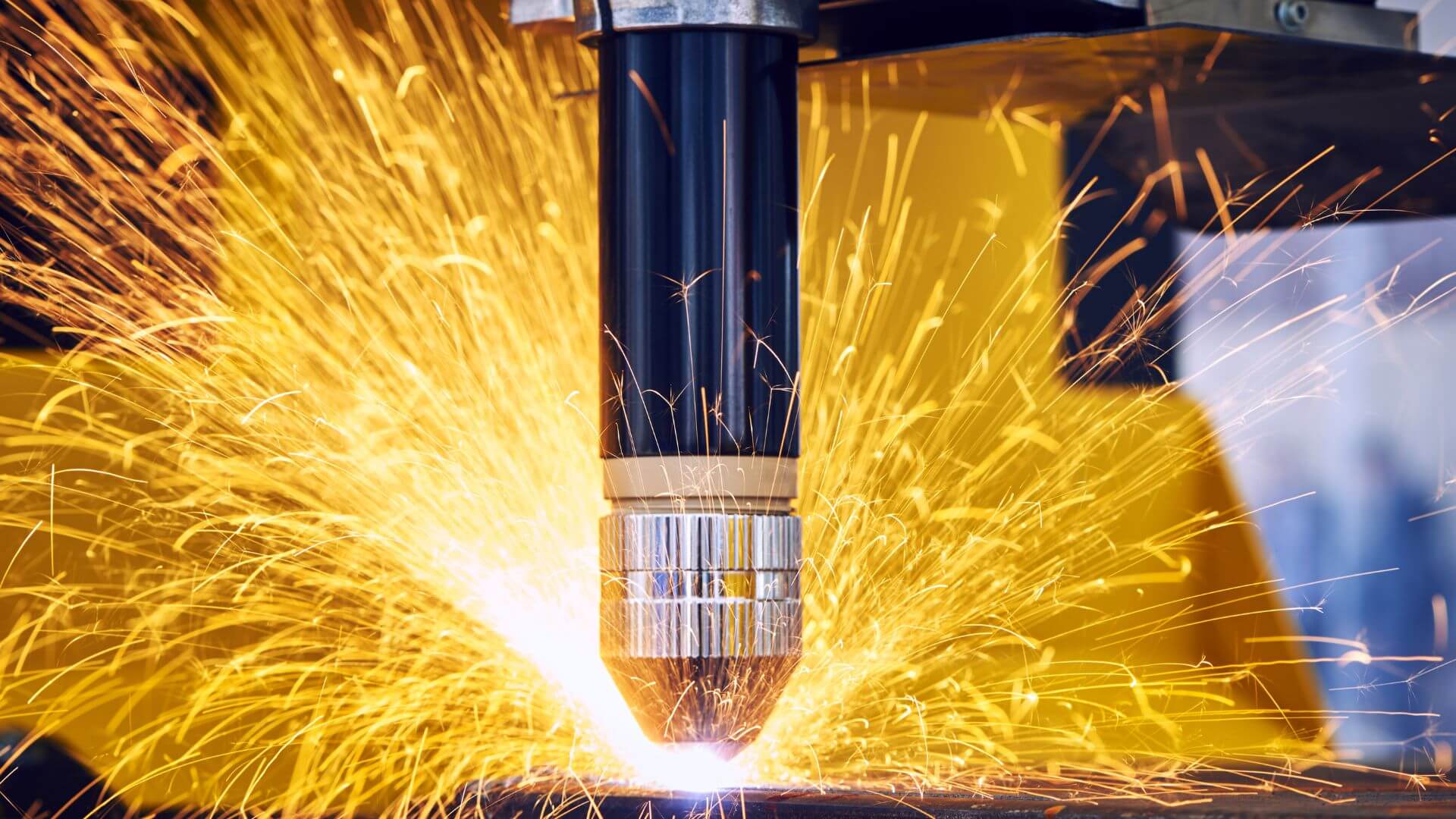

Plasma Cutting Machine

Materials Suitable for Plasma Cutting

Plasma cutting is effective for cutting a wide range of electrically conductive materials, including:

  • Stainless Steels: Plasma cutting is particularly effective for stainless steel, providing clean cuts without compromising the material’s integrity.
  • Carbon Steel: This material is commonly cut using plasma due to its widespread use in construction and manufacturing.
  • Aluminum: Plasma cutting can handle aluminum’s lower melting point and conductivity, producing smooth cuts.
  • Copper: Despite its high thermal conductivity, copper can be cut efficiently with plasma cutting.
  • Brass: Plasma cutting is suitable for brass, providing precise cuts for various applications.
  • Other Conductive Metals: Plasma cutting can be used on various other electrically conductive metals, offering versatility in different industries.

Plasma Cutting vs. Other Cutting Methods

Plasma Cutting vs. Laser Cutting

While both plasma and laser cutting methods offer precision cuts, there are notable differences:

Plasma Cutting: Generally faster and more cost-effective for cutting thicker materials. It is well-suited for high-volume production and can handle a variety of conductive metals.

Laser Cutting: Provides higher precision for thin materials and intricate designs. Laser cutting is often preferred for applications requiring fine detail and minimal thermal distortion.

Plasma Cutting vs. Oxy-Fuel Cutting

Oxy-fuel cutting is another thermal cutting process, but it has some limitations compared to plasma cutting:

  • Oxy-Fuel Cutting: Primarily used for cutting carbon steel and other ferrous metals. It involves a chemical reaction between oxygen and the material being cut, producing intense heat.
  • Plasma Cutting: More versatile and capable of cutting a broader range of conductive materials, including stainless steels and aluminum. Plasma cutting is also faster and provides cleaner cuts with less slag.

Advantages of Plasma Cutting

  • High Speed: Plasma cutting is faster than many other cutting methods, making it efficient for high-volume production and reducing overall cutting time.
  • Precision: The process allows for precise cuts with minimal material wastage, ensuring high-quality results and reducing the need for secondary finishing operations.
  • Versatility: Plasma cutting can handle various conductive materials, from thin sheets to thick plates, making it suitable for diverse applications.
  • Ease of Use: Modern plasma cutting systems, especially CNC systems, are user-friendly and require minimal training, making them accessible to operators with varying skill levels.

Applications of Plasma Cutting

Plasma cutting is used in various industries, including:

  • Automotive Manufacturing: Cutting components for vehicles, such as frames, chassis, and body panels.
  • Metal Fabrication: Creating custom metal parts and structures for different projects.
  • Shipbuilding: Cutting large metal plates for constructing ships and marine structures.
  • Construction: Cutting metal beams, columns, and other structural elements for buildings and infrastructure projects.
  • Repair and Maintenance: Cutting and modifying metal parts for repair and maintenance work in various sectors.

What safety equipment should be used when plasma cutting?

  1. Safety Glasses and Welding Helmet: Protect your eyes from bright light and UV radiation.
  2. Protective Clothing: Wear flame-resistant clothing to protect against sparks and hot metal.
  3. Gloves: Use heavy-duty, heat-resistant gloves to shield your hands from heat and metal splatter.
  4. Respirator: A respirator or mask is necessary to avoid inhaling harmful fumes and dust.
  5. Hearing Protection: Use earplugs or earmuffs to protect your ears from the noise generated by the plasma cutter.
  6. Steel-Toed Boots: Protect your feet from falling objects and hot materials.
  7. Face Shield: Provides additional protection from flying debris and sparks.
