I was looking on Redline PT1650 Powertrain Engine Cradle Lift Jack that you guys have the maximum height is 80.5' to the wooden block was that from the base of the unit or from the floor? then for shipping how many days would take to ship here in Orlando, Florida. Hoping for your response thanks.

The maximum height specification is measured from the floor. As of today, 10/3/2024, we have this product in stock in our Pensacola, FL warehouse. Your order should leave our warehouse within 2 business-days of cleared payment and LTL carriers estimate 2-business days in transit time from here to Orlando. Thanks for reaching out, Evan!

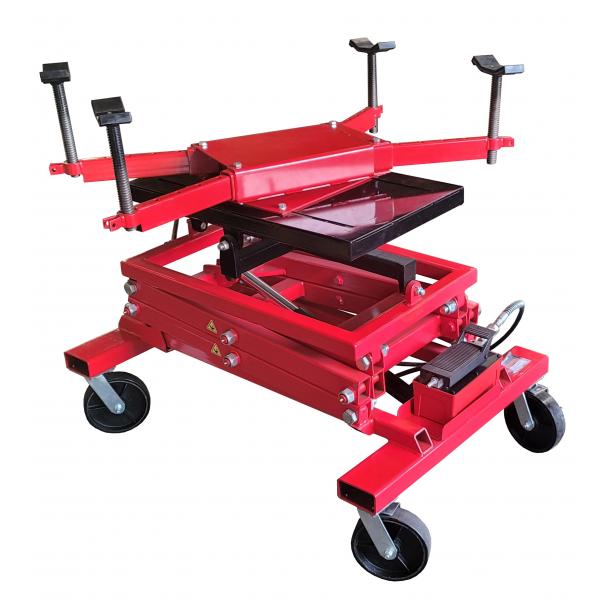

Redline PT1650 Powertrain Engine Cradle Lift Jack

Move your mouse over image or click to enlarge

SaleShips free

Redline PTL PT1650 Cylinder Seal Kit Reg. $79.95 Sale price $69.95
13% off

Allstar Performance Automotive Transmission Stand $139.95

Ships free

Redline Powertrain Lift Replacement Hydraulic Cylinder $179.95

Ships free

Redline Transmission Jack Cylinder Rebuild Kit $59.95

Ships free

Redline RE-PTL Powertrain Lift Pump Seal Kit $44.95

Ships free

Redline TJ500DT Double Tilt Transmission Jack Head

$249.95

Redline PT1650 Powertrain Engine Cradle Lift Jack

Model: PT1650

(1 review)

Please Choose:

Optional Accessories

Redline PT1650 Leg Lowering Kit ( +$349.50 )

Redline RE-AR 3/8" Air Hose Reel ( +$219.95 )

Redline PT1650 Leg Lowering Kit

Redline RE-AR 3/8" Air Hose Reel

Brand

Redline Engineering

Include

Shipping upgrades offered in cart page

$2,999.50

In Stock in

Pensacola

Usually Ships Within

24-48 Hrs

If bigger is better, Redline's new PT1650 Powertrain Lift Jack is the best. This behemoth jack is heavy duty enough for dropping entire engines, transmissions, and cradles out from underneath a vehicle all at once. With 1650 lbs of capacity this air over hydraulic power train lift can handle your biggest of jobs. Just slide the wooden blocks into place, ratchet strap the engine/cradle assembly to the jack-head, and safely lower it down. Safety locks are utilized in the event the jack fails. Order yours today!

KEY BENEFITS

• Covered by Redline's 1-Year parts warranty
• 1650 lbs capacity
• Utilizes safety locks
• Unit has a double tilt feature
• 2 of 4 casters feature wheel locks

SPECS
• 2.5" diameter rollers
• 9.5" ground clearance
• 5' long hydraulic hose
• 8" resin wrapped casters
• Bottom base is 33" x 48"
• Overall dims 51" x 36" x 38"
• Top lifting plate is 20.5" x 32.5"
• Max height 80.5" to top of wood blocks
• 32.75" lowered height to top steel plate
• 1250 lb capacity with swing arm adapter
• 1650 lb capacity without swing arm adapter
• Lifting arms made from 2" x 2.75" tubing
• Frame constructed from 1/8" to 3/4" steel
• 26 sec rise time / 42 sec lowering unloaded

• Download the manual pdf HERE

• Local dock pickup easiest option
• Residential deliveries cost extra
• Ships 523 lbs. at 51" x 36" x 30" class 65
• Optional swingarm attachment adds 100 lbs.
• Free shipping to commercial location w/ forklift
• Pensacola, FL pickups – read our policies HERE
• Units available in Pensacola, FL with $150.00 discount
• Free shipping applies to $200 maximum. If shipping exceeds this amount a surcharge may be needed

K&L 1700lb K1700 Powertrain Battery Lift Tilt Table $7,799.95

Ships free

Redline Transmission Jack Cylinder Rebuild Kit $59.95

iDEAL 2500 lb. Air/Hydraulic EV Battery / Powertrain Lift Table

$6,649.95

Ships free

Norco 2,500 lbs. Power Train Lift $7,129.50

Ships free

Norco 2,500 lbs. EV Battery/Lift Table $7,289.95

Ships free

Redline RE-PTL Powertrain Lift Pump Seal Kit $44.95

Reviews

5.0 / 5 (1 review)

Based on 1 review Write review

ROB WHETZEL Dec 17, 2024

CRADLE LIFT
Dec 17, 2024

WE LOVE THIS LIFT , IT HAS MADE WHAT WAS ONCE A LABOR INTENSIVE JOB MUCH EASIER AND ALOT LESS TIME CONSUMING.

Ask & Answer

Evan Oct 03, 2024

Q. I was looking on Redline PT1650 Powertrain Engine Cradle Lift Jack that you guys have the maximum height is 80.5" to the wooden block was that from the base of the unit or from the floor? then for shipping how many days would take to ship here in Orlando, Florida. Hoping for your response thanks.
A. The maximum height specification is measured from the floor. As of today, 10/3/2024, we have this product in stock in our Pensacola, FL warehouse. Your order should leave our warehouse within 2 business-days of cleared payment and LTL carriers estimate 2-business days in transit time from here to Orlando. Thanks for reaching out, Evan!
