Redline 40 Ton Air Hydraulic Shop Press

Model: RE40T-A

Optional Accessories

Redline RE-AR 3/8" Air Hose Reel

Pin Press Kit

SMC 1/4" Lo-Flow Water Separator

Extra Pair Of 40T Press Plates

Shop Press Foot Pedal

U-Weld-It Metal Bending Finger Brake

Shipping upgrades offered in cart page



This industrial Redline 40 ton hydraulic shop press is an air over hydraulic pressing machine perfect for manufacturing, auto repair, or general mechanical work. It features a pump capable of manual operation, as well as it can be powered via compressed air. Standard features include a tonnage gauge, Capability to move the carriage up and down 44”, and 8 different height adjustments for both small and large projects. Order your new 80,000 pound capacity hydraulic shop press today from Redline Engineering!

• CE Certified
• 40 ton capacity
• Powder coated finish
• Cylinder spring covers
• Winch system included
• 44" movement of carriage up and down
• 8 height adjustments of 5-1/2" increments
• Pressure gauge accurate +/- 2.5% of press capacity
• Air powered hydraulic cylinder for heavy duty pressing

• Previous models utilized handles for lifting carriage.  Handles are no longer included on current carraiges because winch feature makes lifting handles obsolete.

• If adding optional foot pedal, customer will need to supply longer air hose to connect pump and foot pedal

• Each press plate is rated to ½ the tonnage of the press; thus, if applying the press’ maximum force, the load must be distributed over both press plates to avoid damaging the press

Show more


• Hose length 52"
• Leg length 31-1/2"
• Handle length 27-1/8"
• Cylinder stroke 8-1/2"
• Cylinder ram diameter 2"
• Inside frame width: 25-7/8"
• Main frame is 3-1/4" x 3/8"
• Pump fluid volume: 54.1 fl oz.
• Carriage pin diameter: 1-5/16"
• Interior carriage width: 7-3/8"
• Interior carriage length: 16-5/16"
• Internal cylinder diameter: 3.54"
• Operates at a 75dB sound rating
• Maximum pump pressure: 8939 PSI
• Pressure gauge accurate to +/- 2.5%
• Air motor requires 7 CFM of air supply
• Middle carriage 32" L x 12-3/4" W x 7" H
• Cylinder piston/bore diameter: 3.54331"
• Overall dims 40-1/2" L x 31-1/2" W x 75" H
• Two heavy duty press plates 11-7/16" L x 3" W x 2" thickness
• Work dims between cylinder and press plates:
-Min height from cylinder: 0"
-Max height from cylinder: 37"


• Download the manual pdf HERE


• Ships 584 lbs. at 84" x 40" x 21"
• Residential deliveries cost extra
• Ships to commercial location w/ forklift
• Units available in Pensacola, FL with rebate
• Pensacola, FL pickups – read our policies HERE
• Free shipping applies to $200 maximum. If shipping exceeds this amount a surcharge may be needed




Ask & Answer

  • sv Feb 15, 2023
    Q. The instruction booklet refers to bleeding air out of the system, In two places in the booklet, But no where does it explain how?
    A. Honestly, don't worry about it. All you have to do is run the pump through a couple cycles of full extension and back and you'll be good to go. Thanks Steve!
  • John Feb 06, 2023
    Q. Does the RE40T-A have a adjustable ram? Or what model that has the same dimensions and has a adjustable ram?
    A. The ram on the 40T does not slide left to right. Any Redline press larger than our 40 ton press has a ram that shifts left to right. Thanks John!
  • Matt B May 26, 2022
    Q. Does the RE40T-A come with the safety cage like the EC030T & RE30T-A do? Or is it optional for purchase on this press?

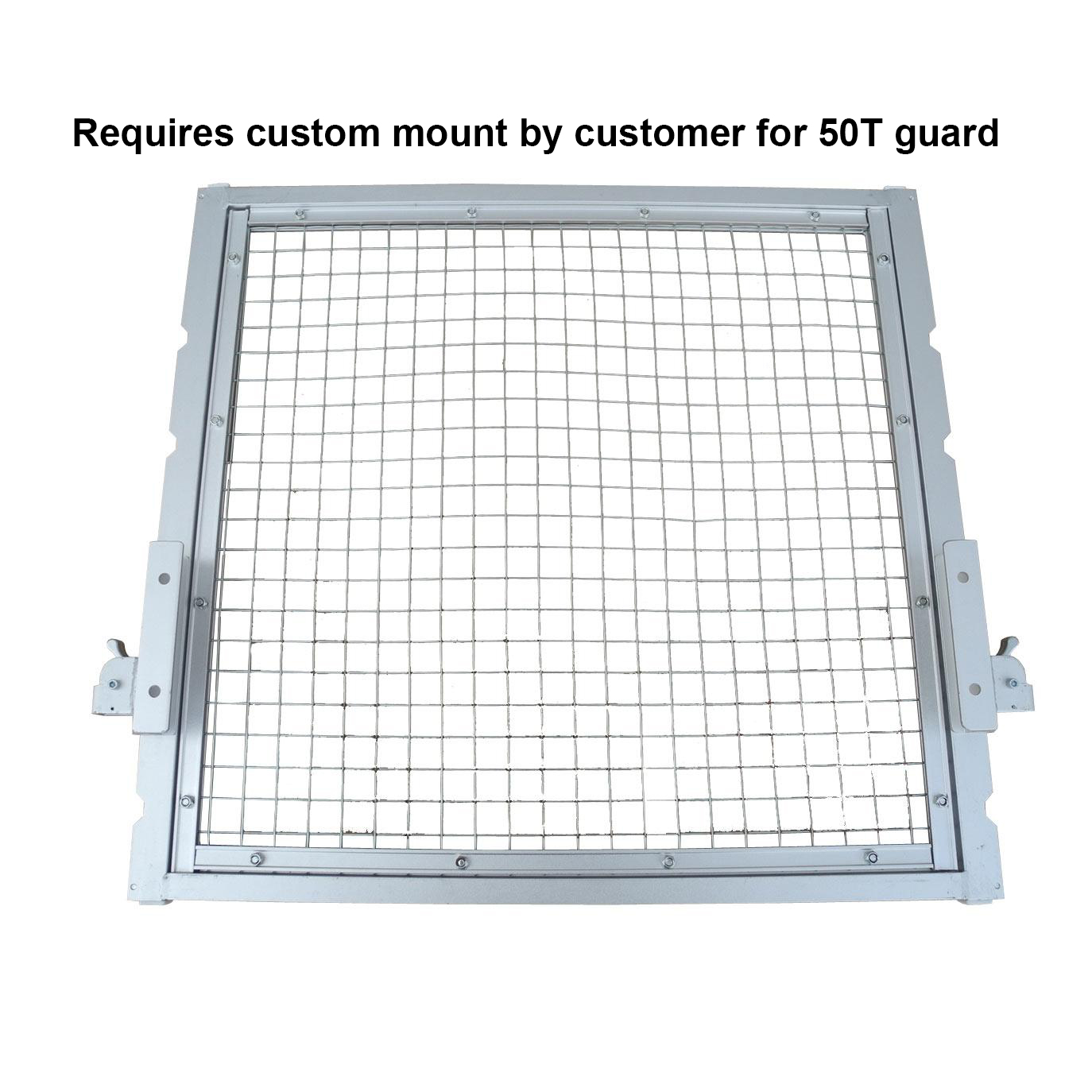

    A. No sir; the RE40T-A does not come with a guard. With that said, there’s nothing stopping you from buying a GUARD and doing a little custom work to add one to this press. Thanks for shopping with us!
