Model: CL10-XP9

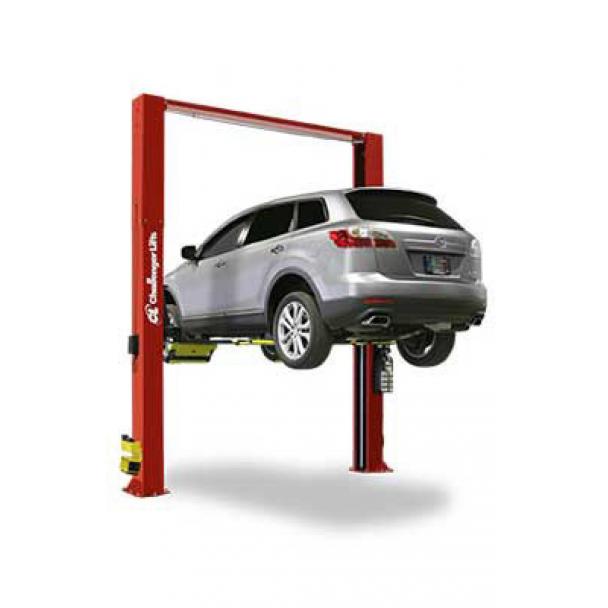

The Challenger CL10-XP9 increases the productivity of general servicing processes. This lift features drive-on style pads, reinforced front and rear ramps, non-skip surface for extra traction, an optional Quick Cycle model capable of faster lifting, and a fully gusseted base plate design to reduce column deflection. Order yours today!
KEY BENEFITS • Non-skip surface • Drive-on style pad • Rubber door guards • Ideal for auto passenger cars • 48" elongated carriage design • Low profile pad 2 post lift design • Fully gusseted base plate design • Reinforced front & rear access ramps • Oversized 5" diamter pulley & 5/16" cable • Single point mechanical lock release system • 11' 8" standard height with 2' & 3' extensions available • Standard column mounted spotting block storage caddy
Show more
• Motor: 2HP • Rise Height: 70" • Platform Width: 24" • Voltage: 208v - 230v • Column Height: 11' 8" • Lift Capacity: 9,000 lbs. • Platform Height: 2-1/4" • Inside of Columns: 110" • Width Overall: 11' 6-1/2" • Speed of Rise: 48 seconds • Ceiling Height Required: 12' • Drive-Thru Clearance: 79-1/2" • Width Between Platforms: 31-1/2" • Floor to Overhead Switch: 134-1/2" • Cylinder Overall (Full Stroke): 11' 11" • Platform Length*: 56" / 68" / 80" • no ramps / ramps / ramps flipped up
• Download the pdf spec sheet HERE
• Download the warranty policy pdf HERE
• Download the manual HERE
• Residential deliveries not possible • Ships LTL truck freight to business w/ forklift • Can be picked up at local truck dock terminal
