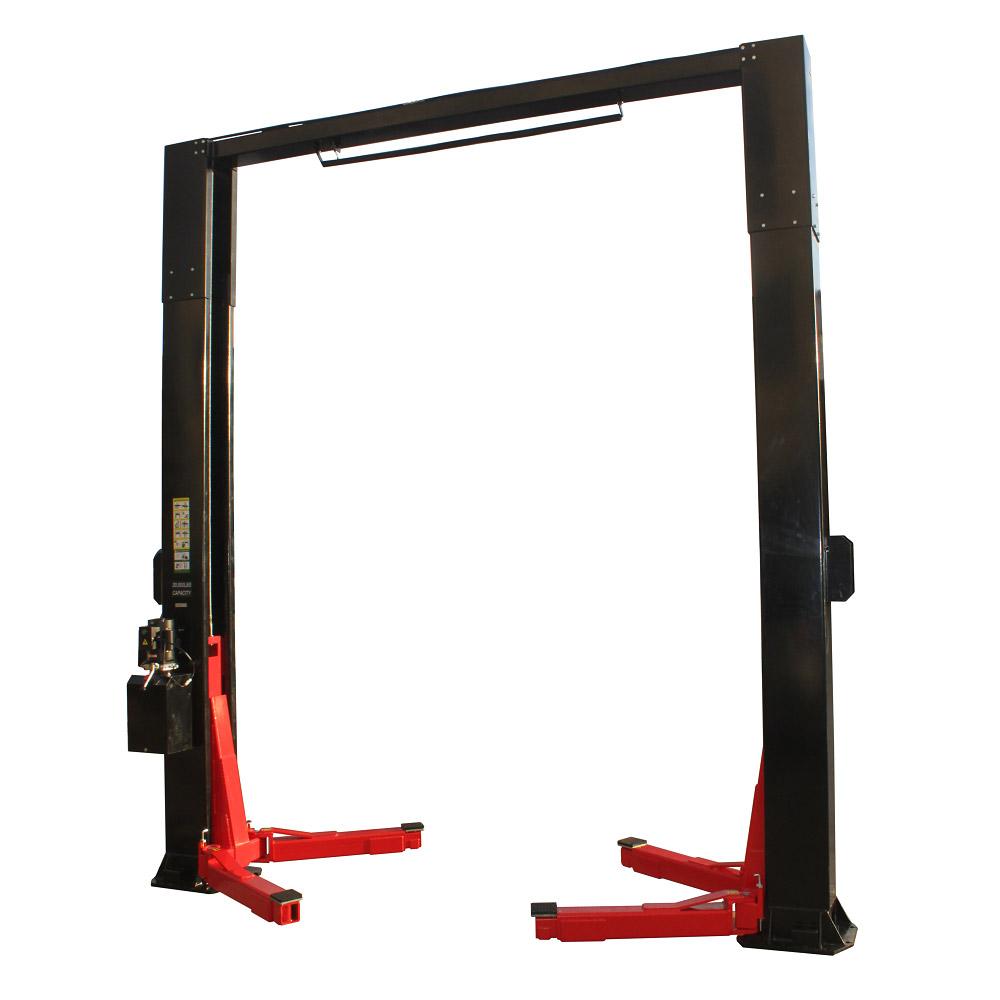

Triumph 20K Lb Clearfloor Symmetric Automotive 2 Post Lift

Model: NTO-20S

Please Choose:

Capacity
Brand
Type
Optional Lift Accessories

A generic image
Add RE-RD8 Gallon Oil Drain

A generic image
Add RE-RD30 Self Evacuating Oil Drain

A generic image
Add ODT-30-E Self Evac Vac Oil Drain

A generic image
Add RE-AJS Auxiliary Jack Stand

A generic image
Add Two RE-AJS Auxiliary Jack Stands

A generic image
Add RE-LD Transmission Jack

A generic image
Add TJ500 Transmission Jack

A generic image
Add TJ500DT Transmission Jack

A generic image
Add TJ2KDT Transmission Jack

A generic image
Add Pair of Redline 12” Foam Door Protectors

A generic image
Add RESS1 Under Hoist Stand

A generic image
Add Two RESS1 Under Hoist Stands

A generic image

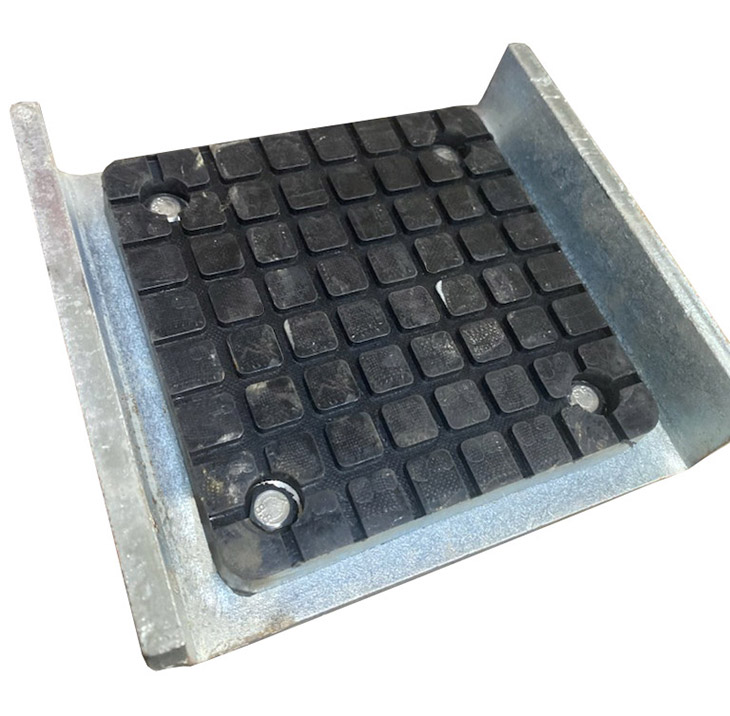

Add Frame Engaging Adapters Set

Shipping upgrades offered in cart page

$10,499.99

Description

The Triumph 20K Clearfloor two post lift comes with a 1 year parts warranty. This ISO 9001 and CE compliant lift is manufactured to the highest quality standards. It features direct drive cylinders, oversized base plates, overhead safety shutoff, free mounting hardware and truck adapters. Order yours today!

KEY BENEFITS
• Symmetric design
• Oversized base plates
• Single point lock release
• Free mounting hardware
• Durable powder coat finish
• Includes 1.5" & 5" truck adapters
• Ideal auto light & heavy duty trucks
• Overhead safety shutoff mechanism
• Direct drive cylinders use no chains & rollers
• 1 year parts warranty – no other warranties implied

CONCRETE
• Do NOT install this lift on a standard 4” thick concrete slab
• This lift requires 6+ inches of concrete at 4,000 psi tensile strength



Show more

Specs

• Power: 220 volt
• Horsepower: 3 HP
• Lowered height: 6"
• Overall width: 155"
• Lifting height: 74"
• Lift time: 40 seconds
• Overall height: 170.5"
• Drive thru width: 113"
• Base plate size: 21" x 20"
• Weight capacity: 20,000 lbs
• Distance between posts: 124"
• Concrete required: 6" at 4000 PSI strength

Downloads

• Download the manual pdf HERE

• Download the How to Install a Two Post Auto Lift Manual HERE



Shipping

• Shipping size 10' x 3' x 4'
• Local pickup in Fort Worth, TX
• Residential deliveries not possible
• Can be picked up at local terminal
• Must ship to a business with forklift
• Returns of Triumph brand lifts not allowed

PLEASE NOTE
• Will not fit into back of pickup truck
• Will not be loaded into trailer if doors cannot close
• Consult shipping dimensions and weight before proceeding with pickup

Videos

Reviews

Ask & Answer

  • Shorty Jan 09, 2024
    Q. Can you do the 20k lift with a 208 electric motor
    A. It's not about the size of the motor sir. It's all dependent upon the size of the cylinder. You could reduce the power of the motor by 50% and use a 110V motor, and it would still lift 20,000 lbs as long as you also doubled the size of the cylinder. So in answer to your question, yes sir, you can lift 20k lbs with a 220V motor. Thanks for your question!
  • Shaw Sep 27, 2022
    Q. Can your company build me a 24,000 lbs two post lift with high cross bar say 190” ht, please get back, Shaw
    A. My apologies sir but we do not custom build any lifts. Thanks for shopping with us.
