Challenger Versymmetric 10K 2 Post Clearfloor Lift ALI Certified

Model: VLE10

(1 review)

Please Choose:

Capacity
Brand
Optional Lift Accessories

A generic image
Add Low Profile Service Ramps Set of 4

A generic image
Add RE-RD8 Gallon Oil Drain

A generic image

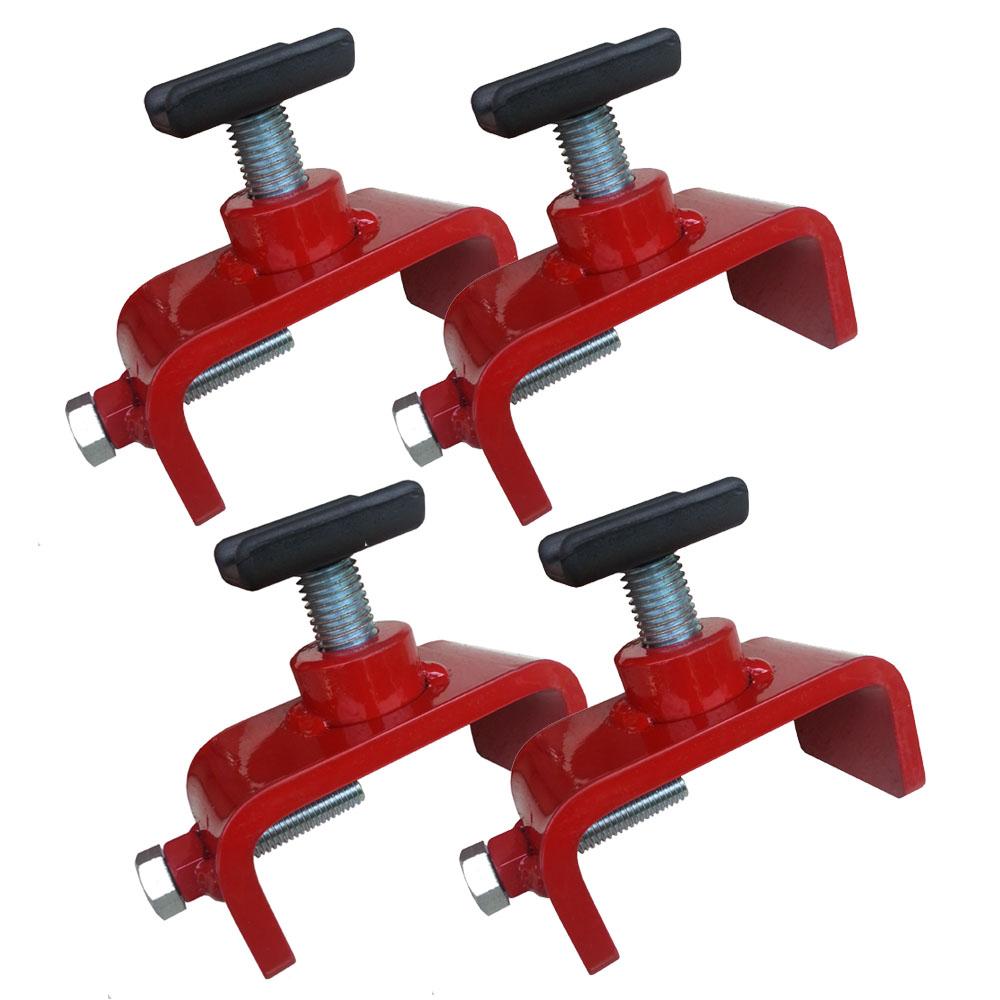

Add RE-2PA 2 Post Lift Motorcycle ATV Adapters

A generic image
Add RE-RD30 Self Evacuating Oil Drain

A generic image
Add ODT-30-E Self Evac Vac Oil Drain

A generic image
Add RE-AJS Auxiliary Jack Stand

A generic image
Add Two RE-AJS Auxiliary Jack Stands

A generic image
Add RE-LD Transmission Jack

A generic image
Add TJ500 Transmission Jack

A generic image
Add TJ500DT Transmission Jack

A generic image
Add TJ2KDT Transmission Jack

A generic image

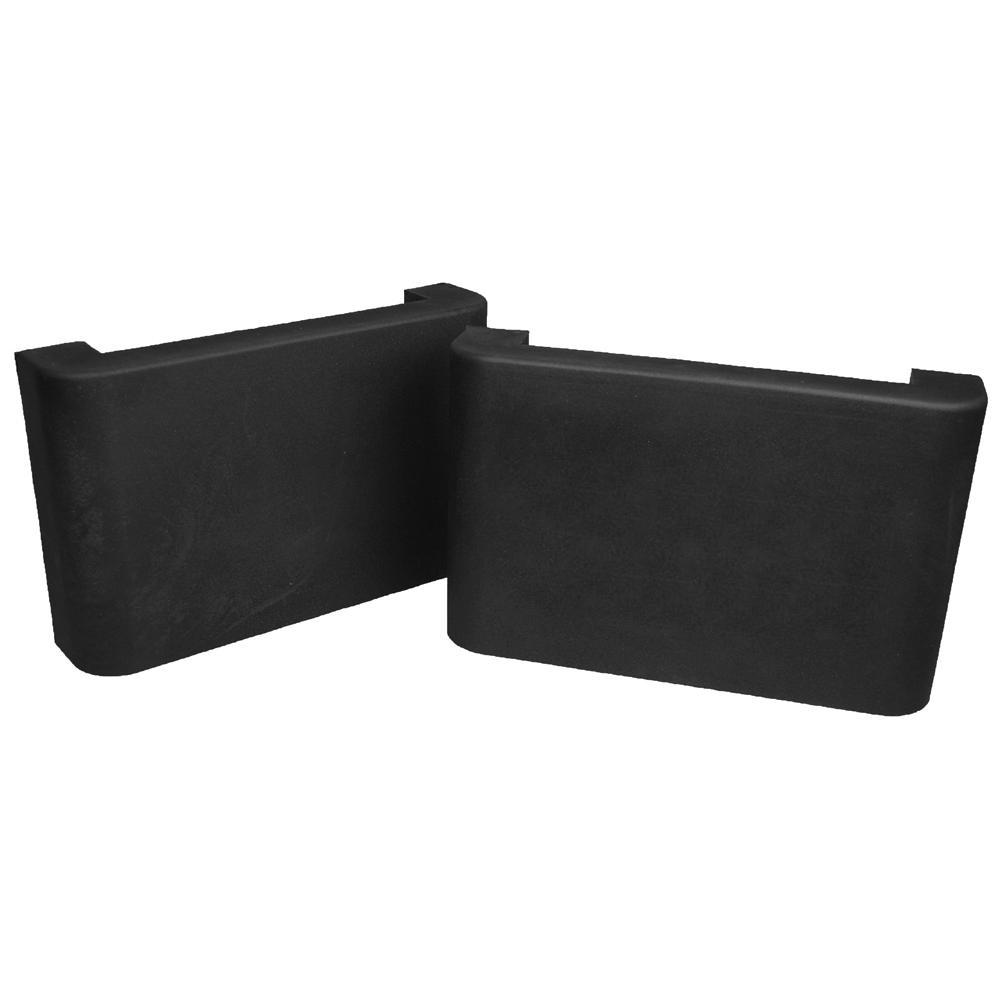

Add Pair of Redline 12” Foam Door Protectors

A generic image
Add Truck Adapters

A generic image
Add RESS1 Under Hoist Stand

A generic image
Add Two RESS1 Under Hoist Stands

Shipping upgrades offered in cart page

$6,019.99

Description

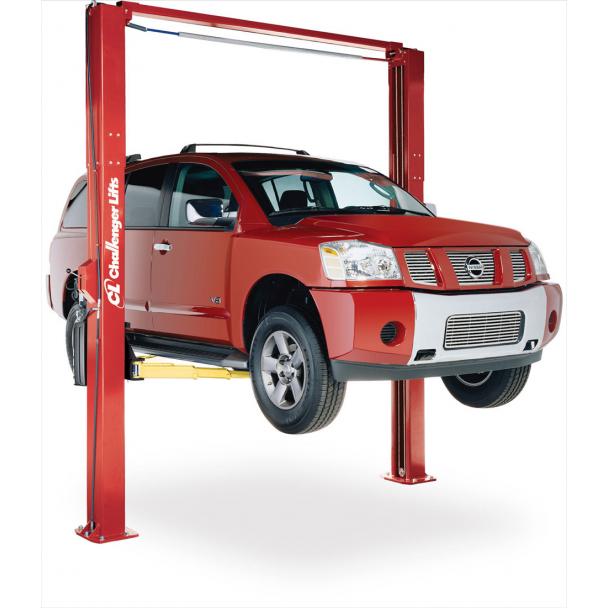

Challenger Lifts' LE10 features the ability to be configured in either the symmetric or asymmetric position dependant upon the service requirements of your shop. It features triple telescoping arms that provide maximum extension and retraction ensuring safe and reliable lifting on all vehicles within rated capacity. Enjoy double telescoping screw pads, durable power coat finish, plated arm restraints and FREE SHIPPING. Order yours today!

KEY BENEFITS
• ETL/ALI certified
• Two in one design
• 2 stage & 3 stage arms
• Single point lock release
• Double telescoping screw pads
• "S" shaped columns are very rigid
• New micro switch overhead shut-off
• Includes lock system from CL10V3 series
• Can load vehicles asymmetric or symmetric
• 2' column height extension upgrade available
• Ideal for auto passenger cars & light duty trucks
• Powder coated finish looks great and resists rust
• Padded cut-off bar is an automatic electric override
• V arm allows both arms to point to the bay entrance
• Does not have turn-column ability like Challenger SA10

HYDRAULICS
• Pump, motor & cylinders are USA made

INSTALLATION HOW TO
• View our install blog HERE

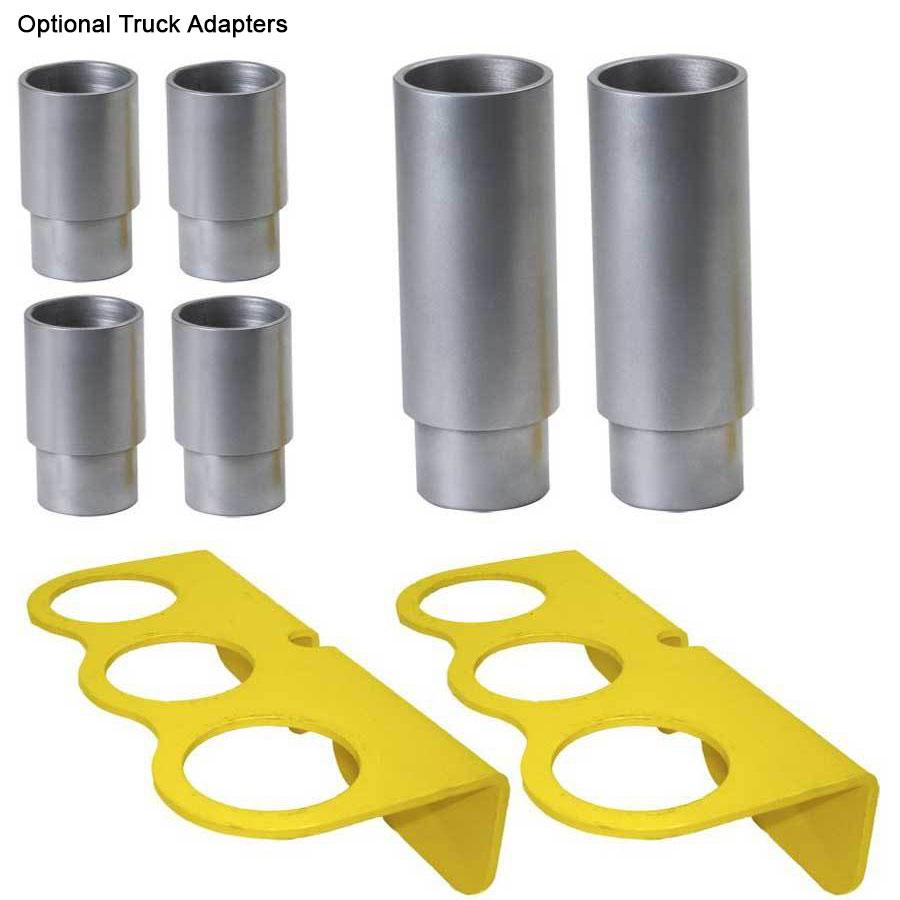

TRUCK ADAPTERS
• Stackable truck adapters are available








Show more

Specs

• Rise time: 44s
• Overall width: 131.625”
• Between columns: 110.25"
• Max load per arm: 2500 lbs
• Drive-thru clearance: 98.375”
• Screw pad height: 4.25” - 6.75”
• Rear arm reach: 38.375” - 55.375”
• Front arm reach: 22.3125” - 39.375”
• Motor/voltage: 2HP, 208v-230v, 60Hz, 1Ph
• Rise height (screw pads at highest position): 74.75”
• Ceiling height required: Standard 12’ / Extended Height 14’
• Overall height: Standard 143.875” / Extended height 167.875”
• Floor to overhead switch: Standard 137” / Extended height 161”

Downloads

• Download the manual pdf HERE
• Download the warranty policy pdf HERE

• Download the How to Install a Two Post Auto Lift Manual HERE



Shipping

• Ships FREE to commercial w/ forklift
• Residential deliveries not possible
• Local pickup in Louisville, KY
