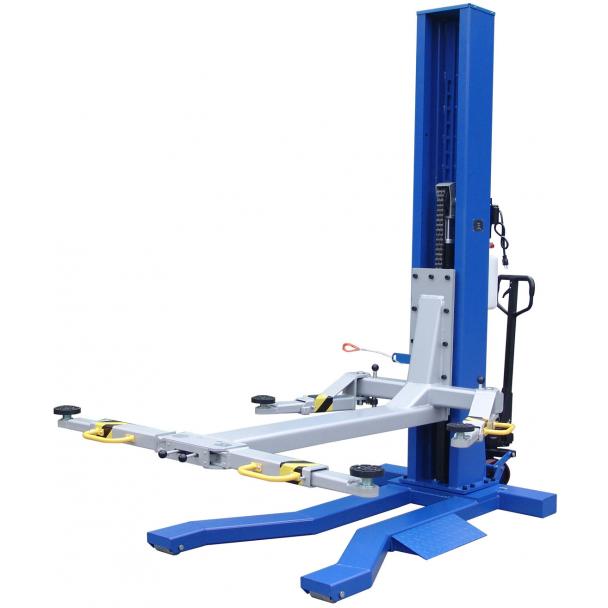

iDeal Mobile Low Profile Single Column 6,000 lb Lift

Model: MSC-6KLP

Optional Lift Accessories

Add RE-RD30 Self Evacuating Oil Drain [OUT OF STOCK]

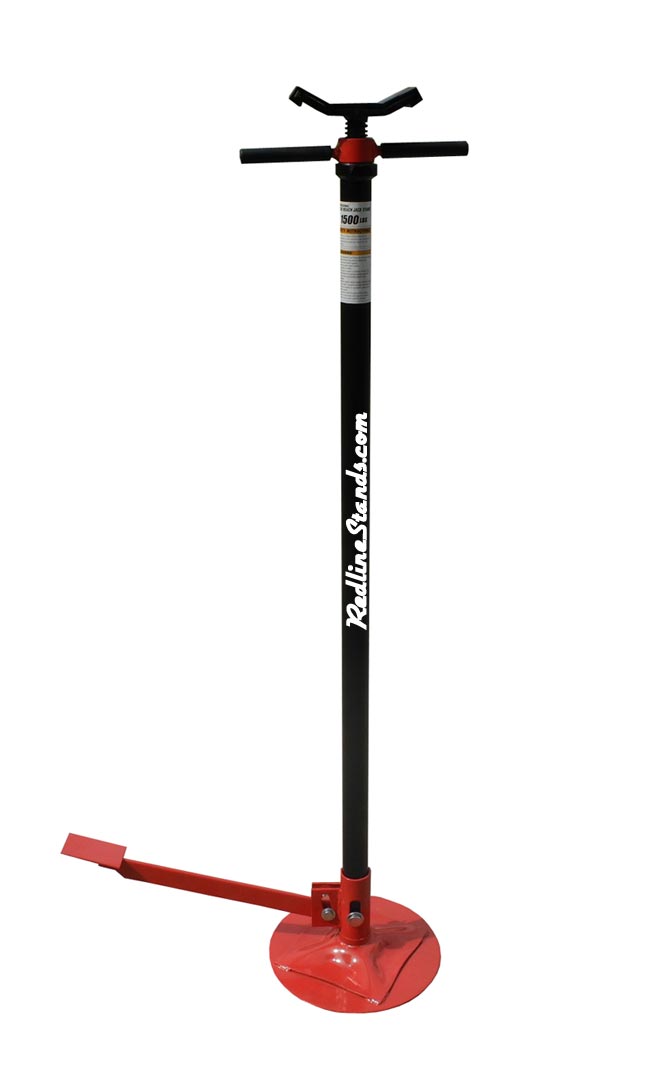

Add Two RE-AJS Auxiliary Jack Stands

Add RE-LD Transmission Jack

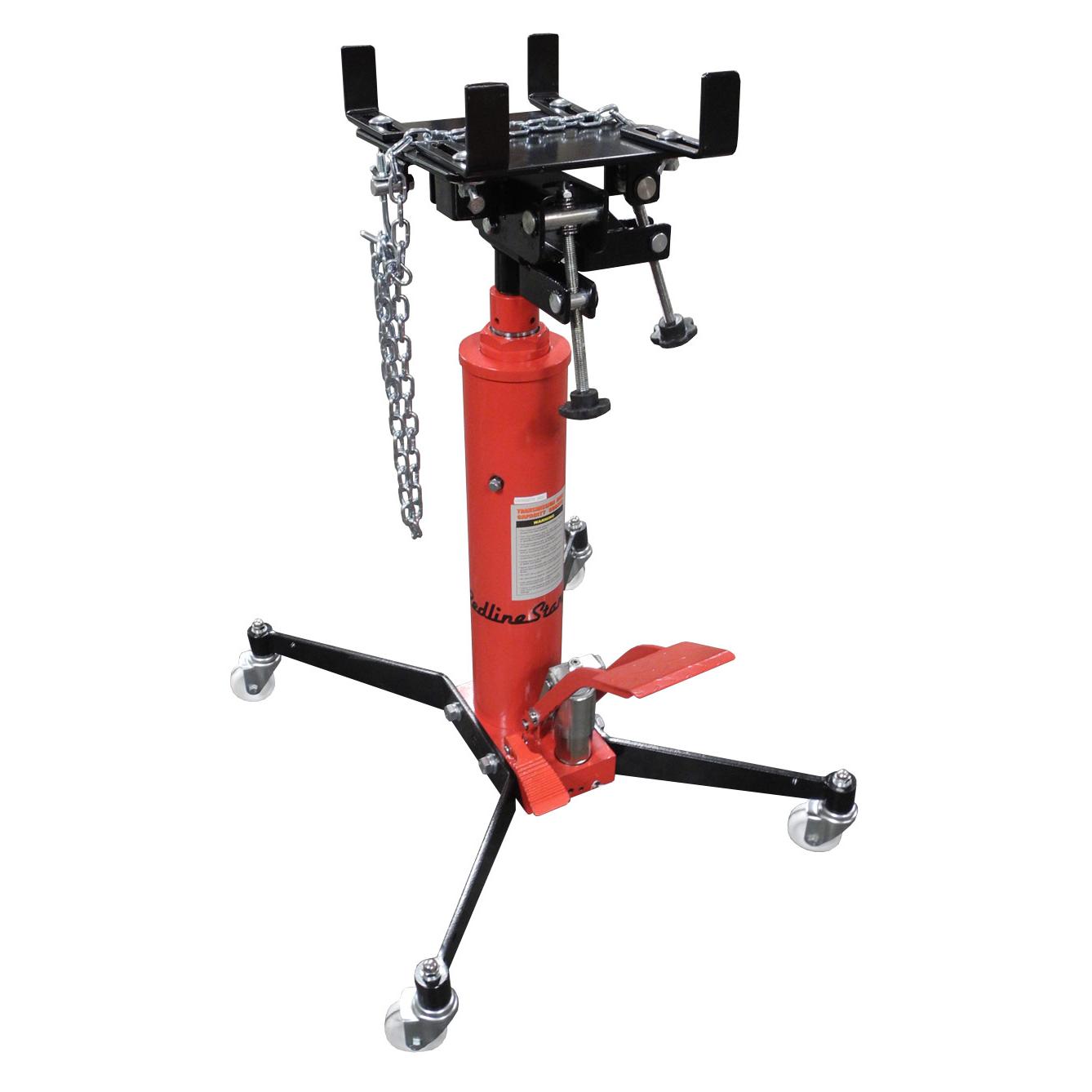

Add TJ500DT Transmission Jack [OUT OF STOCK]

Add RESS1 Under Hoist Stand [OUT OF STOCK]

Add Two RESS1 Under Hoist Stands [OUT OF STOCK]
Truck carriers charge extra to deliver to locations that have no forklift on site, and also for any location not on commercially zoned property. This includes businesses run from your home property, and next door to it. These are not Redline’s fees and sadly they are unavoidable. All truck carriers charge them.



iDeals MSC-6KLP is a mobile "pallet jack" style low profile auto lift that can move to wherever the job may be. With its single point lock release, 2 sets of 4 height adapters, and ease of maneuverability this lift will get the job done with a convenience that no other machine can match. Call for a ship quote today!

• Rolls under vehicle
• Powder coat paint finish
• Single point lock release
• 6,000 lb. lifting capacity
• Heavy duty 13" x 10" structural column
• 2 sets of 4 'drop-in' height adapters (2" and 4")
• Pallet jack style hydraulics to raise lift onto wheels
• Unique drive-over design easily positions lifting points
• Improved 'Low Profile' design with less than 4" minimum height
• Improved 'double telescoping' screw pads with 2-3/4" adjustable height
• Durable 'chain-over' cylinder design uses a 3" x 36" cylinder & 846 leaf chain

• 8% sales tax will be charged on all shipments going to CA after the sale


Show more


• Lift rise height: 72"
• Overall width: 45-3/16"
• Overall height: 102-3/8"
• Overall length: 101-9/16"
• Power: 110VAC, 20Amp, 1PH
• Drive-over frame base/ramp height: 3-15/16"
• Off side swing arms (min/max): 24-5/8" / 34"
• Swivel pad height (min/max): 3-7/16" / 6-5/16"
• Main side swing arms (min/max): 19-11/16" / 26"


• Download the manual pdf HERE
• Download the pdf parts fiche HERE


• Residential deliveries NOT POSSIBLE
• Ships LTL truck freight to business w/ forklift
• Can be picked up at local truck dock terminal
• Ships 1,826 lbs. at 99" x 42" x 45" @ class 77
• Is not available to unload via lift gate as it is not pallet-jackable
• Various locations across U.S. may have units in stock $50.00 pick up fee will apply
• Pickup at satellite warehouses:
- Temecula, CA  92590
- Marshalltown, IA 50158
- Elwood, IN 46036
- Bow, NH 03304
- Wilmington, DE 19802
- Reidsville, NC 27320
- Orlando, FL 32809
- Alvarado,  TX  76009
