I have a HF MC Lift Table with the hydraulic jack similar to RL's Replacement Pump. Can you provide me with the dimensions of the Pivot Bar Diameters. The width of the RP's Pivot base. And the Height of the RP from the center line of the pivot to the top of the jack ram rod in the down position? Thank you for your help.

Yes sir. It would appear the I.D. of the mounting hole is 1 inch. The width of the mounting base is 11-15/16 inches, and the center of pivot to ram rod in the lowered position is 8.25 inches. Please make sure you're prepared to do whatever is necessary to make it fit if you buy it, because these are not returnable for any reason. We quit allowing returns on them years ago because too many folks would buy the wrong jack for their lift, try to hammer it in place, and then return it all beat-up. Thanks Lewis!

Dose this include the base plate if not how do i order the base plate for it

This current model pump has the mounting base built into the pump just as shown in the photos. I hope this helps. Thanks Sean!

What's the lifting capacity,it doesn't say,for the hydraulic replacement pump. Model #LD1K-HP (RP-1010-1KLDML-1)

It's actually not possible for us to answer that question sir. The lift capacity is determined by the steel frame of the motorcycle lift, not the tonnage of the bottle jack that operates it. This pump, if installed into our LD1K motorcycle lift, operates the table with 1,000 lbs of capacity, despite that the bottle jack itself produces several tons of force. I hope this helps. Thanks Mick!

How do I order the base for the LD1K & 1000L Motorcycle Lift Table Replacement Hydraulic Pump.

Our new style LD1K pump, which is what's offered here, includes the mounting base built into the assembly sir. Thanks Shane!

Does this come with the pump air pump motor and base plate?

It comes with the air motor, but not the mounting base plate. Thanks Mike!

Ships free

LD1K & 1000L Motorcycle Lift Table Replacement Hydraulic Pump

Move your mouse over image or click to enlarge

Ships free

Redline Motorcycle Lift Table Hydraulic Pump $249.95

Ships free

Redline 1500HD/2200HD Motorcycle Lift Table Hydraulic Cylinder $229.95

Ships free

Titan 1500XLT Hydraulic Cylinder $299.95

Ships free

Harbor Freight Motorcycle Lift Table Replacement Pump

$199.95

Ships free

Kernel M1500 Lift table Flow Control Valve $179.99

Ships free

Titan 1500XLT Motorcycle Lift Table Hydraulic Pump $339.95

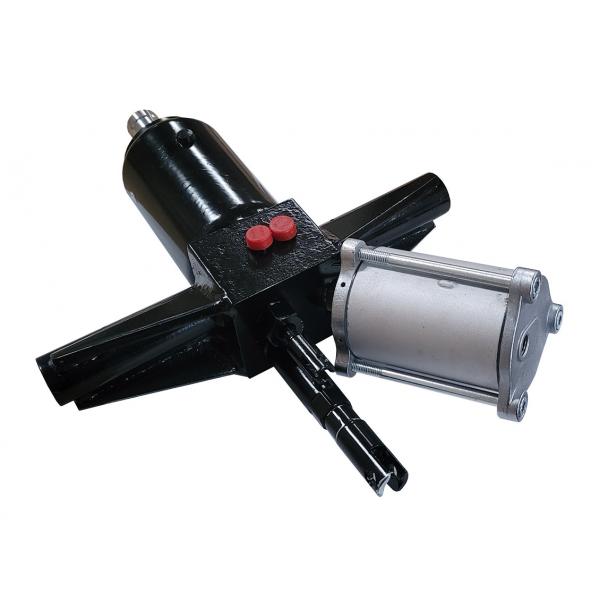

LD1K & 1000L Motorcycle Lift Table Replacement Hydraulic Pump

Model: LD1K-HP [RP-1010-1KLDML-1]

(2 reviews)

Optional Accessories

Include Pneumatic Hose ( +$29.95 )

Include Pneumatic Hose

Brand

Redline Engineering

$249.95

The 1000L pump is a factory replacement for the Titan 1000L and Redline LD1K; however, it can also be used to replace pump assemblies on other lesser quality made lifts. Order yours today!

KEY BENEFITS
• 90 day warranty
• Air hose is NOT included
• Powder coated black to never rust
• Operates both via foot or air power
• Factory Titan pump is legendary!
• Listing is for PUMP ONLY

RETURNS
• When customers purchase this replacement pump for a non-Redline lift table, returns ARE NOT allowed. NO EXCEPTIONS

• Plate dims: 6-1/2" x 4-1/8"
• Ram length (min/max): 1-13/16" / 6"
• Overall length (min/max): 16" / 20-1/2"

• Ships 25 lbs. at 16" x 12" x 4"

Ships free

Redline Motorcycle Lift Table Hydraulic Pump $249.95

Ships free

Redline 1500HD/2200HD Motorcycle Lift Table Hydraulic Cylinder $229.95

Ships free

Titan 1500XLT Hydraulic Cylinder $299.95

Ships free

Harbor Freight Motorcycle Lift Table Replacement Pump

$199.95

Ships free

Kernel M1500 Lift table Flow Control Valve $179.99

Ships free

Titan 1500XLT Motorcycle Lift Table Hydraulic Pump $339.95

Reviews

5.0 / 5 (2 reviews)

Based on 2 Reviews Write review

Joseph Paolucci May 20, 2020

Very happy with this, and excellent upgrade to an HF table.
May 20, 2020

The modification was not that difficult. You have to move the cup that the pump ram sits in on the "V" plate back about an inch and a half or more. Move the tabs on the foot controls to match the pumps manual controls, and get a 25MM rotatory shaft to make two pins that 150MM each in length to mount in the table.
NED M. Dec 3, 2019

Great upgrade!
Dec 3, 2019

I purchased this along with the LD1K/1000L Base to upgrade my harbor freight lift. After the necessary modifications this thing performs great.

Ask & Answer

Lewis D Jul 05, 2022

Q. I have a HF MC Lift Table with the hydraulic jack similar to RL's Replacement Pump. Can you provide me with the dimensions of the Pivot Bar Diameters. The width of the RP's Pivot base. And the Height of the RP from the center line of the pivot to the top of the jack ram rod in the down position? Thank you for your help.
A. Yes sir. It would appear the I.D. of the mounting hole is 1 inch. The width of the mounting base is 11-15/16 inches, and the center of pivot to ram rod in the lowered position is 8.25 inches. Please make sure you're prepared to do whatever is necessary to make it fit if you buy it, because these are not returnable for any reason. We quit allowing returns on them years ago because too many folks would buy the wrong jack for their lift, try to hammer it in place, and then return it all beat-up. Thanks Lewis!
Sean Jun 01, 2022

Q. Dose this include the base plate if not how do i order the base plate for it
A. This current model pump has the mounting base built into the pump just as shown in the photos. I hope this helps. Thanks Sean!
Mick May 20, 2022

Q. What's the lifting capacity,it doesn't say,for the hydraulic replacement pump. Model #LD1K-HP (RP-1010-1KLDML-1)
A. It's actually not possible for us to answer that question sir. The lift capacity is determined by the steel frame of the motorcycle lift, not the tonnage of the bottle jack that operates it. This pump, if installed into our LD1K motorcycle lift, operates the table with 1,000 lbs of capacity, despite that the bottle jack itself produces several tons of force. I hope this helps. Thanks Mick!
Shane Apr 20, 2022

Q. How do I order the base for the LD1K & 1000L Motorcycle Lift Table Replacement Hydraulic Pump.
A. Our new style LD1K pump, which is what's offered here, includes the mounting base built into the assembly sir. Thanks Shane!
Mike Apr 16, 2022

Q. Does this come with the pump air pump motor and base plate?
A. It comes with the air motor, but not the mounting base plate. Thanks Mike!
