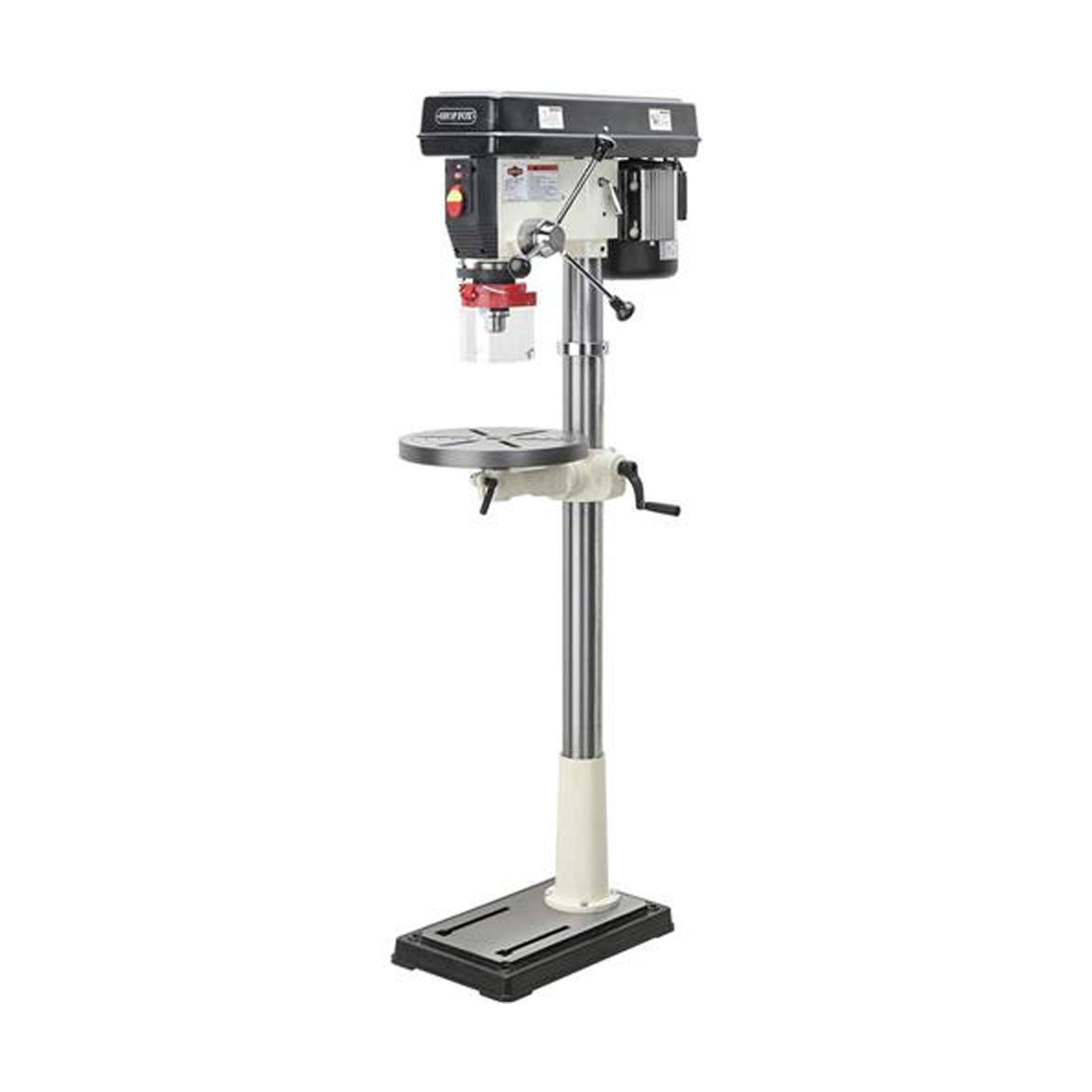

[DISCONTINUED] SHOP FOX® 1 HP 17" Floor Model Drill Press

Model: W1680

Shipping upgrades offered in cart page


The W1680 Drill Press from Shop Fox is perfect for the average size cabinet shop or small machine shop. With the extra horsepower aluminum finned motor, the Morse Taper #3 spindle for the larger direct mount bits and the closely spaced spindle shaft bearings you have one of the most accurate drill presses in its class. Solid cast iron construction, precision ground table, sealed ball bearings, and rubber coated quick-adjust handles provide the quality and convenience you want in a machine investment. We even added a built-in light so you can see what you're doing.. Order yours today!

Show more


• Swing: 17"
• Drill chuck: 5/8"
• Table swing: 360°
• Table size 14" dia
• Switch type: Toggle
• Spindle travel: 3 1/4"
• Spindle taper: MT #3
• Overall height: 65 1/2"
• Drilling capacity 1" steel
• 12 Speeds: 140-3,050 RPM
• Motor: 1 HP, 110V, 1,720 RPM
• Table: Precision ground cast iron


• Download the spec sheet HERE
• Download the manual sheet HERE
• Download the parts list sheet HERE


• Approx. shipping weight: 220 lbs
• CA, CT, LA, MD, MA, RI, TN
• Additional shipping fees apply when sent to above states
• Shop Fox prohibits drop shipping to these states.  Orders to these states will be shipped to Redline and then to you
• Shipments to all other 41 continental states will incur no extra fee
• Must ship to a commercially zoned location with a dock and forklift or to the nearest truck terminal to qualify for free shipping
