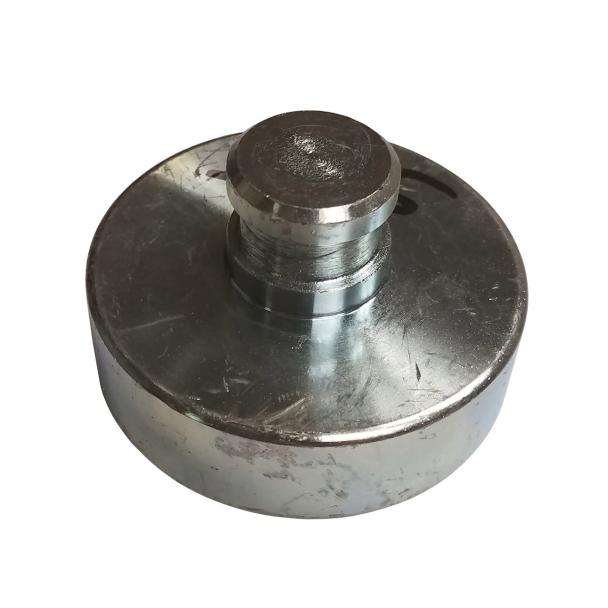

Redline Shop Press Replacement Head

Model: RE-SPHD

Please Choose:

Brand

Redline Engineering

Size

I Understand

$54.95

In Stock in

Pensacola

Usually Ships Within

24-48 Hrs

This is the OEM Factory Replacement Shop Press Replacement Head for the Redline line of shop presses Swap out your old used up head with one of these new heads. Order yours today!

KEY BENEFITS
• Made from #45 modulating steel

• Dims:
10T - 1.575 diameter x .700 thickness
12T - 1.575 diameter x .700 thickness
20T - 1.900 diameter x .700 thickness
30T - 2.285 diameter x .700 thickness
40T - 2.090 diameter x .800 thickness
50T - 2.685 diameter x .785 thickness
75T - 3.070 diameter x .785 thickness
100T - 3.550 diameter x 1.185 thickness
150T - 3.850 diameter x 1.185 thickness
200T - 4.925 diameter x 1.185 thickness

Ships free

Redline Shop Press Replacement Carriage Pin Butterfly Clip Pair $29.95

Ships free

Redline Shop Press Foot Pedal to Pump Hose $79.95

Ships free

Redline Electric Shop Press Motor Replacement Starting Capacitor $79.95

Ships free

Redline 10-200 Ton Replacement Shop Press Gauge $99.95

Ships free

Redline Heavy Duty Shop Press Arbor Plates Pair

$119.50

Ships free

Redline Electric Press Motor to Pump Adapter Kit $99.95

Reviews

Be the first: write a review.

Ask & Answer

jakel89 Dec 26, 2024

Q. are all the small ends the same size? i see you have the big side listed
A. Correct. The side of the head that inserts into the cylinder is the same across the board. Thanks for shopping with us!
allen Dec 15, 2024

Q. What material is this press head made of? Are there other materials for press heads available?"
A. We asked the factory and were told, "#45 modulating steel." Thanks for shopping with us!
Homer J. Simpson May 17, 2023

Q. Looking for dimensions for the 10 ton head. Or, I am looking for a head that has a dimension of 1.570 if you carry something along those lines
A. We went ahead and measured all the replacement heads that we carry and posted the specs to our specs tab. The 10 ton head you're inquiring is 1.575" diameter and .700" thick. We do not have any other heads for the 10 ton unit and we do not offer custom options. Thanks for your question!
Jayjeffrey Aug 28, 2022

Q. What are the dimensions of the 100,150,200 ton heads? Are they compatible with American forge and foundry presses?
A. Good morning. I have the head sizes below. All of our press heads have the same shank size of .980 with an offset groove of .780. Have a great day!
200-T
O.D. 4.92

150-T
O.D. 3.85

100-T 3.55
