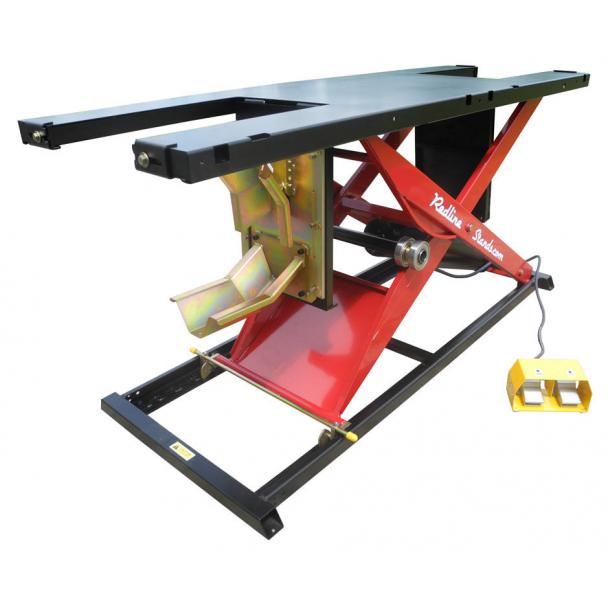

    Redline Pneumatic 1,750 lb MC625R Lift Table

    Model: MC625R

    Starting at: $1,699.50

    Include with Lift


    The privately labeled Redline MC625R is Air Superiority. This lift combines the best features of our MC655R hydraulic lift with the convenience of air. The new Ram Squared twin cylinder system gives the MC625R a rated working capacity of 1750 lbs. Optional side panels, now with our redesigned fast-mount system, increase the working width of the MC625R to 56”, allowing the widest utility vehicles and golf carts to be serviced. An easy to install extension is also available, adding two feet front or rear to the overall length for custom bikes. Combine those features, plus the value you expect from Redline, and you have a lift that will be right for all of your needs. Order today!

    • 1 year warranty
    • Automatic safety locks
    • Wheel vise not included
    • 1750 pound lifting capacity
    • Front and rear drop out panels

    • Redline privately labels K&L Supply lifts in our company colors of black and red, meaning we purchase them in large quantity in this color scheme.  Thus, if you order any other color we'll ship a K&L branded table from CA, which is not purchased by Redline in large quantities.

    • All Redline tables made by K&L are still warranted by K&L for the same 1 year warranty.




    • 29.5'' table width
    • 40'' lifting height
    • 8'' lowered height
    • 86.5'' table length standard
    • 56.5'' table width with optional side panels
    • 68.5'' table width with optional WIDE side panels
    • Power Supply - Min. 90 PSI / Max. 100 PSI air pressure


    • Download the manual pdf HERE


    • Free shipping to 48 states*
    • Can pick up at nearest truck depot
    • Residential deliveries with lift gate cost extra
    • Local pickup in Como, MS for Redline brand
    • Local pickup in Santa Clara, CA for K&L brand
    • Ships via truck freight to commercial location with forklift
    • Ships 540 lbs + crate/accessories at 44" W x 97" L x 26" H
    • Free shipping applies to $250 maximum. If shipping exceeds this amount a surcharge may be needed
