Redline RE70 Clamshell Abrasive Sand Blast Cabinet + Media

Model: RE70 (SBC990)

(3 reviews)

Optional Accessories

FREE 50lb. Bag of Glass Media

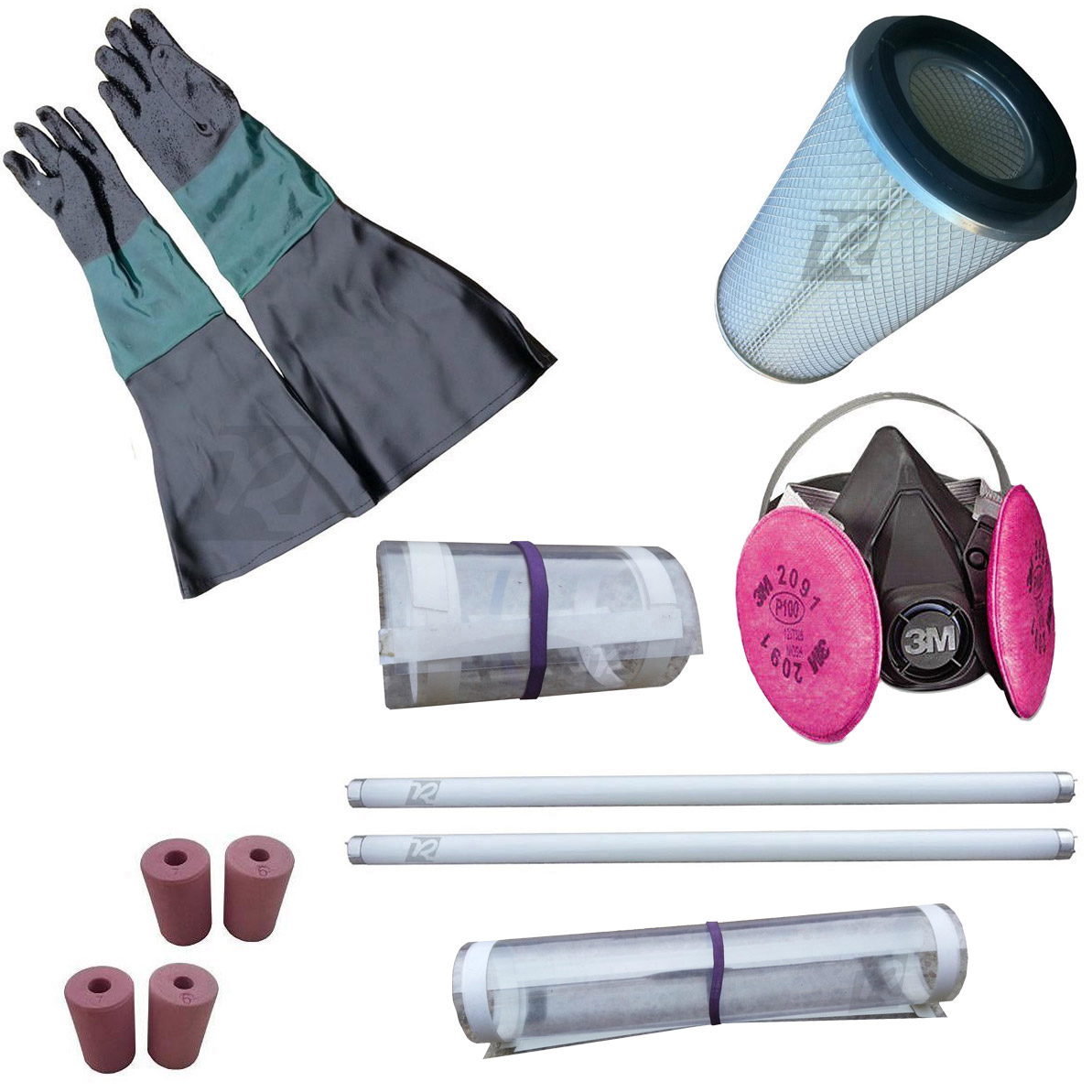

RE70 Accessory Package Deal

Three 50 lb. bags of glass media + 1 bag free

50 lb. 40-70 Grit Premium 10X Media

Extra Nozzles (4)

Protective Respirator

Replacement Pair of Large Fluorescent Bulbs

Extra Repl Lamp Screens (5)

Redline RE-AR 3/8" Air Hose Reel

Extra Pair of Gloves

6532/12RC 32” Long Reach Gloves

Extra Repl Vac Filter

SMC 1/4" Hi-Flo Water Separator

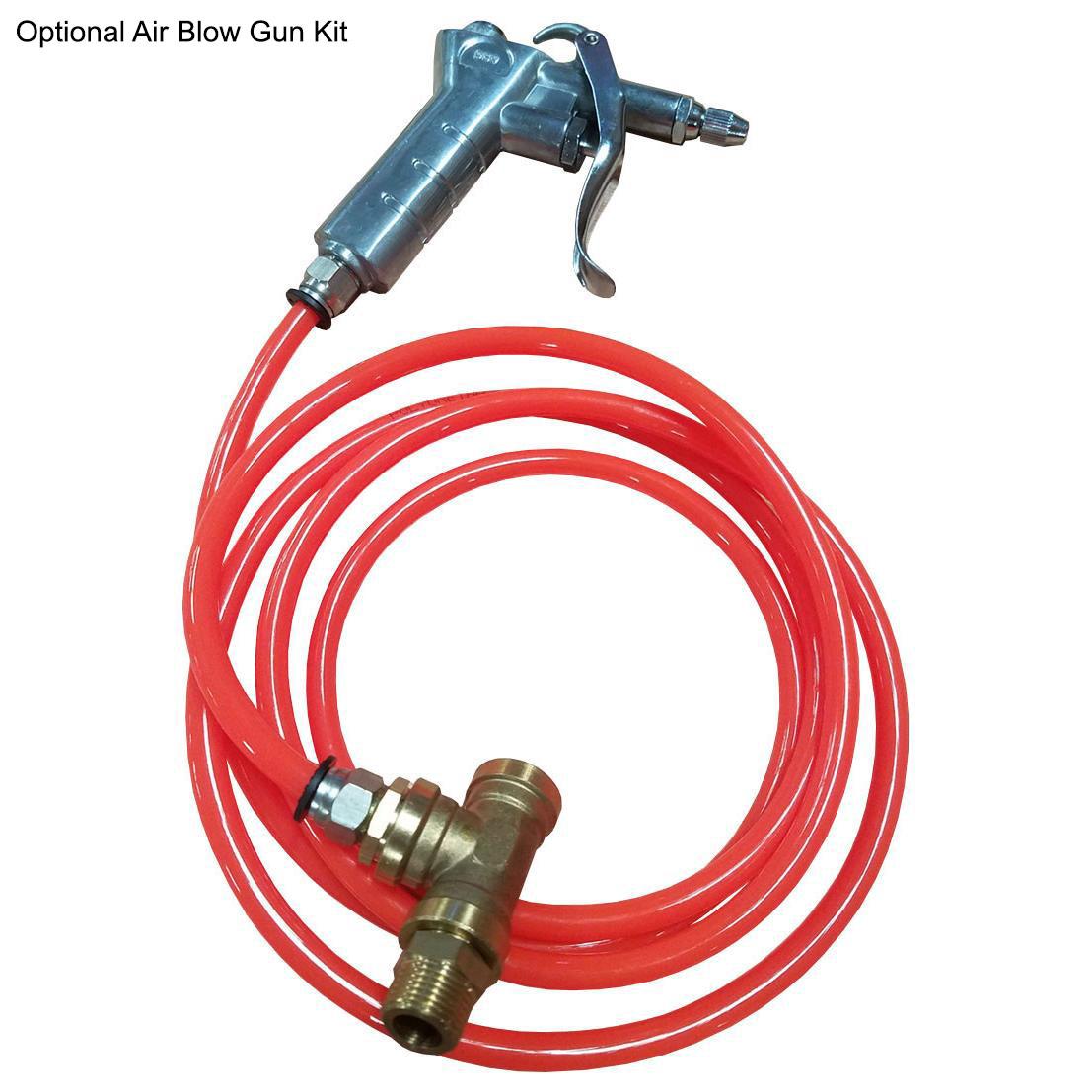

Air Blow Gun Kit

Blast Media Strainer Filter

Upgrade to long-reach fleece-lined gloves (6532/12RC)

Shipping upgrades offered in cart page



The Redline Engineering Jumbo Clamshell Cabinet settles it once and for all. Size matters! Standing roughly seventy inches tall, the entire front of this cabinet raises via gas shocks to expose a massive opening. The greatest advantage of this style cabinet is that it can be loaded by forklift, which is excellent for heavy/bulky items such as engine blocks. Order yours today!


• Runs on 120 V
• Powder coat finish
• 4 fluorescent lights
• Huge clamshell door
• Built-in air regulator
• Comes with 4 ceramic nozzles
• Built-in air/bead mixing valve
• Vacuum dust filtration system

• 1 year warranty on cabinet
• Items considered to be consumable not covered under warranty: nozzles, filters, hoses, etc.

• Glass bead
• Cannot use walnut shells
• Use of silicone carbide and aluminum oxide will substantially decrease life of all media-flowing components

• Beach/play sand should NOT be used
• Prevent silicosis via respirator
• Learn more about Silicosis HERE

• Redline recommends cleaning your sand blast vacuum filter every 3 hours of use and replacing every 30 hours of use in order to avoid premature failure of the electric vacuum motor


Show more


• 125 psi max
• 14g steel legs
• 120V vacuum
• 24" long gloves
• 16g steel panels
• Requires 18 - 24CFM
• Viewing window is 12.6" x 27.25"
• When door is open unit stands 85" tall
• Entire unit is 69.5" H x 48" D x 52.5" W
• Working area 34" Tall X 34" Deep X 46 1/2" Wide


• Download the pdf manual sheet HERE


• Residential deliveries cost extra
• Ships 436 lbs at 42" x 52" x 38" class 110
• Free shipping to a business with forklift on site*
• Local dock pickup saves residential delivery fees
• Pensacola, FL pickups – read our policies HERE
• Free shipping applies to $275 maximum.  If shipping exceeds this amount a surcharge may be needed




4.7 / 5 (3 reviews)
Based on 3 Reviews Write review
  • May 31, 2020

    Finally a sand blaster that works great

    May 31, 2020
    Redline is a great company to work with, from the phone consultation, order, spare consumables to timely delivery. Assembly was easy and all parts present. After using it for a few weeks I look for stuff to blast. Would and have recommended to anyone looking for a great sand blaster!
  • Don Jan 9, 2019

    Great cabinet

    Jan 9, 2019
    Purchased this cabinet and everything went smooth from the time I ordered to the time it was delivered. I bought not 1 but 2 blast cabinets from a local chain store. Let's say the store name sounds like Garbage Crate. I replaced just about every part on them and every hack I could find on the net. It never worked like it should. I finally convinced my self to bite the bullet and purchase a good unit. Did a lot of reading on the net and decided to go with this one. Machine was created really good for shipping. Took about an hour give or take to assemble it. Alot of work room and the thing works so good. No buyers remorse here. I made the right decision.
  • Robert Peto Jun 15, 2018

    Good product

    Jun 15, 2018
    I just took delivery today and like it very much so far, hopefully my opinion doesn’t change with time. I was reluctant to purchase the RE-70, partially because some of the other cabinets I looked at offered a satisfaction guarantee that would pickup shipping costs if I choose to send it back. The other cabinets I looked at were also fully assembled. I chose the RE-70 because of the size as well as the clam shell design for ease of loading and the price. Compatible cabinets were $300 to $800 more. The cabinet was very well packed upon delivery and in pristine condition. No scratches or dents. It was easy to assemble and has quality hardware, no cheap nuts or bolts. My compressor is a single stage 6hp, 60 gallon Puma listing an ouput of 17.5 cfm @ 90 psi. Using the cabinet at 70psi, the compressor struggles to keep up, but it’s still effective. Tons of room inside and it’s well lit. Great visibility while working. I would like to have longer gloves to reach in deeper when needed. I reenforced the bottom of the legs and added casters to enable movement around my shop when needed. It would be nice if wheels were a purchase option. I plan to add a blowgun inside, which would also be a nice feature. Looking at the lights, which are fluorescent instead of LED, it would be nice to have easier access them for service. I am pleased so far and would recommend this Sandblasting cabinet to a friend.

Ask & Answer

  • Greg Mar 08, 2023
    Q. is the re70 the same cabinet as the sbc990?
    A. I can tell you that our crate says both "RE70" and "Sandblast Cabinet 990" on the side of it. Now, is it the same product as our competitor's SBC990? I cannot say as we do not have information whether or not our competitor's product is the same or different from ours. Naturally, if our competitor makes a modification to their cabinet, they of course don't notify Redline that they've done so. I hope this helps. Thanks Greg.
  • Chris Sep 03, 2022
    Q. Do you sell replacement glass (not protectors) for RE70?
    A. We do not sell glass for any of our cabinets because the shipping company destroys the glass on the way to the customer. You can actually run to your local glass shop and generally have a regular piece of glass cut for roughly $30.00 or less in most cases. Thanks Chris!
  • jerry Oct 14, 2021
    Q. I am looking for gloves for a cabinet that is an oval hand area. The outside dimension is about 8"x6". An old glove looks to be about 10" at the cuff. About 22" long. do you have something similar?
    A. I’m afraid we don’t offer any cabinets that use an oval glove sir. Now, with that said, we see no reason you couldn’t measure the circumference of your oval and buy a circular mount glove in its place. The fabric would surely mount to a round flange just the same as a circular flange. HERE is a link to the gloves we offer. You’ll notice, for instance, that the gloves model SBC-GLV have the spec provided for the circumference of the mounting flange. Just match that up as best you can to your oval flange and you should be good to go. Just don’t buy anything too small. Thanks Jerry.
