K&L Supply Pneumatic 1750 lb MC625R Motorcycle Lift Table

Model: MC625R

(2 reviews)

Capacity by LBS
Optional Lift Accessories

Add Clamp Wheel Vise

Add MC10R Wheel Chock

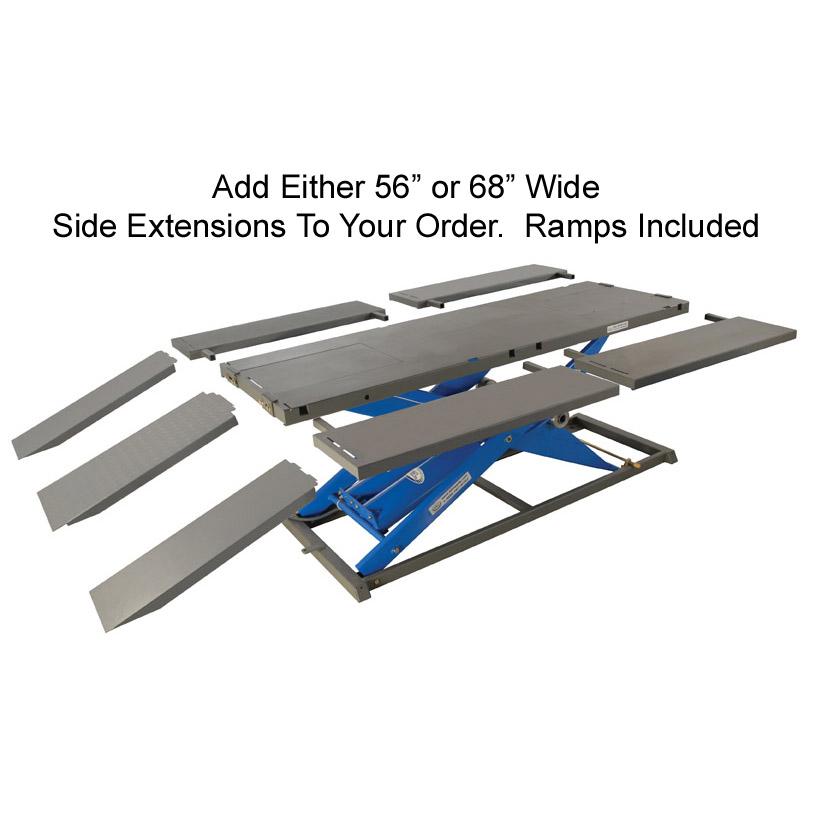

Add 56" Side Extensions

Add 68" Side Extensions

Add MC460 Cradle Dolly

Add MC450 Scissor Jack

Add MC455 Fat Jack

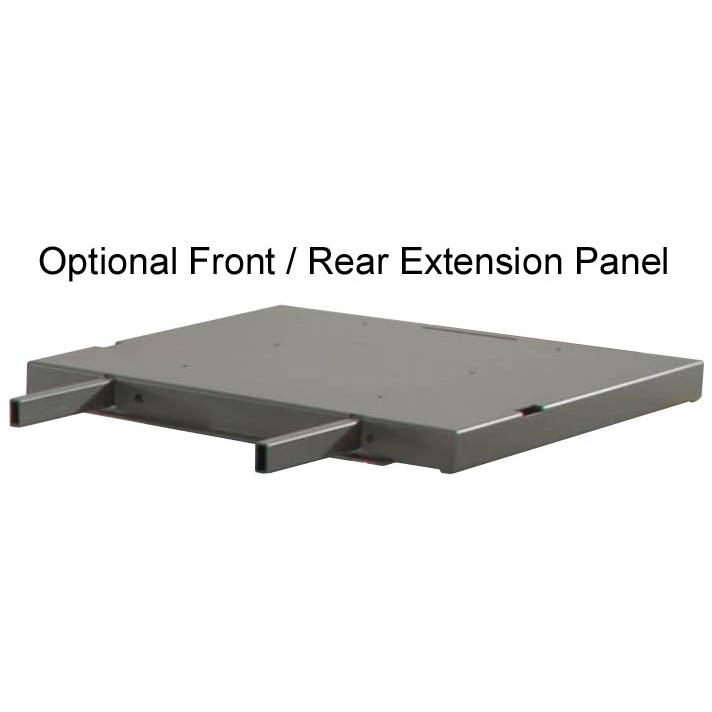

Add Front/Rear Ext Panel 35-6557

Add Wheel Kit & Dolly

Add Tool Holder

Redline RE-AR 3/8" Air Hose Reel

Shipping upgrades offered in cart page



The K&L Supply MC625R is Air Superiority. This semi-heavy duty air powered lift combines the best features of our MC655R lift with the convenience of air. The new Ram Squared twin cylinder system gives the MC625R a rated working capacity of 1750 lbs. Optional side panels, now with our redesigned fast-mount system, increase the working width of the MC625R to 56”, allowing the widest utility vehicles and golf carts to be serviced. An easy to install extension is also available, adding two feet front or rear to the overall length for custom bikes. Combine those features, plus the value you expect from Redline, and you have a lift that will be right for all of your needs. Order today!

• 1 year warranty
• Automatic safety locks
• Wheel vise not included
• 1750 pound lifting capacity
• Front and rear drop out panels

• K&L MC tables come with a 1 year warranty.




• Using motorcycle ratchet straps are mandatory for your safety
• Wheel vise alone not sufficient to secure motorcycle to lift table


Show more


• 29.5'' table width
• 40'' lifting height
• 8'' lowered height
• 86.5'' table length standard
• 56.5'' table width with optional side panels
• 68.5'' table width with optional WIDE side panels
• Power Supply - Min. 90 PSI / Max. 100 PSI air pressure


• Download the manual pdf HERE

• Download the motorcycle lift table comparison chart  HERE


• Free shipping to 48 states*
• Can pick up at nearest truck depot
• Ships 621 lbs. at 92" x 36" x 18"
• Optional lift arm base ships as 3 boxes
• Residential deliveries with lift gate cost extra
• Local pickup in Pensacola, FL for Redline brand
• Local pickup in Santa Clara, CA for K&L brand
• Ships via truck freight to commercial location with forklift
• Free shipping applies to $250 maximum. If shipping exceeds this amount a surcharge may be needed




5.0 / 5 (2 reviews)
Based on 2 Reviews Write review
  • Dennis Osentoski May 9, 2024

    K&L MC625R Motorcycle Lift Table

    May 9, 2024
    This is my second MC625R table in 10 years. Sold the first when we moved to a smaller house but missed it too much over the years. Bought this new one because I loved the old one, it's very high build quality, and smooth lifting. Twin cylinders make all the difference. I highly recommend this lift, but whatever model you decide on, if you have an 800+ pound bike, always get one with the built-in track on the bottom. To me, it's too risky to lose that long footprint on the floor as you raise the bike on the models with no stationary track. Also, you don't have to worry about the wheels marking up the floor or getting hung up on a forgotten obstacle. Also, I highly recommend the wheel kit to easily move it around the shop if needed. Last comment, the lift table arrived in perfect condition, well wrapped and protected - couldn't be happier with the entire process.
  • Geoffrey Jun 15, 2023

    Daily User

    Jun 15, 2023
    Luv my lift. The sliding wheel chock is awesome as I have two bikes. Super good welds and finish. I like it has two pedals for up and down instead of one. Very high quality.
