iDEAL 2500 lb UTV ATV Lift Table

Model: UF-2500EH-X

Optional Accessories

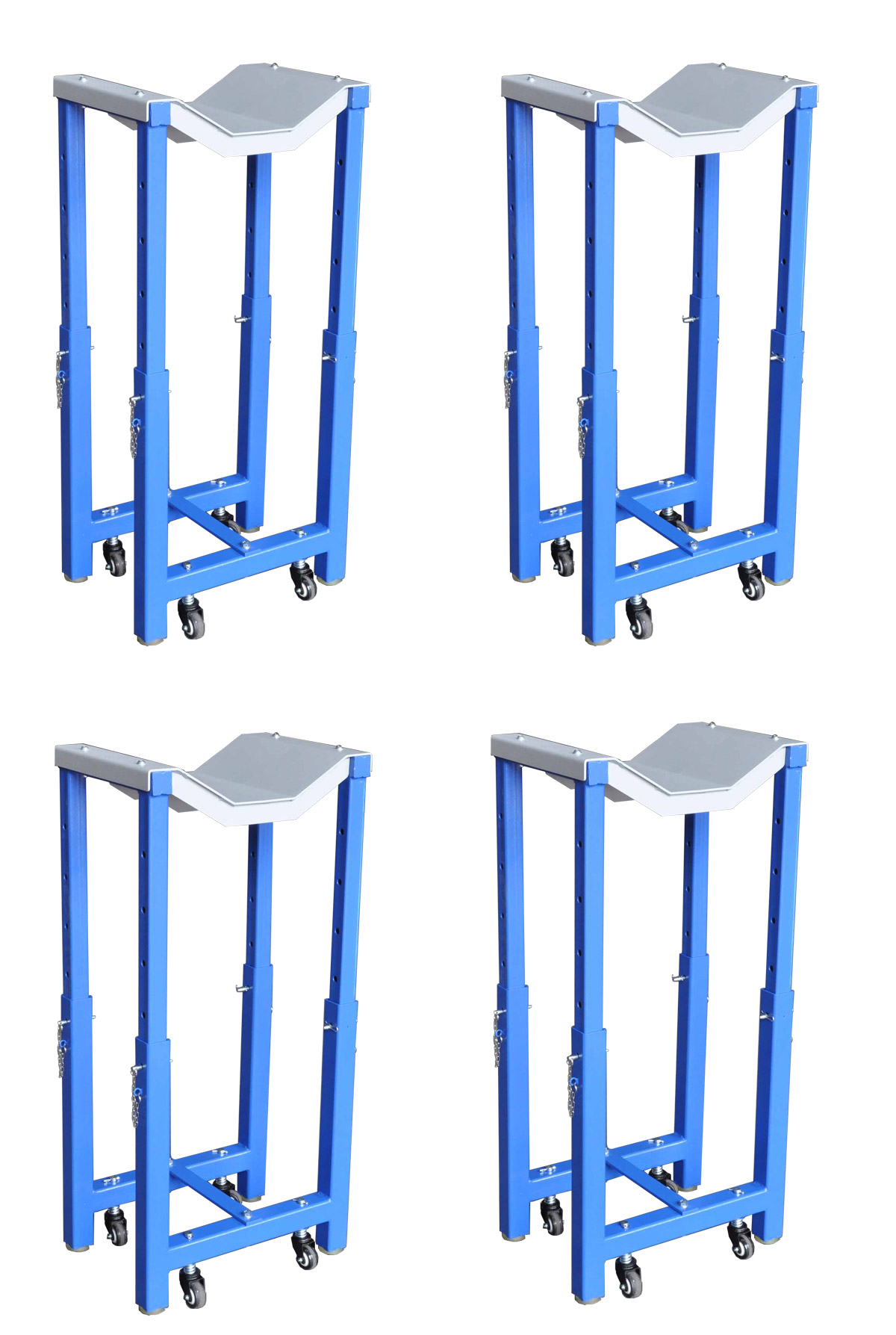

Wheel Stand Kit [4 total]
Truck carriers charge extra to deliver to locations that have no forklift on site, and also for any location not on commercially zoned property. This includes businesses run from your home property, and next door to it. These are not Redline’s fees and sadly they are unavoidable. All truck carriers charge them.

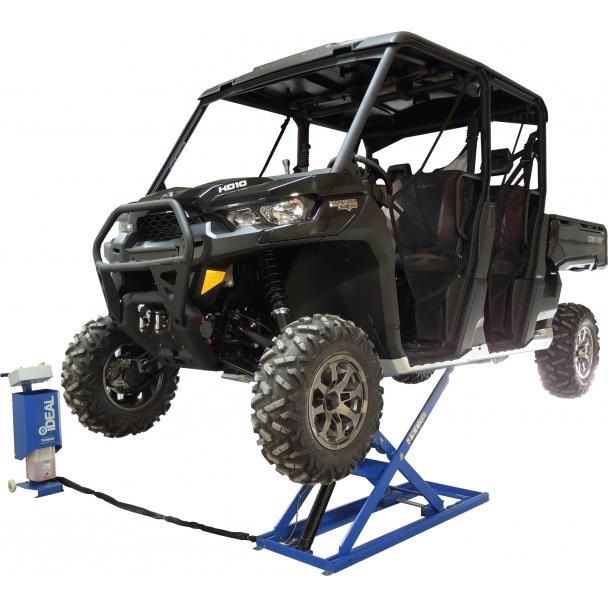

Introducting the new iDEAL 2500 lb. Electric/Hydraulic UTV Frame Lift Table! This iDEAL lift comes standard with a 2500 lb. capacity, load bearing hinged platform extensions, a 110V portable electric/hydraulic power unit, and a magnetic lock release. With this table you no longer have to use a jack on top of the table to lift your UTV up to swap wheels as the UTV is lifted directly from the frame. The table and platform extensions are both made with heavy duty diamond plating to withstand wear and tear and topped off with powdercoating to keep the finish strong. A portable power unit is included with this lift table and can be moved around along with the lift table. Order yours today!

• 2500 lb. capacity
• Magnetic lock release
• Three locking positions
• Portable or mounted pedestal controls
• Load bearing hinged platform extensions
• 4X rubber contact lift pads - 4.75" x 6.5"
• 110V integrated electric/hydraulic power unit


• 8% sales tax will be charged on all shipments going to CA after the sale



Show more


• Overall width: 24.8"
• Ship weight: 740 lbs.
• Minimum height: 4.75"
• Lifting time: 25 seconds
• Weight capacity: 2200 lbs.
• Lowering time: 25 seconds
• Platform size 67" L x 24" W
• Power: 110V, 60Hz, 1 PH-18A
• Locking heights: 28", 36.5", 42"
• Overall length w/ ramps: 67" to 89"
• Pedestal / platform max distance: 96"
• Max lifting height: 43" to 49.25" with adaptor
• Pedestal control stand size: 15" L x 11" W x 39" H


• Browse the full manufacturer catalog HERE
• Download the manual pdf HERE


• Residential deliveries cost extra
• Ships 740 lbs. at 91" x 27" x 20"
• Free shipping to business w/ forklift*
• Can be picked up at local truck dock terminal
• Pickup at satellite warehouses:
- Bow, NH 03304
- Alvarado, TX 76009
• Free shipping applies to $350 maximum. If shipping exceeds this amount a surcharge may be needed
