A Guide To Different Types Of Car Lifts

A Guide To Different Types Of Car Lifts

Welcome to the world of automotive maintenance and the indispensable role that car lifts play within it. At Redline Engineering, we are your dedicated partners in navigating this dynamic and essential aspect of the automotive industry. Our commitment to delivering expert insights and comprehensive guidance is evident in this in-depth exploration of the types of car lifts available, highlighting their diverse applications and benefits.

In this article, we look at seven distinct categories of car lifts, each with its own unique features and applications. Whether you are a passionate car enthusiast, a professional mechanic, or someone seeking to enhance your understanding of automotive lifts, our aim is to provide you with a thorough understanding of these essential tools. By the end of this guide, you’ll be equipped with the knowledge needed to make informed decisions tailored to your automotive needs.

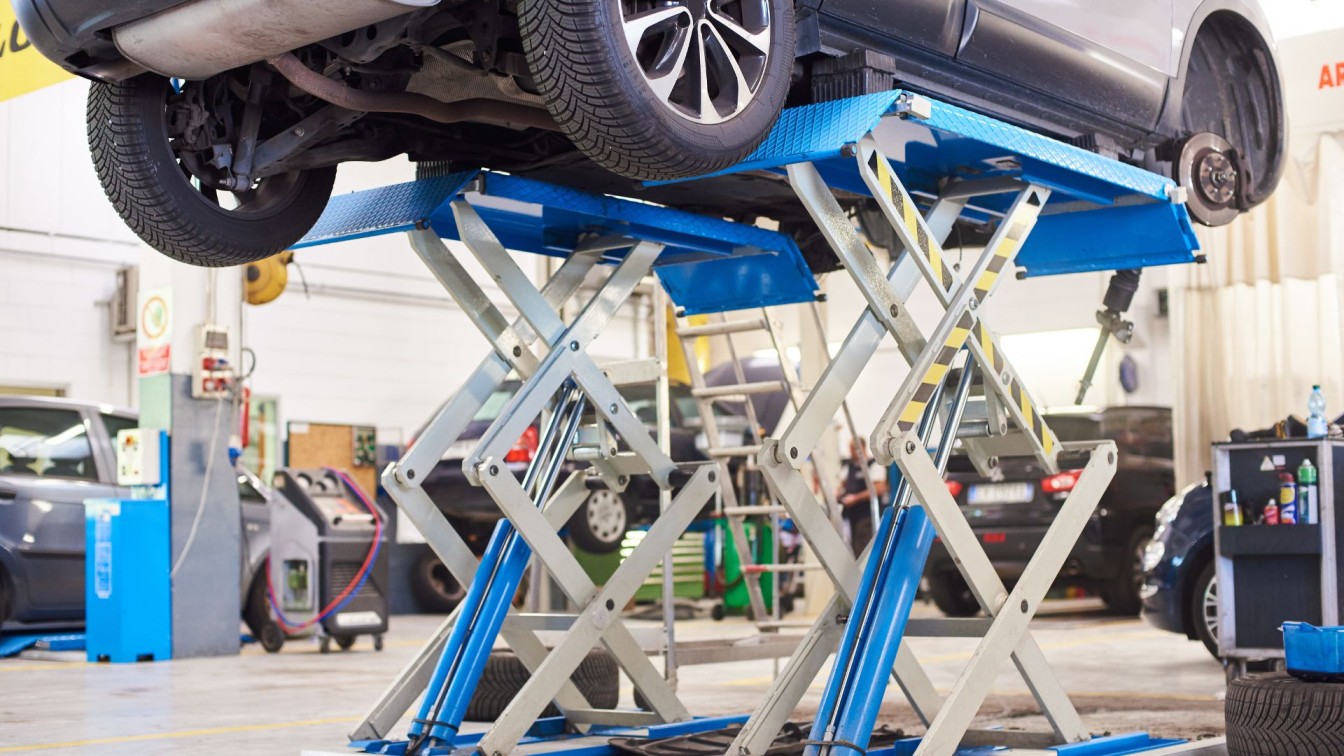

Scissor Lifts For Cars

Our journey begins with scissor lifts, a versatile option for lifting cars. Scissor lifts are named after their lifting mechanism, which resembles the scissors you might find in your desk drawer. These lifts feature a series of “X” steel structures on either side that concertina up or down to raise or lower the car. The number of “X” struts determines how high the car can be elevated. Scissor lifts can be central or paired lifts, making them suitable for various applications. They are particularly popular for their space-saving design, but it’s essential to note that they may not be suitable for vehicles with very low ground clearance. Safety is a concern with two-part scissor lifts, so single platform lifts are considered the safest option.

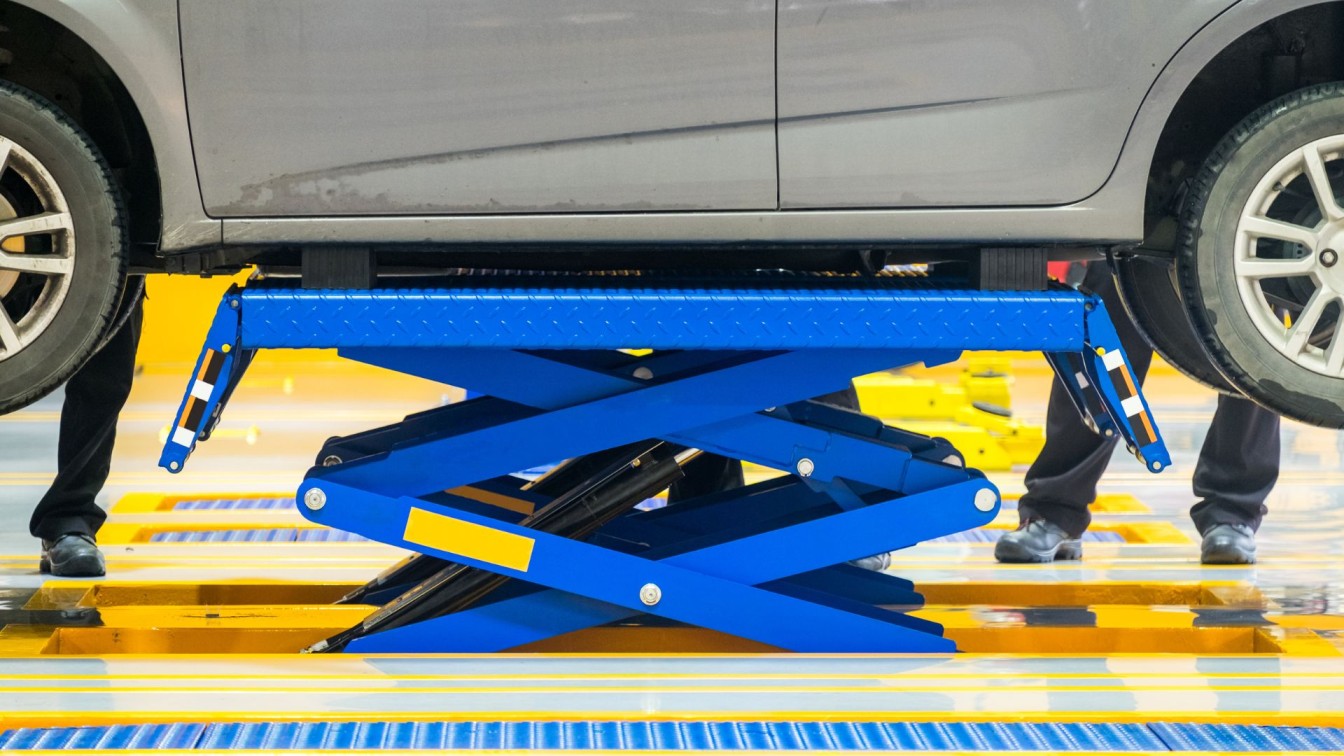

Portable Car Lift

If you’re looking for mobility and convenience, portable car lifts are a great choice. These lifts are based on the scissor lift principle but are smaller and more maneuverable. They are usually self-contained, featuring a battery-powered electric motor or a hand pump for hydraulic operation. Portable lifts come on wheels, allowing you to bring the lift to where you need it instead of moving the car. However, they typically have a single lift point and can only lift one side of the car at a time, which can limit their use on vehicles with low ground clearance.

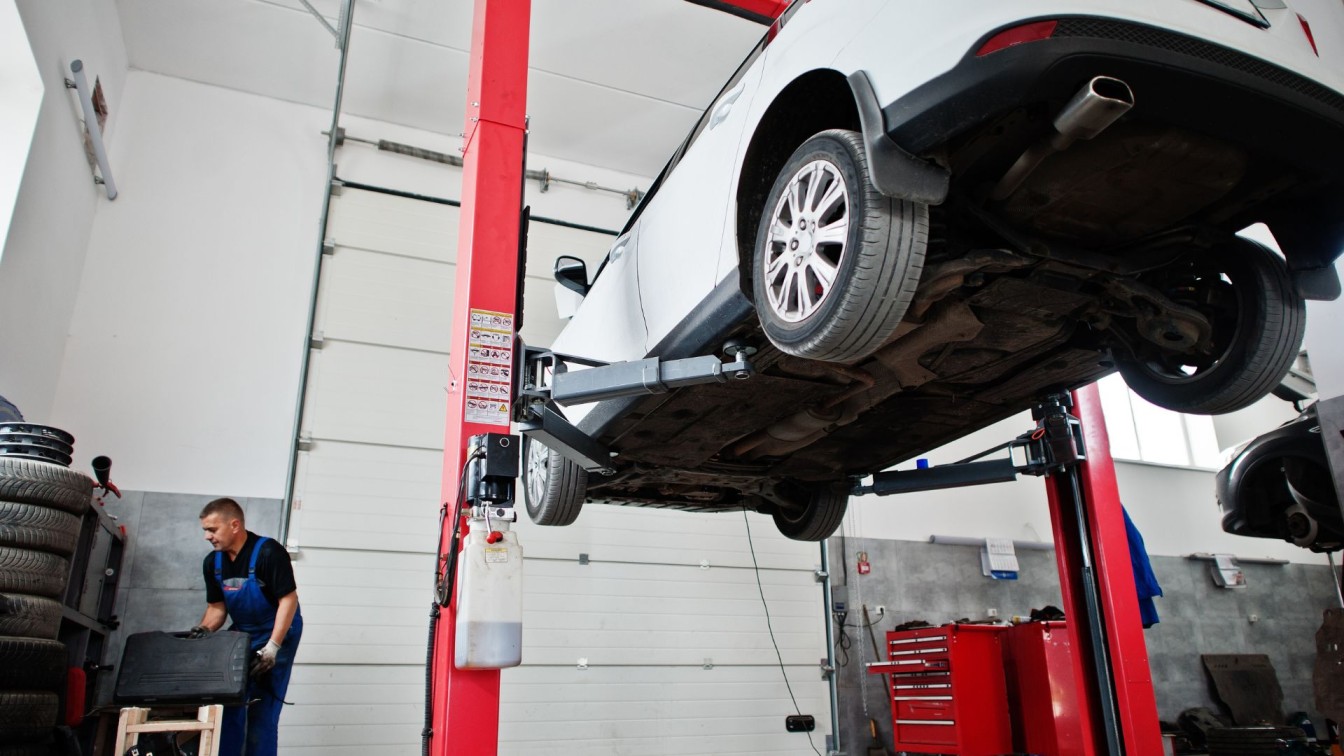

Two Post Car Lifts

For those seeking a balance between stability and versatility, two-post car lifts are an excellent option. These lifts have two vertical steel posts that are bolted to the garage floor at a fixed distance apart. They feature adjustable length “V” shaped arms that slide up and down each post to support the vehicle at its balance points. Two-post car lifts are favored by motorsport and commercial car repair shops because they provide ample access to the vehicle’s underside for maintenance and repair work. They are also suitable for home garages due to their space-saving design, allowing the area between the posts to be used for parking.

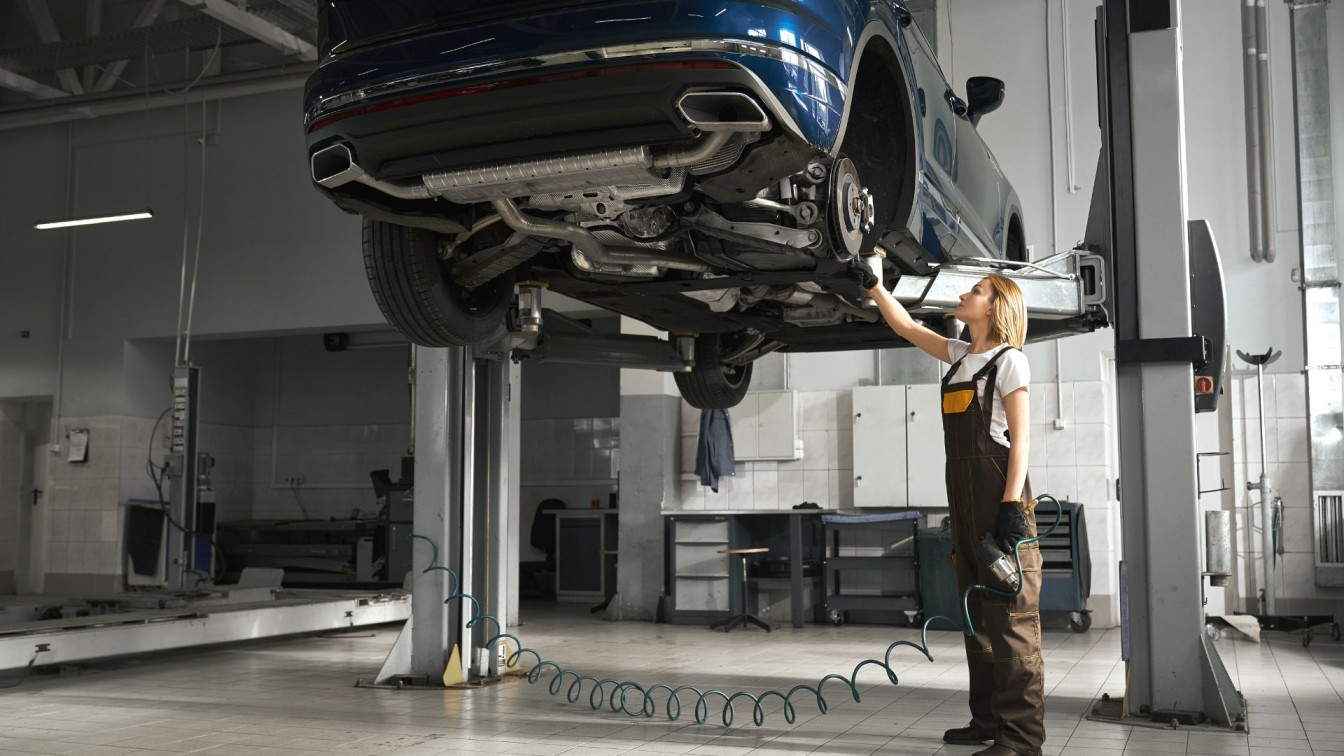

Overhead Car Lifts

Similar in appearance to two-post car lifts, overhead car lifts use the same vertical two-post system. However, instead of a horizontal bar at the base of each post, they feature a horizontal bar at the top, connected by a cable and pulley system. Overhead lifts offer stability but have a limitation – they may not provide enough height for working on tall vehicles like SUVs. These lifts are best suited for smaller cars, minivans, and pickup trucks, and their equalized balancing of the load on the “V” arms ensures stability and security during operation.

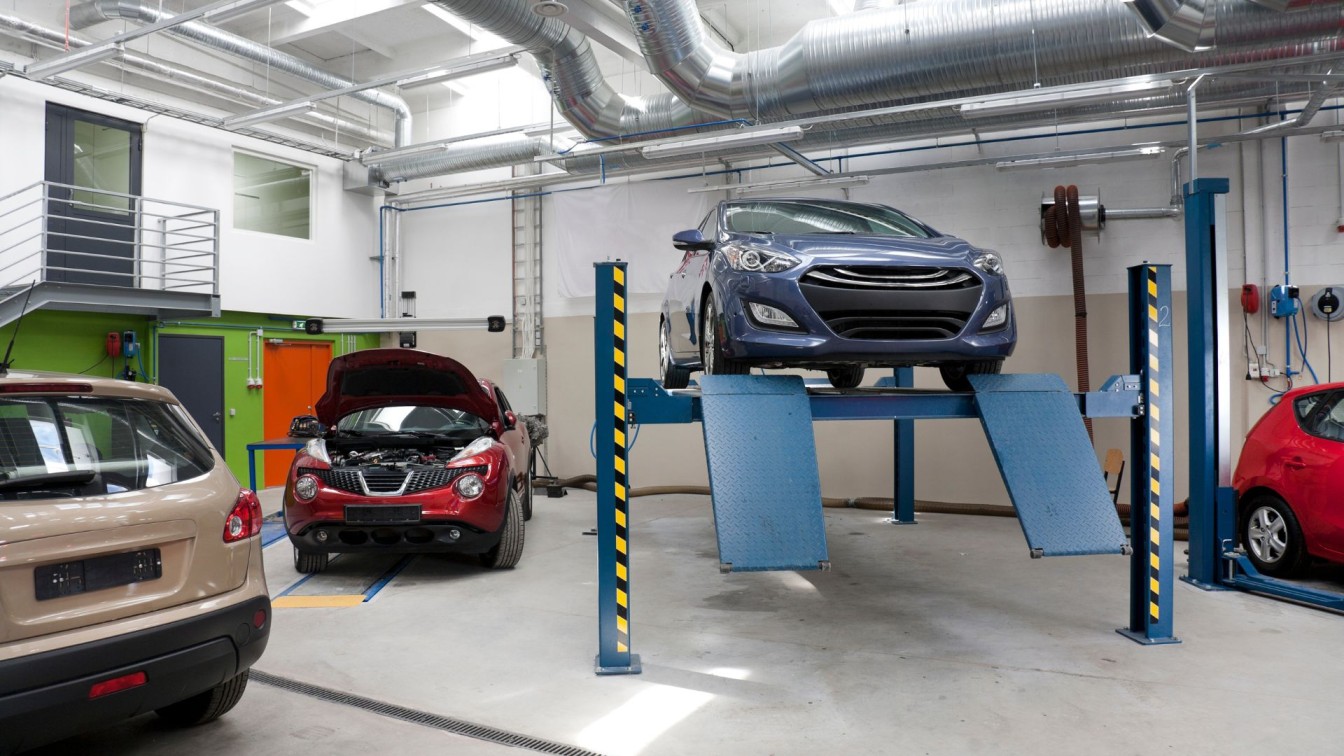

Four Post Car Lifts

If stability and security are your top priorities, four-post car lifts are hard to beat. These lifts have four vertical steel pillars bolted to the garage floor, with a drive-on platform situated between them. Four-post lifts distribute the vehicle’s weight across a wider surface area, making them exceptionally strong and safe. They are easy to operate, reducing the risk of accidents. While they may have weight limitations, it’s crucial to choose a lift that can handle the heaviest car you plan to work on. However, they are not ideal for working on wheels, tires, and braking systems since the car is lifted on its wheels rather than via lift points on the chassis.

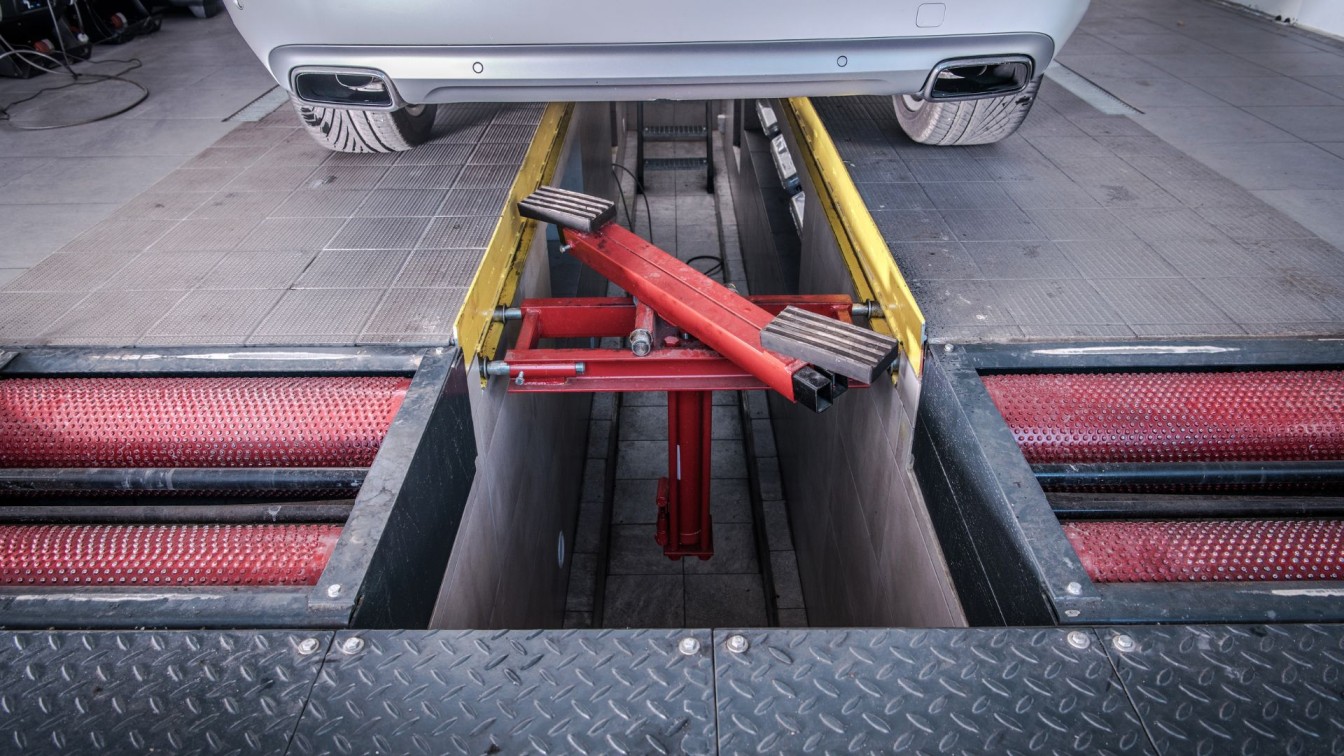

In-Ground Car Lifts

For those looking to maximize space and minimize obstructions in their garage, in-ground car lifts are a fantastic option. These lifts have their lifting mechanism hidden under the garage floor, leaving the floor space open and accessible when lowered. They come in various designs, offering lift points on the chassis or engaging with the wheels. In-ground lifts are known for their simplicity and durability, making them a popular choice for automotive shops. While they may be more expensive to install initially, their longevity and low maintenance costs make them a cost-effective long-term investment. They are available in various lifting capacities, catering to a wide range of vehicles from light sedans to heavy-duty trucks and buses.

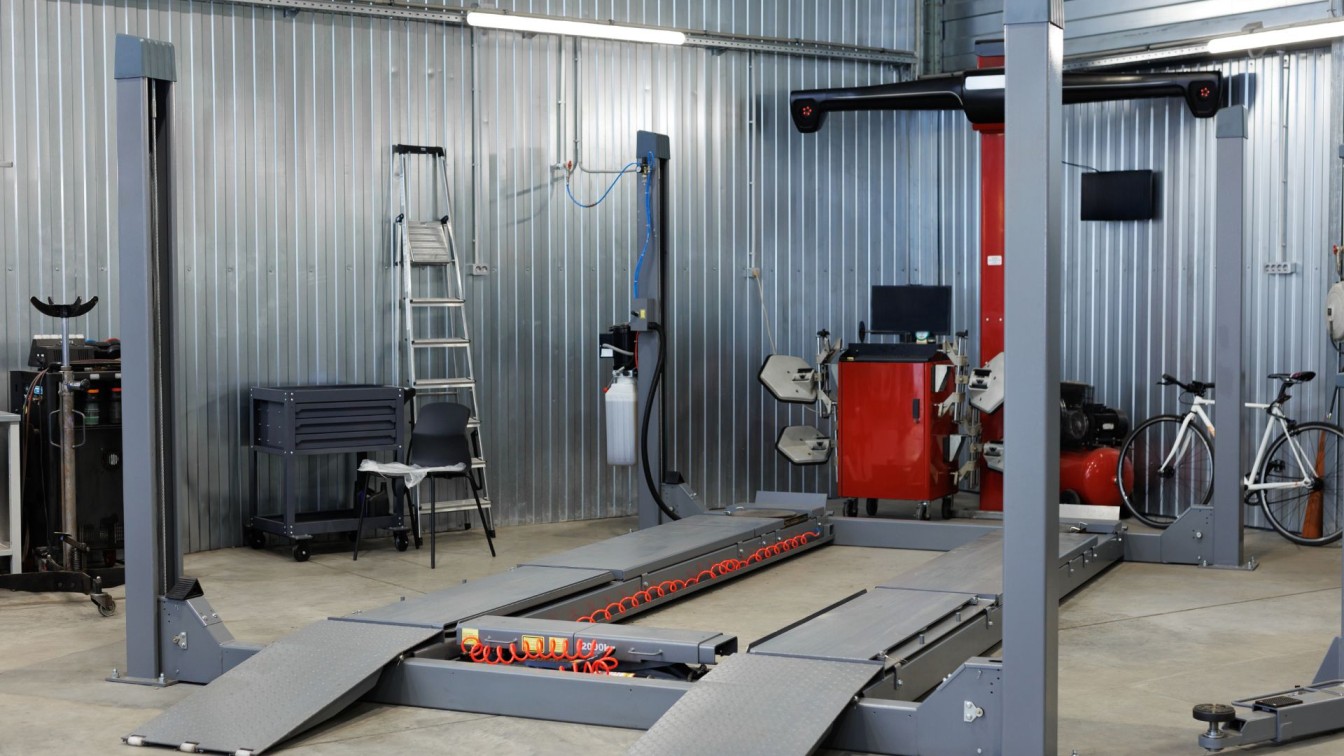

Car Lifts For Wheel Alignment

Precision matters when it comes to wheel alignment, and specialized car lifts are designed to ensure that your vehicle is perfectly level during alignment procedures. These lifts don’t need to lift the car to great heights but require precise electronics and sensors to maintain the vehicle’s position. Whether using a four-post design or a scissor lift, these alignment lifts have swivel plates under the front steering wheels, allowing for accurate wheel positioning. They are solely intended for wheel alignment tasks and excel at maintaining the car’s level for high-precision calibration.

The world of automotive lifts is diverse and caters to a wide range of needs, from DIY enthusiasts to professional mechanics. Each type of car lift has its advantages and limitations, so choosing the right one depends on your specific requirements. Whether you prioritize space-saving, mobility, stability, or specialized functionality like wheel alignment, there’s a car lift that fits the bill. For a wide selection of automotive lifts and related equipment, visit our Redline Engineering Store and find the perfect lift to elevate your automotive maintenance experience.
