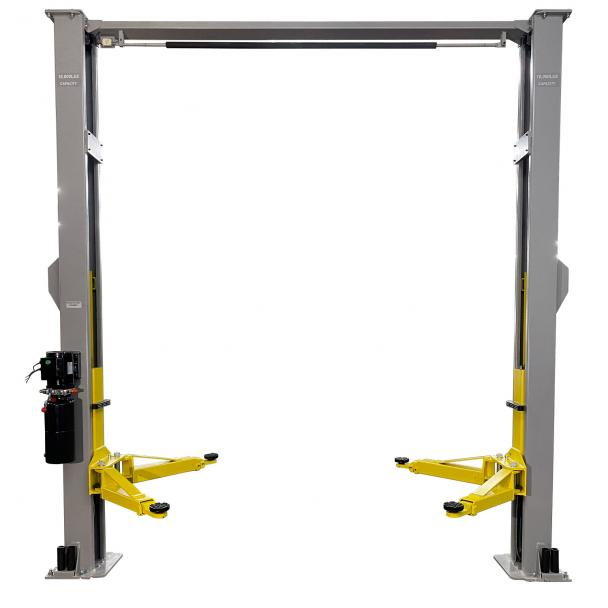

Triumph 10K Asymmetric 2 Post Clearfloor Lift

Model: NT0-10A

Capacity
Brand
Type
Optional Lift Accessories


Add RE-RD8 Gallon Oil Drain


Add RE-2PA 2 Post Lift Motorcycle ATV Adapters


Add RE-RD30 Self Evacuating Oil Drain


Add ODT-30-E Self Evac Vac Oil Drain


Add RE-AJS Auxiliary Jack Stand


Add Two RE-AJS Auxiliary Jack Stands


Add RE-LD Transmission Jack


Add TJ500 Transmission Jack


Add TJ500DT Transmission Jack


Add TJ2KDT Transmission Jack


Add Pair of Redline 12” Foam Door Protectors


Add RESS1 Under Hoist Stand


Add Two RESS1 Under Hoist Stands

Shipping upgrades offered in cart page

$3,699.99

Description

The Triumph 10K Asymmetric 2 Post Lift is a great addition to any vehicle service shop or garage! It features a single point lock release, floor mounting hardware, three piece rubber door guards, & swing arm handles to make it easier and faster to position the arms. Order yours today!

KEY BENEFITS
• Swing arm handles
• Electric safety shut off
• Single point lock release
• Three piece rubber door guards
• Includes 1.5", 3", & 6" truck adapters
• Overhead style bar for cables and hoses
• Three stage arms provide excellent reach
• Ideal for auto passenger cars & light duty trucks
• 1 year parts warranty – no other warranties implied
• Includes power unit/motor & floor mounting hardware




Show more

Specs

• Overall height 146"
• Double arm length 32" – 62"
• Triple arm length 28" – 42"
• Lifting time: 40-50 Seconds
• Distance between columns 114"
• Height under arm at top lock 67.5"
• Distance to outside of columns: 124”
• Drive through width at carriage: 100”
• Distance to outside of base plates: 136"
• Overall width including power unit: 145”
• Height Under arm at top of stroke: 73.5”
• 12 sets of drop in adapters: (1.5", 3", 6")
• Height to top of pad when lift fully Lowered: 4.5"
• Hydraulic power unit: 220 V, 1PH, 60Hz (standard), 3 HP

Downloads

• Click HERE to download the manual

• Download the How to Install a Two Post Auto Lift Manual HERE



Shipping

• Shipping Weight: 1,407 lbs.
• Residential deliveries not possible
• Returns of Triumph brand lifts not allowed
• Ships LTL truck freight to business w/ forklift
• Can be picked up at local truck dock terminal

PLEASE NOTE
• Will not fit into back of pickup truck
• Will not be loaded into trailer if doors cannot close
• Consult shipping dimensions and weight before proceeding with pickup

Videos

Reviews

Ask & Answer

  • John Aug 31, 2022
    Q. Is this lift certified?
    A. No sir. It costs about $30,000 to get a lift certified. Because of this, affordable lifts are not typically certified lifts. To get a certified lift, you’ll need a healthy budget so please brace yourself. Click HERE to see our ALI certified two post lifts. Thanks for shopping with us!
  • CGI Apr 05, 2022
    Q. Does power unit come with it? Thank you.
    A. Yes sir. It's a 220V power unit that you'll need a 30A breaker to operate. Thanks for your question!
  • Harmon Nov 27, 2021
    Q. Do you have regional installers and if so what does it cost to have a lift installed?
    A. I'm sorry sir but we at Redline quit performing and contracting lift installations years ago due to the liability associated with them. There's just too much risk being an installer. The risk mainly comes from the concrete slab and whether or not it's sufficient, which is something the installer has no control. My apologies but the only assistance we can offer is our lift installation video found in the "videos" tab on this page. Thanks Harmon!
  • Salinas Nov 05, 2021
    Q. I live in lima- Peru, how can I get the lift in here and would it cost me the same?
    A. You would need to hire a freight forwarder in the U.S. We would ship to them, and they would handle shipping it to you. Thanks Salinas!
  • Troy Oct 30, 2021
    Q. I’m thinking about getting a lift for home use, if I get one do I need to have it in a building or under a carport or can I have it just outside with little to no protection from the elements?
    A. We've seen plenty of customers over the years put lifts outside, but that doesn't make it a good idea. You should naturally expect rust to set-in much faster and your power unit is not sealed to protect against water, so you'd have to plan for that as well. Keep in mind, most manufacturers void the warranty on their lifts when they're installed outside. For these reasons, we definitely recommend the lift be placed under a cover at the very least. Full indoor installation is best. Thanks Troy!
