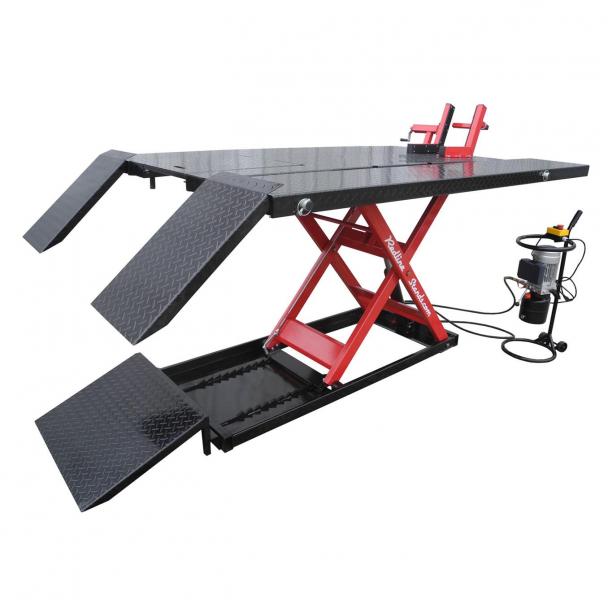

Redline 2200HD UTV/ATV Lift Table

Model: 2200HD

(5 reviews)

Optional Accessories

Include Wheel Dolly Kit

Include RE-FJ Motorcycle Frame Jack

Include Two RE-FJ Frame Jacks

Include RE-ATVJK ATV Frame Jack

Include Two ATV Frame Jacks

Include Handy deck hand

RMC1 Wheel Chock
Capacity by LBS

Shipping upgrades offered in cart page



Bigger is better, and the Redline 2200HD Electric Motorcycle ATV and Side by Side Lift Table is no exception! This heavy duty 11 gauge steel constructed lifting table features a 2200 lb. lifting capacity, 4 pins & rings to lock the extension bars into place, and a powder coated finish. It also features 10 different locking positions that use the safety latch to lock into place and prevent unwanted lowering of the table. It includes an electric motor, hydraulic hose, side extensions with side extension ramps, a vise, and a loading ramp. Order yours today!

• Powder coat finish
• Lift capacity of 2200 lbs.
• Constructed of 11 gauge steel
• 10 different locking positions
• Uses 1 gallon #32 hydraulic fluid
• Includes 4 pin & rings for the extension bars
• Safety latch locks into place to prevent unwanted lowering of the table
• Comes with electric motor, hydraulic hose, side extensions, loading ramp, vise, and side extension ramps


• Using motorcycle ratchet straps are mandatory for your safety
• Wheel vise alone not sufficient to secure motorcycle to lift table


Show more


• 110V
• Base dims: 30" W x 71-1/8" L
• Min/Max lifting height: 8" - 47"
• 4,060 PSI electric/hydraulic pump
• Loading ramp dims: 29" W x 24" L
• Drop panel dims: 15-7/8" W x 23-5/8" L
• Side extension dims: 15-3/8" W x 94-1/2" L
• Side extension ramp dims: 14-1/2" W x 25-3/8" L
• Overall dims (without side extensions): 30" W x 86-5/8" L
• Overall dims (with side extensions): 60-3/4" W x 94-1/2" L


• Download the manual pdf HERE

• Download the motorcycle lift table comparison chart  HERE


• Residential deliveries cost extra
• Lift gate unavailable due to width
• Local dock pickup saves residential fees
• Ships to commercial location w/ forklift
• Pensacola, FL pickups – read our policies HERE
• Units available in Pensacola, FL with $250 discount
• Ships as two pieces
 (99" x 32" x 17" @ 848 lbs) Class 65 - Extreme length
 (39" x 19" x 17" @ 61 lbs) Class 125
• Free shipping applies to $600 maximum. If shipping exceeds this amount a surcharge may be needed




4.4 / 5 (5 reviews)
Based on 5 Reviews Write review
  • Roland Smith May 19, 2020

    Greatest Electric Lift

    May 19, 2020
    The 2200HD is one of the greatest electric lifts I have seen. The support I received from Redline Stands was great from the time I ordered the lift through the time I received and set the lift up. Special thanks to Nathan and Dustin. Even though I found no problems with the lift, to improve the lift, I recommend (1) the Dip Stick be changed from White to some other color that would be easier to read the fluid level since the fluid is clear and (2) make it a little harder to slide the Left Ramp off by inserting a clip or something on the ramp to prevent unwanted movement but still easy to remove the ramp when needed. That being said, I would still buy this lift and recommend it to all.
  • Terry H. Feb 22, 2017

    This is the best lift ever

    Feb 22, 2017
    I have been working on golf carts,lawn mowers, tillers, four wheelers. this lift is great. Very heavy built. The guys at red line are great to deal with, lift came and was easy to put together. Sure glad I got the electric power unit it is so smooth and quiet. I would say the 2200 is the best one that money can buy. Thanks red line for a great product I love it.
  • Christopher T. Jan 24, 2024

    Great lift for a Grasshopper zero-turn

    Jan 24, 2024
    I needed a table lift as I have knee problems and found it difficult to work on my mower and deck. I researched a lot of table lifts and I was surprised there weren't that many that are affordable for this single purpose. I settled on the 2200HD. After having this for a year, overall I am giving it 4 stars. A couple of reasons that kept it from 5 stars are: a few of the table end welds were extremely poor. 1/2" - 1" ragged gaps. Seriously, I am disappointed this made it past Q/C. Sent photos and all the company could do was offer $100 credit. In my opinion, the defects were enough to warrant replacement parts. It still is a sour spot for me having to look at them as a high schooler could have made better welds. Secondly, the deck tends to twist or torque once I start lifting the mower. The Mower weight is 900 lbs and the deck is rated at 2200 lbs. Third is the electric hydraulic motor. You can't plug this into even a heavy short extension cord(#12 wire). It bogs down. Hopefully, if I run a separate box with outlets this will correct this issue. I have a question into their support. Lastly, I need a Deck Hand for the 2200HD but don't see one listed for this model anymore. I hope they have one for this model.

Ask & Answer

  • Ron Mar 16, 2024
    Q. Are there any available coupons on this item
    A. Hi Ron. I'm afraid there are not sir. We pretty-much price the 2200HD at the most competitive price we can offer and leave it there. Thank you for shopping with us sir!
  • Larry Jan 23, 2024
    Q. Hi, I’m about to pour my shop floor, I’m installing a pit to drop an HD 2200 into.
    I need to check the dimensions, it looks like
    30" W x 86-5/8" L x 8” deep
    A. While these dimensions are correct, we do not recommend pouring the slab until you already possess the lift. If you're going to buy the lift anyway, then buy it before pouring. Should you later learn some silly error was made, it will be impossible to correct it when your concrete is already hard. We recommend pouring your hole in your concrete with about an extra half inch of space all the way around the lift. Thanks Larry.
  • Ricky Aug 14, 2023
    Q. Do you have any locations in New Jerseys to pick up the product
    A. Yes and no. Redline is located in Pensacola, FL. However, we can ship to truck terminals all over the country. I have no doubt we can easily find a truck terminal within a one hour drive from you. We'll ship it there, and you visit that facility to pick it up. Please reach out to us and we'll get you fixed up. Thanks Ricky!
  • Mike Apr 06, 2023
    Q. I live in Pittstown NJ zip 08867. Where are my options for freight depot pickup and what are their hours? Can I pickup on a weekend? Thanks.
    A. We have several truck carriers that we can ship in your area. Each one has a different cost, so it's really best to reach out to us by phone or email to discuss all the terminals and their corresponding cost. We'll ship to the cheapest one for free, but as you start upgrading to more and more expensive carriers in the name of geological convenience, the customer must pay the price differential from the cheap guy to the expensive guy. We are unaware of any truck carriers that are open for pickups on the weekend. Thanks Mike!
  • Scott Mar 07, 2023
    Q. Bought this lift in Jan, really like it. Would love to have an option for a wheel kit if it comes available. Have a question regarding the ramp clearance. We are dragging Harley (& other cruiser) frames when backing off, any options to remedy this?
    A. We’ll actually have a dolly/wheel kit available for that lift in 2023, so keep your eyes peeled late spring to early summer. In terms of dragging a bike, about all you can do is to add something like AN EXTENSION RAMP to your lift. Thanks for shopping with us!
