Redline Electric 1500ELE Motorcycle ATV Lift Table w/Side Ext.

Model: 1500ELE

(6 reviews)

Please Choose:

Optional Accessories

A generic image
Include Two Extension Ramps

A generic image
Include Redline Frame Jack

A generic image

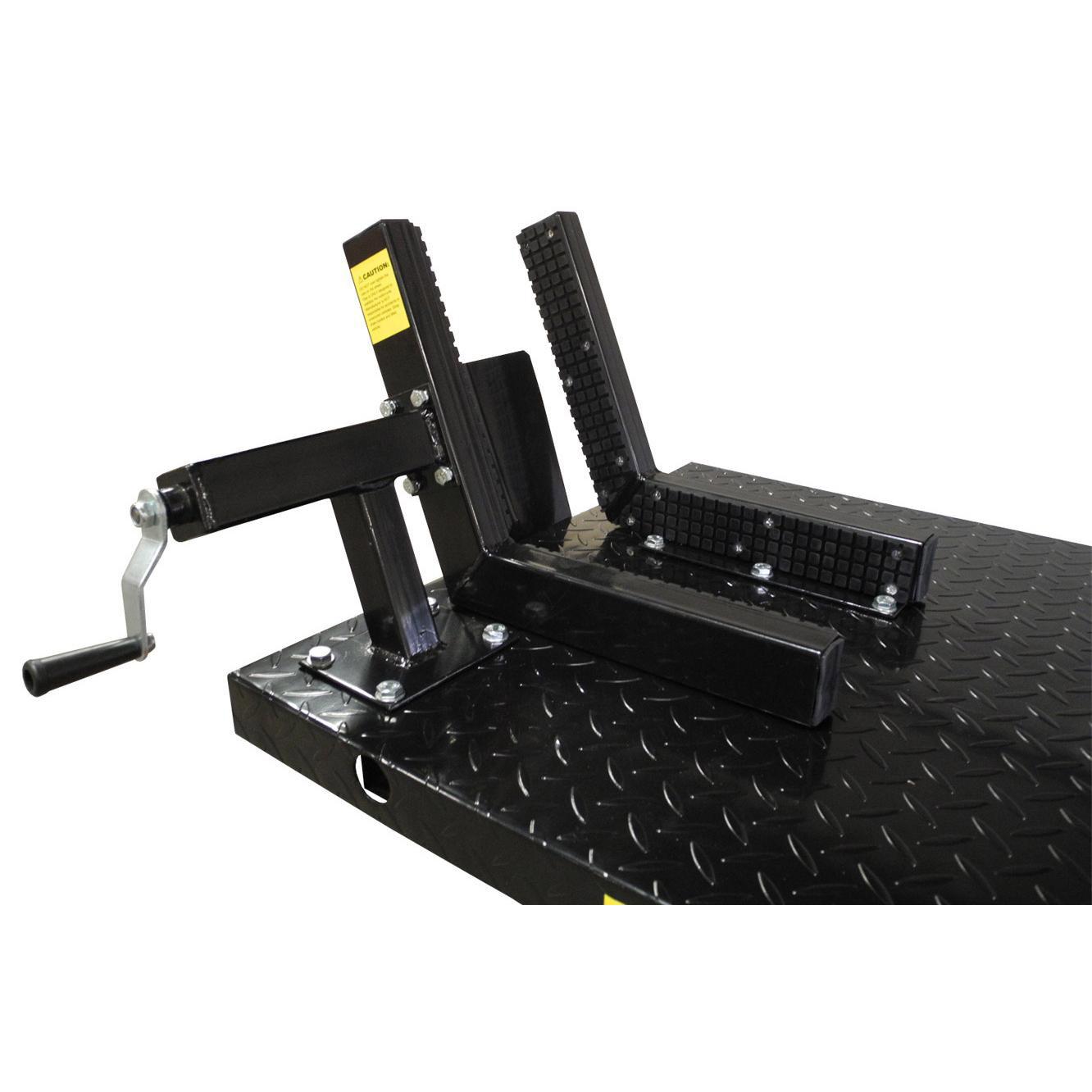

Include Redline Wheel Vise

A generic image
Include RE-ATVJK ATV Frame Jack

A generic image
Include Upright Support Poles

A generic image
Include Redline Roller Drop Out Panel
Capacity by LBS
Brand
Type

Shipping upgrades offered in cart page

$2,499.50
box icon

In Stock in

Pensacola
delivery icon

Usually Ships Within

24-48 Hrs

Description

The Redline 1500ELE is the next generation of electric motorcycle lift from Redline because the power unit is completely housed inside the base of the lift.  With it’s magnetic pendant control, you control the up and down feature of the lift with a handheld controller. Its features include a free front extension panel, built-in casters, standard wheel chock, rear drop out panel, and a built-in safety lock system.  The new-style casters are screwed downward via socket wrench, which allows the included dolly to lift from the opposite end and roll the lift to its new location. It lifts to 43" high, is 101" long, and is about 4" wider than most standard lifts. Call us or enter your order online today!

KEY BENEFITS
• Covered by Redline's 1-Year parts warranty
• Casters raised/lowered via wrench
• Electric pump encased at base of lift
• Optional vise will require new holes to be drilled
• Includes wheel kit and dolly for easy moving (non-load bearing)
• Includes:
-Drop out panel
-Front extension panel
-Chock





















SUPPORT POLES
• Support poles are included with our 1500HD lift, but not the 1500ELE sold here

OPERATE SAFELY
• Using motorcycle ratchet straps are mandatory for your safety
• Wheel vise alone not sufficient to secure motorcycle to lift table



Show more

Specs

• 110 volt motor
• 43'' lifting height
• 8'' lowered height
• Ramp length: 25"
• Uses AW32 hydraulic oil
• Power cord length: 7' 1/2"
• Control cord length: 7' 1/2"
• Tubing size: 3-1/8" x 1-5/8"
• 1,500 pound lifting capacity
• 80.5'' table length standard
• Side extensions are 88.5" long
• Base measures 87.5" x 29.5"
• Chopper extension is 20 ¾" long
• Overall length including ramps 126.5"
• Oil capacity – 1.2 liter / 1.26 quarts
• Drop out panel is 17" wide x 20" long
• Constructed of 11 gauge steel .125" thick
• 101'' table length with free included front extension
• 6 Locking Positions (23", 27 ½", 31 ¼", 34 ¾", 37 ½", and 40")
• 29.5'' table width without side panels / 51'' with side panels installed

Downloads

• Download the manual pdf HERE
• Download the pump manual pdf HERE
• Download the motorcycle lift table comparison chart  HERE

Shipping

• Residential deliveries cost extra
• 801 lbs. @ 91" x 37" x 16 (Class 65)
• Local dock pickup saves residential fees
• Pensacola, FL pickups – read our policies HERE
• FREE shipping to commercial location w/ forklift*
• Units available in Pensacola, FL with $200 discount
• Free shipping applies to $250 maximum. If shipping exceeds this amount a surcharge may be needed





Videos

Related Products

Ships free for ~ 500 milesSale
Handy S.A.M. 1200 Air Motorcycle Lift
Handy S.A.M. 1200 Air Motorcycle Lift
Reg. $1,799.95 Sale price $1,619.99
10% off
Ships free for ~ 500 miles
Handy B.U.L. 2500 lb. UTV Big Utility Lift Table
Handy B.U.L. 2500 lb. UTV Big Utility Lift Table $2,999.95
Ships free for ~ 500 miles
Titan 1000D lb Motorcycle ATV Lift Table
Titan 1000D lb Motorcycle ATV Lift Table
$1,899.99
Ships free for ~ 500 miles
K&L Supply Pneumatic 1750 lb MC625R Motorcycle Lift Table
K&L Supply Pneumatic 1750 lb MC625R Motorcycle Lift Table
$3,049.50
Ships free for ~ 500 miles
U.S.A Made - HMC Industries 1200 lb. Air Lift Table
U.S.A Made - HMC Industries 1200 lb. Air Lift Table
$2,969.50
Ships free for ~ 500 miles
Redline 1500HD Motorcycle ATV Lift Table with Side Extensions
Redline 1500HD Motorcycle ATV Lift Table with Side Extensions
$2,249.50

Reviews

4.8 / 5 (6 reviews)
Based on 6 Reviews Write review

  • Randy Howell Nov 19, 2024

    Definitely industrial grade

    Nov 19, 2024
    I had a Harbor freight Freight 1000lb lift table with many modifications that I made to it. Still wasn't happy. After careful research on other lifts, I settled on the Redline 1500ELE motorcycle lift table. It's awesome. Definitely industrial grade. I love the hand held remote. I owe 2 Harleys and both were easy to ride it onto the table. The height that the table can go is .ore than you'll ever need. Thank you Redline

  • Jerry Glaviano Jul 20, 2024

    Happy! Happy! Happy!

    Jul 20, 2024
    After much research, I decided on the redline 1500 ELE. Best decision I could have made! I chose to pick it up in Pensacola instead of having it shipped to Louisiana, and they were the nicest guys I’ve ever met. They had me on my way within 20 minutes. Once unpacked, I discovered I was missing a very small amount of hardware. I notified them, and they shipped it out the next day. Was not a big deal for me because I was recessing my lift in concrete. Hardware was here before I could even set my lift in my new pit. It has been in use for about a month, and has worked perfectly. I use it for my gravely HD zero turn, my Honda, four wheeler, my Suzuki, 400 Bergman, and my 58 Cushman eagle. Could not ask for a better product or customer service. So the big question is how many stars out of five would I give it? I’d say at least a 7!! I am that satisfied. To all the people at redline, thank y’all so much for such a pleasurable experience of your product, as well as your customer service. sincerely, Jerry from Louisiana.

  • Thomas Barnett May 28, 2024

    Awesome Lift

    May 28, 2024
    I spent months researching motorcycle lifts before I decided on this one. This lift is PERFECT. It is perfect because my 2014 Electra Glide Ultra Classic on it easily AND my father-in-laws 2020 Harley Tri Glide ALSO fits on it. For anyone looking to get a lift, if you have the ability to pick up in Pensacola make the trip. You will meet the most courteous and polite people in the world. Their customer service should be a model for all other businesses
3 of 6 Reviews See all reviews

Ask & Answer

  • Kelly Nov 13, 2024
    Q. The description of the 1500ELE states that it does not contain support poles. Does this refer to the support poles for the side extensions or for something else?
    A. No sir. The 1500ELE comes with the side extension support poles. We’d be off our rocker to sell the unit with side extensions, but no poles with which to use them. The 1500ELE does not come with UPRIGHT SUPPORT POLES for the lift. Thanks for shopping with us!
  • Confused Jul 20, 2024
    Q. After reviewing the downloadable pump manual, they recommend changing the hydraulic fluid after 100 hours of use. But they did not give the procedure on how about doing it with the pump and tank under the table top on the 1500 ELE.
    A. Hi Jerry. You'll use a suction pump to suck the fluid out of the reservoir, but to be honest, it would take most folks decades of use to actually run the motor 100 hours. I wouldn't be too worried about it. About once a decade should be fine. Thanks Jerry!
  • Dale Mar 25, 2024
    Q. The 88.5 inch side extensions are included, right? If I wanted the extension ramps would the lift have pre-drilled holes for them? If my power source is farther away than. 7’, can I use a heavy duty extension cord and not hurt the electric motor?
    A. Yes, the side extensions are standard equipment. Correct, the lift will come predrilled for the extension ramps "if" you buy your ramps with your lift. Sure, a short/fat extension cord is fine. We just don't want you using any small 100 ft extension cords like you'd use for a leaf blower. Thanks Dale!
  • Thomas Feb 17, 2024
    Q. Is it possible the side extensions from the TR1500 lift mount to this lift. Asking because I have a touring HD and the father in law has a HD Trike. His rear wheels are 51" from outside edges
    A. No sir. I'm afraid the hole spacing for the support poles is substantially different. Sorry.
  • Matt Feb 16, 2024
    Q. Is this 110 or 220 required?
    A. It's 110 volt sir.
