Redline HD1K 1000 lb Motorcycle ATV Lift Table

Model: HD1K

(3 reviews)

Optional Accessories


Include RE-FJ Motorcycle Frame Jack


Redline RE-AR 3/8" Air Hose Reel


Include HD1K Side Extensions


Include HD1K Solid Drop Out Panel


Include RE-ATVJK ATV Frame Jack


Front Extension Panel


RMC1 Wheel Chock


Include Lift Table Dolly
Capacity by LBS
Brand
Type

Shipping upgrades offered in cart page

$1,299.50

Description

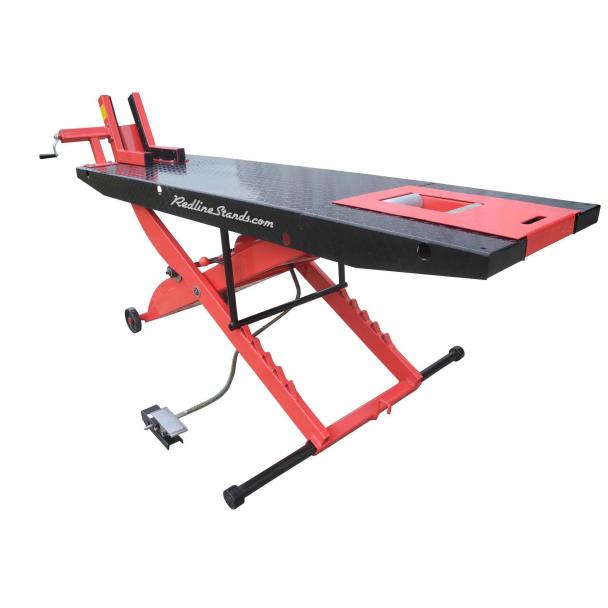

The Redline Engineering HD1K is an air powered industrial table designed to compete with other more expensive tables. The HD1K will be an ideal fit for the mechanic earning a living working on bikes. It includes a standard wheel vise, diamond plate decking, and grease fittings to keep the machine operating smoothly for years. Order today!

CLEAR YOUR CACHE!
• We advise clearing your cache to be sure this webpage accurately represents our current offer

KEY BENEFITS
• Covered by Redline's 1-Year parts warranty
• Wheel vise is included

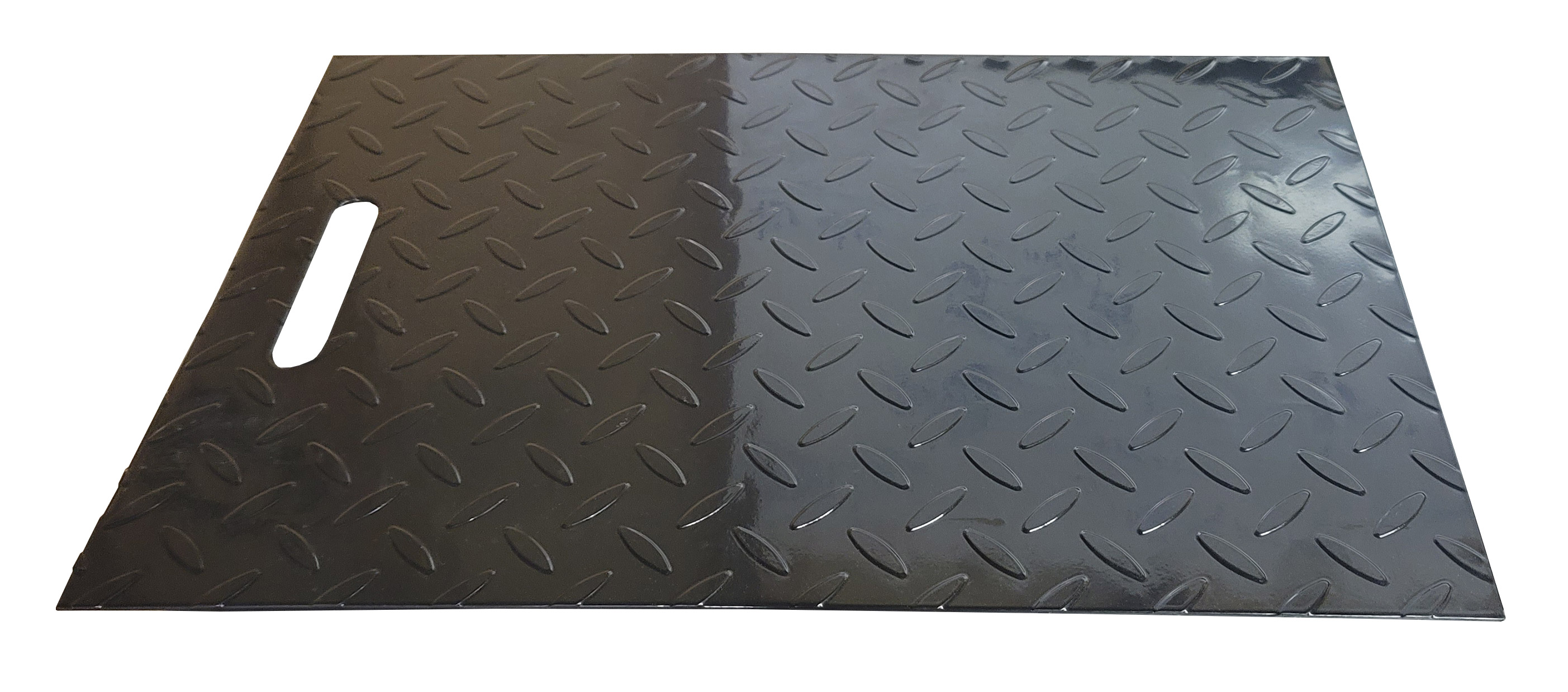

• Rear roller drop out panel
• Equipped with ratchet strap eyelets
• Air line is wound with steel wire wrapping

OPERATE SAFELY
• Using motorcycle ratchet straps are mandatory for your safety
• Wheel vise alone not sufficient to secure motorcycle to lift table

Show more

Specs

• 34'' lifting height
• 7'' lowered height
• 1000 pound lifting capacity
• Drop out panel 20.75" long
• 48'' table width with side panels
• Built of 11 gauge .13" thick steel
• 24'' table width without side panels
• Safety locks: 31", 29.5", 27.5", 22.5"
• Power Supply - Min. 90 PSI / Max. 120 PSI
• 98.5'' table length with front extension panel
• 85.25" table length without front extension panel
• 73.5" center to center side extension pole hole distance

Downloads

• Download the manual pdf HERE
• Download the motorcycle lift table comparison chart HERE

Shipping

• Residential deliveries cost extra
• Local dock pickup saves residential fees
• Pensacola, FL pickups – read our policies HERE
• FREE shipping to commercial location w/ forklift*
• Units available in Pensacola, FL with $150 discount
• Ships 440 lbs. (600 with side extensions) at 89" x 26" x 14" Class 65
• Free shipping applies to $200 maximum. If shipping exceeds this amount a surcharge may be needed



Videos

Reviews

5.0 / 5 (3 reviews)
Based on 3 Reviews Write review
  • Team Bubba Dec 25, 2023

    Great addition to my shop

    Dec 25, 2023
    Just bought this lift for my shop. Have no problems lifting my dirt bikes. Have done some maintenance using the lift it really is awesome to do an oil change and not have to get on the floor! My only negative is that the drop out don't line up with my dirt bike rear tire. Which is not a big deal for me. Though I'm sure I could adjust it so it does line up but, not a show stopper for me.
  • Jim Richardson Nov 9, 2023

    Best all-around

    Nov 9, 2023
    While my workshop was being built, I had time to look at a LOT of lifts before getting this. I could have spent a lot more for a better one (like the grey Made In the U.S.A. one), or a lot less for a janky-but-does-the-job one (you know, the red one with the foot pedal from That Chain Store). This hit the Goldilocks spot of price/performance, especially when everybody else tacks on a couple hundred for shipping only after you've looked at your cart. I'll start with the dislikes, because you have to have some. First, the powder coat comes off immediately where the rollers run along the rails. Kind of expected I guess because that's a heavy wear area and aside from rust prevention before delivery, powder coating it seems pointless. I'll just strip it all off where the rollers make contact and give 'em a light coat of WD to keep them from rusting, but cleaning up red flakes after the first few uses was sub-optimal. Second, the roller-style dropout panel seems gimmicky to me. Unless you have a bike that is exactly the right length so that the rear tire sits on the rollers when the front's in the vise, or you want to park it on the sidestand while rolling your tire (sketchy), it's pointless, and it's a pretty big hole to push your bike through when loading and unloading. I know... some people love 'em; different strokes. I had a local metal shop cut and bend a new panel from 1/8" sheet and bought some square tube to cut and weld in for support. $40 for materials and a can of red spray paint and I have a solid panel that fits even better than the original (which was fine, to be fair). That's about it. Otherwise, after decades of crawling around on the ground when working on bikes, using it has been and exercise in "where have you been all my life!" It's sturdy, especially with the stabilizer bar, and the finish seems durable so far after a couple of tool drops and oil dribbles. It raises quickly and easily with my 26 gal. compressor. I'm a hobbyist who works on my own bikes and sometimes does work for friends, and I expect this will give me years of use with little trouble. My only regret is that I didn't get the side extensions which, since I've used the lift a few times, I now realize would come in really handy even if they're not a necessity. I'll also say that Redline's customer service was excellent. I had questions about both the product and the shipping process that were answered promptly by actual humans. Plus, they have some really informative YouTube videos that helped me make my decision.
  • Paul Robinson Dec 7, 2021

    You can imitate but you can never duplicate the best

    Dec 7, 2021
    You can imitate but you can never duplicate the best,Had the opportunity to take my bike to my buddies house and utilize this lift, most definitely going to purchase one now that I had the opportunity to disassemble my bike without even bending over…

Ask & Answer

  • 10R Jun 19, 2024
    Q. If a unit that is marked as Free Shipping and is picked up by the purchaser at your warehouse, is there any further discounts which will be applied to the total of bill since shipping is not being utilized?
    A. Yes sir. Please add the item to your cart, and on the next screen, you'll be asked to select if you want to pick up locally, which will give you a discount. Thanks!
  • Max Jan 16, 2024
    Q. Do you have any dealers in Queensland, or any state in Australia? If not, could you give me a rough estimate on shipping the HD1K with side extensions, front extension panel & RMC1 Wheel Chock please? Slow boat trip OK as no urgency whatsoever.
    A. I'm sorry but we do not have international distributors and we do not offer international shipping.
  • DKK Oct 07, 2023
    Q. Can the jhand roller jack be used to move the lift with a road glide on the lift and strapped
    A. We "highly" do not recommend attempting to move the lift with a bike on it, especially a heavy motorcycle like a Road Glide. Thanks for your question.
  • Jim Jun 17, 2023
    Q. Is there a solid panel or cover for the rollers on the dropout, or is that always a hole?
    A. The drop out panel with the rollers is the only one we offer with this table. No solid drop out exists as we do not believe it's necessary and would only increase the cost of the table by including two drop out panels. Thanks Jim.
  • Deedub Jun 06, 2023
    Q. Will this work with a Harley street glide?
    A. Yes sir. There won't be any issue at all. We've sold hundreds of these tables to customers with Street Glides. Thanks for shopping with us.
