Redline TR1500 Motorcycle Lift Table with Trike Side Extensions

Model: TR1500

(11 reviews)

Please Choose:

Optional Accessories

A generic image

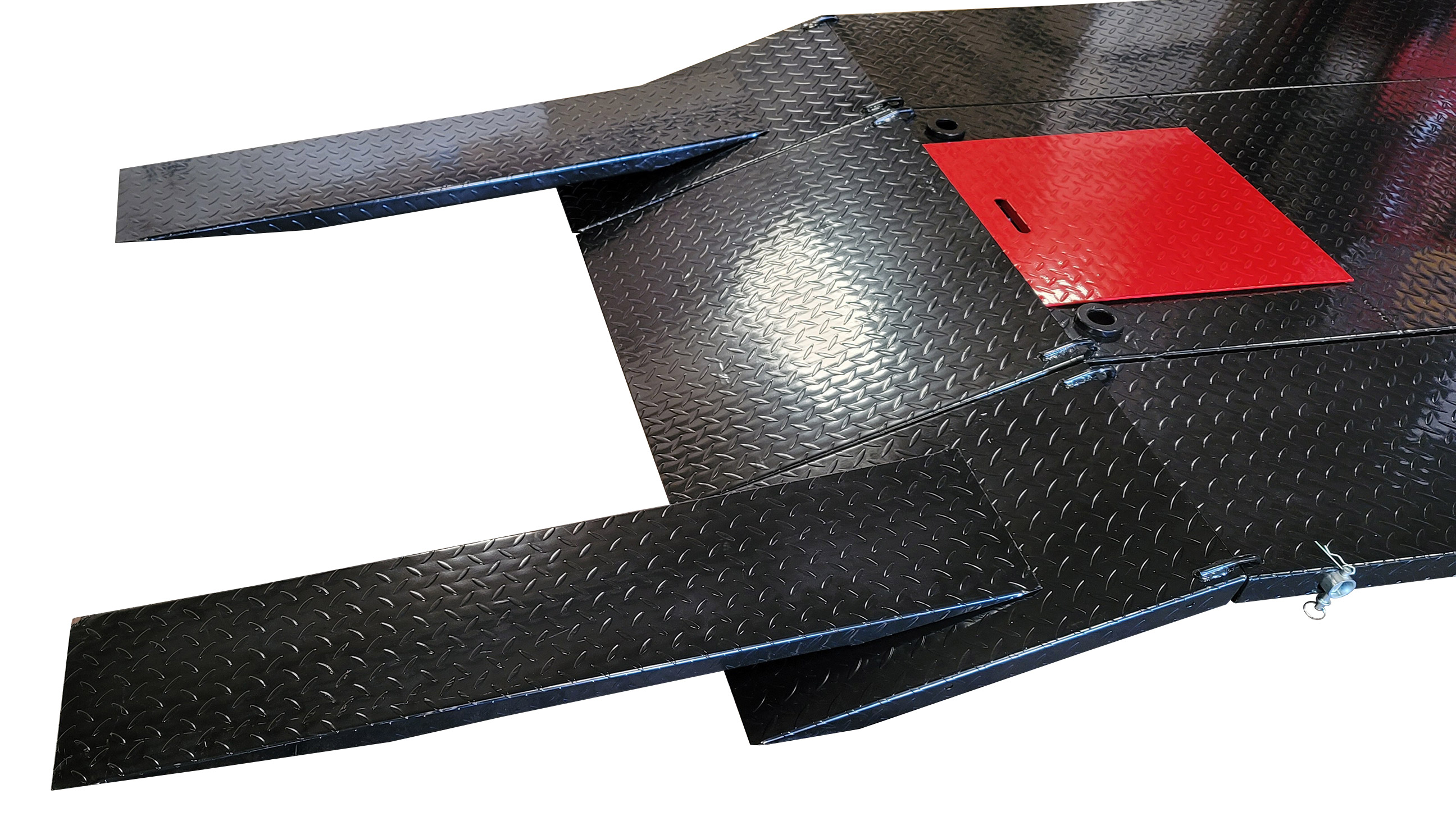

Include Two Extension Ramps

A generic image
Include RE-2ABJ 2 Ton Air Balloon Jack

A generic image
Include RE-3ABJ 2 Ton Air Balloon Jack

A generic image

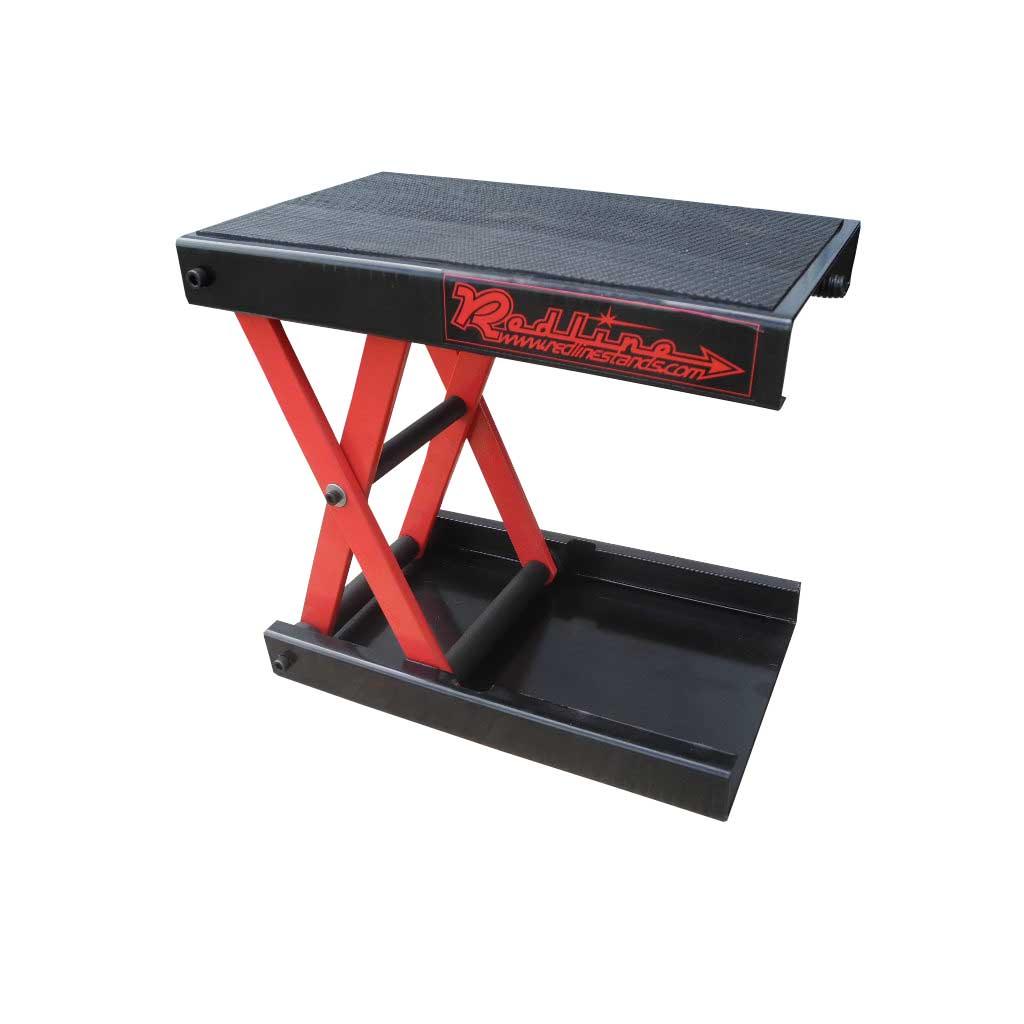

Include RE-FJ Motorcycle Frame Jack

A generic image
Include Two RE-FJ Frame Jacks

A generic image
Include RE-ATVJK ATV Frame Jack

A generic image

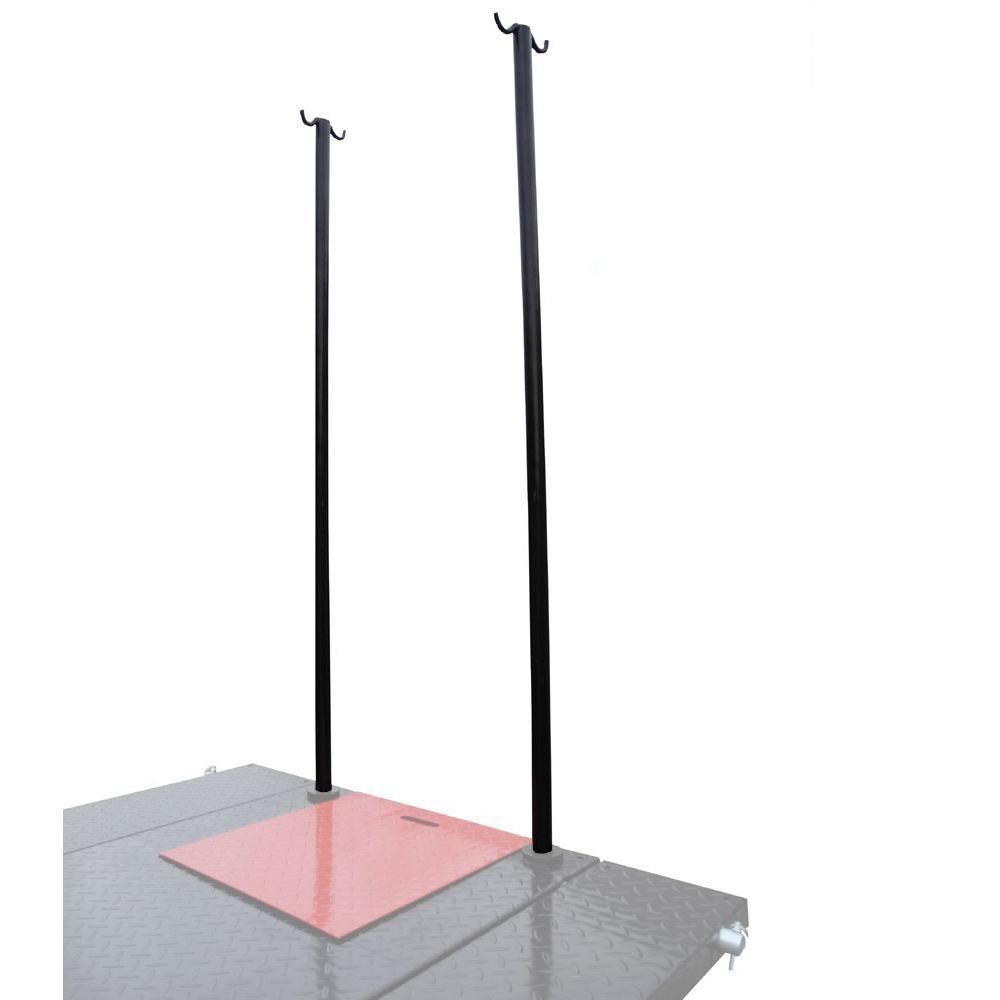

Include Upright Support Poles

A generic image
Include Two ATV Frame Jacks

A generic image
Include Electric Motor Driven Upgrade

A generic image

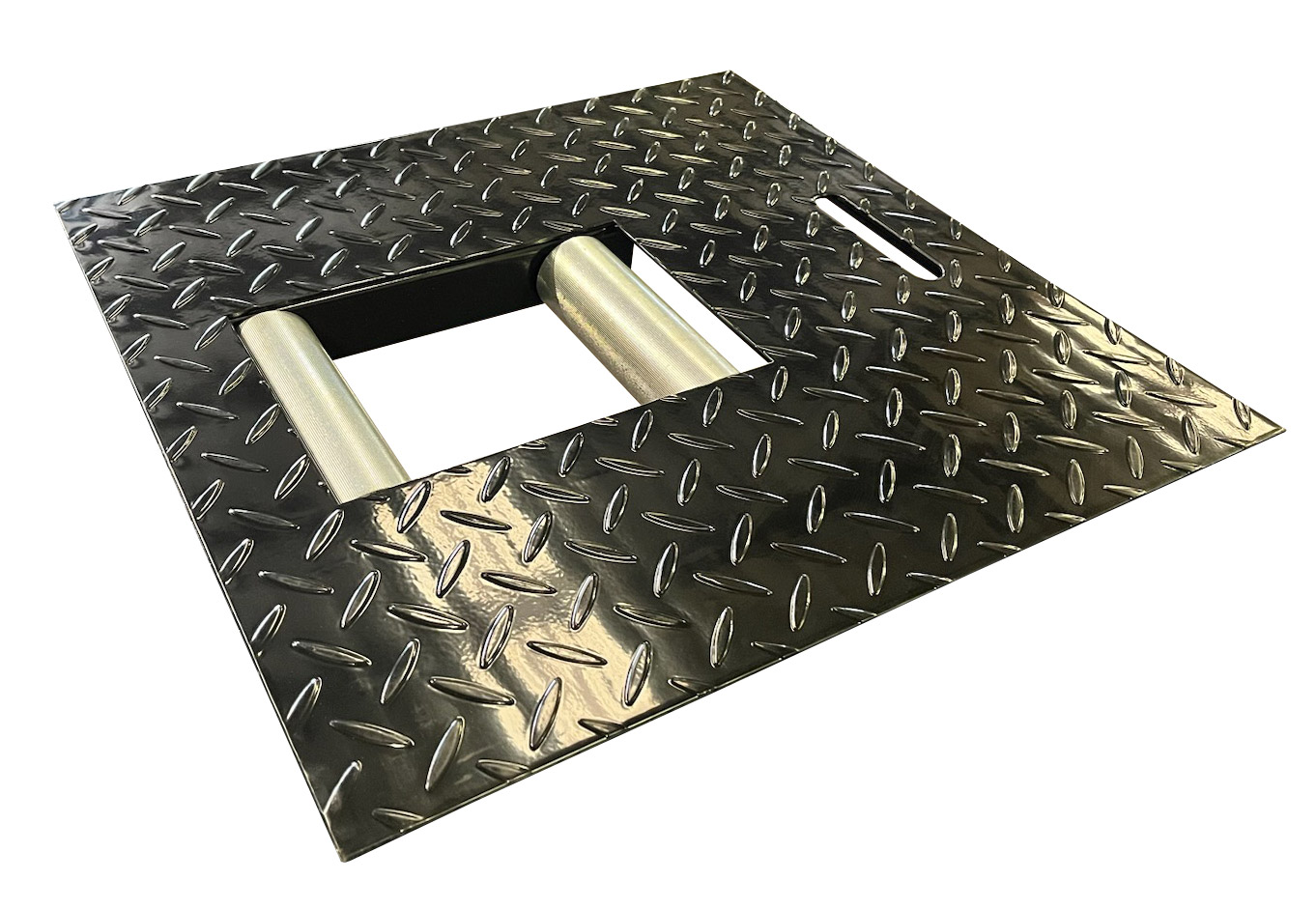

Include Redline Roller Drop Out Panel

A generic image
Upgrade Air Pump to Commercial Grade

A generic image

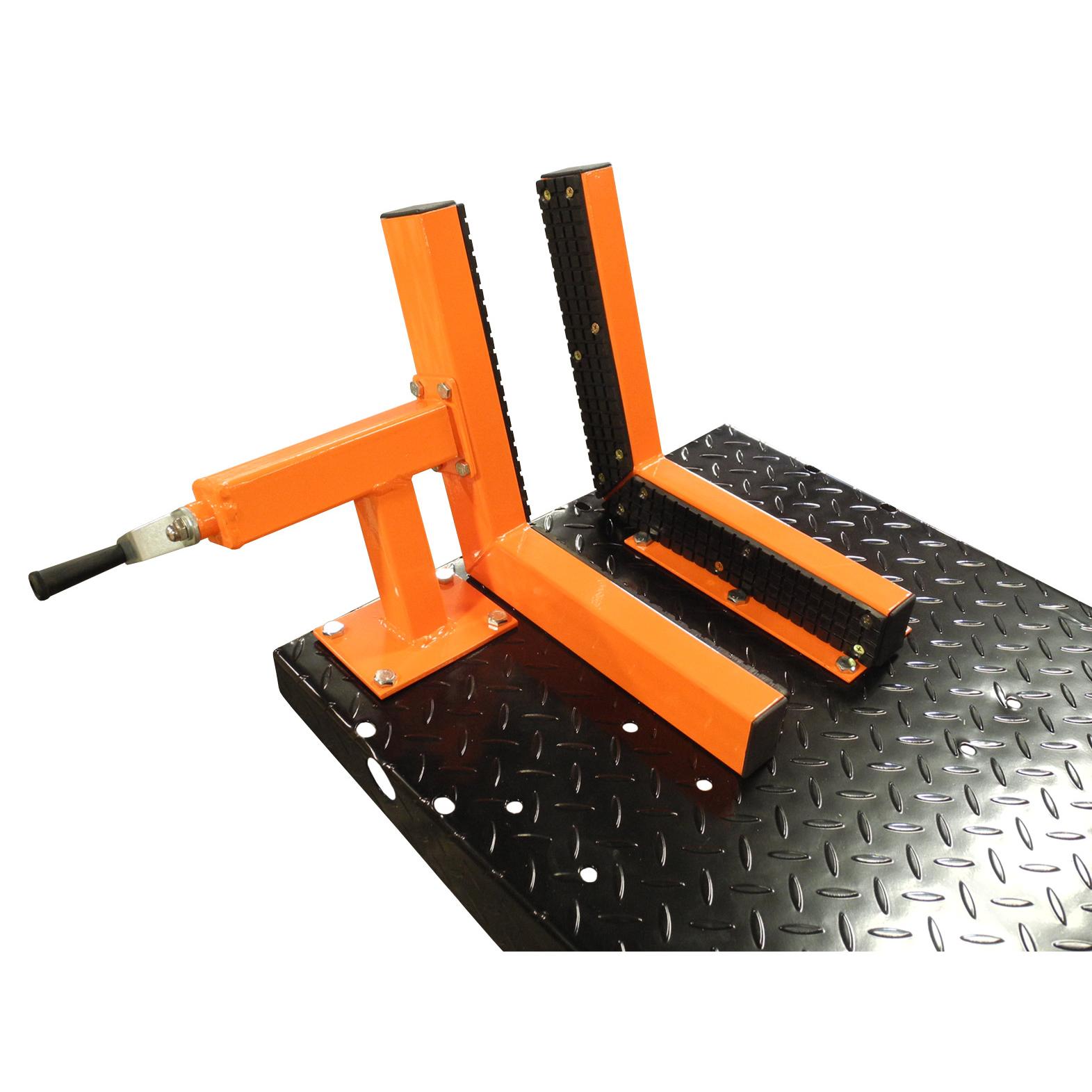

Redline Wheel Vise

A generic image
RMC1 Wheel Chock
Capacity by LBS
Brand
Type

Shipping upgrades offered in cart page

$2,249.50
box icon

In Stock in

Pensacola
delivery icon

Usually Ships Within

24-48 Hrs

Description

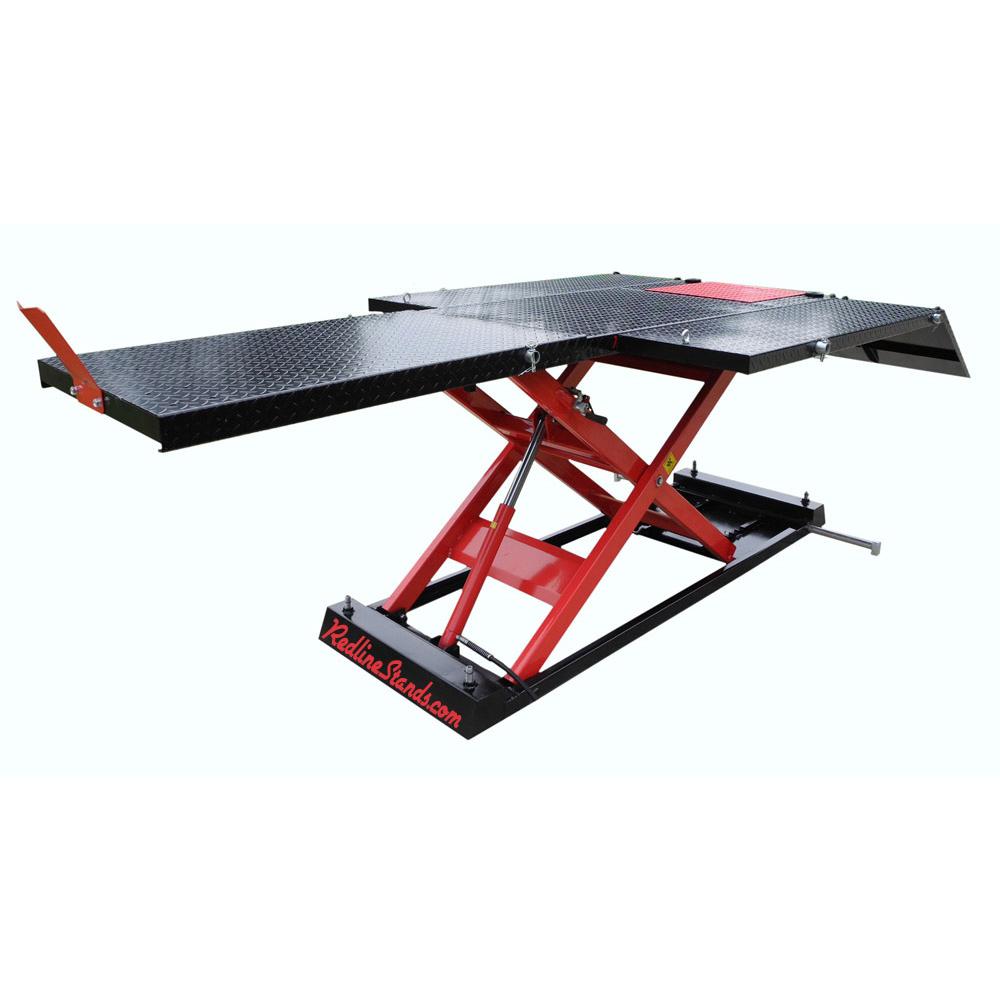

The Redline TR1500 air over hydraulic lift is perfect for trikes. With side extensions that aren't full length, accessing your trike from the motor forward is a breeze. It lifts to 46" high, is 110" long, and has plenty of width at 63" wide. The TR1500's features include a 3 piece removable rear ramp section, free front extension panel, built-in casters, OPTIONAL wheel vise, rear drop out panel, side extension panels, and a built-in safety lock system. Some trikes are low enough additional ramps may be necessary to avoid scraping when driving onto lift. Ramps such as these may be needed. Call us or enter your order online today!

Pump may arrive in black or grey color

KEY BENEFITS


• Covered by Redline's 1-Year parts warranty

• Takes AW32 hydraulic fluid

• OPTIONAL vise can be purchased

• ATV full-length side extensions not available

• Casters raised/lowered via 10mm allen wrench

• Built in casters for easy moving (non load bearing)

• Includes drop out panel, front extension panel, side extensions, 3 pc ramps

READ A REVIEW


• See what a new customer has to say HERE

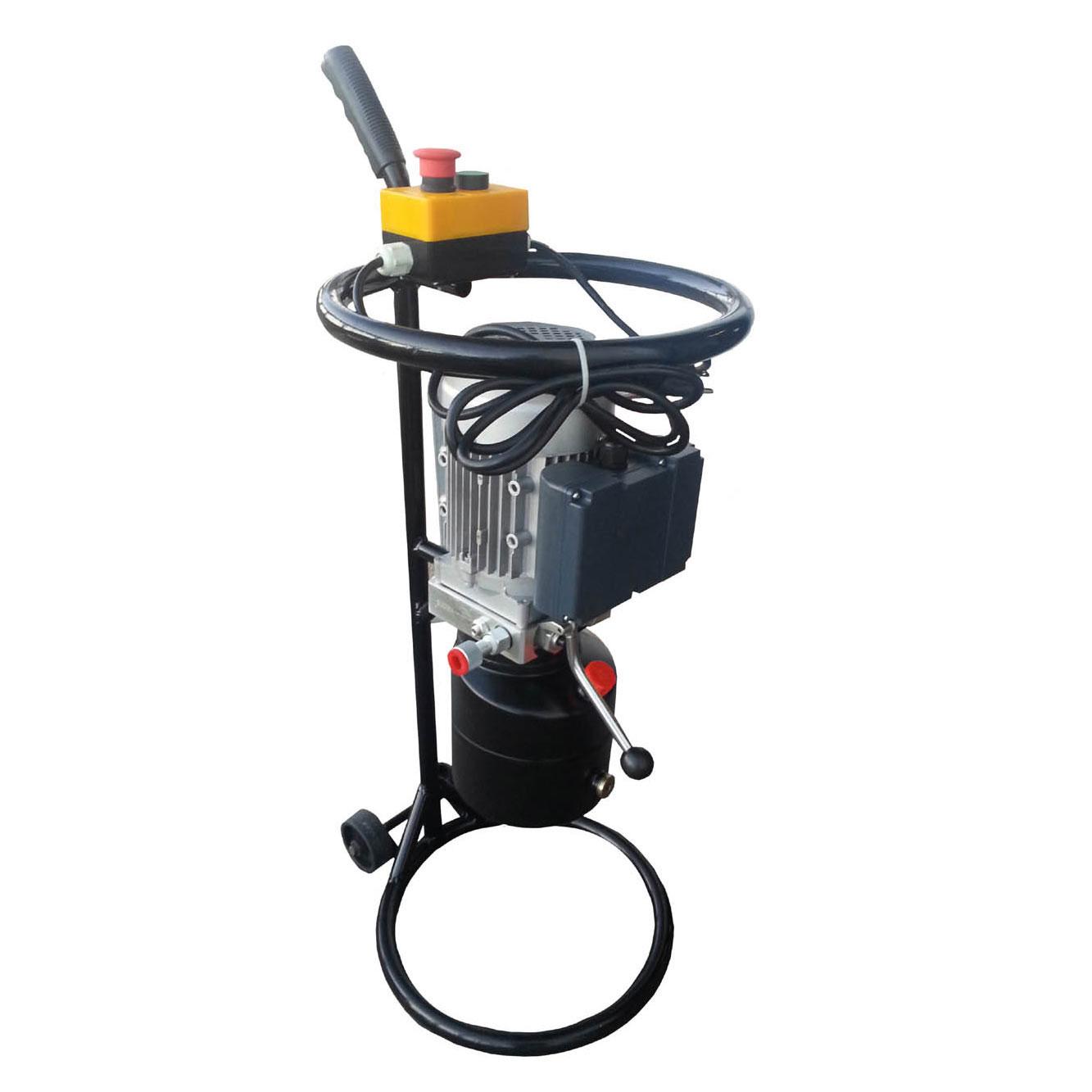

UPGRADE TO ELECTRIC


• Pump is 110V

• Electric is smoother, quieter, and faster!

• Upgrade to electric pump & large cylinder

• Air/hydraulic pump not needed or included

ELECTRIC CAPACITY


• Release pressure will need adjusting for max lift

• 1400 lb capacity with sides, front extension & vise

• 1550 lb capacity without sides, front extension & vise

• Air operation lifts 1500 lbs with all accessories

















OPERATE SAFELY


• Using motorcycle ratchet straps are mandatory for your safety

• Wheel vise alone not sufficient to secure motorcycle to lift table



Show more

Reviews

4.8 / 5 (11 reviews)
Based on 11 Reviews Write review

  • Robin Harris Dec 23, 2024

    My 1st Redline table

    Dec 23, 2024
    Freaking awesome. Simple effective and easy to use. Recommend to anyone. I want another one.

  • Dale Haag Nov 12, 2024

    Great lift at a great price

    Nov 12, 2024
    Bought the TR1500 with the electric pump option and the extended ramps. The extended ramps are need for the Harley TriGlide in order to clear when driving onto the lift. I also found that my two wheelers (2014 XL1200C and 2018 XL1200X) would hit when loading. I modified the main ramp by adding holes for the extended ramps to connect as they do on the side ramps so they would lock in side by side and centered. This keeps them from sliding out of place and gives a perfect angle that allows the two wheelers to clear perfectly when loading. It also gives the ability to use your feet on them when loading to help steady and balance the bike. The lift is perfect for my needs with all my bikes now.

  • John Nov 7, 2024

    HD1500 lift

    Nov 7, 2024
    Just getting time to put it together,since I hurt my leg,but it’s going together quite nicely,glad I got the air assist.
3 of 11 Reviews See all reviews

Ask & Answer

  • HB Aug 01, 2024
    Q. Do I have the option of picking up a TR 1500 trike lift at your location?
    A. Sure. Customers do it all the time. We're open M-F from 7:30 to 4:30, and our pickup hours are 8-11 and 1-4. We request no pickups from 11-1 as it's too likely you'll arrive and the people you need will be gone to lunch. Let us know if we can be of assistance. Thanks for shopping with us!
  • UD Mar 21, 2024
    Q. Do you need the side extensions for the TR 1500 to use it for a Harley Triglide?
    A. Yes. The center table is 29.5" wide. The TR1500 comes with side extensions that increase that width to 63" at the rear where your wheels 2 and 3 will rest. Thanks for reaching out UD!
  • Wonder1 Feb 15, 2024
    Q. Which scissor jack works on Harley trike 2023?
    Thanks
    A. Probably your best bet is to buy two of the REDLINE FRAME JACK and put one under each side of the back of your trike. Thanks for shopping with us!
  • BaBiker Aug 21, 2023
    Q. Hello gents
    Is there a way to slow the lowering speed with the foot pedal, it comes down somewhat slow but kinda slams when it gets to the bottom, I'd prefer it to lower alot slower.
    A. You might have to buy a custom fitting or two, but you could install ONE OF THESE or ONE OF THESE and that would surely allow you to have better control over the decent rate. Thanks for shopping with us!
  • Dale Aug 09, 2023

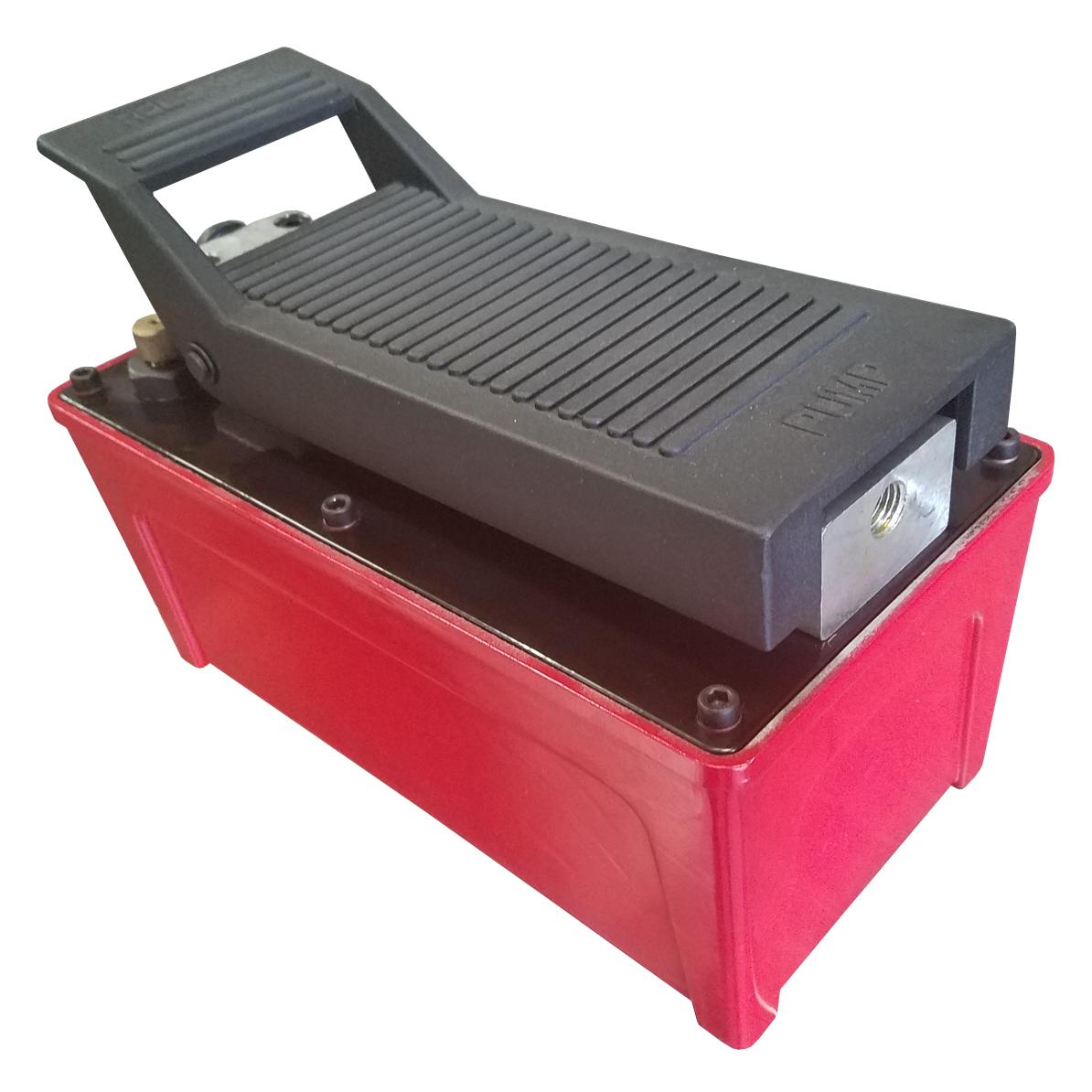

    Q. How do I change/add oil to the the foot pedal pump? Thank you
    A. There's a little gold colored air vent on the top of the reservoir. It's mounted in a rubber grommet. Just pull that grommet and gold vent out of the pump and add the fluid through there. It's a small hole, so it won't be quick, but that's how you do it. #32 hydraulic fluid is what you need. Thanks Dale!
