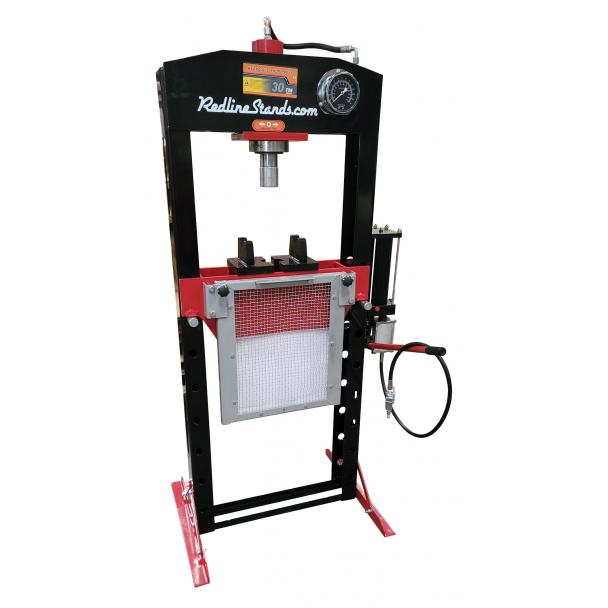

Redline 30 Ton Economy Air Hydraulic Shop Press

Model: ECO30T

Optional Accessories


Redline RE-AR 3/8" Air Hose Reel


Economy Pin Press Kit


SMC 1/4" Lo-Flow Water Separator


Shop Press Foot Pedal
Brand
Type

Shipping upgrades offered in cart page

$1,299.50

Description

Enhance your auto repair and general mechanical jobs with the Redline 30 Ton Economy Air Hydraulic Shop Press! This 30 ton press features an air powered cylinder that can also be operated manually, along with a durable powder coat finish to help prevent rust. It includes both a pair of press plates as well as a grid guard to protect against possible flying debris. Order yours today!

KEY BENEFITS
• 30 ton capacity
• Powder coated finish
• Includes pair of press plates and a grid guard
• Ram cylinder capable of shifting both left and right
• Air powered hydraulic cylinder for heavy duty pressing
This hydraulic shop press, commonly misspelled as a “hydrolic” press, is great for pressing wheel bearings where tons of force is needed.

PRESS PLATE RATING
• Each press plate is rated to ½ the tonnage of the press; thus, if applying the press’ maximum force, the load must be distributed over both press plates to avoid damaging the press

Show more

Specs

• Hose length:  50"
• Leg length: 23-1/2"
• Handle length: 21-5/8"
• Cylinder stroke: 7.8"
• Working range: 40-1/2"
• Inside frame width: 21"
• Main frame is 2-3/4" x 0.233"
• Press plates: 6-3/8" x 5"
• Piston rod diameter: 2.439"
• Cylinder bore diameter: 2.95"
• Interior carriage width: 4-7/8"
• Interior carriage length: 19-1/8"
• Grid guard dims: 19-3/4" x 17-3/4"
• Rod retract time: 60 seconds
• Extension time per inch: approximately 17 seconds
• Approximate number of pumps to full range without load: 42
• Overall dims 30" L x 23-1/2" W x 68" H (without pump attached)

Shipping

• Ships 337 lbs. at 70" x 28" x 11"
• Residential deliveries cost extra
• Ships to commercial location w/ forklift
• Units available in Pensacola, FL with rebate
• Pensacola, FL pickups – read our policies HERE
• Free shipping applies to $200 maximum. If shipping exceeds this amount a surcharge may be needed

Videos

Reviews

Ask & Answer

  • michael Mar 03, 2022
    Q. ordered a foot pedal but did not get any information 0n how to install it i bought a 20 ton air over hydraulic press with foot pedal
    A. It's super easy sir. Just unscrew the hand-operated valve from the air line and replace it with the foot operated valve. Thanks Mike!
