Model: 78022E

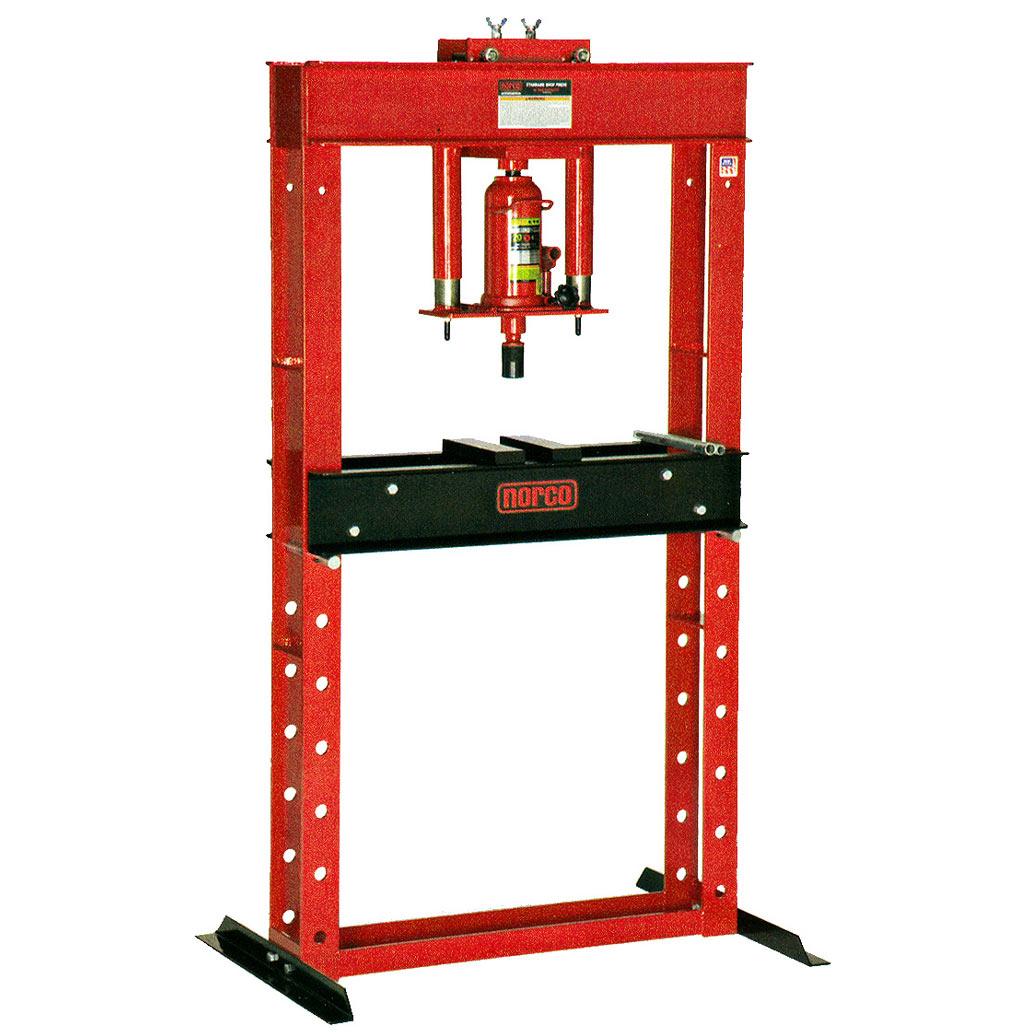

The Norco 22 Ton Manual Hand Pump Shop Press is one of the best manual shop presses Norco has to offer! It features a zero distortion, heavy duty structural steel frame, a manual pump power unit with a "Parkerized" pump piston, ram, and extension screw to inhibit rust from entering the system, and includes a pair of bed plates. Order yours today!
KEY BENEFITS • Pair of bed plates included • Shielded heavy duty ram return springs • Norco quality product: "Assembled in USA" • Zero distortion, heavy duty structural steel frame • Frame is USA made / Hydraulics are Taiwanese made • Welded frame, fully assembled, tested, and ready for work • Power unit is bearing mounted for horizontal movement on head channel • Manual pump power unit with "Parkerized" pump piston, ram, and extension screw
Show more
• 22 ton capacity • Ram travel: 6.625" • Between uprights: 6" • Between bed rails: 7" • Overall height: 70.625" • Inside frame width: 30" • Base dims: 40" W x 28" D • Bed height adjustments: 7 x 4.75" • Inside frame height (min/max): 7.125" / 35.5"
• Download the spec pdf HERE • Download the manual pdf HERE
• Shipping weight: 394 lbs. • Residential deliveries cost extra • Ships to commercial location w/ forklift • Satellite warehouse pickup with $50 off -Compton, CA -Elkhart, IN -Dallas, TX -Kennesaw, GA • Free shipping applies to $100 maximum. If shipping exceeds this amount a surcharge may be needed
