Redline 50 Ton Electric Hydraulic Shop Press

Model: RE50T-E

(1 review)

Please Choose:

Optional Accessories

Include Rear Facing Guard ( +$174.95 )

Pin Press Kit ( +$199.95 )

10ft. Electrical Cord ( +$29.95 )

Extra Pair Of Press Plates ( +$314.50 )

U-Weld-It Metal Bending Finger Brake ( +$449.50 )

10 gallons #32 hydraulic fluid ( +$249.50 )

Include Rear Facing Guard

Pin Press Kit

10ft. Electrical Cord

Extra Pair Of Press Plates

U-Weld-It Metal Bending Finger Brake

10 gallons #32 hydraulic fluid

Brand

Redline Engineering

Type

Electric

Shipping upgrades offered in cart page

$6,499.50

In Stock in

Pensacola

Usually Ships Within

24-48 Hrs

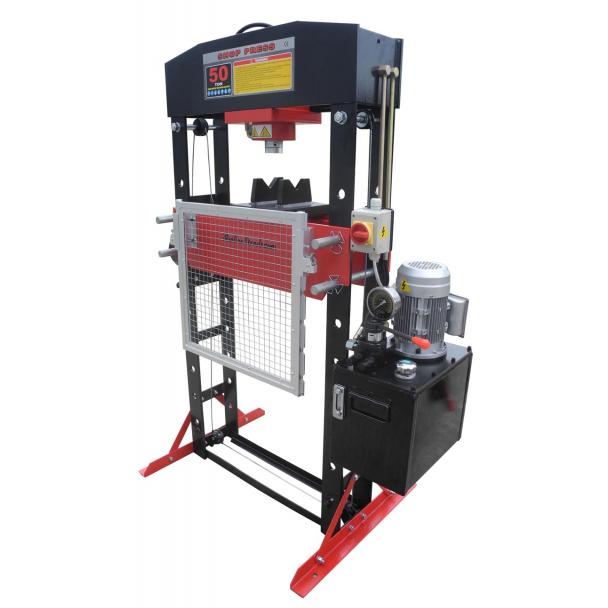

This industrial Redline 50 ton hydraulic shop press is an electric over hydraulic pressing machine perfect for manufacturing, auto repair, or general mechanical work. It features a electric powered hydraulic pump for heavy duty pressing, a safety guard with multiple increments, and a crank style carriage winch for easy adjustment of the middle carriage. On top of the hydraulic fluid tank is a tonnage gauge to inform you of how much pressure you are currently using. Order your new 100,000 pound capacity hydraulic shop press today from Redline Engineering!

KEY BENEFITS

• Covered by Redline's 1-Year parts warranty
• CE Certified
• 50 ton capacity
• Powder coated finish
• Ram moves 2" in 5 seconds
• 44" movement of carriage up and down
• 8 height adjustments of 5-1/2" increments
• Carriage winch for easy carriage height adjustment
• Ram cylinder capable of shifting both left and right
• Pressure gauge accurate +/- 2.5% of press capacity
• Electric powered hydraulic cylinder for heavy duty pressing
• Safety grate can be latched into place in multiple increments
• Welded shelves inside carriage to help support press plates
• Machine does not come with a power cord. Customer will need to either hard-wire power to the machine or supply a power cord

IMPORTANT NOTES
• Pump does not come pre-filled with hydraulic fluid
• 7-8 gallons of ISO#32 or Shell#15 hydraulic fluid will be needed to operate the pump
• Long and/or thin extension cords are not recommended as amp loss could damage the motor

PRESS PLATE RATING
• Each press plate is rated to ½ the tonnage of the press; thus, if applying the press’ maximum force, the load must be distributed over both press plates to avoid damaging the press

• Leg length 31-1/2"
• Cylinder stroke 8.15"
• Ram diameter 100mm
• Inside frame width: 28-3/4"
• Winch cable diameter: 5/32"
• Main frame is 3-1/2" x 1/2"
• Cylinder ram diameter 2-1/2"
• Carriage pin diameter: 1-3/16"
• Safety grate: 24-3/8" x 26-1/2"
• Inside carriage width: 7-1/2"
• Interior carriage length:16-1/4
• Full travel time: 20 seconds
• Piston retraction time: 26 seconds
• Pump VFR - .914 gallons per minute
• Maximum pump pressure 9,000 psi
• Pressure gauge accurate to +/- 2.5%
• Overall dims 62" L x 31-1/2" W x 72" H
• Cylinder piston/bore diameter: 3.937"
• Inside carriage shelf-to-shelf depth: 7-1/4"
• Middle carriage 35-7/8" L x 10-3/16" W x 9-13/16" H
• Two heavy duty press plates 10-15/16" L x 5-1/8" W x 1-3/8" thickness
• Work dims between cylinder and press plates:
-Min height from cylinder: 1-11/16"
-Max height from cylinder: 40"

ELECTRIC MOTOR
• 60 Hz
• 110 V
• 1700 RPM
• 19.12 AMP
• 2 Hp electric motor

• Download the manual pdf HERE

• Ships 949 lbs. at 83" x 38" x 20"
• Residential deliveries cost extra
• Ships to commercial location w/ forklift
• Units available in Pensacola, FL with rebate
• Pensacola, FL pickups – read our policies HERE
• Free shipping applies to $350 maximum. If shipping exceeds this amount a surcharge may be needed

Redline 20 Ton Air Hydraulic Mechanics Press CLEARANCE $599.50

Ships free

Redline 12 Ton Manual Hydraulic Shop Press

$549.50

Redline 20 Ton Air Hydraulic Shop Press

$799.50

Redline 150 Ton Electric Hydraulic Shop Press

$15,999.50

[DISCONTINUED] Redline 30 Ton Economy Air Hydraulic Shop Press $1,299.50

Ships free

Redline 10 Ton Benchtop Hydraulic Shop Press

$499.50

Reviews

5.0 / 5 (1 review)

Based on 1 review Write review

Chris Behnken May 23, 2020

Badass!
May 23, 2020

This unit is badass, we run a drivetrain and manual transmission rebuilding service @ rvenge performance and a air over hydraulic press was just slowing us down too much. This thing is 8 times faster than our air/hydro 40 ton unit we had before and it really speeds up work. Sets up easily, few parts to really install. You may want a friend when putting it upright, we just used an engine hoist and heavy strap to pick it up by the upper header and it was really easy. Just be careful, its about 900 lbs. To put the power unit on we just used a jack to get it close and it was also really easy. Our unit only took about 5 gallons of aw32 just FYI, you may only need one bucket. Very well built, quiet (no more need for ear muffs like the air one needed), fast, and doesn't deflect at all. Redline also ships very fast. We ordered on a Monday and had it here and setup on a Friday. Presses with all the features this one has were double the cost. Thanks Redline!

Ask & Answer

Vinicius Dec 04, 2024

Q. Hello, I saw that you also manufacture in 220v, I would like to know how many amps at this voltage and how long to be ready and this order would I make it directly through the website or do I contact you?
A. Sorry for any confusion, but this model is only available from Redline in 110V. Our manufacturing facility offers other voltages for other markets, but we only offer them in 110V for ease-of-use in the U.S.. 110V / 60Hz / 1700RPM / 19.12 AMP / 2 HP electric motor. Thanks for reaching out Vinicius!
HERNANDO Sep 03, 2024

Q. Gross weight of the equipment, including accessories and wooden box.
Gross weight of the equipment, without accessories and wooden box.
A. The shipping weight is 949 lbs and the net weight of the machine itself is 782 lbs. These measurements do not account for any accessories as we do not know which accessories you're interested. Thanks for shopping with us!
HERNANDO Sep 02, 2024

Q. What does the warranty consist of and for how long?
A. It's a one year parts warranty. This means that if anything fails in one year, Redline will send you the part and it's up to the customer to install it. We do offer an additional 1-3 more years of extended warranty during the checkout process. Thanks for shopping with us!
dave Feb 02, 2024

Q. Good morning, I really liked your shop press, it seems to be faster than other brands and the one that is most worth buying. I need two like this. But the 110v amperage is a little high for our capacity. Can you do it in 220v?

A. We can, but we'd have to special order this press for you with a 220V motor. Lead time would be about 4-5 months. Let us know if you wish to proceed. Thanks Dave.
Himani Jan 12, 2024

Q. IF WE WANT A MODIFICATION TO THIS PRESS DESIGN IS IT POSSIBLE, DO GUYS HAVE PEOPLE WHO CAN MODIFY THE PRESS CONSTRUCTION AS PER OUR REQUIREMENT? HOW MUCH DENSITY 50 TON PRESS CAN ACHIEVE?
A. No sir. I'm sorry but we do not offer any custom work. You would need to modify the press to your liking yourself. Thank you for your question.
