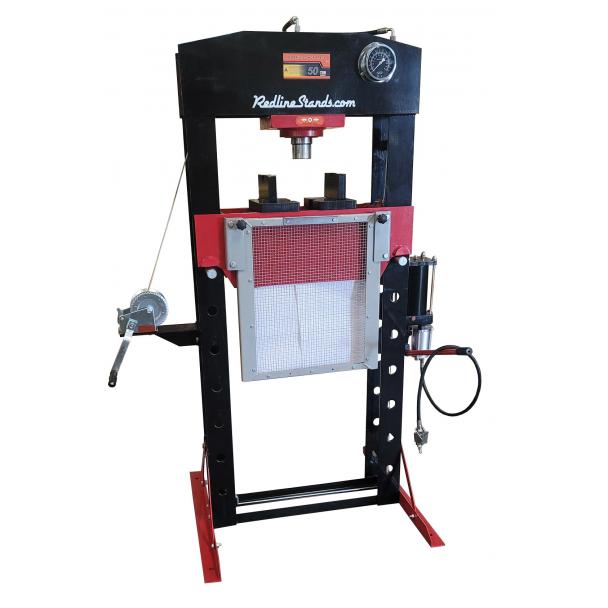

Redline 50 Ton Economy Air Hydraulic Shop Press with Winch

Model: ECO50TA

Optional Accessories


Redline RE-AR 3/8" Air Hose Reel


Economy Pin Press Kit


SMC 1/4" Lo-Flow Water Separator


Shop Press Foot Pedal


U-Weld-It Metal Bending Finger Brake
Brand
Type

Shipping upgrades offered in cart page

$2,299.50

Description

Bring out the big guns with the Redline 50 Ton Economy Air Hydraulic Shop Press! This heavy duty economy shop press offers a high 50 ton capacity for those tough automotive and metal working jobs. It features a cable system to adjust the carriage, as well as an air powered cylinder that's capable of being manually operated. Along with a powder coat finish, this press is your go-to choice for any shop or garage. Order yours today!

KEY BENEFITS
• 50 ton capacity
• Powder coated finish
• Adjustable carriage height via cable system
• Includes pair of press plates and a grid guard
• Ram cylinder capable of shifting both left and right
• Air powered hydraulic cylinder for heavy duty pressing
This hydraulic shop press, commonly misspelled as a “hydrolic” press, is great for pressing wheel bearings where tons of force is needed.

PRESS PLATE RATING
• Each press plate is rated to ½ the tonnage of the press; thus, if applying the press’ maximum force, the load must be distributed over both press plates to avoid damaging the press

Show more

Specs

• Hose length:  50"
• Leg length: 33-1/2"
• Handle length: 23-3/4"
• Cylinder stroke: 11"
• Working range: 43-1/4"
• Inside frame width: 24-1/8"
• Main frame is 4" x 0.495"
• Piston rod diameter: 2.834"
• Cylinder bore diameter: 3.93"
• Press plates: 8-3/4" x 5-5/8"
• Interior carriage width: 7-3/8"
• Interior carriage length: 21-3/8"
• Ram movement: 1.8" / minute
• Grid guard dims: 23-5/8" x 21-3/8"
• Rod retract time: 117 seconds
• Approximate number of pumps to full range without load: 94
• Overall dims 45-3/4" L x 33-1/2" W x 74-3/4" H (without pump attached)

Shipping

• Ships 610 lbs. at 76" x 28" x 14"
• Residential deliveries cost extra
• Ships to commercial location w/ forklift
• Units available in Pensacola, FL with rebate
• Pensacola, FL pickups – read our policies HERE
• Free shipping applies to $250 maximum. If shipping exceeds this amount a surcharge may be needed

Videos

Similar Products

Ships free for ~ 500 miles
Norco 22 Ton Manual Hand Pump Shop Press
Norco 22 Ton Manual Hand Pump Shop Press $2,519.50
Ships free for ~ 500 miles
Norco 12 Ton Manual Hand Pump Shop Press
Norco 12 Ton Manual Hand Pump Shop Press $1,889.50
Ships free for ~ 500 miles
Redline 40 Ton Air Hydraulic Shop Press
Redline 40 Ton Air Hydraulic Shop Press $1,699.50
Ships free for ~ 500 miles
Redline 30 Ton Air Hydraulic Shop Press
Redline 30 Ton Air Hydraulic Shop Press
$1,649.50
Ships free for ~ 500 miles
Redline 50 Ton Air Hydraulic Shop Press
Redline 50 Ton Air Hydraulic Shop Press
$2,999.50
Ships free for ~ 500 miles
Norco 25 Ton Air/Hydraulic Shop Press
Norco 25 Ton Air/Hydraulic Shop Press $3,249.50

Reviews

Ask & Answer

  • Frank Aug 28, 2023
    Q. Can you confirm cylinder stroke is 11"?
    What is ram return operation?
    A. Current production models have a cylinder stroke of 11". Release operation is achieved by turning the release knob which will allow the internal spring to retract the ram as fluid returns to the reservoir. Thanks for reaching out Frank!.
  • Jay Sep 04, 2022
    Q. Is the manual portion one or 2 speeds?
    A. There is no way to increase the flow per stroke so there is only one speed. You can use the air assist motor to do most of the work and do your final press using manual operation. Thanks for reaching out Jay!
  • edward Aug 17, 2022
    Q. can it work manually if need for comfortable air?
    A. This press can operate with either manual or air powered operation sir.
  • David Mar 21, 2022
    Q. Is this item shipped to a terminal or can it be shipped to home address?
    A. Either. You'll make the selection for which type of delivery you prefer when you add the item to your cart, but just be aware that residential deliveries cost a good bit more money. Thanks David!
