Ideal ALI Certified 2 Post Lifts Clear Floor | iDeal 10K Auto Lift

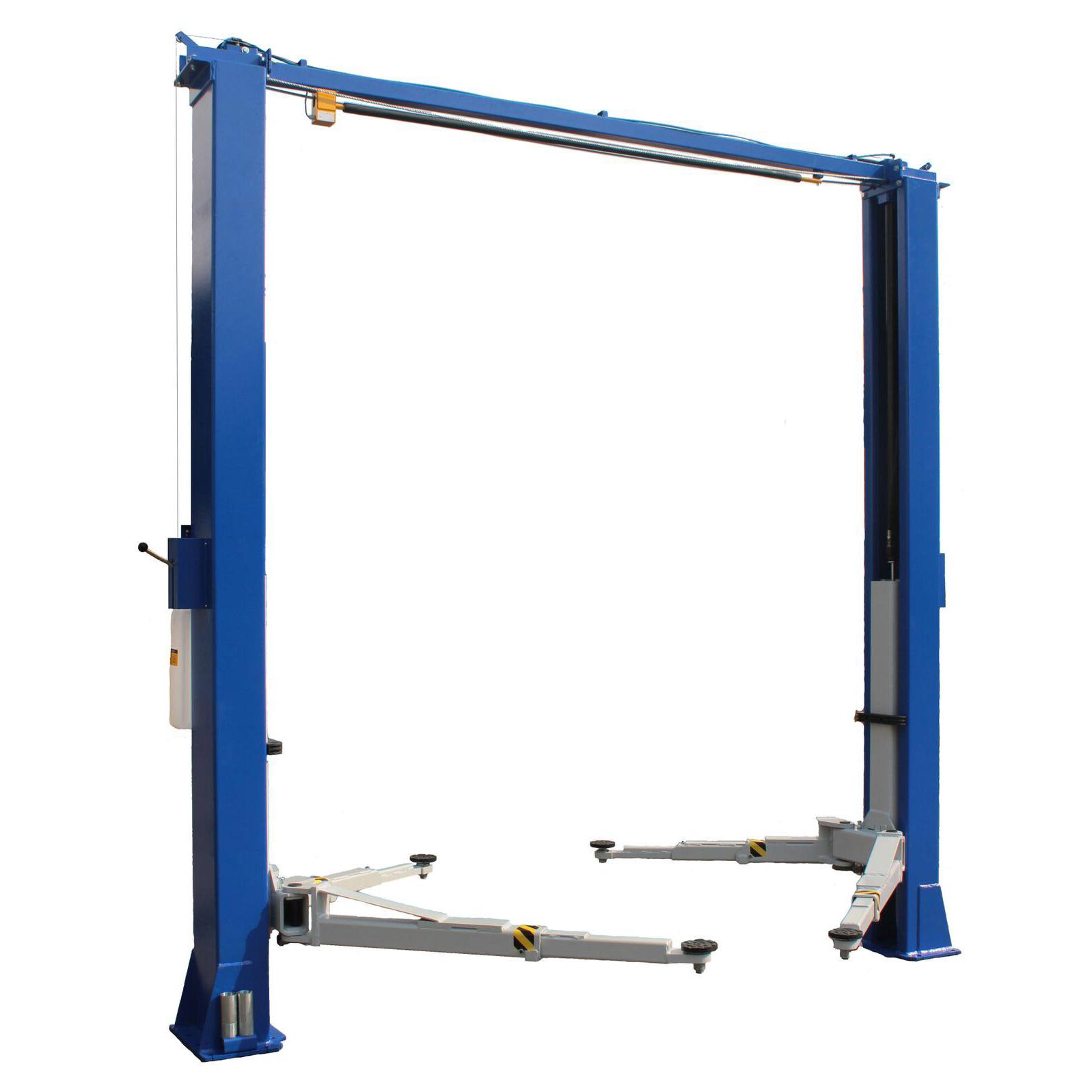

The iDeal TP10KAC-DX 10,000 lb clear floor lift is ETL/ALI certified. It's direct drive cylinders pull the car upward instead of pushing it upward so there are no chains or bearings to wear out. It features a single piece column design and extra long 44'' carriages for less stress on the assembly. We include free mounting hardware and 3 sets of stackable truck adapters. Contact us for shipping quote today!

KEY BENEFITS
• Bi-symmetric
• Rubber door guards
• Adjustable spin up pads
• Truck adapters included
• Low profile lifting arms
• Single point lock release
• Rigid single piece column
• Offset three stage short arm
• Direct pull hydraulic cylinder
• Warranty: 1 year parts / 5 year structural
• Ideal for auto passenger cars & light duty trucks

RETURNS
• Our supplier does not accept returns on this item
• In event of warranty claim, replacement part(s) will be sent

• Low pad height: 4"
• Max lift height: 71"
• Overall height: 144"
• Drive thru width: 104"
• Rise speed: 50 seconds
• Overall width: 137-3/16"
• Arm reach rear: 41" - 57"
• Arm reach front: 23" - 45"
• Minimum ceiling height: 12'
• Width between columns: 116"
• Max load per arm: 2,500 lbs.
• Operating pressure: 3,050 PSI
• Min concrete: 4-1/4" / 3000PSI
• Floor to overhead shutoff: 136"
• Overall width w/ power unit: 145-1/2"
• Max lift height w/ tallest adapter: 76-1/2"
• Electric power unit: 220VAC, 20 Amp, 1 Phase

• Browse the full manufacturer catalog HERE
• View our install blog HERE
• Download the spec sheet HERE
• Download the pdf manual HERE

• Residential deliveries not possible
• Ships 1,705 lbs. at 140" L x 19" W x 40" H
• Ships LTL truck freight to business w/ forklift
• Can be picked up at local truck dock terminal
• Free shipping applies to $700 maximum. If shipping exceeds this amount a surcharge may be needed
