Kernel 1500 lb Motorcycle ATV Lift Table

Model: M-1500C-HR

(2 reviews)

Please Choose:

Optional Accessories

A generic image
Include Handy deck hand

A generic image

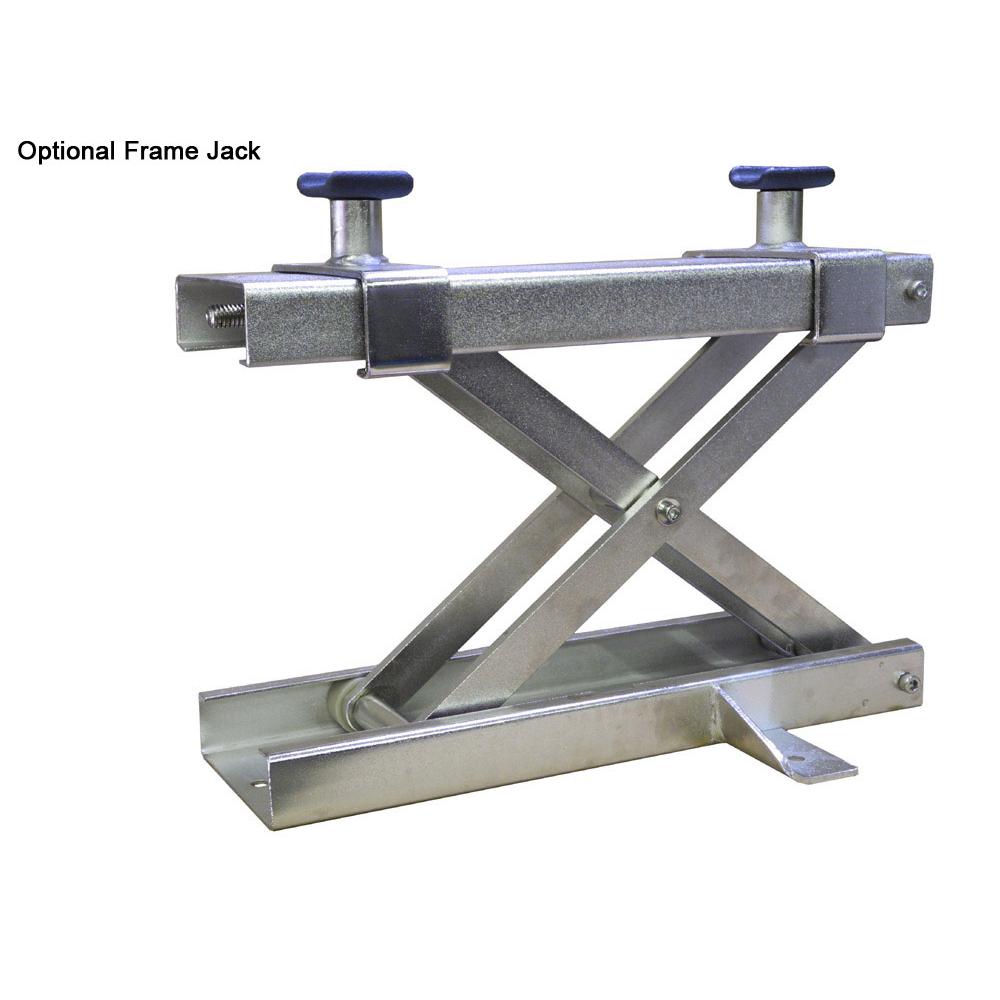

Include Motorcycle Frame Jack

A generic image
Include Two Motorcycle Frame Jacks
Capacity by LBS
Brand
Type

Shipping upgrades offered in cart page

$2,419.99
delivery icon

Usually Ships Within

24-48 Hrs

Description

Kernel Manufacturing's 1500 lb ATV air over hydraulic motorcycle lift table can handle it all from scooters to choppers to side by sides to jet skis and snow mobiles. The dual function power unit allows you to hook the lift up to an air over hydraulic pump to raise and lower your vehicles while the automatic safety locks make sure that you are safe and secure the entire time. This lift does not sit on casters so you'll have no problems with the lift moving forward during loading. It also comes standard with front wheel vise, side extension kit, rear upright support poles, and rear drop out panel. If you need this item shipped to a residential location or you need the assistance of a lift gate truck we will contact you as there will be additional charges for these services. Order your Kernel M1500HR today!

KEY BENEFITS
• 1 year parts warranty
• Includes vise, side extensions, rear drop out panel & rear upright poles

RETURNS
• Our supplier does not accept returns on this item
• In event of warranty claim, replacement part(s) will be sent

OPERATE SAFELY
• Using motorcycle ratchet straps are mandatory for your safety
• Wheel vise alone not sufficient to secure motorcycle to lift table



Show more

Specs

• 88.5'' table length
• 38.5'' lifting height
• 6.75'' lowered height
• Base is 70" L x 30" W
• 1500 pound lifting capacity
• Side Extensions: 9" x 88.5" included
• 31.5'' table width - 50'' w/ side extensions
• Power Supply - Min. 90 PSI / Max. 100 PSI

Downloads

• Browse the full manufacturer catalog HERE
• Download the pdf manual HERE
• Download the pdf spec sheet HERE

• Download the motorcycle lift table comparison chart  HERE

Shipping

• Ships 810 lbs. at 90" x 34" x 19"
• Residential deliveries cost extra
• Ships free to business w/ forklift*
• Can be picked up at local truck dock terminal
• Free shipping applies to $350 maximum. If shipping exceeds this amount a surcharge may be needed
• Save $200 & pickup at:
- Temecula, CA 92590
- Marshalltown, IA 50158
- Southfield, MI 48033
- Elwood, IN 46036
- Bow, NH 03304
- Reidsville, NC 27320
- Orlando, FL 32809
- Alvarado, TX 76009



Videos

Related Products

Ships free for ~ 500 miles
iDEAL 2200 lb Motorcycle Trike/ATV/UTV Lift Table
iDEAL 2200 lb Motorcycle Trike/ATV/UTV Lift Table
$3,399.99
Ships free for ~ 500 miles
Kernel 1000 lb Motorcycle ATV Lift Table With Vise
Kernel 1000 lb Motorcycle ATV Lift Table With Vise $1,649.99
Ships free for ~ 500 miles
Redline Engineering DT1K Air Drop Tail Motorcycle Lift Table
Redline Engineering DT1K Air Drop Tail Motorcycle Lift Table
$1,299.50
Ships free for ~ 500 milesSale
Handy B.O.B. 1500 lb Trike Lift Table
Handy B.O.B. 1500 lb Trike Lift Table
Reg. $3,199.50 Sale price $3,059.99
4% off
Ships free for ~ 500 miles
Titan 1000L Light Duty Motorcycle Lift Table
Titan 1000L Light Duty Motorcycle Lift Table $1,439.99

Reviews

5.0 / 5 (2 reviews)
Based on 2 Reviews Write review

  • Dan Burkhart Nov 5, 2024

    Great Lift

    Nov 5, 2024
    This is a nice solid lift. Assembly instructions were not the greatest. But it went together easy. And works great.

  • Premier Small Engine Repair Mar 16, 2019

    Great table!

    Mar 16, 2019
    I have owned this table for almost 5 years now and use it 7 days a week running my small business. I have cycled the table up and down 1000s of times I would have to estimate. So far my only complaint is the foot pedal control is very oily. I put a piece of cut to size plywood under it to help keep it contained. It doesn't leak bad, it just has a fine mist that any dirt or dust will stick to the foot control. Keep the hydraulic oil clean and the pump lubed with air motor oil and it will hold up just fine for commercial use!
2 of 2 Reviews

Ask & Answer

  • iceman Sep 13, 2022
    Q. Cost Of a cylinder rebuild kit? Thanks
    A. We just added those kits to our online catalog just for you sir. Click HERE to purchase the rebuild kit. Thanks for shopping with us!
  • Iceman thanks Sep 11, 2022
    Q. I think is the cylinder. I took the line off at the top as well as taking the line off the bottom and a small about the fluid came out it lowered about an inch and that was it. Should I just have the cylinder rebuilt? Any recommendations of need to get fixed. Thanks
    A. Contact us if you wish to inquire about a seal kit. We do have replacement CYLINDERS for your lift if you’re interested in replacing the whole cylinder. Thanks for shopping with us!
  • Iceman Sep 10, 2022
    Q. I have a kernel motorcycle lift. Has been working fine. Lifted a motorcycle, repaired it, tried to put it down but it will not go down. Lock is released. Any help would be appreciated. Thanks
    A. "WITH YOUR HANDS IN NO DANGER OF THE LIFT LOWERING" remove the hydraulic hose to the pedal and press the nipple on the end of the hose inward to allow fluid to exit the line If it doesn't lower, it's probably a stuck cylinder. If it does, the pump is probably shot. Thanks Iceman!
  • Shakey Aug 21, 2022
    Q. What fluid does the Kernel 1500 use?
    A. We asked Kernel and were told AW32. Thanks for shopping with us!
  • bones921 Aug 02, 2022
    Q. i need parts for the foot pedal
    A. In truth, the pedal for the M1500HR is not a pedal at all; it’s a pump. A replacement pump can be found HERE but I must warn you, it’s pricey. If you need individual parts, please send an email to [email protected] with a photo of the part you’re attempting to buy and we’ll check inventory. I hope this helps. Thanks for shopping with us!
