Redline Engineering DT1K Air Drop Tail Motorcycle Lift Table

Model: DT1K

(3 reviews)

Please Choose:

Optional Accessories

A generic image

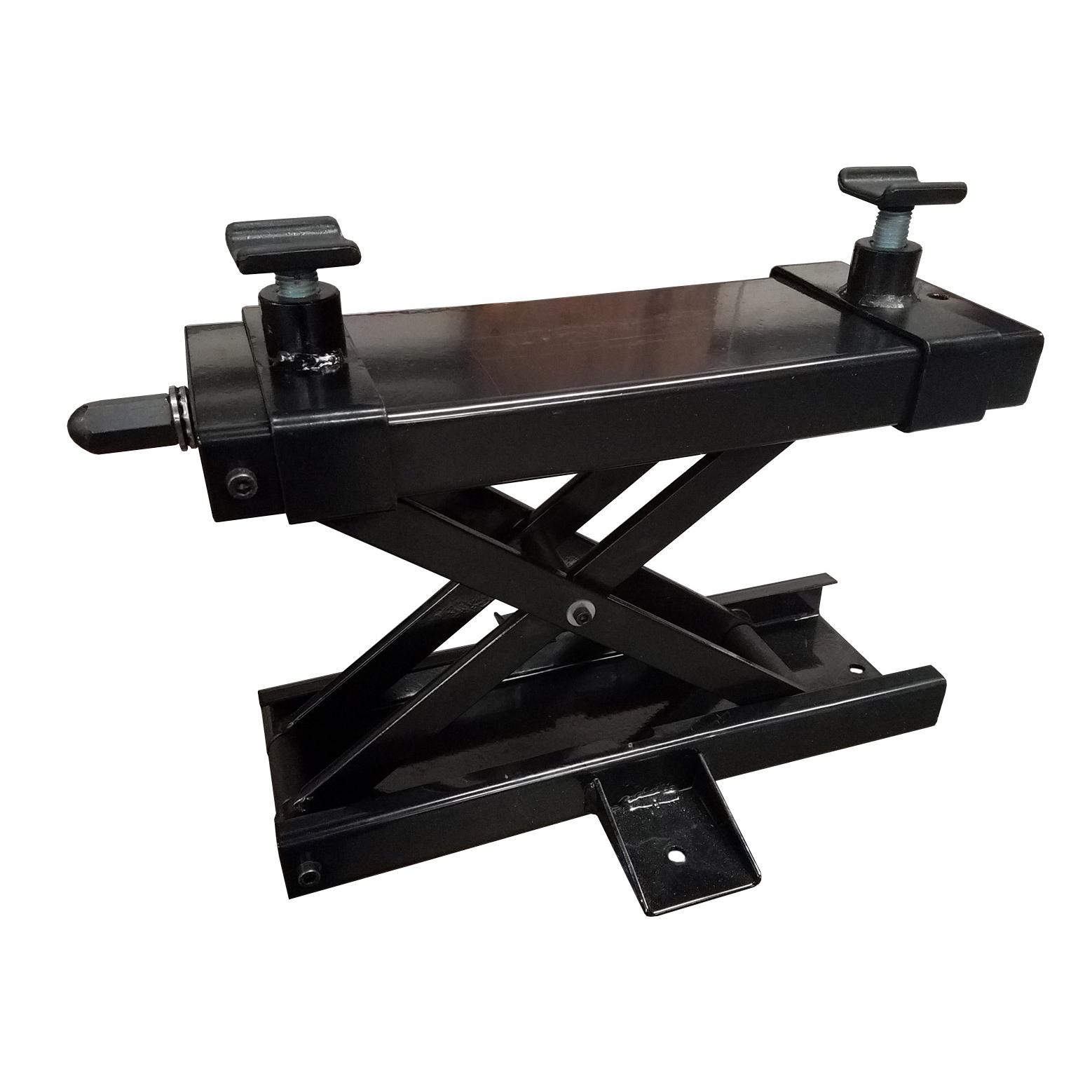

Include RE-FJ Motorcycle Frame Jack

A generic image

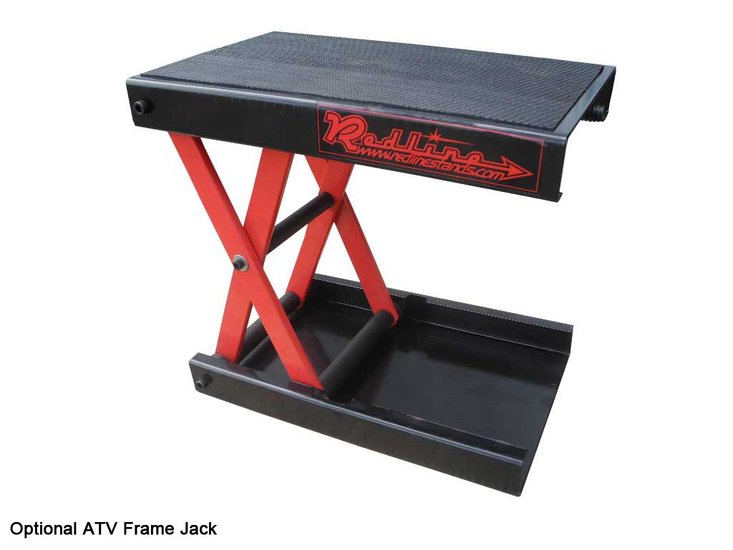

Include RE-ATVJK ATV Frame Jack

A generic image

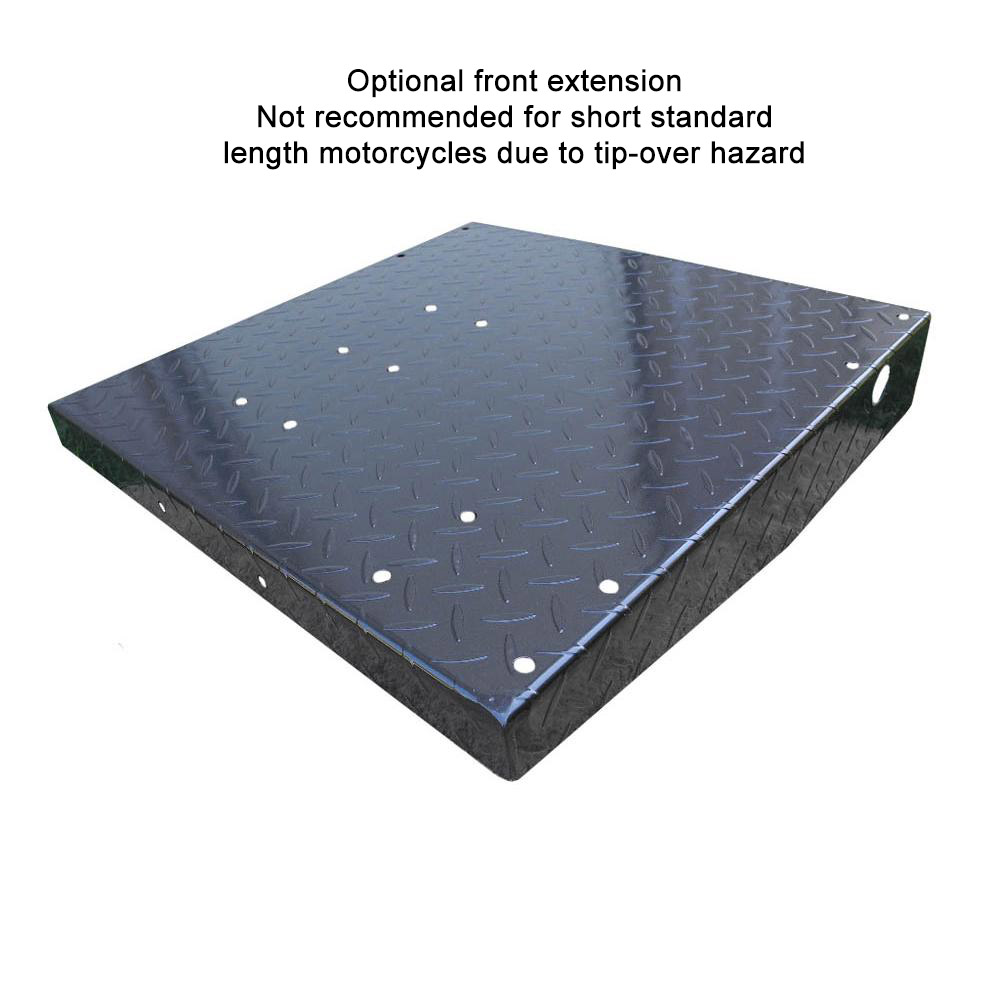

DT1K Front Extension Panel

A generic image
RMC1 Wheel Chock
Brand

Shipping upgrades offered in cart page

$1,299.50
box icon

In Stock in

Pensacola
delivery icon

Usually Ships Within

24-48 Hrs

Description

The Redline Engineering DT1K Air Operated Motorcycle Lift Table is an industrial lift table with a handy and unique feature. The entire back 19" of the DT1K can be removed and set aside, leaving the back half of the motorcycle suspended in the air by using an optional frame jack. This table is perfect for serious bike builders looking to make easy work of a big job. It features a standard wheel vise, dolly for easy moving, diamond plate decking, and grease fittings to keep the machine operating smoothly for years. Order today!

KEY BENEFITS
• Covered by Redline's 1-Year parts warranty
• Wheel vise and dolly included
• Equipped with ratchet strap eyelets
• Back end of table can be taken completely off
• Air line is wound with steel wire wrapping for protection

OPERATE SAFELY
• Using motorcycle ratchet straps are mandatory for your safety
• Wheel vise alone not sufficient to secure motorcycle to lift table

SIDE EXTENSIONS
• Side extensions are no longer an option for this lift

Show more

Specs

• 24'' table width
• 34'' lifting height
• 7'' lowered height
• 1000 pound lifting capacity
• 113'' table length with ramp
• 93'' table length without ramp
• Built of 10 gauge .13" thick steel
• Removable rear section is 19.5" long
• Safety locks: 31.75", 30", 28", 26", 23.5"
• Power Supply - Min. 90 PSI / Max. 120 PSI

Downloads

• Download the motorcycle lift table comparison chart  HERE

Shipping

• Ships 440 lbs. at 86" x 26" x 14" Class 65
• Residential deliveries cost extra
• Local dock pickup saves residential fees
• FREE shipping to commercial location w/ forklift*
• Units available in Pensacola, FL with $150 discount
• Free shipping applies to $200 maximum. If shipping exceeds this amount a surcharge may be needed



Videos

Reviews

4.7 / 5 (3 reviews)
Based on 3 Reviews Write review
  • Richard strong Aug 3, 2024

    Lift table

    Aug 3, 2024
    Extremely fast on delivery. Very nice lift should have got one years ago makes wrenching lot easier stable table I like the removable backside of it. Thanks again redline.
  • Sean T. Dec 31, 2023

    Great Choice

    Dec 31, 2023
    I was searching the internet for a good garage lift to accommodate my Harley Roadglide. Looking through all the sites and lifts out there, I came across the Redline DT1K. It was a great lift with all the accessories included for a great price. Upon arriving, I could see the excellence in craftsmanship. Despite what other reviews say, I was able to lift my 900lb bike without issue using a small shop compressor with a 2 gallon storage tank, pushing 2.2 scfm at 90psi. You won’t be disappointed!
  • Josh Mar 30, 2023

    Overall Impressed

    Mar 30, 2023
    Overall, pretty impressed. The welds are decent but not amazing. Same can be said for the powder coating. The drop-out tail section is really handy and functions well. I’m giving it 4 stars because it has no ability to attach side extensions, so you can’t use it on ATV’s and riding lawn mowers.

Ask & Answer

  • chuck johansen Jan 07, 2025
    Q. Where is the nearest truck terminal for delivery near Binghamton, NY
    A. Good question, there is actually an XPO terminal located in Binghamton at 163 Corporate Dr.
  • Mark Feb 19, 2024
    Q. When is the next time l can order a black and red DT1K?
    A. As of 2/19/24, we currently have a 20.2 month supply of DT1K's in stock, so I'm afraid we are not likely to order and receive any black/red DT1K's in 2024. My apologies.
  • kenpobb27 Oct 18, 2023
    Q. Will you ever have side extensions for these? It seems a lot of people are asking for them. Can you make a limited run and see if they sell? I would be one of the first ones to purchase them. Handy when loading a bigger bike for footing and for an ATV.
    A. We used to stock them and we ultimately discontinued them. I think we sold something like 2-3 sets per year. The demand just didn't warrant the time to set up the tooling to make them. Sorry, but they're gone forever due to low demand.
  • Nick Mar 01, 2023
    Q. Does this lift not have optional side extensions?
    A. No sir. We used to stock them, but they sold so very rarely that we discontinued the item. Now the lift is only offered in its motorcycle version, without sides. Thanks Nick!
  • Kenpobb27 Oct 17, 2021
    Q. What types of modifications would be needed for the HD1K side extensions to fit the DT1K? I would really like to order these and would like to know what is involved before I order. Thanks for your help.
    A. The DT1K side extensions (discontinued) are longer than the HD1K sides, and the support pole holes are not spaced the same distance apart. Could you make it work? Yes, but that'll require fabricational changes to your HD1K side extensions, and even when you're done, they won't be the same length as the table. Thanks Ken!
