Redline MC1K 1000 lb Motorcycle ATV Lift Table

Model: MC1K

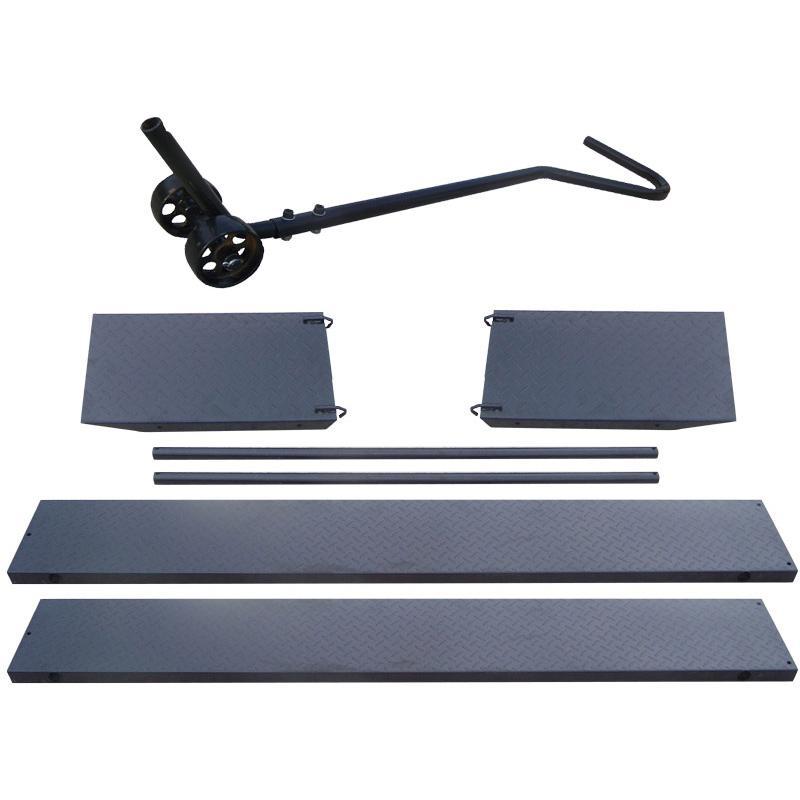

Optional Accessories


The Redline Engineering MC1K is air powered and made from thick 1/8th inch diamond steel plate with a 1,000 lb lifting capacity. This lift comes equipped with a front extension that provides you with an extra long working table so that even your longest motorcycle won't have a problem fitting on the 97" long work space. The MC1K lifts to a max of 35" and comes outfitted with a front wheel vise, detachable ramp, and rear wheel drop out panel that makes this 1,000 lb capacity lift the perfect addition to any shop or home garage. Thanks for looking; we hope to hear from you soon!

• 1 year parts warranty
• Air line wrapped w/ steel wire
• Includes free wheel vise & front extension

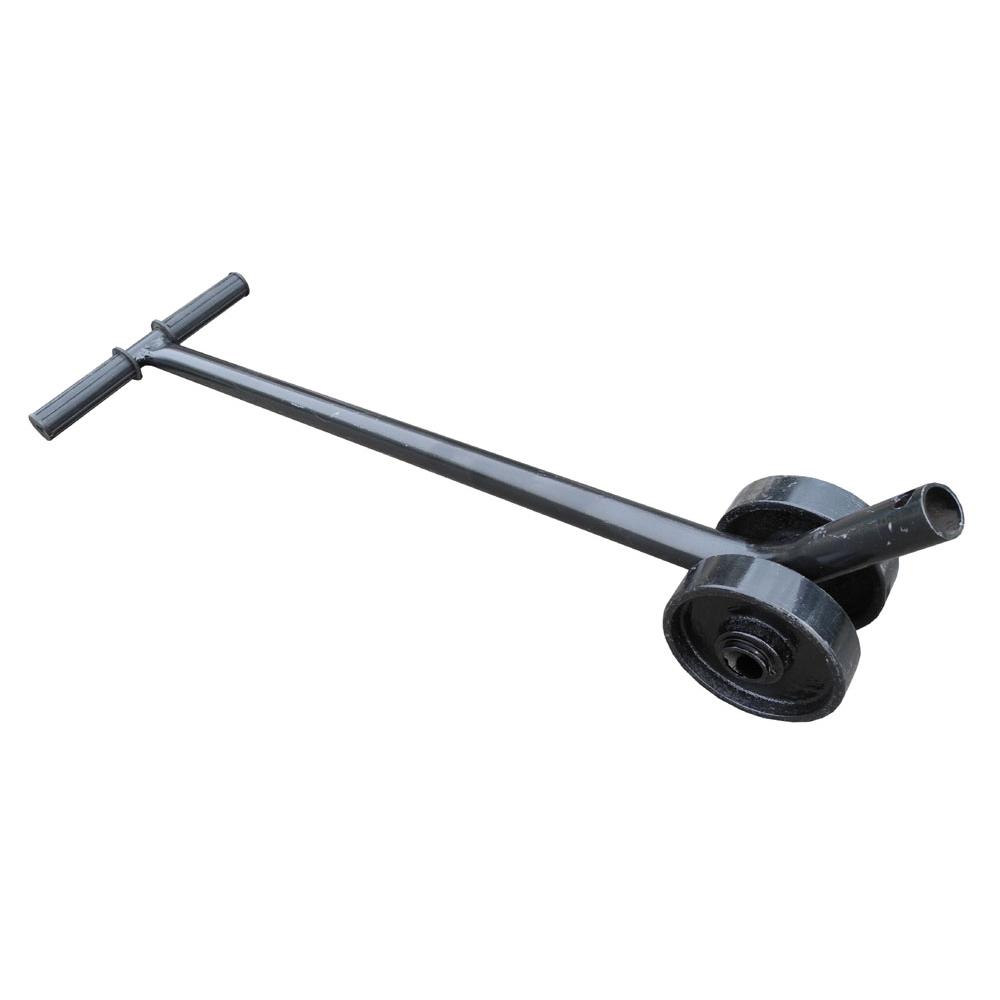

• Dolly included w/ side extensions, not w/ lift





• 35'' lifting height
• 7'' lowered height
• 84'' table length standard
• 1000 pound lifting capacity
• 48'' table width with side panels
• Power Supply - Min. 90 PSI / Max. 155 PSI
• Locking positions: 32" - 29" - 25.5" - 22" - 18"
• 97'' table length with free included front extension
• 24'' table width without side panels (side panels extra)


• Download the pdf manual HERE


• Shipping dims 89" x 27.5" x 13"
• Residential deliveries cost $124.95 extra
• $150 discount Pensacola, FL pickup M-F 1-5
• Shipping to business with forklift preferred
• Local truck terminal dock pickups available
• Crated weight: 374 lbs without side extensions / 505 lbs with side extensions
• Free shipping applies to $200 maximum. If shipping exceeds this amount a surcharge may be needed




1 reviews 3 overall rating
  • Dan . Apr 6, 2018
    Ok lift for the money, Read all the specs before you buy!
    Yes this will lift 1000 lb if you have 155psi to it. OSA will only let you have 90spi in a shop so good luck. On the plus side the customer service is top notch, I called them to tell them that I could not lift a Husqvarna M-ZT52 it's weight is 760lb. and they called me back and said to send them a video of it in operation and to note the psi that we are running to it, we are running 120psi. it only lifts it about half the way up. below is the reply I received. We have four M-1000c lifts that have no trouble lifting anything that we put on it running at 120psi or less! "I’ve seen some of those MC1K’s need more than 120 psi before in order to lift a full 1,000 lbs. Have a look at the video below. We made that video with 155 psi. I hate to tell you that your air compressor is a bit small for the MC1K but it’s the truth. Now sure, you have an M1000C there and it makes the lift. That’s because it has a larger pneumatic cylinder in the machine and frankly, it’s a heavy duty table, whereas the MC1K is light to medium duty. I actually have that same mower and I’m sorry to tell you it weighs a bit more than that. I weighed mine, which also has a bagger, and it was over 900 lbs. So, after you add the side extensions you’re over 1,000 lbs that the table itself is lifting. Will it still do it? Sure, but it’ll need more air pressure. Sorry to be the bearer of lousy news sir."
