Redline Engineering DT1K Air Motorcycle ATV Lift Table

Model: DT1K

Optional Accessories

DT1K Side Extensions – Discontinued ( +$499.50 )

Include RE-FJ Motorcycle Frame Jack ( +$134.95 )

Include RE-ATVJK ATV Frame Jack ( +$99.95 )

DT1K Front Extension Panel ( +$79.50 )

RMC1 Wheel Chock ( +$99.95 )

Include RE-FJ Motorcycle Frame Jack

Include RE-ATVJK ATV Frame Jack

DT1K Front Extension Panel

RMC1 Wheel Chock

Brand

Redline Engineering

Color

Shipping

Select Your State

The price will increase on 06-01-2022 Reg. $1,499.50 Sale price $1,399.50
7% off

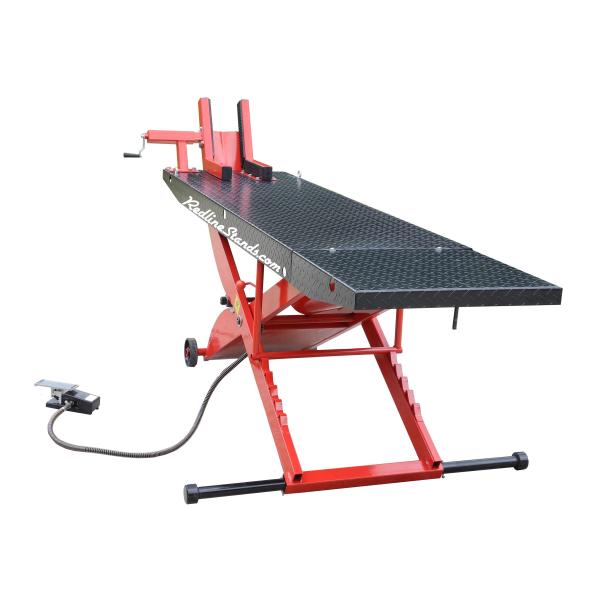

The Redline Engineering DT1K Air Operated Motorcycle ATV Lift Table is an industrial lift table with a handy and unique feature. The entire back 19" of the DT1K can be removed and set aside, leaving the back half of the motorcycle suspended in the air by using a frame jack. This table is perfect for serious bike or ATV builders looking to make easy work of a big job. It features a standard wheel vise, diamond plate decking, and grease fittings to keep the machine operating smoothly for years. Order today!

KEY BENEFITS
• 1 year parts warranty
• Wheel vise & dolly is included
• Equipped with ratchet strap eyelets
• Back end of table can be taken completely off
• Air line is wound with steel wire wrapping for protection

OPERATE SAFELY
• Wheel vise alone not sufficient
• Motorcycle ratchet straps mandatory

• 34'' lifting height
• 7'' lowered height
• 1000 pound lifting capacity
• 113'' table length with ramp
• 93'' table length without ramp
• Built of 10 gauge .13" thick steel
• 24'' table width without side panels
• Removable rear section is 19.5" long
• Safety locks: 31.75", 30", 28", 26", 23.5"
• Power Supply - Min. 90 PSI / Max. 120 PSI

• Ships 440 lbs. at 86" x 26" x 14" Class 65
• Residential deliveries cost extra
• Local dock pickup saves residential fees
• FREE shipping to commercial location w/ forklift*
• Units available in Pensacola, FL with $150 discount
• Free shipping applies to $200 maximum. If shipping exceeds this amount a surcharge may be needed

Ships free

Titan 1000L Light Duty Motorcycle Lift Table $1,439.99

SaleShips free

Redline HD1K 1000 lb Motorcycle ATV Lift Table

$1,489.50

Ships free

[DISCONTINUED] Handy Standard 1000 Motorcycle Electric Lift $1,899.95

Ships free

Kernel 1000 lb Motorcycle ATV Lift Table With Vise $1,659.99

Ships free

Titan 1000D lb Motorcycle ATV Lift Table

$1,789.99

SaleShips free

Redline HD1K 1000 lb Motorcycle ATV Lift Table

$1,489.50

Reviews

No questions asked for this product. Be the first: write a review.

Ask & Answer

Kenpobb27 Oct 17, 2021

Q. What types of modifications would be needed for the HD1K side extensions to fit the DT1K? I would really like to order these and would like to know what is involved before I order. Thanks for your help.
A. The DT1K side extensions (discontinued) are longer than the HD1K sides, and the support pole holes are not spaced the same distance apart. Could you make it work? Yes, but that'll require fabricational changes to your HD1K side extensions, and even when you're done, they won't be the same length as the table. Thanks Ken!
Jason Oct 06, 2021

Q. May I just order a set of side extensions for the DT1K? And the bars that hold them on? Thanks
A. My apologies but we discontinued the DT1K side extensions. You might consider adapting a set of HD1K SIDE EXTENSIONS instead. Thanks Jason.
