Redline 100 Ton Electric Hydraulic Shop Press

Move your mouse over image or click to enlarge

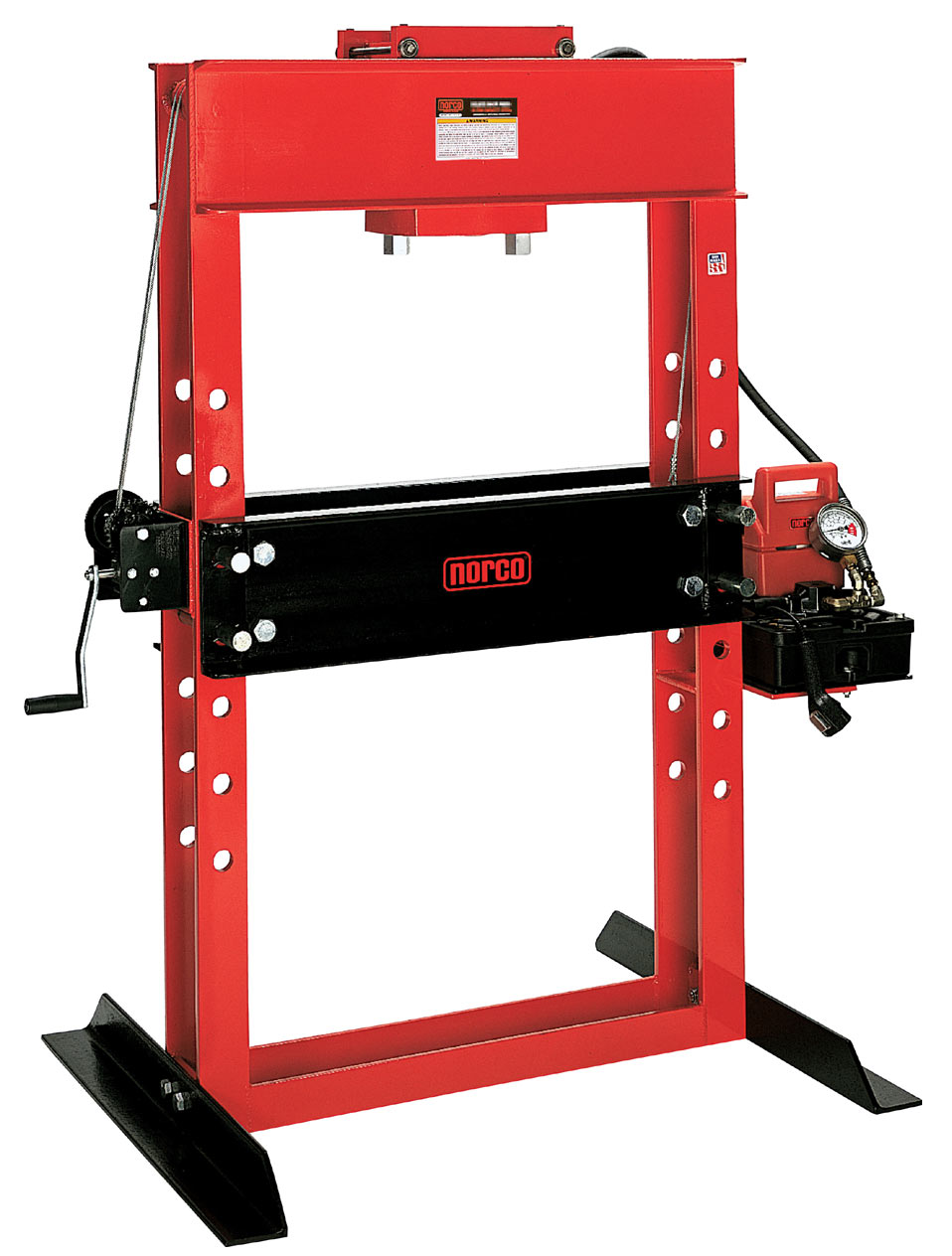

Norco 50 Ton Electric/Hydraulic Shop Press $9,099.50

Dake Force USA Made 50DA 50 Ton Hydraulic Electric Shop Press $8,569.50

Redline 100 Ton Electric Economy Hydraulic Shop Press

$7,499.50

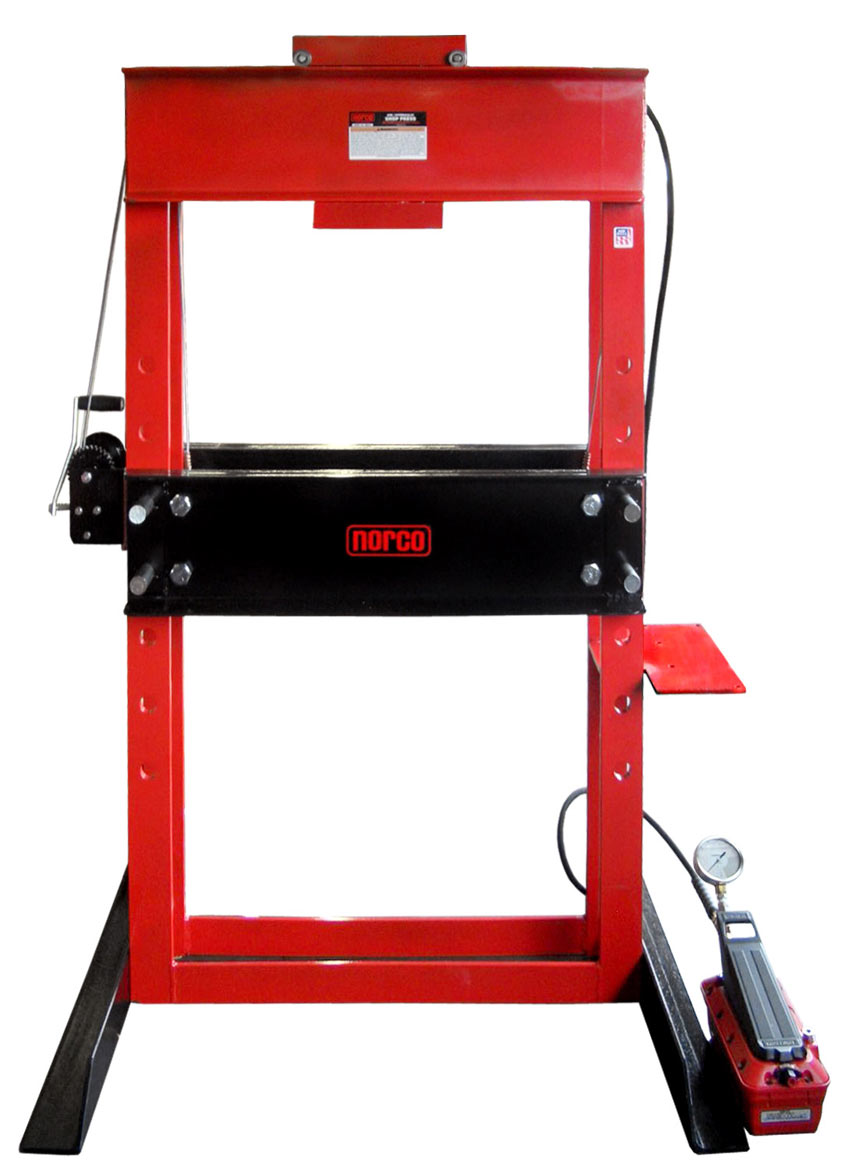

Norco 50 Ton Air/Hydraulic Shop Press $7,269.50

Redline 50 Ton Electric Hydraulic Shop Press

$5,999.50

Redline 100 Ton Air Hydraulic Shop Press

$5,999.50

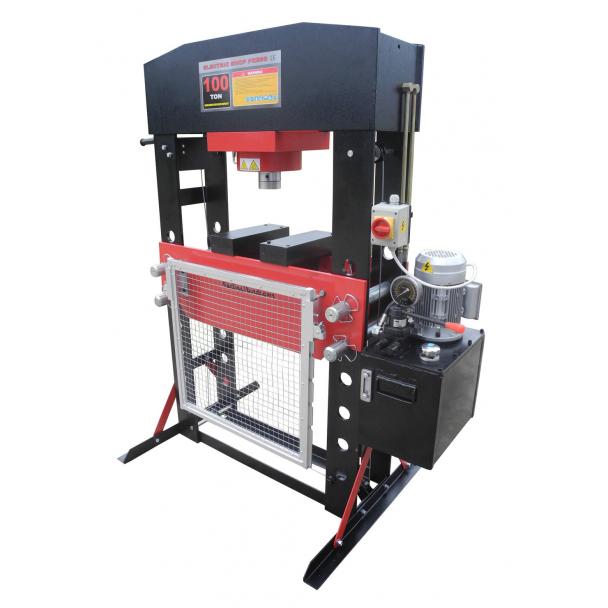

Redline 100 Ton Electric Hydraulic Shop Press

Model: RE100T-E

Optional Accessories

Include Rear Facing Guard ( +$199.95 )

Pin Press Kit ( +$199.95 )

10ft. Electrical Cord ( +$29.95 )

Extra Pair Of Press Plates ( +$824.49 )

U-Weld-It Metal Bending Finger Brake ( +$449.50 )

10 gallons #32 hydraulic fluid ( +$249.50 )

Include Rear Facing Guard

Pin Press Kit

10ft. Electrical Cord

Extra Pair Of Press Plates

U-Weld-It Metal Bending Finger Brake

10 gallons #32 hydraulic fluid

Brand

Redline Engineering

Type

Electric

Select Unit for Discount

Shipping upgrades offered in cart page

$8,999.50

This industrial Redline 100 ton hydraulic shop press is an electric over hydraulic pressing machine perfect for manufacturing, auto repair, or general mechanical work. It features a powerful electric hydraulic pump for heavy duty pressing, a ram cylinder that can move left and right, and a crank style carriage winch for easy adjustment of the middle carriage. A tonnage gauge is mounted on top of the hydraulic fluid tank to see how much pressure you are currently using. For safety reasons a shop press safety guard is included that reduces the possibility of an object flying out under pressure and hitting the operator. Order your new 200,000 pound capacity hydraulic shop press today from Redline Engineering!

KEY BENEFITS
• CE Certified
• 100 ton capacity
• Powder coated finish
• 33" movement of carriage up and down
• 6 height adjustments of 5-1/2" increments
• Carriage winch for easy carriage height adjustment
• Ram cylinder capable of shifting both left and right
• Pressure gauge accurate +/- 2.5% of press capacity
• Electric powered hydraulic cylinder for heavy duty pressing
• Safety grate can be latched into place in multiple increments
• Welded shelves inside carriage to help support press plates
• Machine does not come with a power cord. Customer will need to either hard-wire power to the machine or supply a power cord

IMPORTANT NOTES
• Pump does not come pre-filled with hydraulic fluid
• 7-8 gallons of ISO#32 or Shell#15 hydraulic fluid will be needed to operate the pump
• Long and/or thin extension cords are not recommended as amp loss could damage the motor

PRESS PLATE RATING
• Each press plate is rated to ½ the tonnage of the press; thus, if applying the press’ maximum force, the load must be distributed over both press plates to avoid damaging the press

• Leg length 39"
• 12"/minute feed rate
• Inside frame width: 31"
• Cylinder stroke 11.81"
• Base dims: 47-1/4" x 39"
• Interior carriage length: 16-3/4"
• Cylinder ram diameter 3-1/2"
• Winch cable diameter: 5/32"
• Main frame is 5-5/8" x 5/8"
• Press head to floor: 50-1/2"
• Carriage pin diameter: 2-1/16"
• Safety grate: 30-1/2" x 28-3/4"
• Diameter of cylinder bore 5.511"
• Piston retraction time: 39 seconds
• Pump VFR - .914 gallons per minute
• Distance between leg holes: 7-5/8"
• Pressure gauge accurate to +/- 2.5%
• Pump pressure 9,235 psi (63.7 Mpa)
• Overall dims 62-1/2" L x 39" W x 73" H
• Interior carriage shelf-to-shelf depth: 9"
• Cylinder piston/bore diameter: 5.51181"
• Middle carriage 13-3/8" L x 42-1/4" W x 13" H
• Press head to carriage (lowest position): 29-1/2"
• Two heavy duty press plates 13-3/4" L x 5-1/8" W x 6-5/8" H
• Work dims between cylinder and press plates:
-Min height from cylinder: 1-3/4"
-Max height from cylinder: 29-1/4"

ELECTRIC MOTOR
• 60 Hz
• 110 V
• 1700 RPM
• 19.12 AMP
• 2 Hp electric motor

• Download the manual pdf HERE

Too heavy to unload via lift gate – forklift required

• Ships 1716 lbs. at 85" x 49" x 23" (1 piece)
• Residential deliveries cost extra
• Ships to commercial location w/ forklift
• Units available in Pensacola, FL with rebate
• Pensacola, FL pickups – read our policies HERE
• Free shipping applies to $400 maximum. If shipping exceeds this amount a surcharge may be needed

Norco 50 Ton Electric/Hydraulic Shop Press $9,099.50

Dake Force USA Made 50DA 50 Ton Hydraulic Electric Shop Press $8,569.50

Redline 100 Ton Electric Economy Hydraulic Shop Press

$7,499.50

Norco 50 Ton Air/Hydraulic Shop Press $7,269.50

Redline 50 Ton Electric Hydraulic Shop Press

$5,999.50

Redline 100 Ton Air Hydraulic Shop Press

$5,999.50

Reviews

Be the first: write a review.

Ask & Answer

dick Jul 22, 2024

Q. what is the conversion factor for tons of pressure of your 100 ton press to pounds of pressure
A. An english ton is 2,000 lbs, so a 100 ton press can exert 200,000 lbs of force onto a workpiece. I hope this helps. Thanks for shopping with us!
Greg May 16, 2024

Q. Do you have any 100 ton hydraulic presses in the Cleveland Ohio area that I could stop and see. I need to be sure it is capable of doing a specific job
A. I'm sorry but years ago we had to implement a company policy of no longer connecting customers with each other. We learned the hard way that we had no idea if we were sending an honest man to a dishonest man, or vice-versa. My apologies, but the only place to see this press is in Pensacola, FL. Thanks for shopping with us Greg!
Archie Apr 27, 2024

Q. How much horse ???? power on the 200 ton press motor plz ???? .
A. All of our non-Eco electric presses size 50 to 200 ton use this 2 Hp ELECTRIC MOTOR to power the press. Thanks for shopping with us!
David Dec 05, 2023

Q. Is there an option to buy a foot pedal to use on this press?
A. No sir. Not as of 12/5/23 and we do not have any intention of offering that item at this time. My apologies David.
Tim Sep 19, 2023

Q. Can the complete cable assembly be ordered to where you just pull the shafts out, remove the old cable, and replace it with a new cable...No crimping etc?
A. We stock these replacement CABLE KITS. We order them from the factory pre-made, so we have no experience with attempting to crimp any of these cables. I don’t doubt it’s plenty possible for a customer to create/modify this cable as needed and do his/her own crimping, but it’s nothing we at Redline offer or have experience. Thanks for shopping with us!
