Redline 150 Ton Electric Hydraulic Shop Press

Model: RE150T-E

(1 review)

Optional Accessories


Include Rear Facing Guard


Pin Press Kit


10ft. Electrical Cord


Press Plates


U-Weld-It Metal Bending Finger Brake
Brand
Type

Shipping upgrades offered in cart page

$15,999.50

Description

This industrial Redline 150 ton hydraulic shop press is an electric over hydraulic pressing machine perfect for manufacturing, auto repair, or general mechanical work. It features a powerful electric hydraulic pump for heavy duty pressing, a ram cylinder that can move left and right, and a crank style carriage winch for easy adjustment of the middle carriage. A tonnage gauge is mounted on top of the hydraulic fluid tank to see how much pressure you are currently using. For safety reasons a shop press safety guard is included that reduces the possibility of an object flying out under pressure and hitting the operator. Order your new 300,000 pound capacity hydraulic shop press today from Redline Engineering!

KEY BENEFITS
• CE Certified
• 150 ton capacity
• Power coated finish
• 7 carriage pin holes
• Interchangeable handle
• Press plates not included
• Welded braces inside carriage for support
• Time to fully extend cylinder: 1 minute 55 seconds
• Time to fully retract cylinder: 1 minute 12 seconds
• Ram cylinder capable of shifting both left and right
• Pressure gauge accurate +/- 2.5% of press capacity
• Electric powered hydraulic pump for heavy duty pressing
• Safety grate can be latched into place in multiple increments

IMPORTANT NOTES
• Pump does not come pre-filled with hydraulic fluid
• 7-8 gallons of ISO#32 or Shell#15 hydraulic fluid will be needed to operate the pump
• Long and/or thin extension cords are not recommended as amp loss could damage the motor

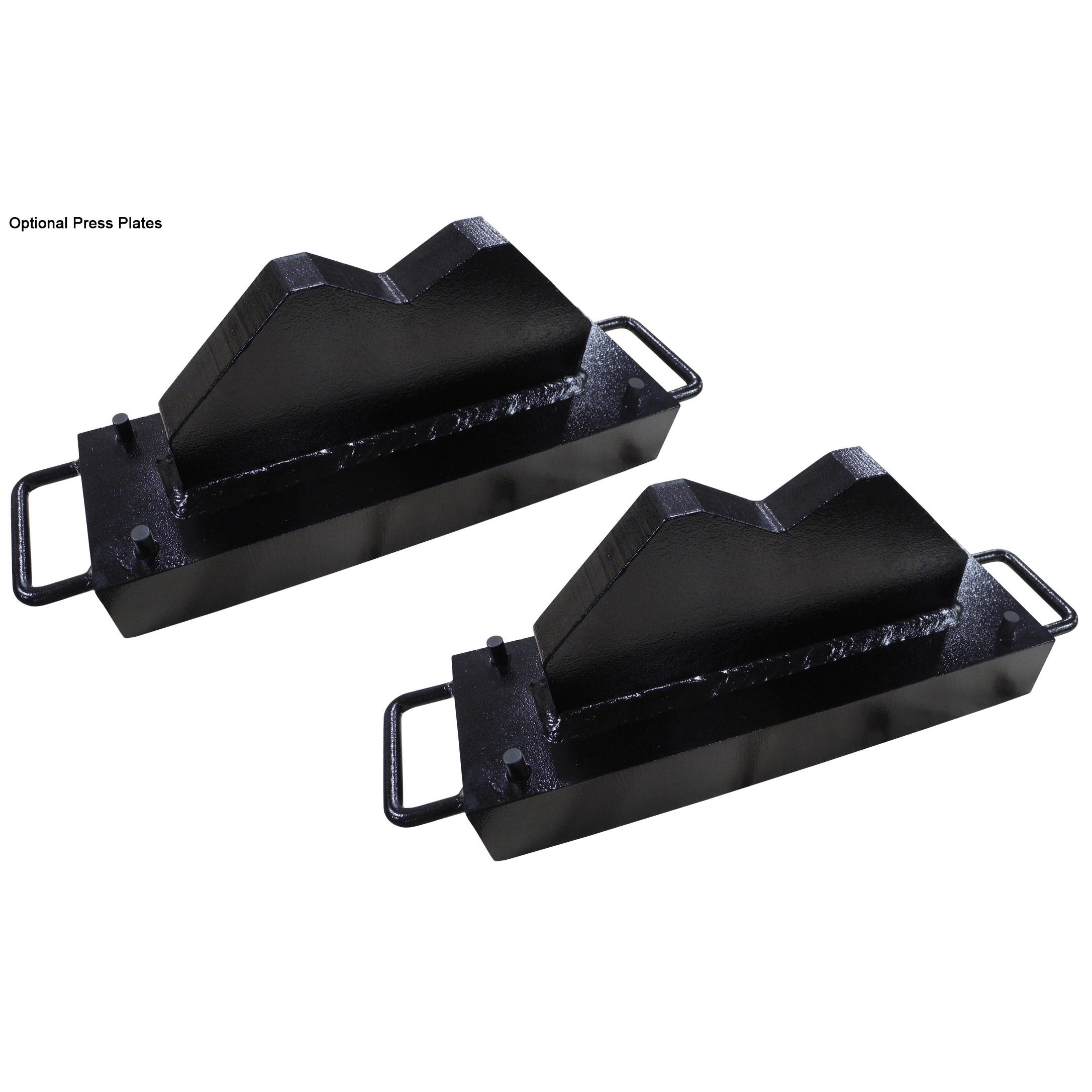

PRESS PLATE RATING
• Each press plate is rated to ½ the tonnage of the press; thus, if applying the press’ maximum force, the load must be distributed over both press plates to avoid damaging the press

PRICE INCREASE EXPLANATION
• Due to recent 25% tariffs, this product has experienced a substantial price increase beyond the control of Redline Engineering LLC.  Please accept our apologies.

Show more

Specs

• Valve handle: 12.5" L
• Cylinder stroke: 13-3/4"
• Main frame: 5-3/4" x 7/8"
• Grid guard: 38" x 24-1/2"
• Inside frame width: 14-1/8"
• Inside frame length: 39-3/8"
• Relief pressure: 105-115%
• Press head diameter: 3-7/8"
• Cylinder rod diameter: 4-5/8"
• Max pump pressure: 8377 PSI
• Carriage pin diameter: 2-3/16"
• Ram fully extends in 142 seconds
• Pump VFR - .914 gallons per minute
• Floor to bottom of press head: 56"
• Cylinder left-right movement: 12.5"
• Piston retraction time: 84 seconds
• Pressure gauge accurate to +/- 2.5%
• 180mm / 7.086” piston inside cylinder
• Cylinder piston/bore diameter: 7.08661"
• Carriage opening space: 25-3/4" L x 13" W
• Overall dims: 72" L x 39-1/4" W x 82-1/2" H
• Overall carriage dims: 51" L x 18" W x 15" H
• Press head bottom to carriage top max distance: 34.5"

ELECTRIC MOTOR
• 60 Hz
• 110 V
• 1700 RPM
• 19.12 AMP
• 2 Hp electric motor

Downloads

• Download the manual pdf HERE

Shipping

• Residential deliveries cost extra
• Ships to commercial location w/ forklift
• Ships 2,821 lbs. at 89" L x 57" W x 27" H
• Units available in Pensacola, FL with rebate
• Pensacola, FL pickups – read our policies HERE
• Free shipping applies to $500 maximum. If shipping exceeds this amount a surcharge may be needed



Videos

Reviews

4.0 / 5 (1 review)
Based on 1 review Write review
  • Troy Apr 12, 2023

    Daily User

    Apr 12, 2023
    We use this press daily and it performs. Great value for a press this big. Needed some technical help when we first set it up because the pump was making noise. They told us to add some more fluid and boom, flawless ever since.

Ask & Answer

  • Bryan Jan 26, 2023
    Q. Will this press hold at a set pressure?
    A. The way to accomplish this is to simply turn the motor off when the press gets to the desired tonnage. The press will hold pressure and not release it. Thanks Bryan!
  • Karla Casasola Oct 26, 2022
    Q.
    I am about to buy a hydraulic press so that they send it to me in Miami, I need to know the delivery time because it does not appear on the page

    This is the hydraulic press that I need to buy, but there is no delivery time information

    https://www.redlinestands.com/catalog/shop-equipment-c-3-
    27/hydraulic-shop-press-c-327_548/all-shop-presses-c-327_548-
    _246/redline-150-ton-electric-hydraulic-shop-press-p-2663?pr-
    oducts_id=2663:cf51ebbda463d1748d654b249760d204
    A. Hi Karla. We normally ship those the following day after the order is placed, but sometimes if we're really busy it takes an additional day on top of that. We pre-test all 150T and 200T presses before we ship, so that sometimes adds an extra day if we do not already have one pretested. As far as transit times goes, it "normally" takes 2-10 days depending how far you are from Florida. Thanks for shopping with us!
