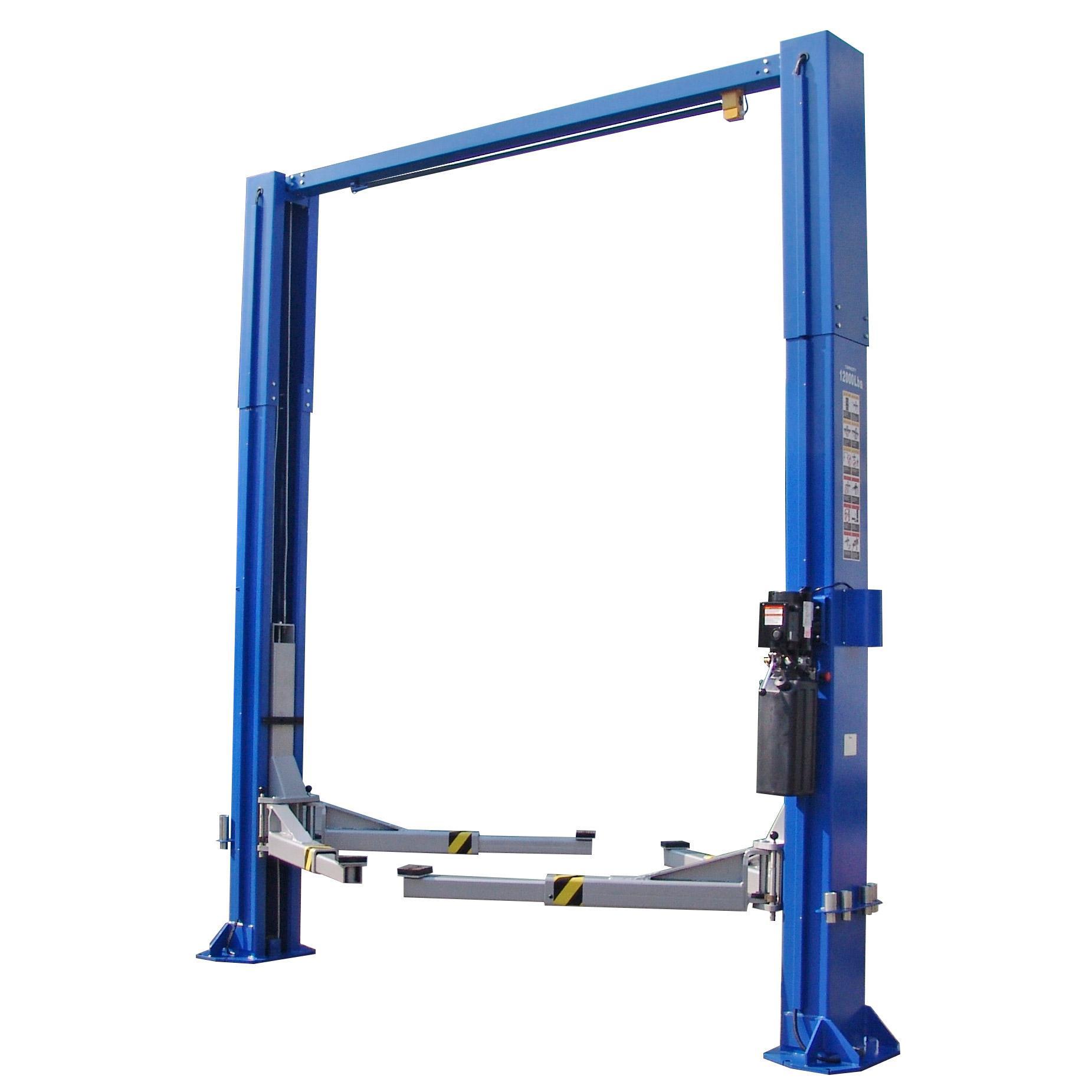

Kernel 12K 2 Post Clearfloor Symmetric Lift

Model: TP12KC-D

Please Choose:

Capacity
Brand
Type
Optional Lift Accessories

A generic image
Add RE-RD8 Gallon Oil Drain

A generic image
Add RE-2PA 2 Post Lift Motorcycle ATV Adapters

A generic image
Add RE-RD30 Self Evacuating Oil Drain

A generic image
Add ODT-30-E Self Evac Vac Oil Drain

A generic image
Add RE-AJS Auxiliary Jack Stand

A generic image
Add Two RE-AJS Auxiliary Jack Stands

A generic image
Add RE-LD Transmission Jack

A generic image
Add TJ500 Transmission Jack

A generic image
Add TJ500DT Transmission Jack

A generic image
Add TJ2KDT Transmission Jack

A generic image
Add RESS1 Under Hoist Stand

A generic image
Add Two RESS1 Under Hoist Stands

A generic image
Add Set of 4 Cradle Style Feet

A generic image
Add Pair of Redline 12” Foam Door Protectors

Shipping upgrades offered in cart page

$6,499.50
delivery icon

Usually Ships Within

24-48 Hrs

Description

Introducing Kernels TP12KC-D symmetric 2 post lift! This clear floor lift features a pair of hydraulic direct drive cylinders, single point lock release, and low profile arms. Order yours today!

KEY BENEFITS

• Symmetric arms
• Drop in lift pads
• Rubber door guards
• External hose guards
• Direct drive push cylinders
• Stackable adapters included
• Heavy duty arm restraint system
• Single point pneumatic lock release

RETURNS
• Our supplier does not accept returns on this item
• In event of warranty claim, replacement part(s) will be sent

Show more

Specs

• Lifting speed: 50S
• Height overall: 165"
• Max lift height: 72"
• Capacity: 12,000 lbs.
• Min. pad height: 5.5"
• Drive thru clearance: 109"
• Width between columns: 122"
• Max load per arm: 3,000 lbs.
• Motor: 220V – 20 AMP – 1 PH
• Width overall w/ power unit: 151"
• Long arm reach – min/max: 37-5/8" – 56-3/4"
• Short arm reach – min/max: 37-5/8" – 56-3/4"

Downloads

• Browse the full manufacturer catalog HERE
• Download the manual pdf HERE

• Download the How to Install a Two Post Auto Lift Manual HERE

Shipping

• Residential deliveries not possible

• Ships 2295 lbs. at 122" L x 26" W x 51" H

• Can be picked up at local truck dock terminal

• Ships LTL truck freight to business w/ forklift

• Free shipping applies to $700 maximum. If shipping exceeds this amount a surcharge may be needed

• Pickup at satellite warehouses:

- Temecula, CA  92590

- Boise, ID  83709

- West Valley, UT 84119

- Marshalltown, IA 50158

- Elwood, IN 46036

- Bow, NH 03304

- Wilmington, DE 19802

- Reidsville, NC 27320

- Norcross, GA  30071

- Orlando, FL 32809

- Alvarado,  TX  76009

- Lowell, MA 01852

- Southfield, MI 48033 (no customer pick-ups allowed)
