Kernel 9K TP9K "X" Series Clearfloor 2 Post Lift

Model: TP9KACX / TP9KSCX

Please Choose:

Capacity
Brand
Type
Optional Lift Accessories

A generic image
Add RE-RD8 Gallon Oil Drain

A generic image
Add RE-2PA 2 Post Lift Motorcycle ATV Adapters

A generic image
Add RE-RD30 Self Evacuating Oil Drain

A generic image
Add ODT-30-E Self Evac Vac Oil Drain

A generic image
Add RE-AJS Auxiliary Jack Stand

A generic image
Add Two RE-AJS Auxiliary Jack Stands

A generic image
Add RE-LD Transmission Jack

A generic image
Add TJ500 Transmission Jack

A generic image
Add TJ500DT Transmission Jack

A generic image
Add TJ2KDT Transmission Jack

A generic image
Add Pair of Redline 12” Foam Door Protectors

A generic image
Add RESS1 Under Hoist Stand

A generic image
Add Two RESS1 Under Hoist Stands

A generic image

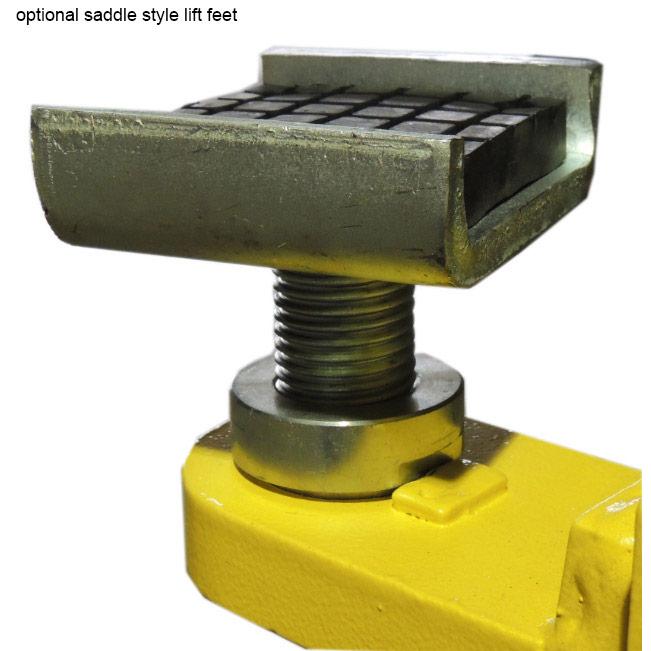

Add Set of 4 Cradle Style Feet

Shipping upgrades offered in cart page

The price will increase on 02-28-2025 Reg. $3,239.99 Sale price $2,899.99
10% off

Description

The Kernel 9,000 lb. 2 Post X Series Style Clearfloor Lifts are ideal for auto enthusiasts or automotive service shops. They come with a 220 Volt power unit that is easily adaptable to most commercial applications. They have a chain drive, dual point lock release, internal hose routing with integrated hose guards, and everything else you'd expect from a quality lift. Includes stackable 'drop-in' height adapters as well as 1 pair of saddle pad adapters. Order yours today!

KEY BENEFITS
• Chain drive
• Rubber door guards
• Powder coat finish
• Dual point lock release
• High quality construction
• 9,000 lb. lifting capacity
• Ideal for auto passenger cars
• Saddle pad adapters included (1 pair)
• Single piece column construction (ACX - SCX)
• Internal hose routing with integrated hose guards
• Padded 'shut off' bar with kill switch (ACX - SCX)
• 4 stackable 1-3/8" and 4" 'drop-in' height adapters
• Reduced overall width with front-side power unit mounting
• Low profile 'drop-in' swivel pads with 1-1/2" adjustable height
​• Clearfloor lift available in symmetric (SCX) or asymmetric (ACX)

RETURNS
• Our supplier does not accept returns on this item
• In event of warranty claim, replacement part(s) will be sent

Show more

Specs

TP9KACX
• Min pad height: 4"
• Cable diameter: 3/8"
• Overall height: 142.9
• Max lifting height: 72"
• Power: 220V-20Amp, 1 PH
• Arm steel thickness: 6mm
• Drive thru clearance: 96"
• Lifting speed: 50 seconds
• Column size: 7.25" x 10.87"
• Max load per arm: 2,250 lbs.
• Width between columns: 113.6"
• Overall width w/ power unit: 138"
• Rear arm reach min/max: 37" - 57"
• Front arm reach min/max: 29" - 41"
• Lift type: asymmetric / clear floor
• Column/carriage steel thickness: 5mm

TP9KSCX
• Min pad height: 4"
• Cable diameter: 3/8"
• Overall height: 142.9
• Max lifting height: 72"
• Power: 220V-20Amp, 1 PH
• Arm steel thickness: 6mm
• Lifting speed: 50 seconds
• Drive thru clearance: 104"
• Column size: 7.25" x 10.87"
• Max load per arm: 2,250 lbs.
• Width between columns: 113.6"
• Overall width w/ power unit: 138"
• Rear arm reach min/max: 31" - 45"
• Front arm reach min/max: 31" - 45"
• Lift type: symmetric / clear floor
• Column/carriage steel thickness: 5mm



Downloads

• Browse the full manufacturer catalog HERE
• Download the spec pdf HERE
• Download the manual pdf HERE

• Download the How to Install a Two Post Auto Lift Manual HERE



Shipping

• Residential deliveries not possible
• Can be picked up at local terminal
• Must ship to a business with forklift
• Ships 1370 lbs. at 147" L x 21" W x 40" H
• Free shipping applies to all 48 states except SD, ND and MT
• Free shipping applies to $700 maximum. If shipping exceeds this amount a surcharge may be needed
• Pickup at satellite warehouses:
- Temecula, CA  92590
- Boise, ID  83709
- West Valley, UT 84119
- Marshalltown, IA 50158
- Elwood, IN 46036
- Bow, NH 03304
- Wilmington, DE 19802
- Reidsville, NC 27320
- Norcross, GA  30071
- Orlando, FL 32809
- Alvarado,  TX  76009
- Lowell, MA 01852
- Southfield, MI 48033 (no customer pick-ups allowed)
