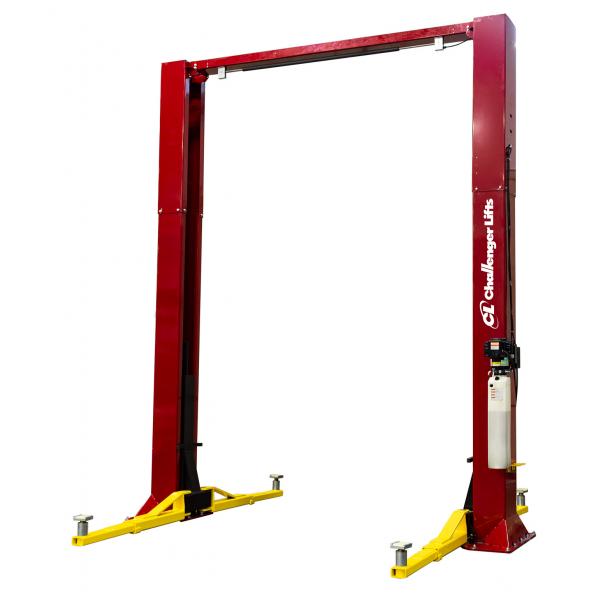

CL16-0-3S Standard Height
• Rise time: 62 seconds
• Minimum rise height: 75.5"
• Minimum lift height: 4.75"
• Max load per arm: 4000 lbs.
• Lifting capacity: 16,000 lbs.
• Lift configuration: symmetric
• Air supply required: 90-120 psi
• Available colors: red, blue, black
• Arm configuration: 3-stage front/rear
• Motor/Voltage: 3HP, 1PH, 60Hz, 208/230v
• Overall height options: 162", 168", 174"
• Minimum/maximum arm reach: 36.625" - 75"
• Floor to overhead switch: 155", 161", 167"
• Distance between columns: 120", 126", 132"
• Screw pad height minimum/maximum: 4.75" - 6.5"
• Drive thru clearance: 104.25", 110.25", 116.25"
• Maximum rise height (with stack adapters): 81.5"
• Overall width options: 154.75", 160.75", 166.75"
• Minimum ceiling height required: 13'8", 14'2", 14'8"
CL16-2-3S Extended Height
• Rise time: 62 seconds
• Minimum rise height: 75.5"
• Minimum lift height: 4.75"
• Max load per arm: 4000 lbs.
• Lifting capacity: 16,000 lbs.
• Lift configuration: symmetric
• Air supply required: 90-120 psi
• Available colors: red, blue, black
• Arm configuration: 3-stage front/rear
• Motor/Voltage: 3HP, 1PH, 60Hz, 208/230v
• Overall height options: 186", 192", 198"
• Minimum/maximum arm reach: 36.625" - 75"
• Floor to overhead switch: 179", 185", 191"
• Distance between columns: 120", 126", 132"
• Screw pad height minimum/maximum: 4.75" - 6.5"
• Drive thru clearance: 104.25", 110.25", 116.25"
• Maximum rise height (with stack adapters): 81.5"
• Overall width options: 154.75", 160.75", 166.75"
• Minimum ceiling height required: 15'8", 16'2", 16'8"
