iDEAL 2200 lb Motorcycle Trike/ATV/UTV Lift Table

Model: MAU-2200IEH-XR

(2 reviews)

Optional Accessories


Motorcycle Frame Jack


Include Two Motorcycle Frame Jacks


Include Handy deck hand

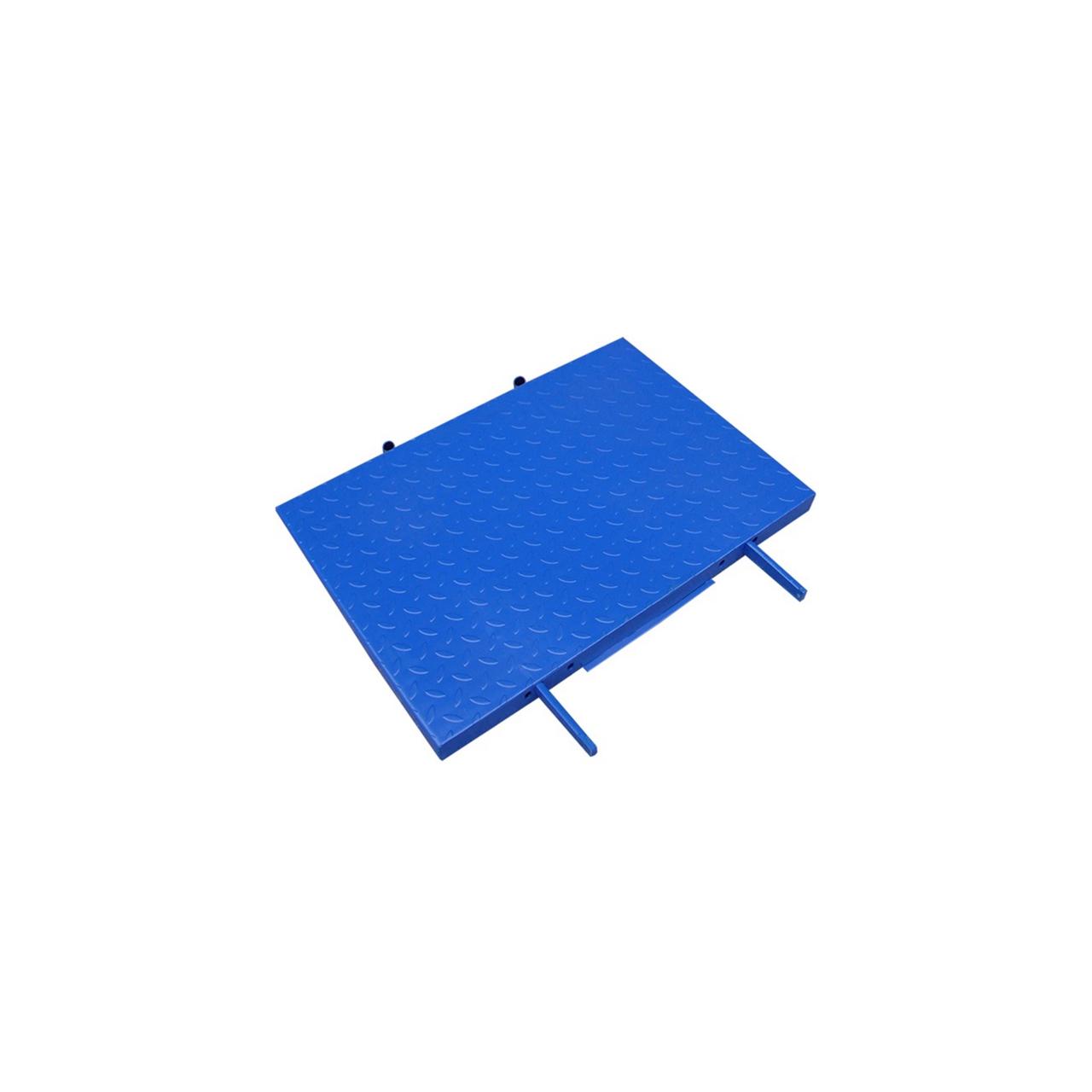

2200IEH Front Extension Panel

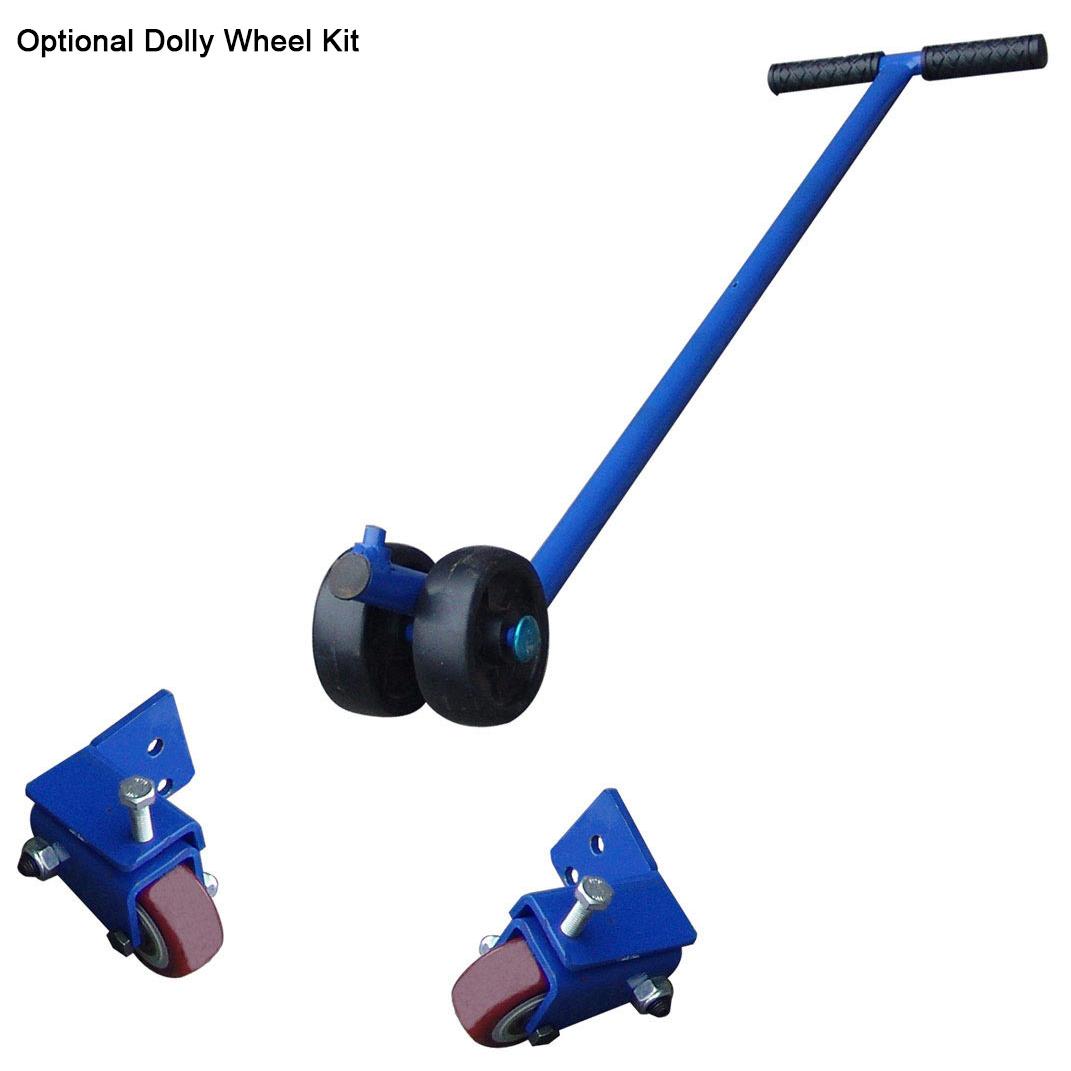

Dolly/Wheel Kit

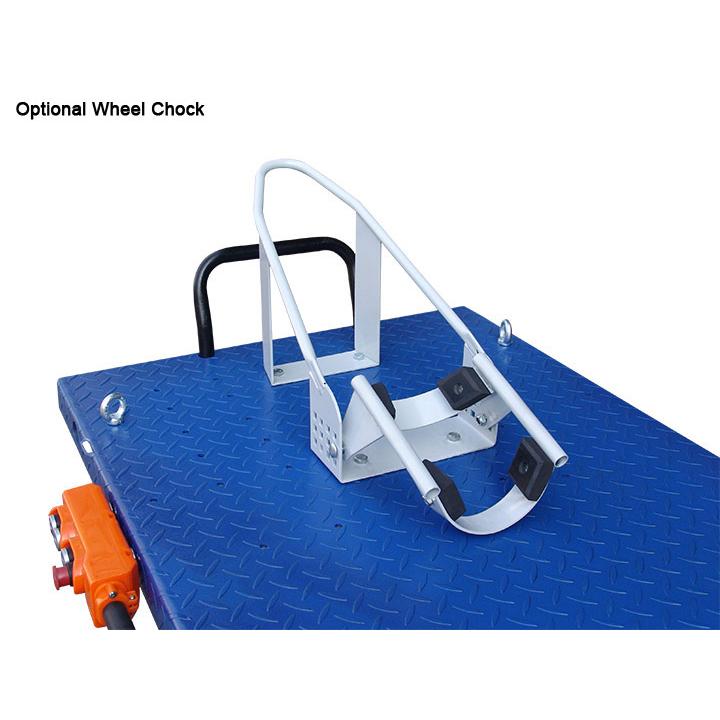

M-Chock

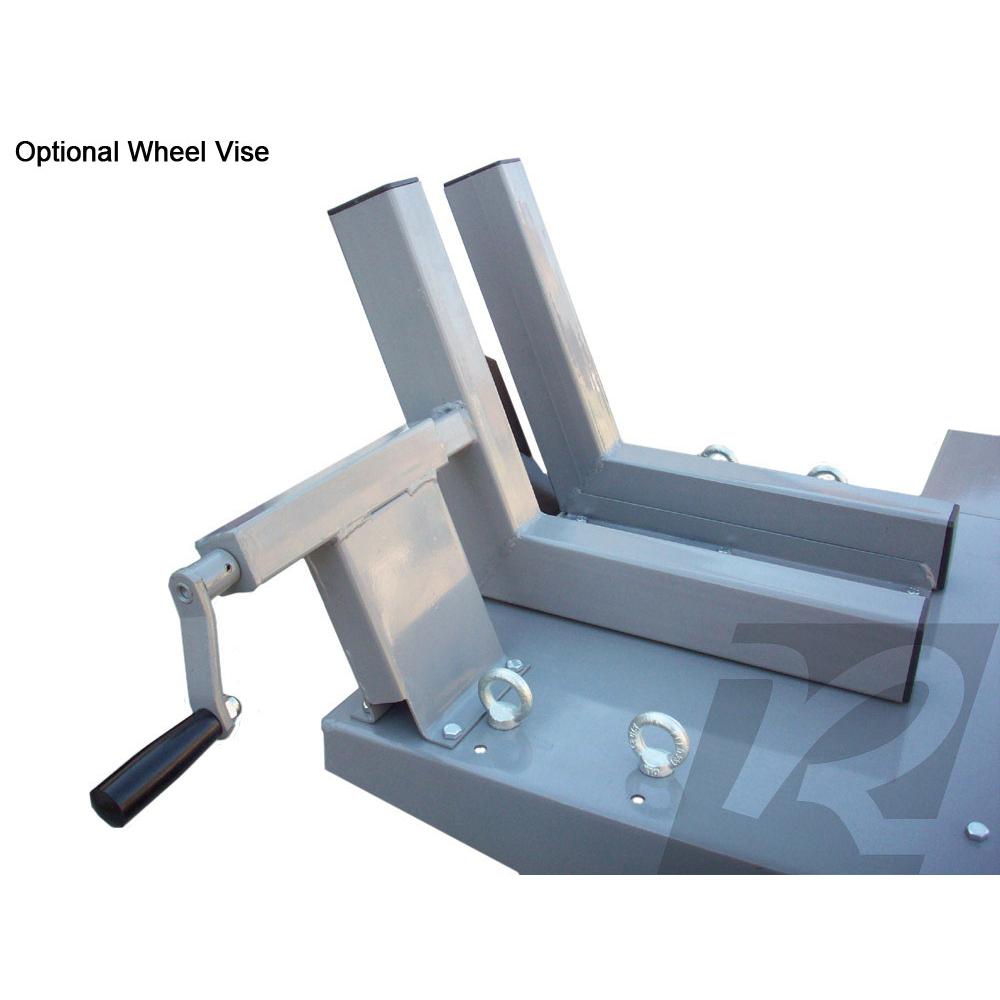

Wheel Vise
Capacity by LBS
Brand
Type

Shipping upgrades offered in cart page

$3,399.99

Description

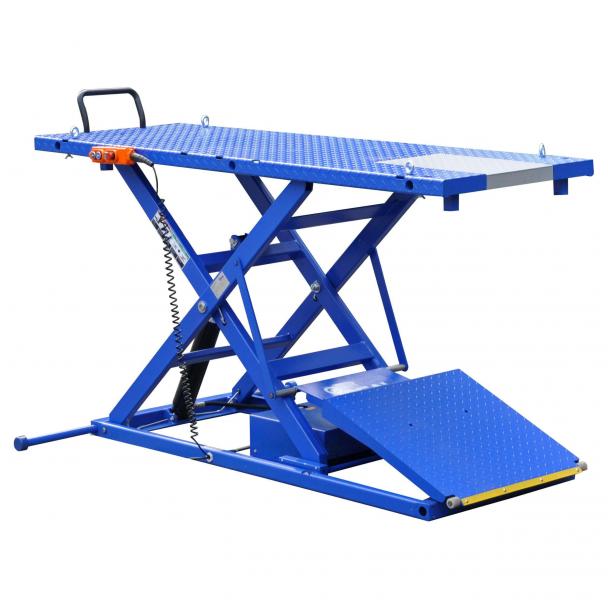

Introducing the new iDEAL 2200 lb. Electric Motorcycle ATV/UTV/Trike Lift Table! Boasting a 2200 lb. weight capacity, this electric/hydraulic powered table lift includes a rear drop panel and a full width ramp. It features a magnetic lock release, a hand held remote control pendant, 6 locking height positions, & multiple optional varieties to accommodate lifting trikes, ATVs, or Side by Side. Now includes an integrated motor & retractable ramp. An optional wheel vise and/or chock is also available. Order yours today!

KEY BENEFITS
• Wheel stop
• Stabilizer bar
• Full width ramp
• Rear drop panel
• Magnetic lock release
• 6 locking height positions
• Tie-down anchor eye bolts
• Hand held remote control pendant
• Optional vise & chock is available
• Includes integrated motor & retractable ramp
• Platform designed to mount optional vise or chock
• Optional kits are available to lift Trikes, ATVs and UTVs
• 110V integrated electric/hydraulic power unit with cord and plug

RETURNS
• Our supplier does not accept returns on this item
• In event of warranty claim, replacement part(s) will be sent

OPERATE SAFELY
• Wheel vise alone not sufficient
• Motorcycle ratchet straps mandatory



Show more

Specs

APPROXIMATE LOCK HEIGHTS
1st lock 25-3/8”
2nd lock 30-5/8”
3rd lock 35”
4th lock 38-7/8”
5th lock 43-1/2”
6th lock 47-1/8”

MOTORCYCLE SPECS
• Min height: 7"
• Lifting height: 47.2"
• Capacity: 2,200 lbs.
• Ramp width: 28.75"
• Platform size: 88.6" x 31.5"
• Overall length w/ ramp: 121"
• Power: 110V-60Hz, 15AMP, 1Ph

TRIKE SPECS
• Min height: 7"
• Lifting height: 47.2"
• Capacity: 2,200 lbs.
• Platform size: 110.2" x 62.2"
• Overall length w/ ramp: 142.6"
• Power: 110V-60Hz, 15AMP, 1Ph
• Included front extension panel adds 21.6" L. (110.2" total length)

ATV SPECS
• Min height: 7"
• Lifting height: 47.2"
• Capacity: 2,200 lbs.
• ATV platform size: 88.6" x 50"
• Overall length w/ ramp: 121"
• Power: 110V-60Hz, 15AMP, 1Ph

UTV SPECS
• Min height: 7"
• Lifting height: 47.2"
• Capacity: 2,200 lbs.
• UTV platform size: 88.6" x 65"
• Overall length w/ ramp: 121"
• Power: 110V-60Hz, 15AMP, 1Ph

Downloads

• Browse the full manufacturer catalog HERE
• Download the ATV manual pdf HERE
• Download the UTV manual pdf HERE
• Download the trike manual pdf HERE
• Download the motorcycle lift manual pdf HERE
• Download the motorcycle lift spec pdf HERE
• Download the ATV, UTV, & Trike spec pdf HERE


Shipping

• Residential deliveries cost extra
• Free shipping to business w/ forklift*
• Can be picked up at local truck dock terminal
• M-2200IEH-XR ships 788 lbs. at 91" L x 35" W x 18" H
• ATVKIT-2200IEH-XR ships 216 lbs. at 91" L x 22" W x 10" H
• UTVKIT-2200IEH-XR ships 352 lbs. at 90" L x 19" W x 13" H
• TRIKEKIT-2200IEH-XR ships 271 lbs. at 51" L x 35" W x 10" H (2 pieces)
• Free shipping applies to $400 maximum. If shipping exceeds this amount a surcharge may be needed
• Pickup at satellite warehouses:
- Bow, NH 03304
- Alvarado, TX 76009



Videos

Similar Products

Ships free for ~ 500 milesSale
Handy B.U.L. 2500 lb. UTV Big Utility Lift Table CLEARANCE
Handy B.U.L. 2500 lb. UTV Big Utility Lift Table CLEARANCE Reg. $2,999.95 Sale price $2,799.95
7% off
Ships free for ~ 500 miles
K&L Supply Pneumatic 1750 lb MC625R Motorcycle Lift Table
K&L Supply Pneumatic 1750 lb MC625R Motorcycle Lift Table
$3,049.50
Ships free for ~ 500 milesSale
K&L Supply Electric 2000 lb MC655R Motorcycle Lift Table
K&L Supply Electric 2000 lb MC655R Motorcycle Lift Table
Reg. $3,839.50 Sale price $3,699.50
4% off
Ships free for ~ 500 milesSale
Kernel 1500 lb Motorcycle ATV Lift Table
Kernel 1500 lb Motorcycle ATV Lift Table
Reg. $2,419.99 Sale price $2,319.99
4% off
Ships free for ~ 500 miles
Handy Gruntavore 1800 lb UTV Lift
Handy Gruntavore 1800 lb UTV Lift $3,849.50
Ships free for ~ 500 miles
Handy B.O.B. 1500 lb Trike Lift Table
Handy B.O.B. 1500 lb Trike Lift Table $3,469.50

Reviews

5.0 / 5 (2 reviews)
Based on 2 Reviews Write review

  • City of Salina Parks and Rec Jan 2, 2019

    Best lift

    Jan 2, 2019
    This is the best lift I have used for the applications I use it for ie: Commercial Mowers, UTVs, and other small engine repairs. I recommend this to anyone or any business. This lift is very safety oriented and holds up to its expecations. Customer Service when called was very knowledgeable and made the transaction flawless. Packaging was great and was easy to assemble.

  • Dr. Montana Slack Nov 2, 2018

    Outstanding Trike Lift

    Nov 2, 2018
    This lift performs as advertised. I ordered this lift with the Trike Kit and was amazed at how easy it was to assemble and set up. Wiring is tight and neat, welds are nice and the overall product quality is outstanding. I highly recommend this lift if you're looking for a quality lift for your Motorcycle, Trike, ATV or UTV. Very versatile with the different kits available. The customer service experience was great also. Five Stars! If you watch the video, you'll know how to set it up, even with the optional kits. Thanks!
2 of 2 Reviews

Ask & Answer

  • ACME Sep 06, 2023
    Q. Can the electric over hydraulic pump be used exclusively by hydraulic? Is it a foot pump? How much extra for utv side boards, front extension and wheel clamp for motorcycle?
    A. The electric over hydraulic pump is the only means of operation. There is no foot pump or foot pedal, so the handheld pendant control is your only option. The pricing for all the accessories is shown above. I cannot answer that question in a public comment, because when we have to increase prices again, the public answer posted here would then give people bad/old information. Thanks for shopping with us Perry!
  • Rich Apr 12, 2023
    Q. Can this be used both Hydraulically or Electric
    A. Both. This lift is electric over hydraulic. That means that an electric motor turns a hydraulic pump, which sends pressurized hydraulic fluid to the cylinder, which raises the lift. Thanks Rich!
  • David Jan 28, 2022
    Q. What all comes with the Trike Lift Table or you have to buy everything separate?
    A. This unit comes with a front wheel stop, rear wheel dropout and ramp. There are optional side extension kits available, as well as, front wheel vise, wheel chock, wheel/dolly kit and front extension for an additional cost. If you have more questions, give us a call at 901-351-4764. Thanks for reaching out David!
