Will this product work for agriculture tractor tires from large rears to smaller and is this product adjustable for different sizes.

The HJ2302 will accommodate tire diameters ranging from 39'-83' and wheel/tire width up to 31.5'. The weight capacity is 2,640 LBS. Thanks for reaching out Denny!

Is there away to order replacement parts, need the lock pin for the lock bar

We do have parts sir. However, it is our S.O.P. to always have customers email us a photo of the part they need. Please send that to sales@redlinestands.com This will allow us to be 100% sure we get you the correct part. Thanks Kyler!

Will this work for dual wheels? Rim plus tire.

It both depends and is hard to say. I can tell you that the rollers the wheel sits atop measure 19-1/4' long. You'll need to take this measurement, measure your wheels/tires and determine if you think it will work. Sorry we couldn't be more definitive on this one, and as always, thank you for shopping with us!

What is the max travel of this lifter? How high can i lift up a tire if i need to center it on a hub?

So, the max lifting height is dependent upon the diameter of the tire. Thus, we can't really answer this question sir. The larger the tire, the higher it will raise as you squeeze on the base of the tire. On most heavy machinery, we find the height raised is about 1 foot as a good rule of thumb. Thanks Sean!

Redline Heavy Duty Truck Tractor Tire Wheel Dolly

Move your mouse over image or click to enlarge

Ships free

Norco 1 Ton Wheel Dolly $1,989.50

TSI TW2000 Tweel Handler Truck Wheel Dolly $2,299.95

Ships free

Norco 3/4 Ton Wheel Dolly $1,469.50

Ships free

Titan Trike and Auto Dolly Set of 4 $999.95

Ships free

Redline HJ2303 Truck Tractor Tire Dolly Replacement Cylinder $499.50

Ships free

Auto Twirler Axle and Differential Dolly $399.95

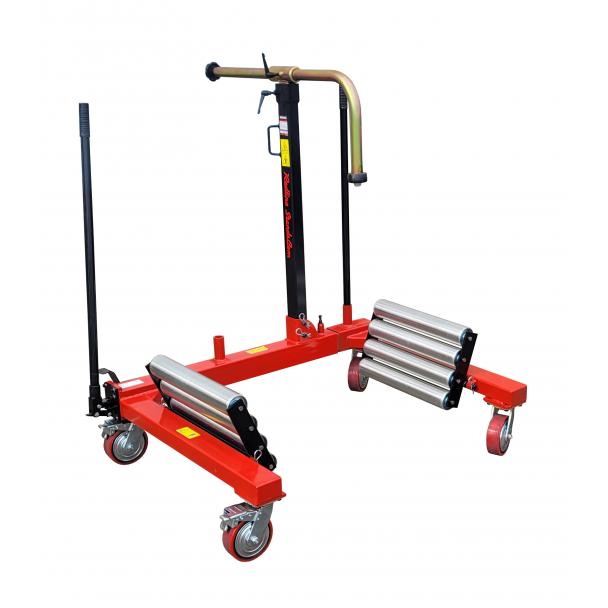

Redline Heavy Duty Truck Tractor Tire Wheel Dolly

Model: HJ2302

(1 review)

Brand

Redline Engineering

Shipping upgrades offered in cart page

$1,999.95

Move your large truck and tractor tires with ease by using the Redline Heavy Duty Tire Handler Storage Dolly! Just simply align the rollers with your tire, press down on the pedal, and pump away until the tire sits itself up onto the rolling beds. You can then adjust the stabilizer bar to your liking in order to secure the tire onto the dolly. It features 4 locking casters for easy manuverability, a loose ball handle to help you rotate and adjust your stabilizer bar, as well as 8 locking positions for a variety of tire sizes! Order yours today!

KEY BENEFITS
• Red powder coat finish
• 2640 lb. weight capacity
• Display tire is not included
• Pedal allows the length to retract
• 8 locking positions for a variety of tire sizes
• Includes 4x locking casters as well as 2x handles
• Loose ball handle allows easy rotation of the stabilizer bar
• 2 locking handles for adjusting the stabilizer bar height and length
• Takes only 14 full pumps to fully extend the length (~23 to fully retract)

• 2640 lb. capacity
• Rollers length: 19-1/4"
• .228" metal thickness
• Overall width: 39-1/2"
• Wheel diameter: 5-1/2"
• Handle length: 47-3/8"
• Min overall length: 49"
• Max overall length: 80"
• Min overall height: 53"
• Max overall height: 83"
• Minimum tire diameter: 48” / 4ft
• Maximum wheel width: 31-1/2"
• Min length between rollers: 27-1/2"
• Max length between rollers: 58-3/4"
• Min wheel stabilizer bar length: 9-5/8"
• Max wheel stabilizer bar length: 41-1/2"
• Distance between locking positions: 2-1/8"
• Accommodates tire diameters from 39" - 83"
• Uses #13 machine oil as hydraulic fluid

• Download the manual pdf HERE
• Download the operation pdf HERE

• Ships 357 lbs. at 54" x 43" x 13"
• Residential deliveries cost extra
• Free shipping to a business with forklift on site
• Local dock pickup saves residential delivery fees
• Pensacola, FL pickups – read our policies HERE
• Units available in Pensacola, FL with $200 shipping refund
• Free shipping applies to $200 maximum. If shipping exceeds this amount a surcharge may be needed

Ships free

Norco 1 Ton Wheel Dolly $1,989.50

TSI TW2000 Tweel Handler Truck Wheel Dolly $2,299.95

Ships free

Norco 3/4 Ton Wheel Dolly $1,469.50

Ships free

Titan Trike and Auto Dolly Set of 4 $999.95

Ships free

Redline HJ2303 Truck Tractor Tire Dolly Replacement Cylinder $499.50

Ships free

Auto Twirler Axle and Differential Dolly $399.95

Reviews

4.0 / 5 (1 review)

Based on 1 review Write review

farmer bob Aug 17, 2023

not too shabby
Aug 17, 2023

the machine is well made strong an works good. delivery was quik an i had it set up an running in no time. my only complaint is the safety lock pin is to easy to forget about it. if you forget about the pin and try to operate it, youll break the pin off. so long as you remember to raise the pin up hwen your ready to use it, your good and it works great, just dont forget that! id give it 5 stars if it wasnt for this. overall great machine adn would buy another

Ask & Answer

Denny G Apr 03, 2023

Q. Will this product work for agriculture tractor tires from large rears to smaller and is this product adjustable for different sizes.
A. The HJ2302 will accommodate tire diameters ranging from 39"-83" and wheel/tire width up to 31.5". The weight capacity is 2,640 LBS. Thanks for reaching out Denny!
kyler Sep 30, 2022

Q. Is there away to order replacement parts, need the lock pin for the lock bar
A. We do have parts sir. However, it is our S.O.P. to always have customers email us a photo of the part they need. Please send that to [email protected] This will allow us to be 100% sure we get you the correct part. Thanks Kyler!
TopCat May 19, 2022

Q. Will this work for dual wheels? Rim plus tire.
A. It both depends and is hard to say. I can tell you that the rollers the wheel sits atop measure 19-1/4" long. You'll need to take this measurement, measure your wheels/tires and determine if you think it will work. Sorry we couldn't be more definitive on this one, and as always, thank you for shopping with us!
Sean Q Sep 08, 2021

Q. What is the max travel of this lifter? How high can i lift up a tire if i need to center it on a hub?
A. So, the max lifting height is dependent upon the diameter of the tire. Thus, we can't really answer this question sir. The larger the tire, the higher it will raise as you squeeze on the base of the tire. On most heavy machinery, we find the height raised is about 1 foot as a good rule of thumb. Thanks Sean!
