What is the frame tubing height and width dimensions? Is it strong?

We asked Kernel and were told the frame is 2.75' square tubing that is 1/8' thick. Thanks Gabriel!

I have a different type of chassis. It's for an industrial mobile robot. The length is 54' long. Will this collapse short enough to work?

Yes sir. You can collapse a rotisserie to make the mounting arms touch if you wish. Thanks Brad!

Is this rotisserie short enough for a truck cab and truck bed? 75 dodge power wagon

We feel quite confident this rotisserie will collapse together and get close enough to allow you to hook up to those items. With that said, even if we assume we're wrong, all you have to do is either A: leave out some of the center telescope tubing or B: purchase a piece of square tubing locally that's cut to the right length and don't use the supplied center tube at all. Both are viable options. Thanks; that was a great question!

What is the max length of a car body with will this hold?

202' is the max working length. With that said, there's nothing stopping you from replacing the center telescopic tube with one solid 24 ft stick from your local steel yard and making it super long if needed. Thanks Mike!

Will a 69 mustang bolt up to this with the fenders an radiator support still on the car ??? And what kit would I need to bolt the car on

We don't see a reason this isn't possible. Just make sure you are attaching firmly to the front frame assembly in a manner that can support all the weight. No brackets exists for what you're trying to do, because this is not how folks are typically doing this. I think you'll find it best to build brackets and mount the rotisserie's mounting arms to the bumper mounting locations, but this is purely speculation you should investigate yourself. I hope this helps. Thanks Bub!

Sale

Move your mouse over image or click to enlarge

Redline Medium Duty Gear-Drive RTS3000 Restoration Rotisserie

$1,799.50

Redline Heavy Duty Automotive Auto ROT3K Rotisserie

$1,949.50

Titan Auto Body Restoration Rotisserie

$1,959.99

Sale

Redline Classic Car/Truck Automotive Rotisserie

Reg. $1,247.50 Sale price $1,199.50
4% off

Auto Twirler Elite Auto Restoration Rotisserie $2,629.50

Auto Twirler Pro Auto Restoration Rotisserie $2,699.50

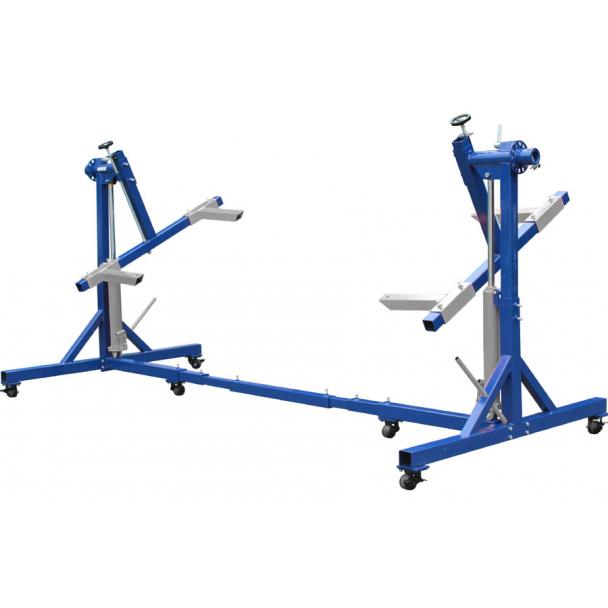

Kernel Auto Restoration Rotisserie

Model: CR-3000-Rotisserie

Optional Accessories

Redline ATDLY Body Dolly Cart ( +$599.95 )

All Terrain Wheel Kit ( +$449.99 )

Kernel Mopar Front Brackets ( +$129.50 )

Kernel Mopar E Body Brackets ( +$169.50 )

Kernel Uni-Body Rotisserie Brackets ( +$99.95 )

Kernel Leaf Spring Brackets ( +$99.95 )

Kernel Valance Brackets ( +$99.95 )

Redline Truck Cab Mounting Kit ( +$299.50 ) - out of stock

Redline ATDLY Body Dolly Cart

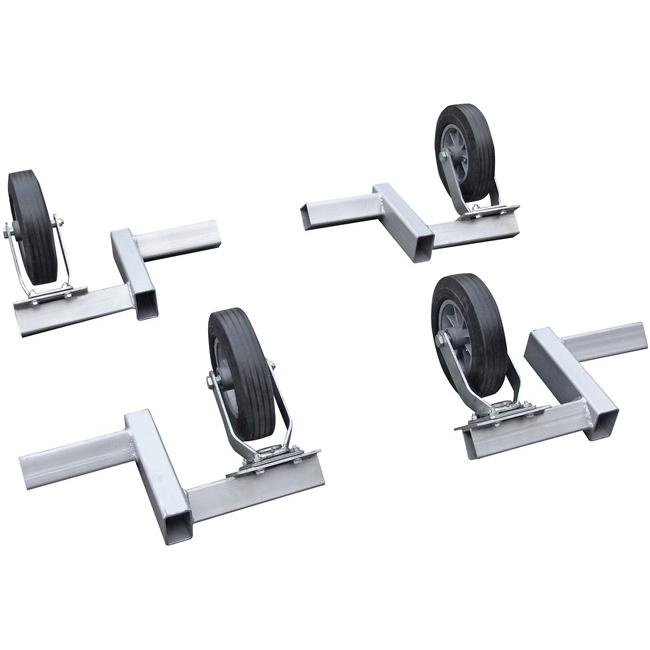

All Terrain Wheel Kit

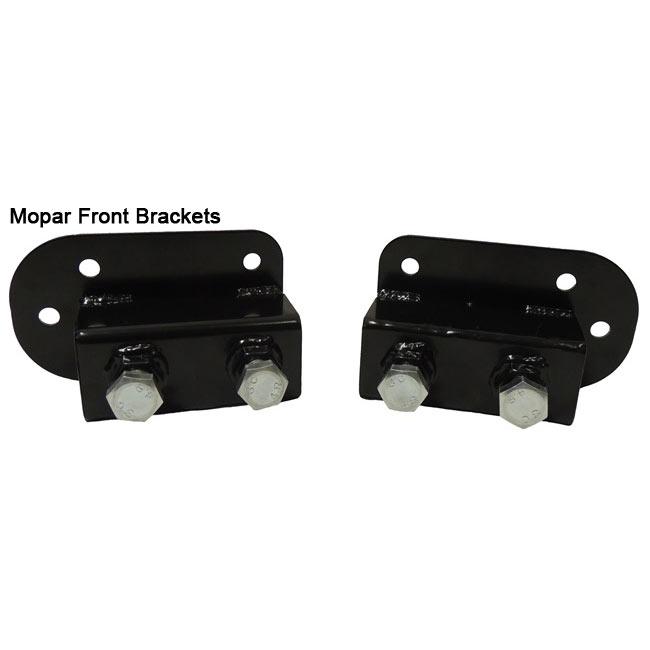

Kernel Mopar Front Brackets

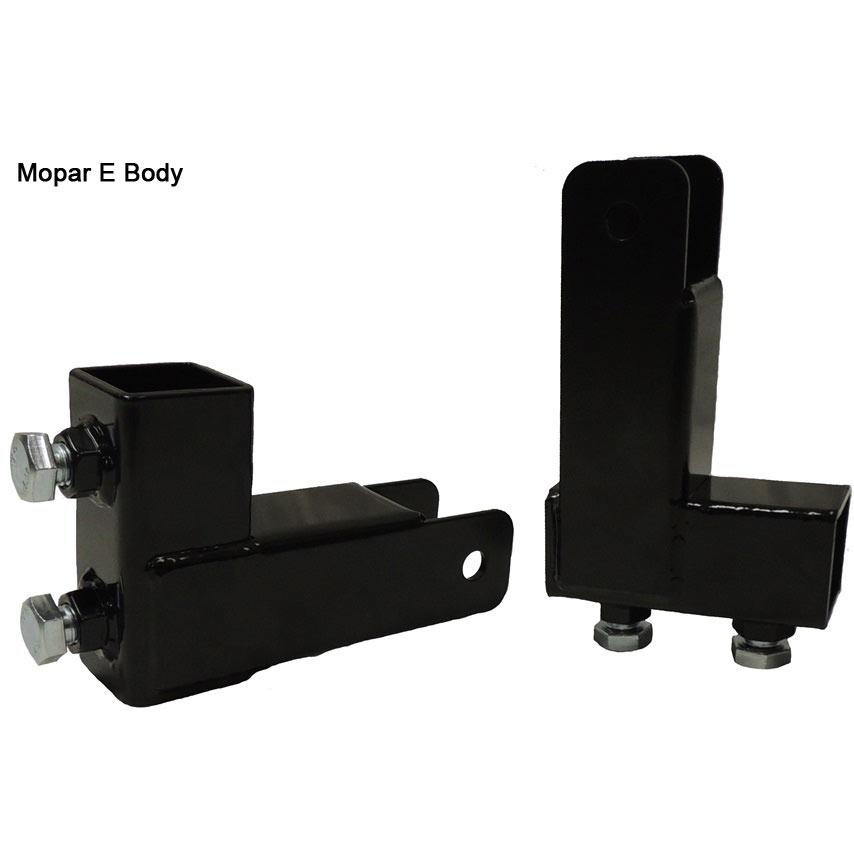

Kernel Mopar E Body Brackets

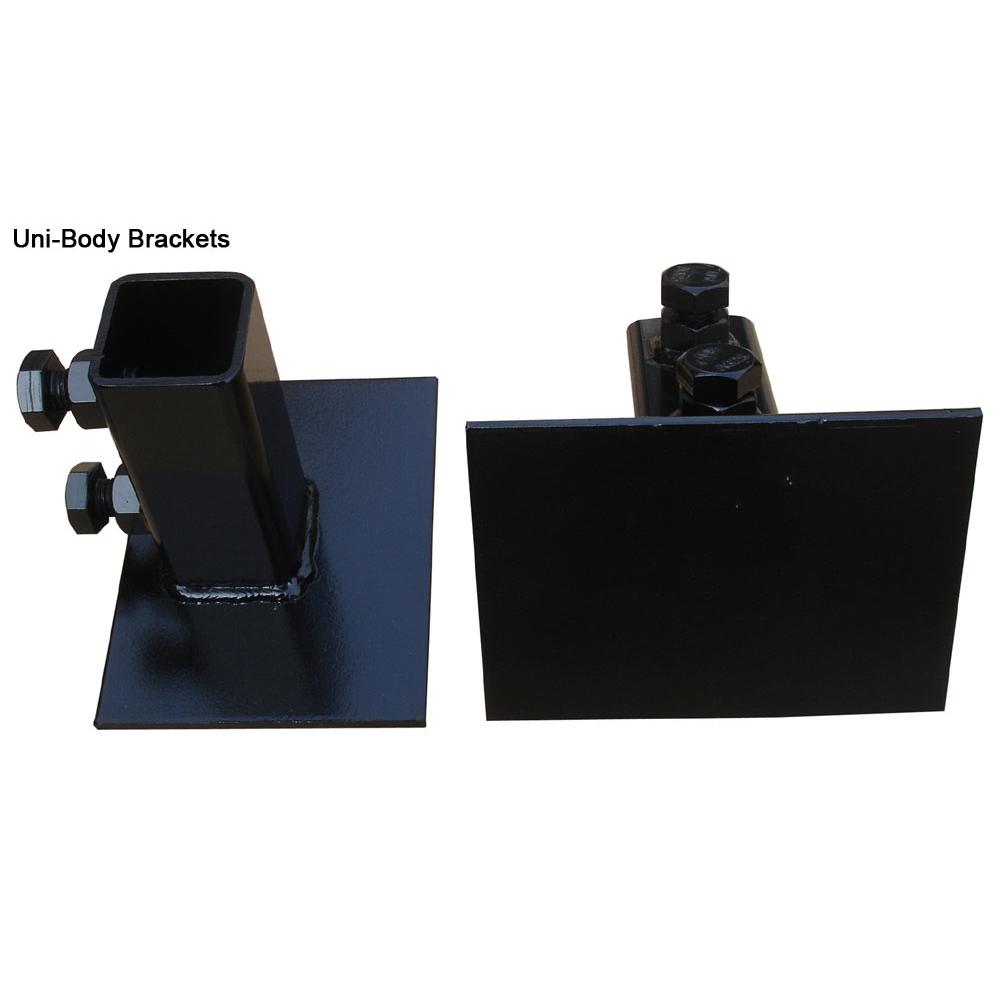

Kernel Uni-Body Rotisserie Brackets

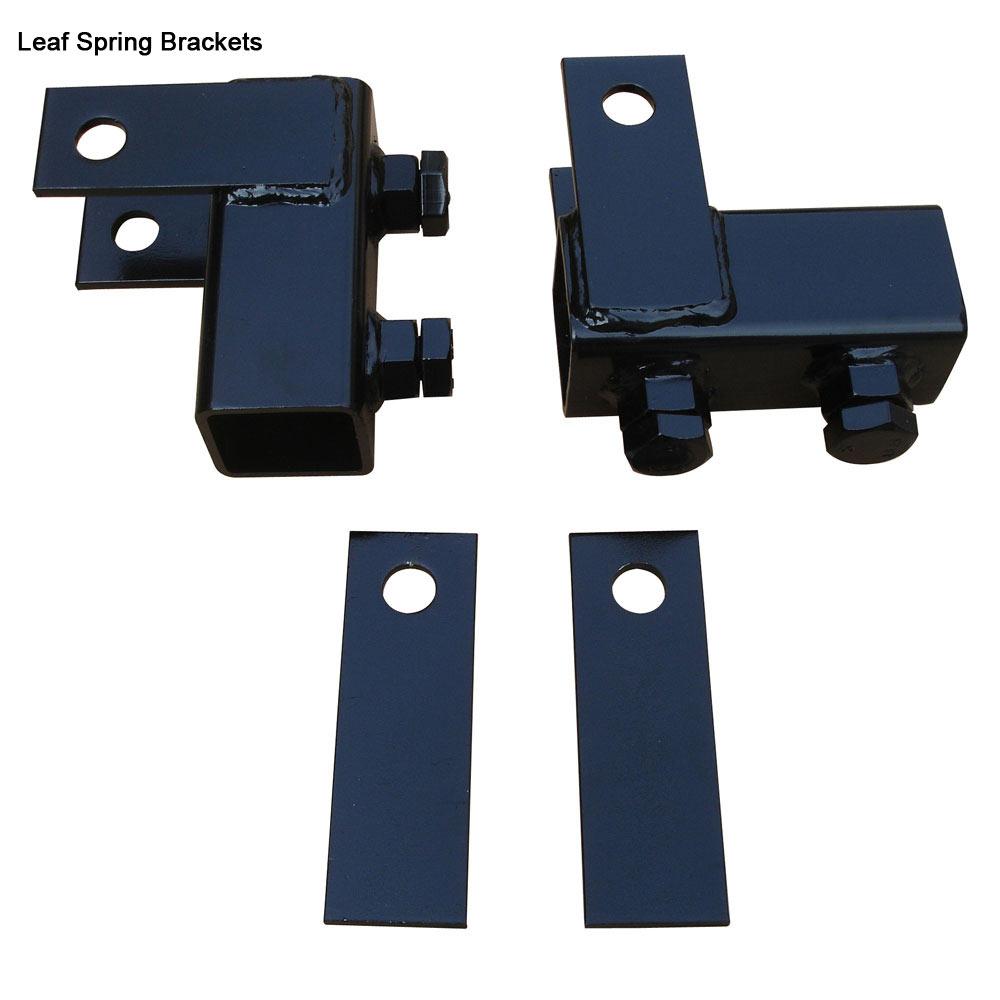

Kernel Leaf Spring Brackets

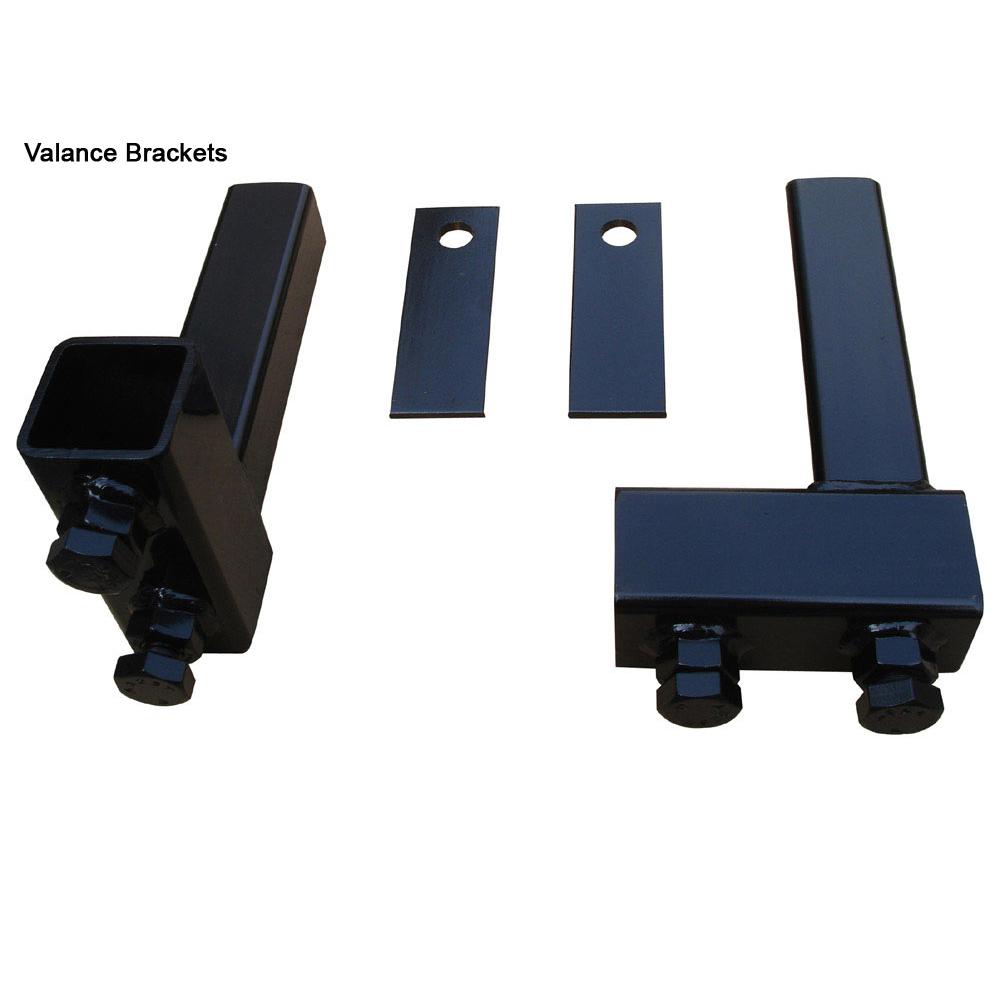

Kernel Valance Brackets

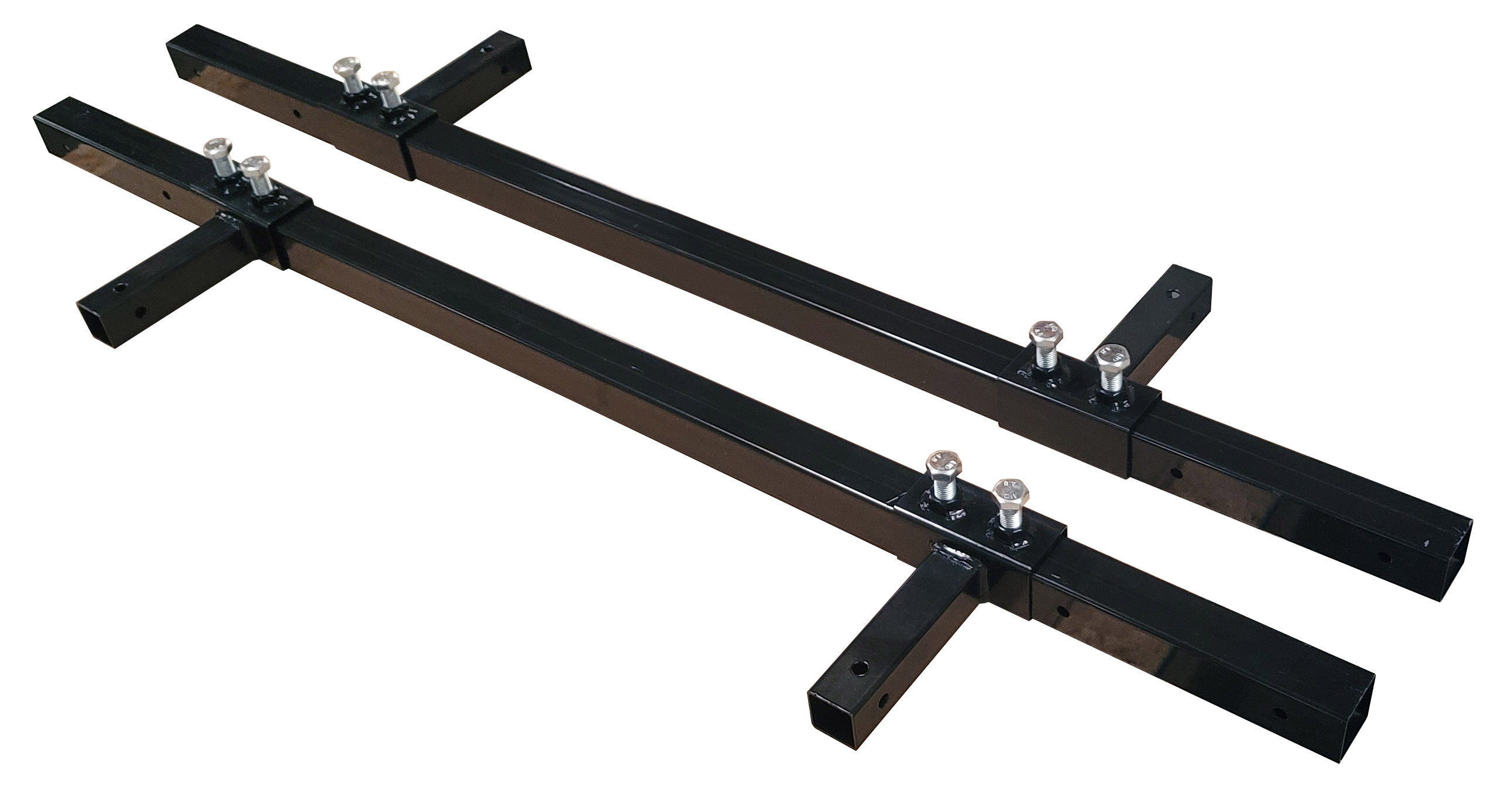

Redline Truck Cab Mounting Kit

Brand

Kernel Manufacturing

Shipping upgrades offered in cart page

The price will increase on 12-31-2024 Reg. $1,769.99 Sale price $1,389.99
21% off

Kernel Manufacturing's Auto Restoration Rotisserie rotates your vehicle's body to any angle for an easy restoration. This unit features a heavy duty balancing system, safety locks, and it adjusts to fit nearly any car. Order your Kernel Auto Rotisserie today!

KEY BENEFITS
• Securely locks at any angle
• Heavy duty balancing system
• Features 4 x 16" mounting arms
• 6 x 3" phenolic resin swivel casters
• 3 pc telescoping bar adjusts to 25 ft
• 2 X 6,600 lb jacks adjust working height

COMPATIBILITY
• Redline & AutoTwirler accessories are NOT compatible with this product

RETURNS
• Our supplier does not accept returns on this item
• In event of warranty claim, replacement part(s) will be sent

• Overall width 58.875"
• 1 year parts warranty
• 3,000 pound capacity
• Overall height 77.125"
• Overall length 258.25"
• Shipping weight 378 lbs
• Max working length: 202"
• Frame tubing is 1/8" thick
• Lifting height: 17.75" - 45.25"
• Carriage "T" frame is 48" wide
• Mounting arms are 2.375" square
• Frame is 2.75" square tubing 1/8" thick

• Browse the full manufacturer catalog HERE
• Download the pdf spec sheet HERE
• Download the pdf manual sheet HERE
• Download the balancing manual pdf HERE
• Download the pdf part breakdown sheet HERE

• Residential deliveries cost extra

• Can be picked up at local truck dock terminal

• Call for availability at locations - pickup fees apply

• Ships 61" x 30" x 15" at 410 lbs. class 60 (184980-00 NMFC)

• Free shipping applies to $300 maximum. If shipping exceeds this amount a surcharge may be needed

• Pickup at satellite warehouses:- Temecula, CA 92590
- Southfield, MI 48033
- Elwood, IN 46036
- Reidsville, NC 27320
- Orlando, FL 32809
- Alvarado, TX 76009

Redline Medium Duty Gear-Drive RTS3000 Restoration Rotisserie

$1,799.50

Redline Heavy Duty Automotive Auto ROT3K Rotisserie

$1,949.50

Titan Auto Body Restoration Rotisserie

$1,959.99

Sale

Redline Classic Car/Truck Automotive Rotisserie

Reg. $1,247.50 Sale price $1,199.50
4% off

Auto Twirler Elite Auto Restoration Rotisserie $2,629.50

Auto Twirler Pro Auto Restoration Rotisserie $2,699.50

Reviews

Be the first: write a review.

Ask & Answer

Gabriel Apr 17, 2024

Q. What is the frame tubing height and width dimensions? Is it strong?
A. We asked Kernel and were told the frame is 2.75" square tubing that is 1/8" thick. Thanks Gabriel!
Brad Dec 15, 2022

Q. I have a different type of chassis. It's for an industrial mobile robot. The length is 54" long. Will this collapse short enough to work?
A. Yes sir. You can collapse a rotisserie to make the mounting arms touch if you wish. Thanks Brad!
Mole Jul 04, 2022

Q. Is this rotisserie short enough for a truck cab and truck bed? 75 dodge power wagon
A. We feel quite confident this rotisserie will collapse together and get close enough to allow you to hook up to those items. With that said, even if we assume we're wrong, all you have to do is either A: leave out some of the center telescope tubing or B: purchase a piece of square tubing locally that's cut to the right length and don't use the supplied center tube at all. Both are viable options. Thanks; that was a great question!
MICHAEL Apr 27, 2022

Q. What is the max length of a car body with will this hold?
A. 202" is the max working length. With that said, there's nothing stopping you from replacing the center telescopic tube with one solid 24 ft stick from your local steel yard and making it super long if needed. Thanks Mike!
Bub Dec 31, 2021

Q. Will a 69 mustang bolt up to this with the fenders an radiator support still on the car ??? And what kit would I need to bolt the car on
A. We don't see a reason this isn't possible. Just make sure you are attaching firmly to the front frame assembly in a manner that can support all the weight. No brackets exists for what you're trying to do, because this is not how folks are typically doing this. I think you'll find it best to build brackets and mount the rotisserie's mounting arms to the bumper mounting locations, but this is purely speculation you should investigate yourself. I hope this helps. Thanks Bub!
