Redline TR1500 Motorcycle Lift Table with Trike Side Extensions

Model: TR1500

(14 reviews)

Please Choose:

Optional Accessories

A generic image
Include Two Extension Ramps

A generic image
Include RE-2ABJ 2 Ton Air Balloon Jack

A generic image
Include RE-3ABJ 2 Ton Air Balloon Jack

A generic image
Include RE-FJ Motorcycle Frame Jack

A generic image
Include Two RE-FJ Frame Jacks

A generic image
Include RE-ATVJK ATV Frame Jack

A generic image
Include Upright Support Poles

A generic image
Include Two ATV Frame Jacks

A generic image
Include Electric Motor Driven Upgrade

A generic image
Include Redline Roller Drop Out Panel

A generic image
Upgrade Air Pump to Commercial Grade

A generic image
Redline Wheel Vise

A generic image

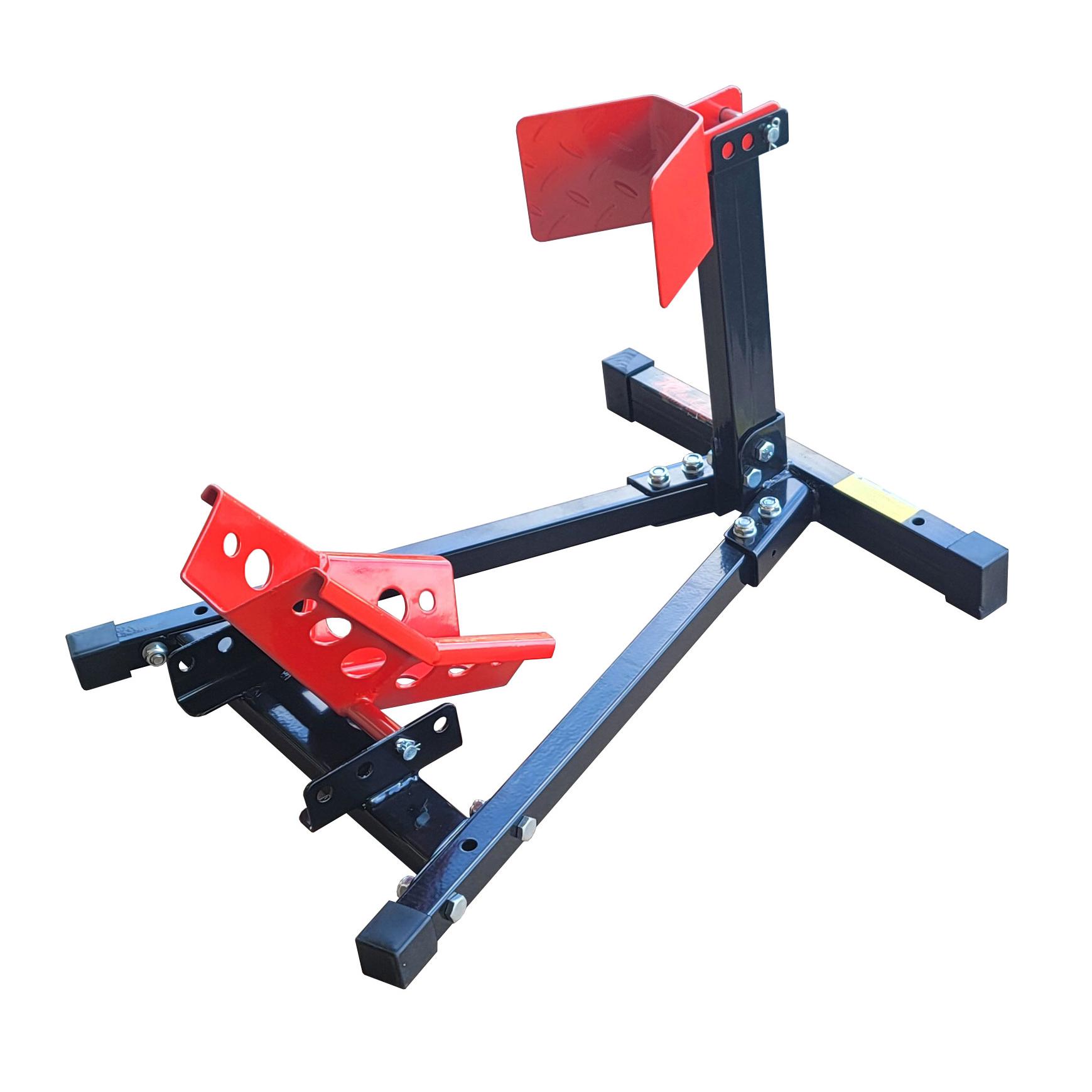

RMC2 Wheel Chock

A generic image

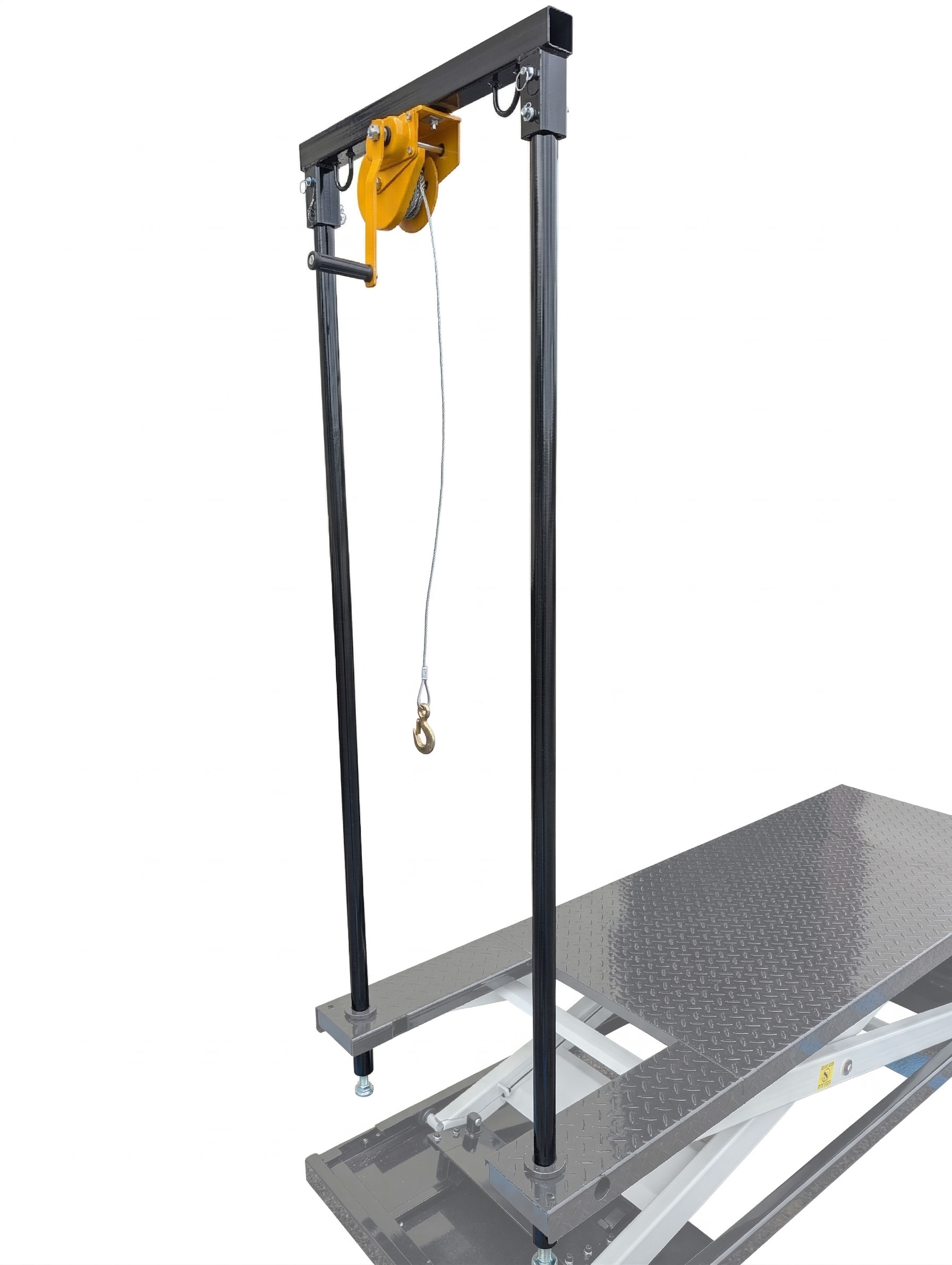

Include Gantry Crane Attachment
Capacity by LBS
Brand
Type

Shipping upgrades offered in cart page

$2,249.50
box icon

In Stock in

Pensacola
delivery icon

Usually Ships Within

24-48 Hrs

Description

The Redline TR1500 air over hydraulic lift is perfect for trikes. With side extensions that aren't full length, accessing your trike from the motor forward is a breeze. It lifts to 46" high, is 110" long, and has plenty of width at 63" wide. The TR1500's features include a 3 piece removable rear ramp section, free front extension panel, built-in casters, OPTIONAL wheel vise, rear drop out panel, side extension panels, and a built-in safety lock system. Some trikes are low enough additional ramps may be necessary to avoid scraping when driving onto lift. Ramps such as these may be needed. Call us or enter your order online today!

Pump may arrive in black or grey color

KEY BENEFITS
• Covered by Redline's 1-Year parts warranty
• Takes AW32 hydraulic fluid
• OPTIONAL vise can be purchased
• ATV full-length side extensions not available
• Casters raised/lowered via 10mm allen wrench
• Built in casters for easy moving (non load bearing)
• Includes drop out panel, front extension panel, side extensions, 3 pc ramps

READ A REVIEW
• See what a new customer has to say HERE


UPGRADE TO ELECTRIC
• Pump is 110V
• Electric is smoother, quieter, and faster!
• Upgrade to electric pump & large cylinder
• Air/hydraulic pump not needed or included

ELECTRIC CAPACITY
• Release pressure will need adjusting for max lift
• 1400 lb capacity with sides, front extension & vise
• 1550 lb capacity without sides, front extension & vise
• Air operation lifts 1500 lbs with all accessories




















OPERATE SAFELY
• Using motorcycle ratchet straps are mandatory for your safety
• Wheel vise alone not sufficient to secure motorcycle to lift table



Show more

Specs

• 8.25'' lowered height
• Crated weight 716 lbs
• 46'' max lifting height
• 1,500 pound lifting capacity
• 80.5'' table length standard
• Side extensions are 59" long
• Base measures 87.5" x 29.5"
• 139" max length with 25" ramps
• 63'' wide with side panels installed
• 29.5'' table width without side panels
• Minimum 100 psi required to operate
• Drop out panel is 17" wide x 20" long
• 110'' table length with front extension
Optional extension ramps: 48" x 10-1/2"
• Air motor requires 7 CFM of air supply
• Constructed of 11 gauge steel .125" thick
• Upgraded electric pump outputs 28 MPA
• 6 Locking Positions (23", 27 ½", 31 ¼", 34 ¾", 37 ½", and 42")

Downloads

• Download the pump vent letter HERE
• Download the owner's manual HERE

• Download the motorcycle lift table comparison chart  HERE

Shipping

• Shipping dims: 91" L x 36" W x 26" H (class 65) 716 lbs.
• Residential deliveries cost extra
• Local dock pickup saves residential fees
• Pensacola, FL pickups – read our policies HERE
• FREE shipping to commercial location w/ forklift*
• Units available in Pensacola, FL with $200 discount
• Free shipping applies to $250 maximum. If shipping exceeds this amount a surcharge may be needed

Videos

Reviews

4.9 / 5 (14 reviews)
Based on 14 Reviews Write review
  • May 15, 2026

    TR1500 lift table

    May 15, 2026
    Ordering was simple and easy. All my questions were answered. Shipping was ok from Florida to California. When I stopped receiving shipping updates, Larry tracked it. Good job Larry????. All pieces were there. One fork through the end of the lift packaging with no damage. Assembly was easy. The lift binds up around the highest lock. Haven’t figured it out yet. But I will. I really don’t need to go that high any way. Very happy with it. My motorcycle friends are jealous! I’ll send them your way. Thanks again redline for making it easy.
  • Dec 8, 2025

    Table lift

    Dec 8, 2025
    So far the lift works great Should have purchased this a long time ago
  • Nov 2, 2025

    Great lift!

    Nov 2, 2025
    I have both a 2020 Harley trike and a 2000 Softail Standard. This lift is very well made and can handle both trikes and 2 wheel bikes with ease. I also chose the commercial grade pump to make lifting the table faster and easier and the front table extension which allows you to work on bikes with extended front ends. Customer service is fast and responsive to any needs or questions you may have.

Ask & Answer

  • Tom May 10, 2026
    Q. Is the front extension included with the purchase of the TR1500?
    A. Yes sir. It's standard equipment.
  • Bryon Mar 18, 2026
    Q. I have a Goldwing trike as well as an ATV and a zero turn mower. Can the ATV sides from the 1500HD be purchased seperatly and put on the TR1500? I need 1 lift to handle all three pieces of equipment.
    A. I’m sorry but we do not carry extra sets of side extensions for the TR1500 or 1500HD, because both lifts come standard with their corresponding side extensions in the crate. Thus, I believe your best bet to lift all of those machines will be the 2200HD. Thanks for shopping with us!
  • LAB Dec 10, 2025
    Q. What is total length of TR 1500 with ramps?
    A. Yes sir. I checked and that specification was posted to our specs tab. Lots of good specs in there. It shows 39" max length with 25" ramps. Thanks for shopping with us!
  • Willie Nov 20, 2025
    Q. Will this lift work for a can-am spider?
    A. Sir, please check the additional photos of this product. There are pictures of Can-Am Spiders on this lift. Thanks for shopping with us!
  • Hsinif Oct 03, 2025
    Q. I have a 2012 Goldwing with a RoadSmith trike kit. Will my trike fit on this table. All of the local shops their lifts will only fit Harleys. RoadSmith trikes are longer than Harley.
    A. My apologies sir, but we do not possess the specs to your trike and we do not know. You'll need to cross reference our posted specs of the TR1500 lift against your trike to determine if it'll fit. Our apologies; we wish we could be of more help.
